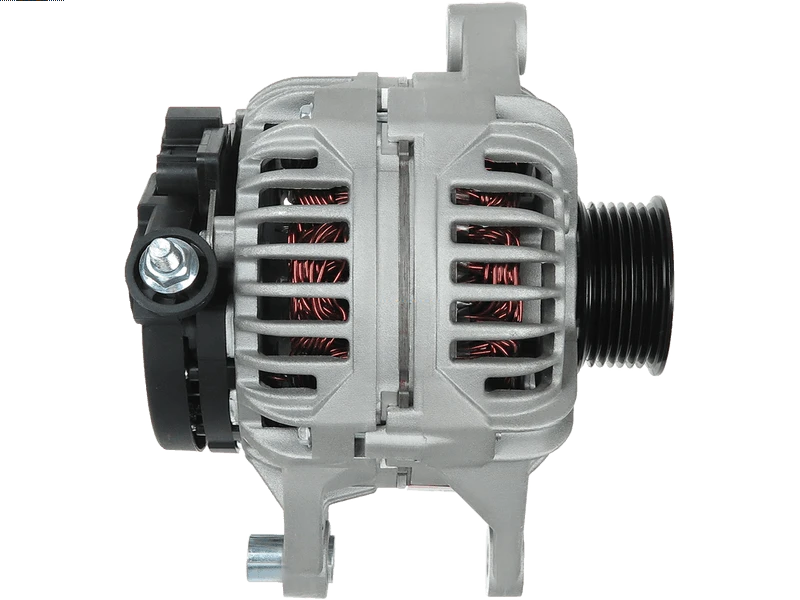

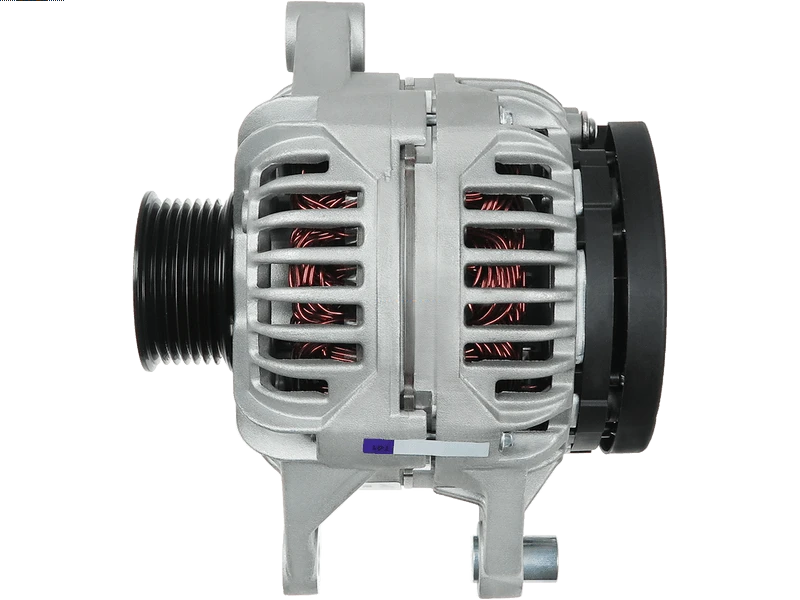

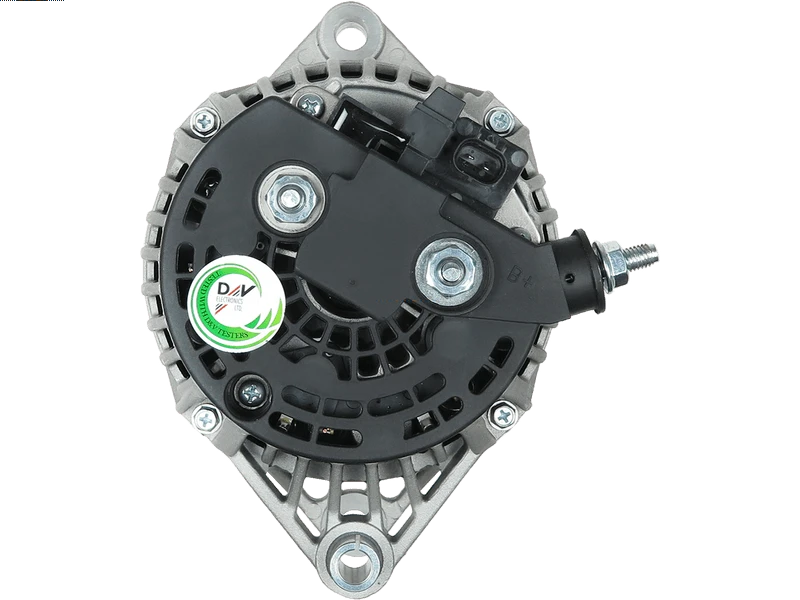

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 424.97 including GST
NZ$ 369.54 excluding GST
or four payments of $106.24
with
Learn More
each
A0694S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124525007Associated Numbers
0124525007 13917N 160-55103 89214008 90-15-6448 A-6421 ALB3808 UD10069ASpecifications
| Amp | 136 A |
| Bottom Mounting Foot Width (B) | 12 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 53.50 mm |
| OEM Product | No |
| Plug Code | PL_2802 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DODGE | Ram 2500 8.0 | 01.2002-12.2003 | |
| DODGE | Ram 3500 8.0 | 01.2002-12.2003 |
Reference Information
| 0124525007 | BOSCH |
| 13917N | WAI / TRANSPO |
| 160-55103 | DIXIE |
| 89214008 | POWERMAX |
| 90-15-6448 | WILSON |
| A-6421 | DIXIE |
| ALB3808 | KRAUF |
| UD10069A | AS-PL |
Video/Publications
A0694SView your shopping basket or Browse other items in Alternators.
