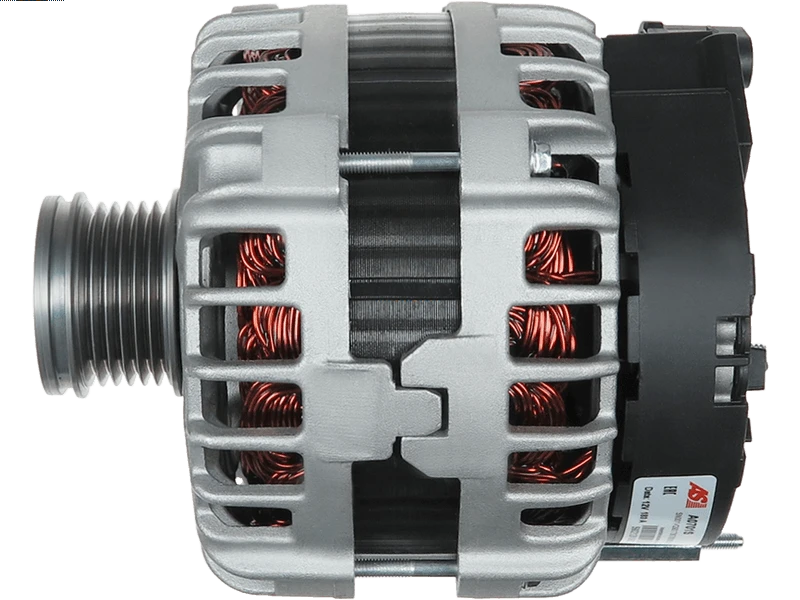

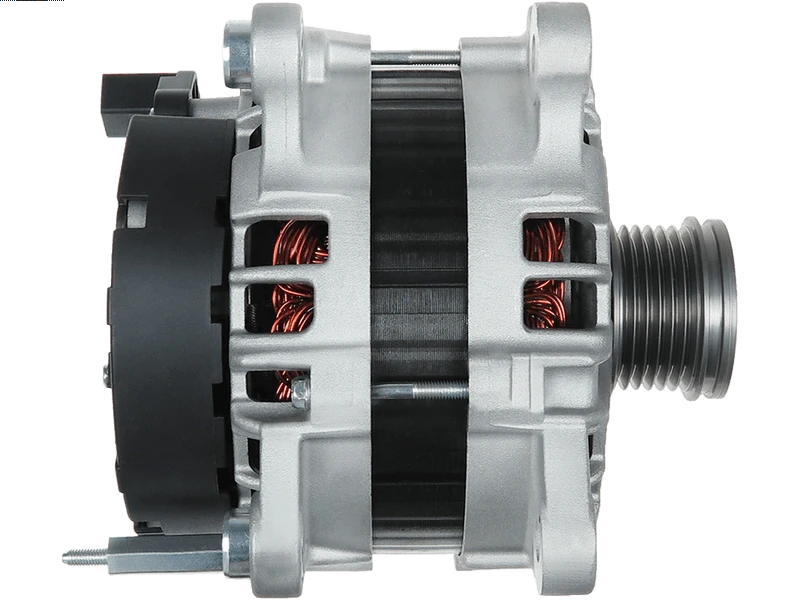

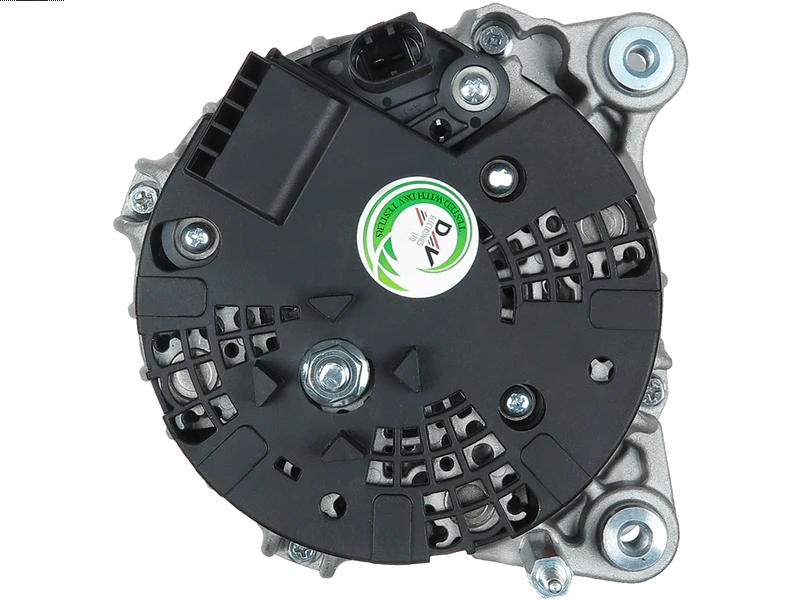

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 756.02 including GST
NZ$ 657.41 excluding GST
or four payments of $189.01
with
Learn More
each
A0701S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0125811073Associated Numbers
0125811031 0125811073 04E903021P 04E903021PX 20179245OE 28-6739 305.942.180 57752 ALB1073 CAL10A30GS LRA03629 UD17106ASpecifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Alhambra 1.4 | [CZDA] | 01.2015- |
| SEAT | Alhambra 1.4 | [DJKA] | 01.2015- |
| SEAT | Ateca 1.0 | [CHZJ] | 01.2016- |
| SEAT | Ateca 1.0 | [DKRF] | 01.2016- |
| SEAT | Ateca 1.4 | [CZEA] | 01.2016- |
| SEAT | Ateca 1.5 | [DADA] | 01.2018- |
| SEAT | Leon 1.0 | [DKLB] | 01.2018- |
| SEAT | Leon 1.4 | [CZDA] | 01.2014- |
| SEAT | Leon 1.4 | [CZEA] | 01.2014- |
| SEAT | Leon 1.5 | [DACA] | 01.2018- |
| SEAT | Leon 1.5 | [DADA] | 01.2018- |
| SEAT | Leon 1.5 | [DHFA] | 01.2018- |
| SEAT | Leon ST 1.0 | [DKLB] | 01.2018- |
| SEAT | Leon ST 1.5 | [DACA] | 01.2018- |
| SEAT | Leon ST 1.5 | [DADA] | 01.2018- |
| SEAT | Leon ST 1.5 | [DHFA] | 01.2018- |
| SEAT | Tarraco 1.5 | [DADA] | 01.2018- |
| SKODA | Karoq 1.0 | [CHZJ] | 01.2017- |
| SKODA | Karoq 1.5 | [DADA] | 01.2017- |
| SKODA | Kodiaq 1.4 | [CZCA] | 01.2016- |
| SKODA | Kodiaq 1.4 | [CZDA] | 01.2016- |
| SKODA | Kodiaq 1.4 | [CZEA] | 01.2016- |
| SKODA | Kodiaq Scout 1.4 | [CZDA] | 01.2017- |
| SKODA | Kodiaq Scout 1.4 | [CZEA] | 01.2017- |
| SKODA | Octavia 1.2 TSi | [CJZA] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CJZB] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CYVB] | 01.2015- |
| SKODA | Octavia 1.4 Tsi | [CPWA] | 01.2013- |
| SKODA | Octavia 1.4 TSi | [CHPA] | 01.2013- |
| SKODA | Superb 1.5 | [DADA] | 01.2015- |
| SKODA | Superb 1.5 | [DADA] | 01.2017- |
| VW | Arteon 1.5 | [DADA] | 01.2017- |
| VW | Caddy 1.0 | [CHZG] | 01.2015- |
| VW | Caddy 1.0 | [DKRE] | 01.2015- |
| VW | Caddy 1.0 Alltrack | [CHZG] | 01.2015- |
| VW | Caddy 1.0 Maxi | [CHZG] | 01.2015- |
| VW | Caddy 1.0 Maxi | [DKRE] | 01.2015- |
| VW | Caddy 1.2 | [CYVC] | 01.2015- |
| VW | Caddy 1.2 Alltrack | [CYVC] | 01.2015- |
| VW | Caddy 1.4 | [CPWA] | 01.2015- |
| VW | Caddy 1.4 | [CZCB] | 01.2015- |
| VW | Caddy 1.4 Alltrack | [CPWA] | 01.2015- |
| VW | Caddy 1.4 Alltrack | [CZCB] | 01.2015- |
| VW | Caddy 1.4 Maxi | [CPWA] | 01.2015- |
| VW | Caddy 1.4 Maxi | [CZCB] | 01.2015- |
| VW | Golf 1.0 | [CHZC] | 01.2016- |
| VW | Golf 1.0 | [CHZC] | 01.2017- |
| VW | Golf 1.0 | [CHZD] | 01.2015- |
| VW | Golf 1.0 | [CHZD] | 01.2015-12.2017 |
| VW | Golf 1.0 | [CHZK] | 01.2017- |
| VW | Golf 1.0 | [DKLB] | 01.2017- |
| VW | Golf 1.4 | [CPWA] | 01.2013- |
| VW | Golf 1.4 | [CZBA] | 01.2013- |
| VW | Golf 1.4 | [CZCA] | 01.2014- |
| VW | Golf 1.4 | [CZDD] | 01.2014- |
| VW | Golf 1.5 | [DACA] | 01.2017- |
| VW | Golf 1.5 | [DADA] | 01.2017- |
| VW | Golf 1.5 | [DHFA] | 01.2018- |
| VW | Golf VII 1.2 TSi | [CJZA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CJZB] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVB] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TGi | [CPWA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TGi | [CZBA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CHP] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CPTA] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CPV] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CZA] | 01.2012-12.2013 |
| VW | Passat 1.5 | [DADA] | 01.2018- |
| VW | Polo 1.4 TSi | [CPTA] | 01.2013-01.2014 |
| VW | Tiguan 1.4 | [CZCA] | 01.2016- |
| VW | Touran 1.2 | [CYVB] | 01.2015- |
| VW | Touran 1.4 | [CZDA] | 01.2015- |
| VW | Touran 1.5 | [DADA] | 01.2018- |
| VW | T-Roc 1.0 | [CHZJ] | 01.2017- |
| VW | T-Roc 1.0 | [DKRF] | 01.2019- |
| VW | T-Roc 1.5 | [DADA] | 01.2017- |
| VW | T-Roc 1.5 | [DADA] | 01.2018- |
Reference Information
| 0125811031 | BOSCH |
| 0125811073 | BOSCH |
| 04E903015D | VW |
| 04E903015DX | VW |
| 04E903015E | VW |
| 04E903015EX | VW |
| 04E903015R | VW |
| 04E903015RX | VW |
| 04E903015SX | VW |
| 04E903021P | VW |
| 04E903021PX | VW |
| 04E903023D | VW |
| 04E903023DX | VW |
| 04E903023L | VW |
| 04E903023LX | VW |
| 04E903023M | VW |
| 04E903023MX | VW |
| 20179245OE | REAL |
| 28-6739 | ELSTOCK |
| 305.942.180 | PSH |
| 57752 | EAI |
| ALB1073 | KRAUF |
| ALT10223 | ELECTROLOG |
| ALT12A300 | SIOM |
| ALT175420 | SIOM |
| CAL10A30GS | CASCO |
| LRA03629 | LUCAS |
| LRA3629 | LUCAS |
| STX102169 | STARDAX |
| UD17106A | AS-PL |
Video/Publications
