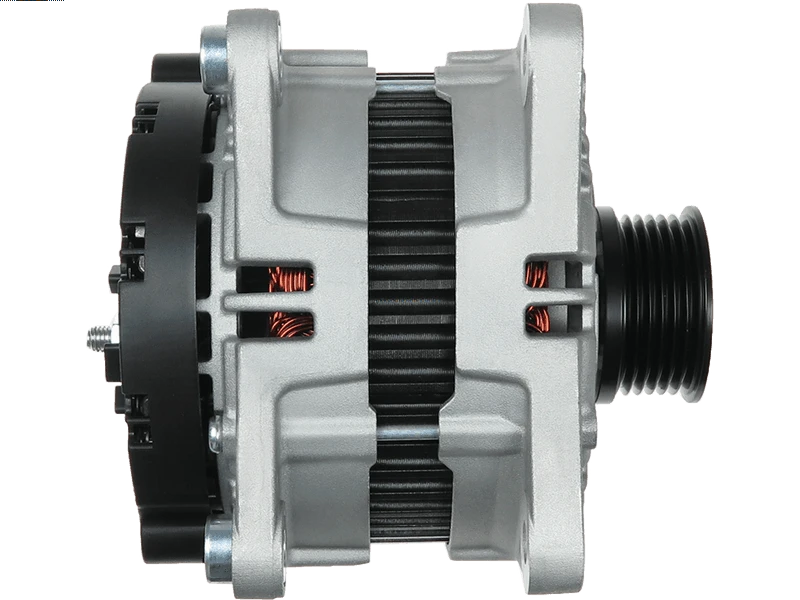

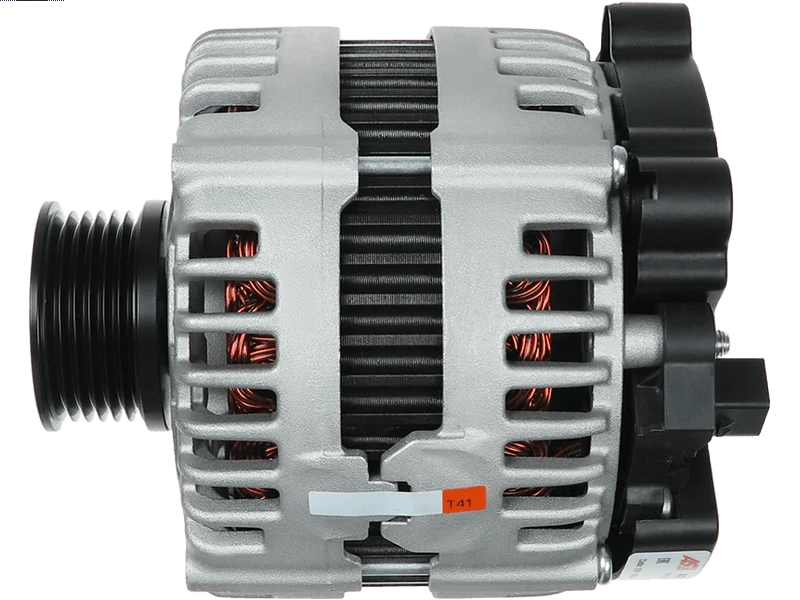

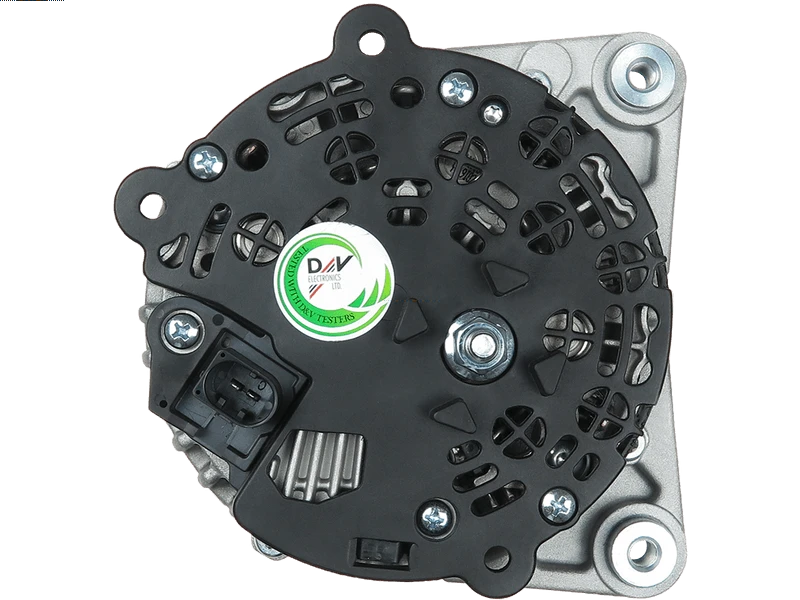

A0703S - Brand new AS-PL Alternator

Brand new AS-PL Alternator
Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 562.06 including GST

NZ$ 488.75 excluding GST



or four payments of $140.52 with
Afterpay Payment Offer Learn More

each
A0703S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0121615016
0121615016 0121615116 11470-OS 11470N 20101293OE 2010392.1 28-6540 485.503.150 89215495 90-15-6600 9A160301200 9A160301201 9A1603012X A-6728 ALB5116 ALT10820 BOS0121615116 CAL10392GS LRA03428 UD13543A
Amp150 A
Bottom Mounting Foot Width (B)14 mm
Diameter (D.1)9 mm
Diameter (D.2)9 mm
Diameter (D.3)M8x1.25 mm
Diameter (D.4)M8x1.25 mm
Length (L.1)178 mm
Mount Inside Length or Pad Mount C-C (C)62 mm
OEM ProductNo
Plug CodePL_2303
Product LineStandard Line
Product TypeBrand new
Pulley Grooves6 qty
Pulley Outside Diameter (O.D.1)52 mm
Pulley to Mount Distance (A)36 mm
Pulley TypeSolid
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
PORSCHE 911 3.4 Carrera [MA1.04] 03.2012-
PORSCHE 911 3.4 Carrera [MA1.04] 12.2011-
PORSCHE 911 3.4 Carrera [MAB.04] 03.2012-
PORSCHE 911 3.4 Carrera [MAB.04] 12.2011-
PORSCHE 911 3.6 Carrera [MA1.02] 06.2008-12.2011
PORSCHE 911 3.6 Carrera 4 [MA1.02] 06.2008-12.2012
PORSCHE 911 3.6 Carrera 4 [MA1.02] 10.2008-12.2012
PORSCHE 911 3.8 Carrera 4 GTS [MA1.01] 06.2009-12.2012
PORSCHE 911 3.8 Carrera 4 GTS [MA1.03] 11.2012-
PORSCHE 911 3.8 Carrera 4S [MA1.01] 06.2008-12.2012
PORSCHE 911 3.8 Carrera 4S [MA1.01] 10.2008-12.2012
PORSCHE 911 3.8 Carrera 4S [MA1.03] 11.2012-
PORSCHE 911 3.8 Carrera 4S [MAB.03] 11.2012-
PORSCHE 911 3.8 Carrera GTS [MA1.01] 06.2009-12.2011
PORSCHE 911 3.8 Carrera GTS [MA1.03] 07.2012-
PORSCHE 911 3.8 Carrera S [MA1.01] 06.2008-12.2011
PORSCHE 911 3.8 Carrera S [MA1.03] 03.2012-
PORSCHE 911 3.8 Carrera S [MA1.03] 07.2012-
PORSCHE 911 3.8 Carrera S [MA1.03] 12.2011-
PORSCHE 911 3.8 Carrera S [MAB.03] 03.2012-
PORSCHE 911 3.8 Carrera S [MAB.03] 12.2011-
PORSCHE 911 3.8 GT3 [MA1.75] 08.2013-
PORSCHE 911 3.8 Turbo [MA1.70] 09.2009-12.2012
PORSCHE 911 3.8 Turbo [MA1.71] 09.2013-
PORSCHE 911 3.8 Turbo S [MA1.70] 02.2010-12.2012
PORSCHE Boxster 2.9 [MA1.20] 06.2009-12.2011
PORSCHE Boxster S 3.4 [M97.22] 08.2008-12.2009
PORSCHE Boxster S 3.4 [MA1.21] 06.2009-12.2011
PORSCHE Boxster S 3.4 [MA1.23] 04.2012-
PORSCHE Boxster Spyder 3.4 [MA1.21] 06.2010-12.2011
PORSCHE Cayman 2.9 [MA1.20] 02.2009-12.2012
PORSCHE Cayman R 3.4 [MA1.21] 11.2010-12.2012
PORSCHE Cayman S 3.4 [MA1.21] 02.2009-06.2013
PORSCHE Cayman S 3.4 [MA1.23] 03.2013-
0121615016BOSCH
0121615116BOSCH
11470NWAI / TRANSPO
11470-OSWAI / TRANSPO
20101293OEREAL
2010392.1SANDO
28-6540ELSTOCK
485.503.150PSH
485.503.150.014PSH
5510688MEAT & DORIA
89215495POWERMAX
90-15-6600WILSON
9A160301200PORSCHE
9A160301201PORSCHE
9A1603012AXPORSCHE
9A1603012XPORSCHE
A12BH0909ASSIDAT
A-6728DIXIE
ALB5116KRAUF
ALT10820WOODAUTO
ALT123920SIOM
ALTF8613EFFE
BOS0121615116WOODAUTO
CAL10392GSCASCO
LRA03428LUCAS
LRA3428LUCAS
PRAF8613EFFE
UD13543AAS-PL
A0703S
