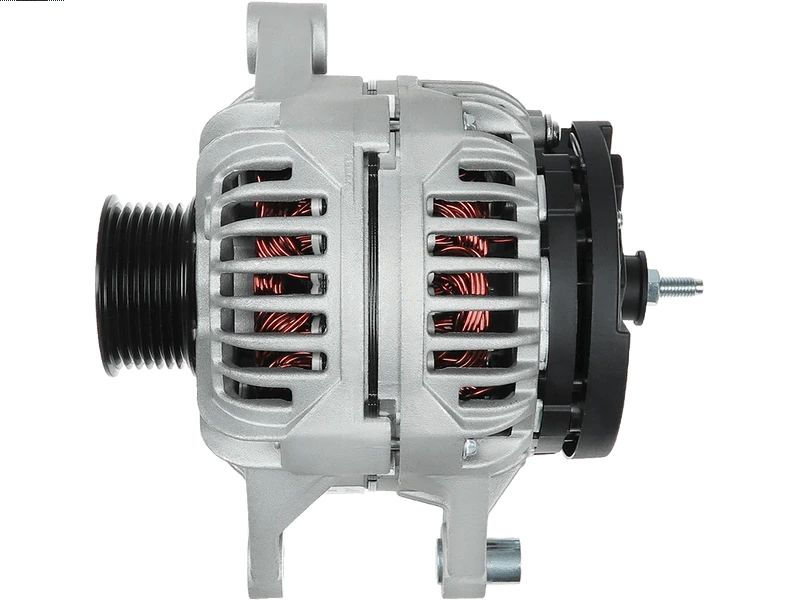

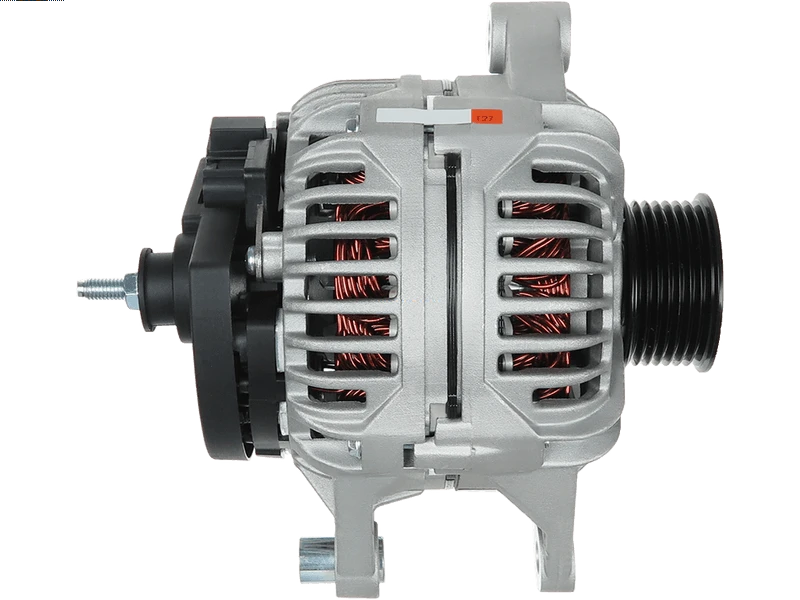

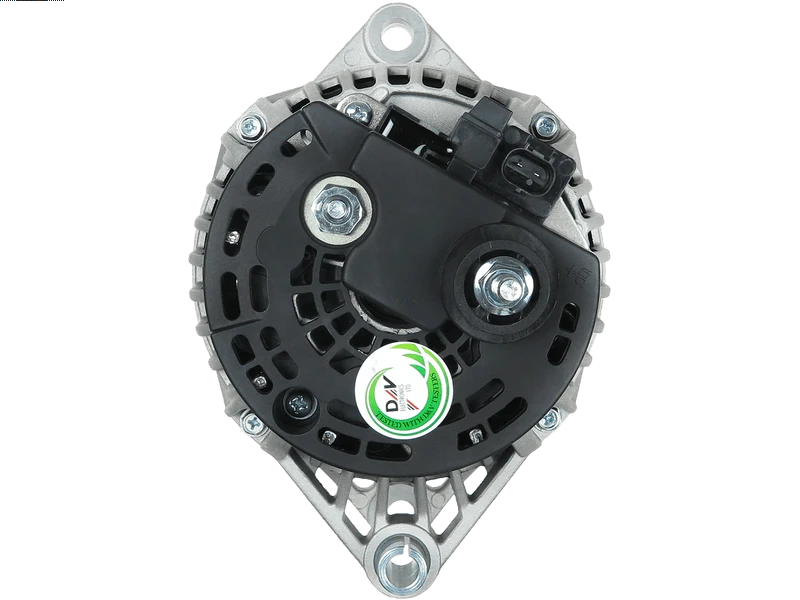

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 434.25 including GST
NZ$ 377.61 excluding GST
or four payments of $108.56
with
Learn More
each
A0714S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124525004Associated Numbers
0124525004 121000-4350 13920N 146-37119 27-4782 56027913AB 56027913AC 56028238 56028920AA 6004ML0002 835.517.132 90-15-6436 9214094 A-8921 ALN3564 ALT10513 LRA01161 UD20688ASpecifications
| Amp | 136 A |
| Bottom Mounting Foot Width (B) | 12 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 215 mm |
| Mount Inside Length or Pad Mount C-C (C) | 53.50 mm |
| OEM Product | No |
| Plug Code | PL_2802 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DODGE | Dakota 3.9 V6 | 01.1996-12.2003 |
Reference Information
| 0124525004 | BOSCH |
| 113355 | FARCOM |
| 121000-4350 | DENSO |
| 13742N | WAI / TRANSPO |
| 13920N | WAI / TRANSPO |
| 146-37119 | DIXIE |
| 27-4782 | ELSTOCK |
| 5000461362 | DRI |
| 553134RI | KUHNER |
| 56027913AB | CHRYSLER |
| 56027913AC | CHRYSLER |
| 56028238 | CHRYSLER |
| 56028920AA | CHRYSLER |
| 6004ML0002 | BOSCH |
| 835.517.132.050 | PSH |
| 835.517.132.460 | PSH |
| 835.517.132.461 | PSH |
| 89214094 | POWERMAX |
| 90-15-6436 | WILSON |
| 90-29-5676 | WILSON |
| 9214094 | POWERMAX |
| A-8921 | DIXIE |
| AC-CBA5361 | ACAUTO |
| AL00270 | TMI |
| ALN3564 | KRAUF |
| ALT10513 | WOODAUTO |
| ALT1691 | ELECTROLOG |
| ALTE724 | 3EFFE |
| ALTW117 | 3EFFE |
| CGB-74782 | AINDE |
| G106023 | BTS TURBO |
| L80330 | ATL AUTOTECHNIK |
| LRA01161 | LUCAS |
| LRA1161 | LUCAS |
| PRAE724 | 3EFFE |
| PRAW117 | 3EFFE |
| STX102254 | STARDAX |
| UD20688A | AS-PL |
Video/Publications
