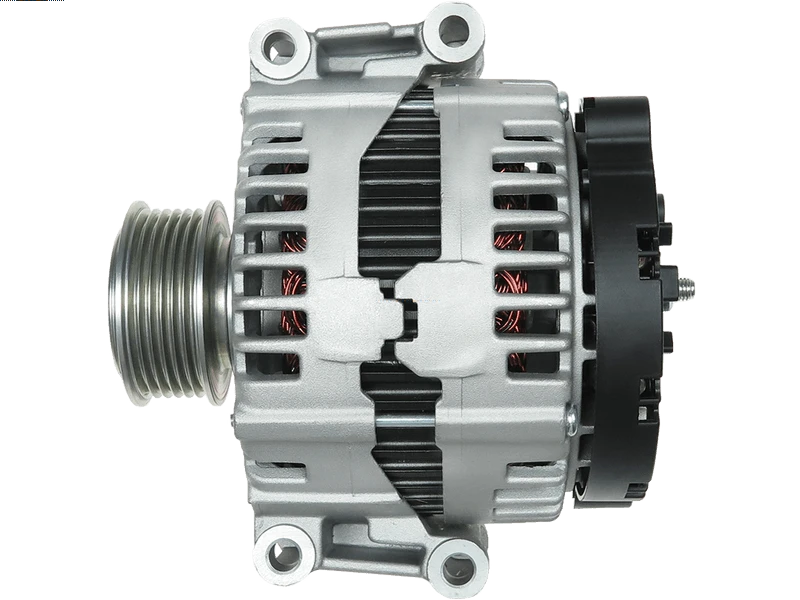

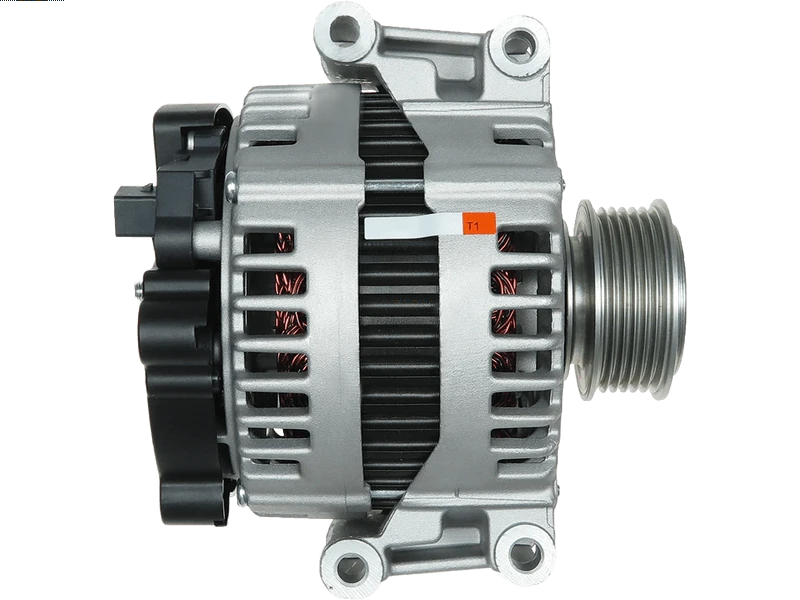

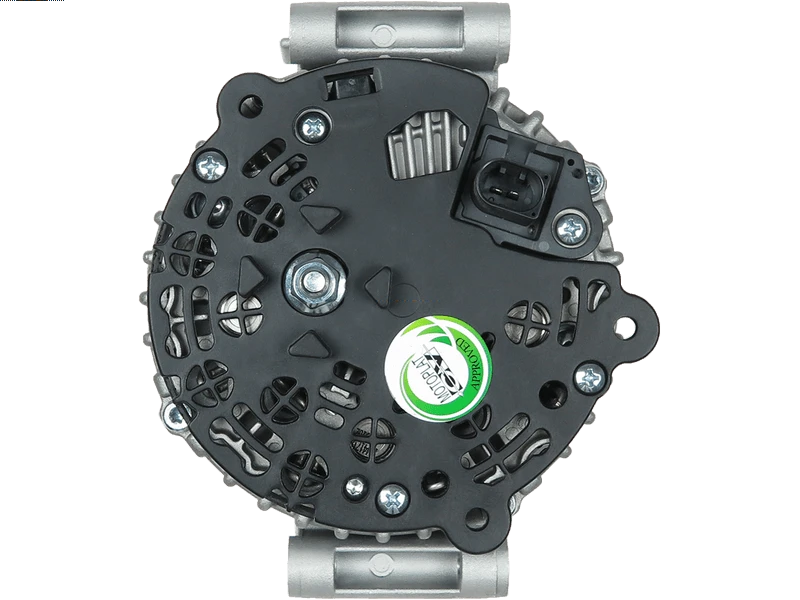

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 629.66 including GST
NZ$ 547.53 excluding GST
or four payments of $157.42
with
Learn More
each
AAM-C6009,A3257,A3265
A0723S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0121715022Associated Numbers
0121715022 UD20668A 0121715122 115414 CAL10A13AS 4649 DRA0053 DRA0358 57215 28-4871 ALB5022 553122RIV LRA02365 89214975 205.521.180 20179663OE 2010A13.0 06E903016M 06E903016MX 11162N 90-15-6572 ALT10732Specifications
| Amp | 180 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2303 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 64.50 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 2.4 | [BDW] | 01.2004- |
| AUDI | A6 2.8 FSi | [BDX] | 01.2007- |
| AUDI | A6 2.8 FSi | [CCEA] | 01.2007- |
| AUDI | A6 2.8 FSi Quattro | [BDX] | 01.2007- |
| AUDI | A6 2.8 FSi Quattro | [CCEA] | 01.2007- |
| AUDI | A6 3.0 TFSi | [CAJA] | 01.2008- |
| AUDI | A6 3.2 FSi | [AUK] | 01.2004-12.2007 |
| AUDI | A6 3.2 FSi | [BKH] | 01.2006- |
| AUDI | A6 3.2 FSi Quattro | [BYU] | 01.2006-12.2008 |
Reference Information
| 0121715022 | BOSCH |
| 0121715122 | BOSCH |
| 06E903016G | VW |
| 06E903016K | VW |
| 06E903016KX | VW |
| 06E903016L | VW |
| 06E903016LX | VW |
| 06E903016M | VW |
| 06E903016MX | VW |
| 11162N | WAI / TRANSPO |
| 115414 | CARGO |
| 2010A13.0 | SANDO |
| 20179663OE | REAL |
| 205.521.180 | PSH |
| 28-4871 | ELSTOCK |
| 32437528 | HERTH+BUSS |
| 4649 | CEVAM |
| 553122RIV | KUHNER |
| 57215 | EAI |
| 89214975 | POWERMAX |
| 90-15-6572 | WILSON |
| A12BH0739AS | SIDAT |
| A131.434 | PSH |
| ALB5022 | KRAUF |
| ALT10732 | WOODAUTO |
| ALT12A130A | SIOM |
| ALT173660 | SIOM |
| ALT2281 | 3EFFE |
| ALTF355 | 3EFFE |
| CAL10A13AS | CASCO |
| DRA0053 | DELCO |
| DRA0358 | DELCO |
| F032115414 | CARGO |
| FG18S136 | VALEO |
| LRA02365 | LUCAS |
| LRA2365 | LUCAS |
| PRAF355 | 3EFFE |
| STX102161 | STARDAX |
| STX102161R | STARDAX |
| UD20668A | AS-PL |
