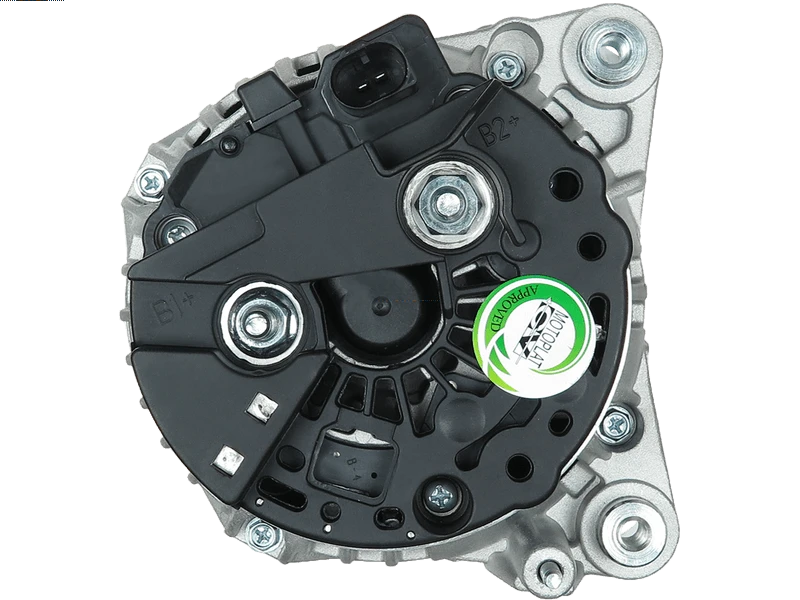

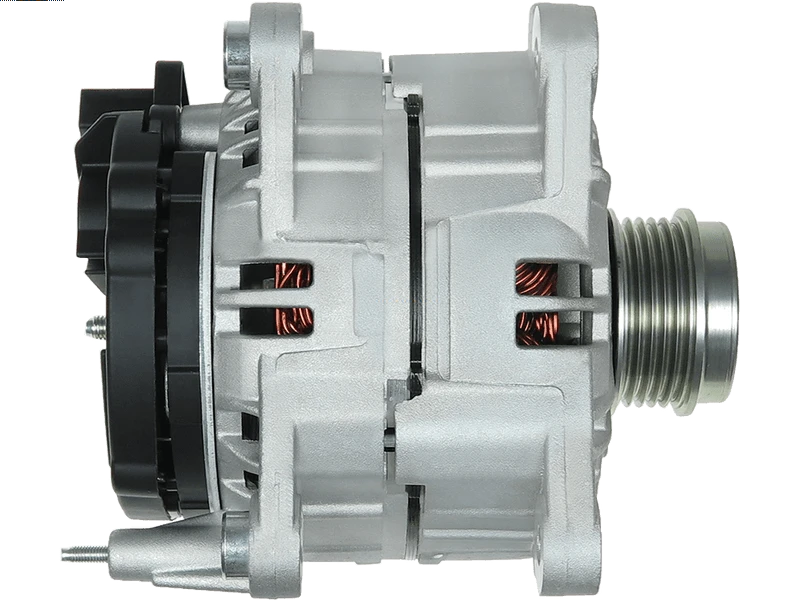

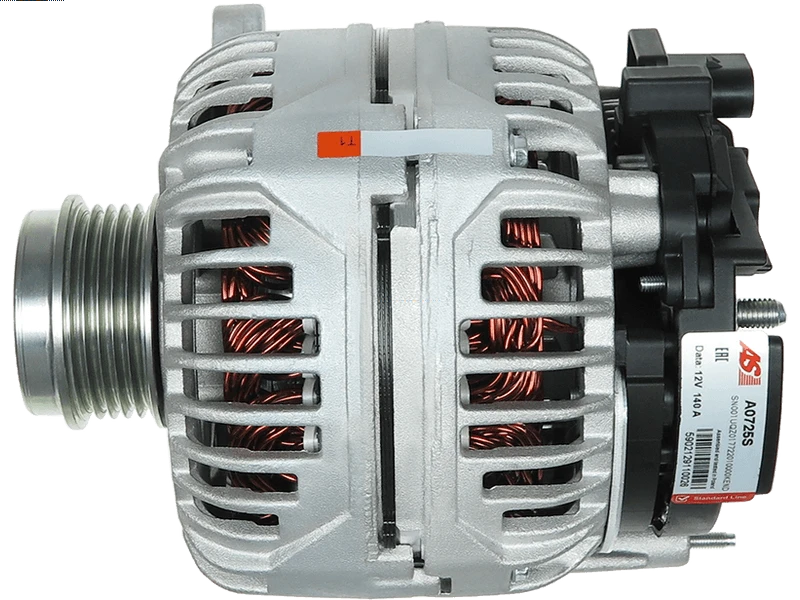

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 577.67 including GST
NZ$ 502.32 excluding GST
or four payments of $144.42
with
Learn More
each
A0725S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124525010Associated Numbers
0124525010 UD20664A 0124525089 0986044460 113252 CAL15270AS CAL15270GS 4647 A-6600 28-4818 210134 AG0642 8EL011710-681 32044460 ALB1678 301678RI 301678RIV LRA02323 89213623 305.525.140 20179072BN 20179072OE 2015270.0 2015270.1 2542496 437377 439421 SG14B011 028903029Q 028903029R 23320N 23320R 90-15-6533 ALT14199Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 29.50 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.9 TDi | [AVB] | 05.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AVB] | 11.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AVF] | 09.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AVF] | 11.2000-12.2004 |
| AUDI | A4 1.9 TDi | [AWX] | 09.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AWX] | 11.2000-12.2004 |
| AUDI | A4 1.9 TDi Quattro | [AVF] | 11.2001-12.2004 |
| AUDI | A6 1.9 TDi | [AVF] | 08.2001-01.2005 |
| AUDI | A6 1.9 TDi | [AWX] | 08.2001-01.2005 |
| SKODA | Superb 1.9 TDi | [AVB] | 08.2002-10.2005 |
| SKODA | Superb 1.9 TDi | [AVF] | 12.2001-03.2008 |
| SKODA | Superb 1.9 TDi | [AWX] | 12.2001-03.2008 |
| SKODA | Superb 1.9 TDi | [BPZ] | 01.2007-03.2008 |
| SKODA | Superb 1.9 TDi | [BSV] | 10.2005-05.2007 |
| SKODA | Superb 2.0 | 02.2006-03.2008 | |
| SKODA | Superb 2.0 TDi | [BSS] | 10.2005-03.2008 |
| VW | Passat 1.9 TDi | [AVB] | 02.2000-11.2000 |
| VW | Passat 1.9 TDi | [AVB] | 11.2000-05.2005 |
| VW | Passat 1.9 TDi | [AVF] | 11.2000-05.2005 |
| VW | Passat 1.9 TDi | [AWX] | 11.2000-05.2005 |
| VW | Passat 1.9 TDi 4-Motion | [AVF] | 11.2000-05.2005 |
| VW | Passat 2.0 TDi | [BGW] | 12.2003-05.2005 |
| VW | Passat 2.0 TDi | [BHW] | 12.2003-05.2005 |
Reference Information
| 0124525010 | BOSCH |
| 0124525089 | BOSCH |
| 028903029Q | VW |
| 028903029QX | VW |
| 028903029R | VW |
| 028903029RX | VW |
| 0986044460 | BOSCH |
| 113252 | CARGO |
| 2015270.0 | SANDO |
| 2015270.1 | SANDO |
| 20179072BN | REAL |
| 20179072OE | REAL |
| 210134 | ERA |
| 23320N | WAI / TRANSPO |
| 23320R | WAI / TRANSPO |
| 2542496 | VALEO |
| 28-4818 | ELSTOCK |
| 28903029Q | VW |
| 28903029QX | VW |
| 28903029R | VW |
| 28903029RX | VW |
| 301678RI | KUHNER |
| 301678RIV | KUHNER |
| 305.525.140 | PSH |
| 305.525.140.004 | PSH |
| 305.525.140.008 | PSH |
| 305.525.140.019 | PSH |
| 305.525.140.460 | PSH |
| 305.525.140.775 | PSH |
| 310980 | RHIAG |
| 32044460 | HERTH+BUSS |
| 335670 | RHIAG |
| 437377 | VALEO |
| 439421 | VALEO |
| 441825 | LOGISTIK |
| 4647 | CEVAM |
| 89213623 | POWERMAX |
| 8EL011710-681 | HELLA |
| 90-15-6533 | WILSON |
| A12BH0012A2 | SIDAT |
| A12VA0012AS | SIDAT |
| A-6600 | DIXIE |
| AG0642 | GHIBAUDI |
| AI-90125 | AINDE |
| ALB1678 | KRAUF |
| ALT0025 | ELECTROLOG |
| ALT1375 | ELECTROLOG |
| ALT14199 | WOODAUTO |
| ALT172700 | SIOM |
| ALT172700A | SIOM |
| ALTL190 | 3EFFE |
| ALTL190NE | 3EFFE |
| ALTL190V | 3EFFE |
| AX 1190 | STARLINE |
| CA1678IR | HC PARTS |
| CAL15270AS | CASCO |
| CAL15270GS | CASCO |
| CGB-84818 | AINDE |
| F032113252 | CARGO |
| LRA02323 | LUCAS |
| LRA2323 | LUCAS |
| PRAL190 | 3EFFE |
| PRAL190V | 3EFFE |
| SG14B011 | VALEO |
| STX100176 | STARDAX |
| STX100176R | STARDAX |
| UD20664A | AS-PL |
Video/Publications
