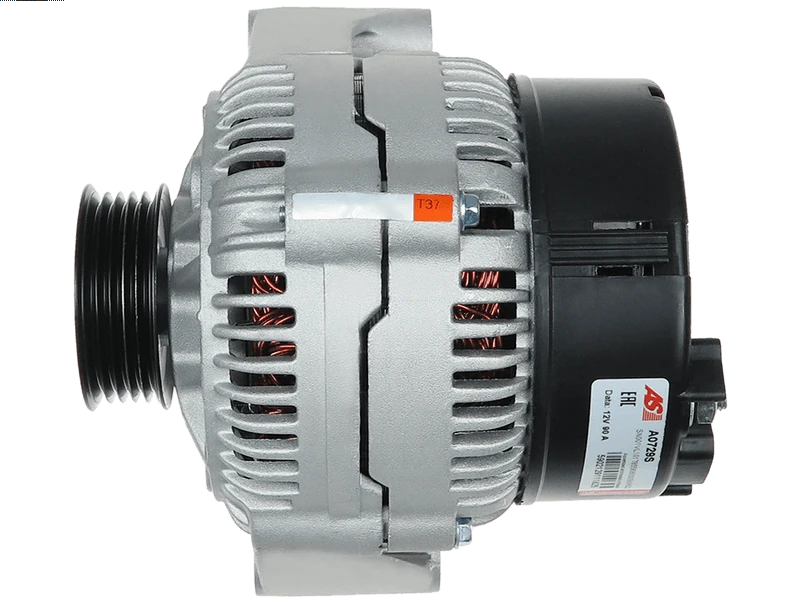

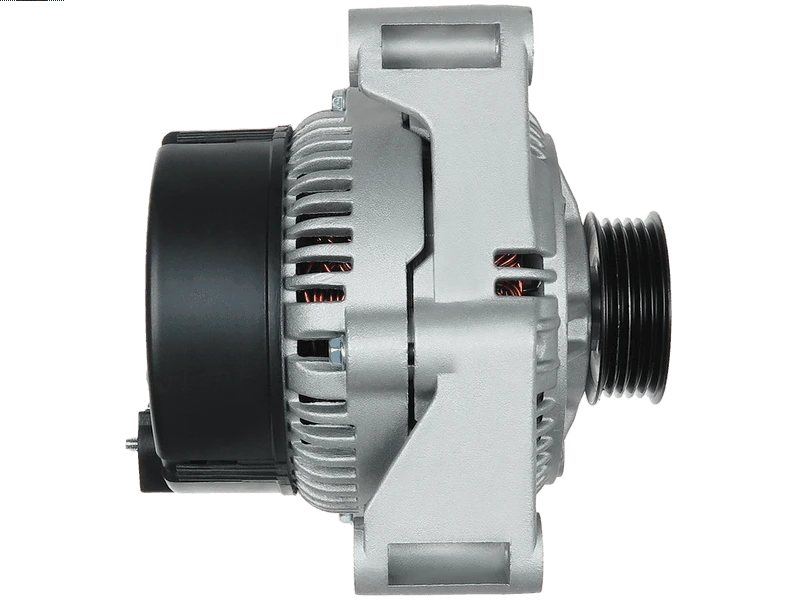

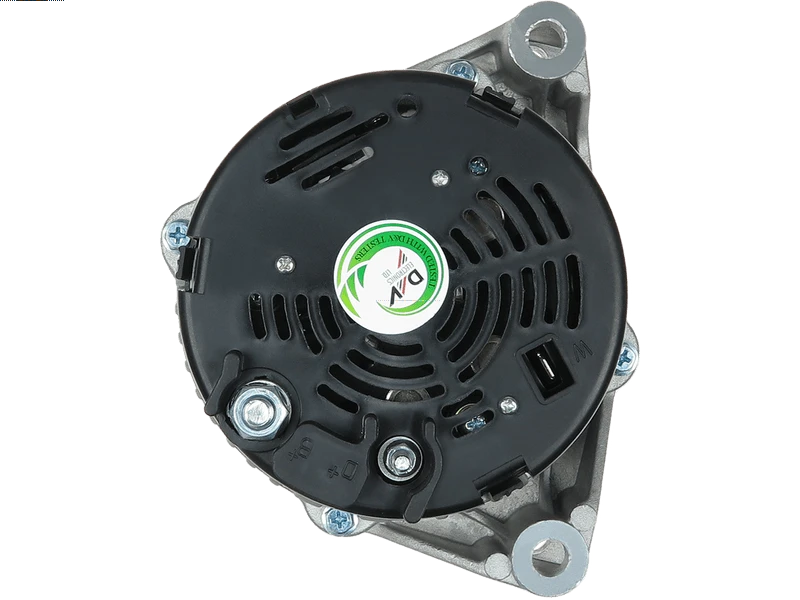

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 387.70 including GST
NZ$ 337.13 excluding GST
or four payments of $96.93
with
Learn More
each
A0729S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0123320004Associated Numbers
0123320004 0123320022 UD17084A 4484 28-3521 60596660 60613075 ALB1097 301097RI LRA01738 MRA40920 437791 UNITBOM220-5394B BOS0123320022Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 175 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 81.50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | GTV 2.0 V6 Turbo | [AR16202] | 06.1995-09.1998 |
| ALFA ROMEO | Spider 2.0 V6 Turbo | [AR16202] | 05.1998-04.2005 |
| ALFA ROMEO | Spider 3.0 V6 | [AR16101] | 06.1995-04.2005 |
Reference Information
| 0120485026 | BOSCH |
| 0123320004 | BOSCH |
| 0123320020 | BOSCH |
| 0123320022 | BOSCH |
| 0986040920 | BOSCH |
| 28-3521 | ELSTOCK |
| 301097RI | KUHNER |
| 437791 | VALEO |
| 4484 | CEVAM |
| 60596660 | FIAT |
| 60613075 | FIAT |
| 64291 | RHIAG |
| ALB1097 | KRAUF |
| ALTE110 | 3EFFE |
| BOS0123320022 | WOODAUTO |
| CA1097IR | HC PARTS |
| DRA3617 | DELCO |
| DRB0920 | DELCO |
| LRA01738 | LUCAS |
| LRA1738 | LUCAS |
| MRA40920 | POWERMAX |
| PRAE110 | 3EFFE |
| UD17084A | AS-PL |
| UNITBOM220-5394B | WAI / TRANSPO |
Video/Publications
