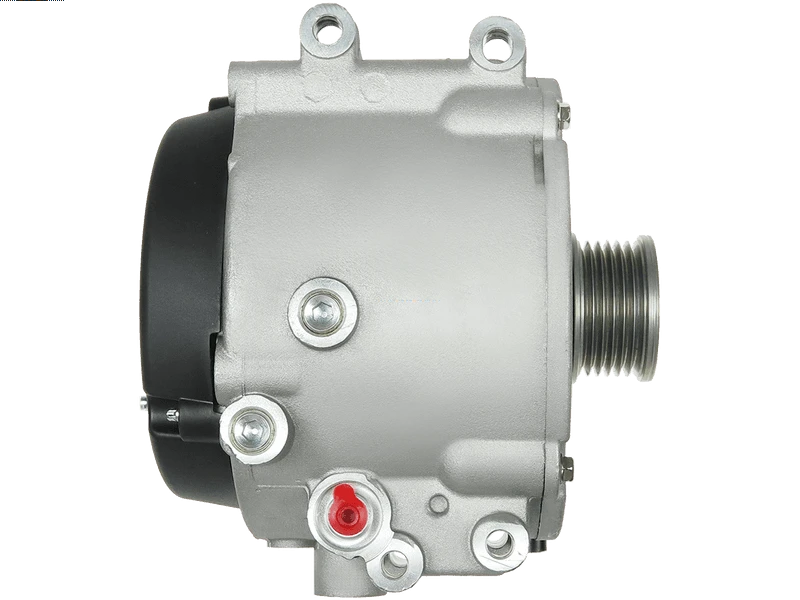

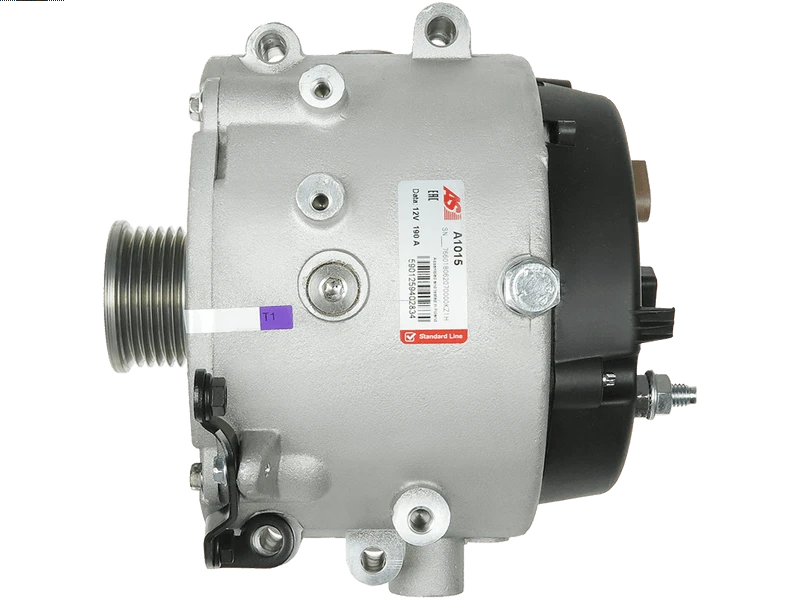

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,193.55 including GST
NZ$ 1,037.87 excluding GST
or four payments of $298.39
with
Learn More
each
A1015
2
Associated Numbers
0001501750 0001502550 10480404 10480408 113772 2012102 20133201BN 20133201RC 210383 23162N 23162R 28-4616 301838RIR 32041790 4817 555.404.190 56940 89212212 943318381010 944390901500 A0001501750 A0001502550 A1015 AAN7112 AEC1677 AG0673 ALD1838 ALT42601 ALT42604 CA1838IR CAL12102 CAL12102AS CAL12102ES CAL12102GS CAL12102OS CAL12102RS DA5145 DA5145N DRA4035 DRA4035N LRA02162 LRA2162 MARCH1838 MRA90150Specifications
| Amp | 190 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 92.50 mm |
| Pad mount thickness (E.2) | 96.50 mm |
| Pad mount thickness (E.3) | 92.5 mm |
| Pad mount thickness (E.4) | 92.5 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 32 mm |
| Pulley Type | Clutch |
| Unit Type | DELCO |
| Voltage | 12 V |
| Water Cooled | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | E 200 2.2 CDi | (W210)[OM611.961] | 01.1998-12.2002 |
| MERCEDES BENZ | E 200 2.2 CDi | (W210)[OM611.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 220 2.2 CDi | (VF210)[OM611.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 220 2.2 CDi | (W210)[OM611.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 220 T 2.2 CDi | (S210)[OM611.961] | 01.1999-12.2003 |
| MERCEDES BENZ | E 270 2.7 CDi | (VF210)[OM612.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 270 2.7 CDi | (W210)[OM612.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 270 T 2.7 CDi | (S210)[OM612.961] | 01.1999-12.2003 |
| MERCEDES BENZ | E 320 3.2 CDi | (W210)[OM613.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 320 T 3.2 CDi | (S210)[OM613.961] | 01.1999-12.2003 |
| MERCEDES BENZ | ML 270 2.7 CDi | (W163)[OM612.963] | 01.1999-12.2005 |
| MERCEDES BENZ | S 320 3.2 CDi | (W220)[OM613.960] | 01.1999-12.2002 |
Reference Information
| 00011501750 | MERCEDES |
| 00011502550 | MERCEDES |
| 0001501750 | MERCEDES |
| 0001502450 | MERCEDES |
| 0001502550 | MERCEDES |
| 10480404 | DELCO |
| 10480408 | DELCO |
| 113772 | CARGO |
| 2012102.0 | SANDO |
| 2012102.1 | SANDO |
| 2012102.2 | SANDO |
| 20133201BN | REAL |
| 20133201OE | REAL |
| 20133201RC | REAL |
| 210383 | ERA |
| 23162N | WAI / TRANSPO |
| 23162R | WAI / TRANSPO |
| 27642 | RHIAG |
| 28-4616 | ELSTOCK |
| 301838RIR | KUHNER |
| 32041790 | HERTH+BUSS |
| 442070 | LOGISTIK |
| 4817 | CEVAM |
| 555.404.190.040 | PSH |
| 555.404.190.245 | PSH |
| 56940 | EAI |
| 89212212 | POWERMAX |
| A00011502550 | MERCEDES |
| A0001501750 | MERCEDES |
| A0001502550 | MERCEDES |
| A1015 | AS-PL |
| A12DR0549A2 | SIDAT |
| AAN7112 | ISKRA / LETRIKA |
| AG0673 | GHIBAUDI |
| ALD1838 | KRAUF |
| ALT2604 | ELECTROLOG |
| ALT42601 | WOODAUTO |
| ALT42604 | WOODAUTO |
| ALT451-INA | ROLLCO |
| ALT4950 | SIOM |
| ANM36255X | ANDEL |
| CA1838IR | HC PARTS |
| CAL12102AS | CASCO |
| CAL12102GS | CASCO |
| CAL12102RS | CASCO |
| F032113772 | CARGO |
| GA502550DE-R | GPARTS |
| LRA02162 | LUCAS |
| LRA2162 | LUCAS |
| STX100164 | STARDAX |
| STX100164R | STARDAX |
| STX100396 | STARDAX |
| STX101955 | STARDAX |
Video/Publications
