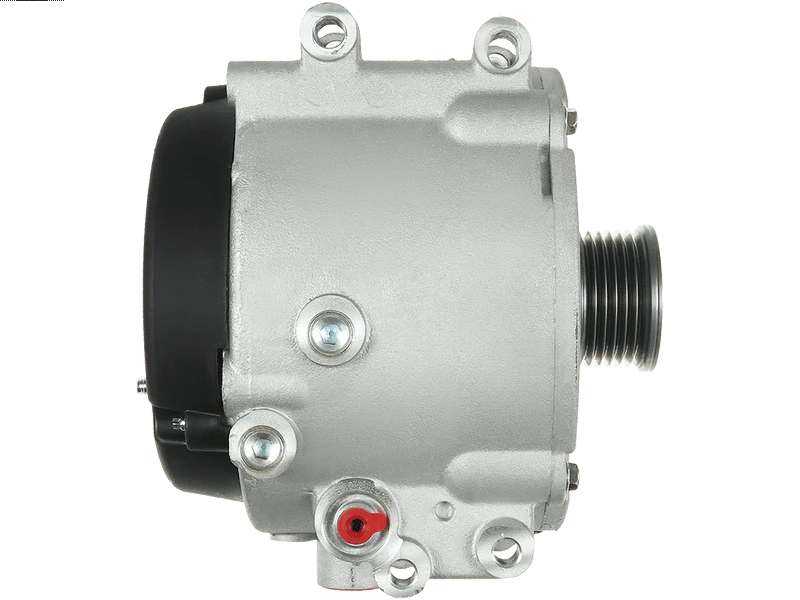

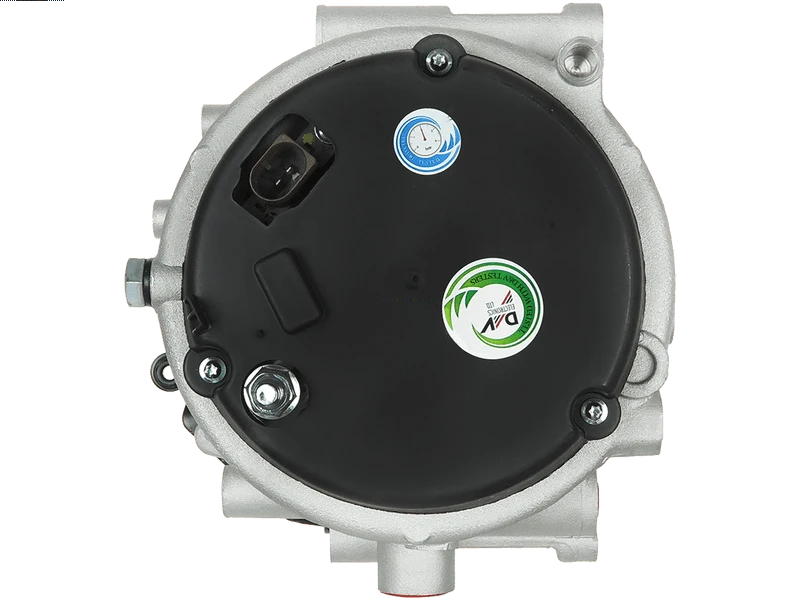

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,153.12 including GST
NZ$ 1,002.71 excluding GST
or four payments of $288.28
with
Learn More
each
A1016
1
Associated Numbers
0001500850 0001501650 10480403 10480407 113771 2012110 20133011BN 20133011RC 210354 28-4509 301677RIR 4818 555.402.190 89213270 A0001500850 A0001501650 A0001502450 A1016 AAN7111 ALD1677 ALT42600 CA1677IR CAL12110 CAL12110AS CAL12110ES CAL12110GS CAL12110OS CAL12110RS DA5256 DRA4146 LRA02073 SW012 SW015Specifications
| Amp | 190 A |
| Bottom Mounting Foot Width (B) | 94.5 mm |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 92.50 mm |
| Pad mount thickness (E.2) | 92.50 mm |
| Plug Code | PL_2308 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Clutch |
| Unit Type | DELCO |
| Voltage | 12 V |
| Water Cooled | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 200 2.2 CDi | (W203)[OM611.962] | 01.2000-12.2003 |
| MERCEDES BENZ | C 220 2.2 CDi | (W203)[OM611.962] | 01.2000-12.2007 |
| MERCEDES BENZ | C 220 2.2 CDi | (W203)[OM646.963] | 01.2000-12.2007 |
| MERCEDES BENZ | C 270 2.7 CDi | (S203)[OM612.962] | 01.2001-12.2007 |
| MERCEDES BENZ | C 270 2.7 CDi | (W203)[OM612.962] | 01.2000-12.2007 |
| MERCEDES BENZ | CLK 270 2.7 CDi | (C209)[OM612.962] | 01.2002-12.2009 |
| MERCEDES BENZ | CLK 270 2.7 CDi | (C209)[OM612.967] | 01.2002-12.2009 |
| MERCEDES BENZ | E 200 2.2 CDi | (W210)[OM611.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 220 2.2 CDi | (W210)[OM611.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 220 T 2.2 CDi | (S210)[OM611.961] | 01.1999-12.2003 |
| MERCEDES BENZ | E 270 2.7 CDi | (W210)[OM612.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 320 2.7 CDi | (W210)[OM613.961] | 01.1999-12.2002 |
| MERCEDES BENZ | E 320 T 3.2 CDi | (S210)[OM613.961] | 01.1999-12.2003 |
| MERCEDES BENZ | G 270 2.7 CDi | (W463)[OM612.965] | 01.2001- |
| MERCEDES BENZ | ML 270 2.7 CDi | (W163)[OM612.963] | 01.1999-12.2005 |
| MERCEDES BENZ | S 320 3.2 CDi | (W220)[OM613.960] | 01.1999-12.2002 |
Reference Information
| 00011501650 | MERCEDES |
| 0001500850 | MERCEDES |
| 0001501650 | MERCEDES |
| 0001502450 | MERCEDES |
| 0986048980 | BOSCH |
| 10480403 | DELCO |
| 10480407 | DELCO |
| 113771 | CARGO |
| 2012110.0 | SANDO |
| 2012110.1 | SANDO |
| 2012110.2 | SANDO |
| 20133011BN | REAL |
| 20133011OE | REAL |
| 20133011RC | REAL |
| 210354 | ERA |
| 23161N | WAI / TRANSPO |
| 28-4509 | ELSTOCK |
| 301677RI | KUHNER |
| 301677RIR | KUHNER |
| 32041780 | HERTH+BUSS |
| 441824 | LOGISTIK |
| 4818 | CEVAM |
| 555.402.190.040 | PSH |
| 555.402.190.048 | PSH |
| 555.402.190.245 | PSH |
| 555.402.190.608 | PSH |
| 64747 | RHIAG |
| 89213270 | POWERMAX |
| 8EL738009-001 | HELLA |
| 944390489800 | MAGNETI MARELLI |
| A0001500850 | MERCEDES |
| A0001501650 | MERCEDES |
| A0001502450 | MERCEDES |
| A1016 | AS-PL |
| A12DR0931A2 | SIDAT |
| AAN7111 | ISKRA / LETRIKA |
| AG0672 | GHIBAUDI |
| AI-90076 | AINDE |
| ALD1677 | KRAUF |
| ALT0039 | 3EFFE |
| ALT141100 | SIOM |
| ALT2190 | ELECTROLOG |
| ALT42600 | WOODAUTO |
| ALT489-INA | ROLLCO |
| ANM36366X | ANDEL |
| CA1677IR | HC PARTS |
| CAL12110AS | CASCO |
| CAL12110GS | CASCO |
| CAL12110RS | CASCO |
| CGB-84509 | AINDE |
| DRA4146 | DELCO |
| DRA4146N | DELCO |
| F032113771 | CARGO |
| GA480407DL-R | GPARTS |
| LRA02073 | LUCAS |
| LRA2073 | LUCAS |
| MRA48980 | MAGNETI MARELLI |
| PRA0039 | 3EFFE |
| STX100164 | STARDAX |
| STX100164R | STARDAX |
| STX101955 | STARDAX |
