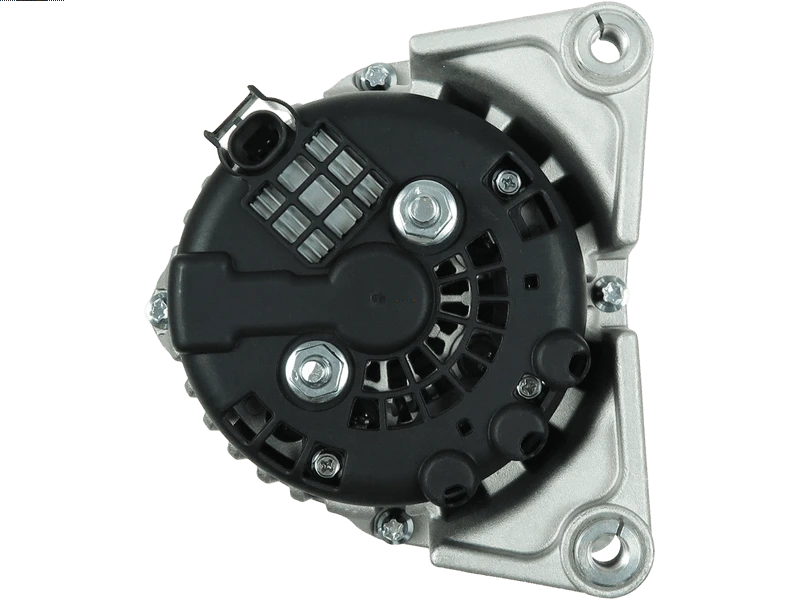

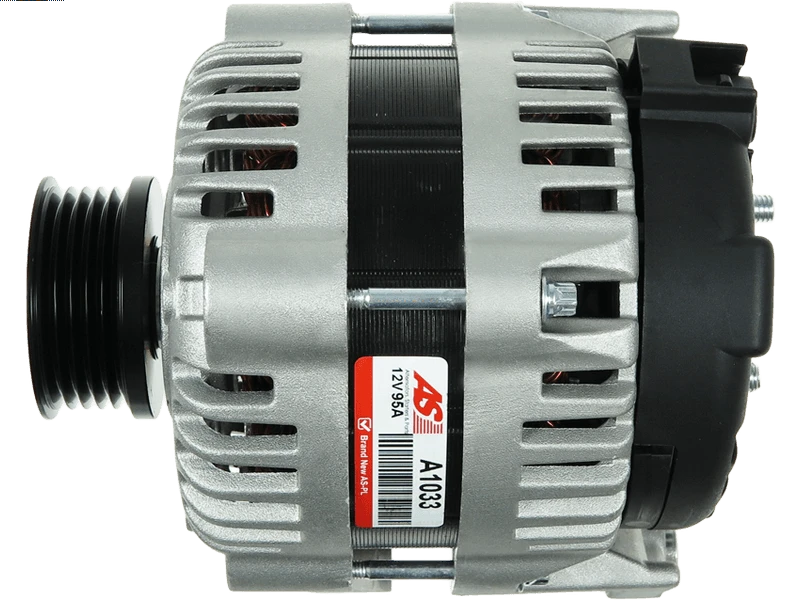

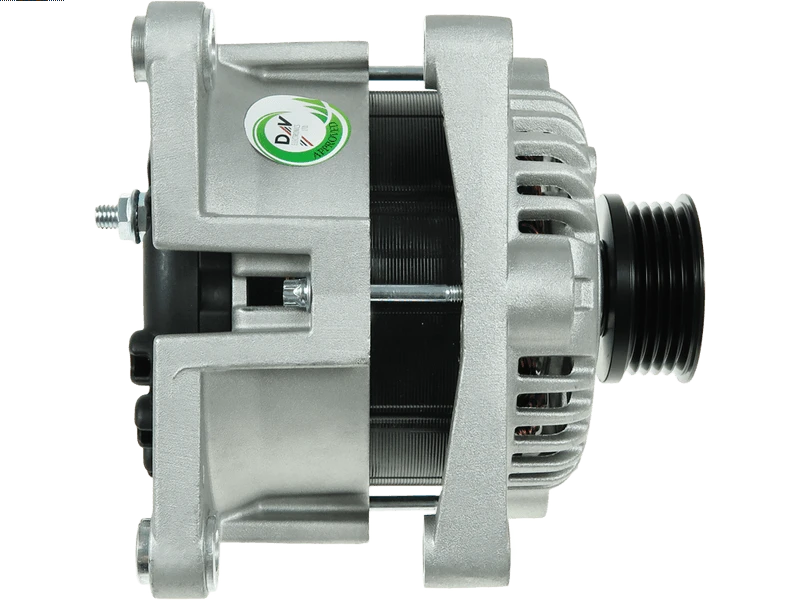

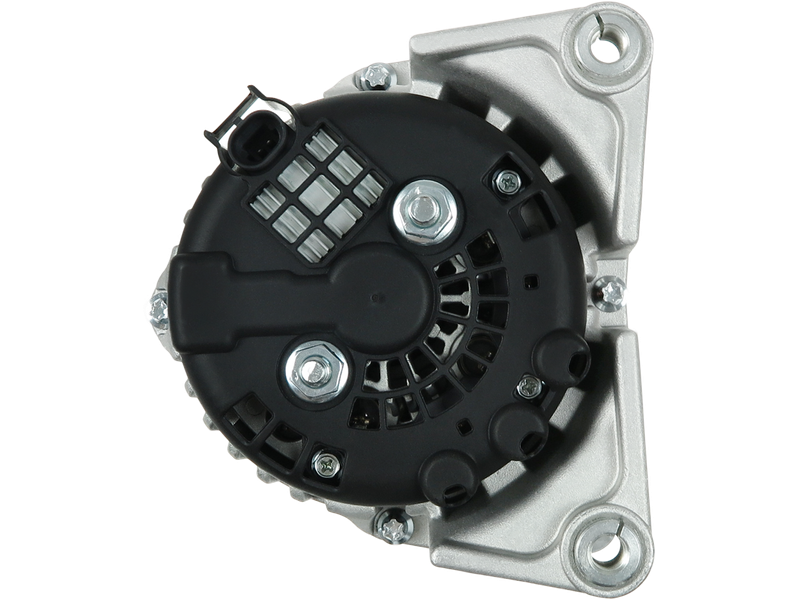

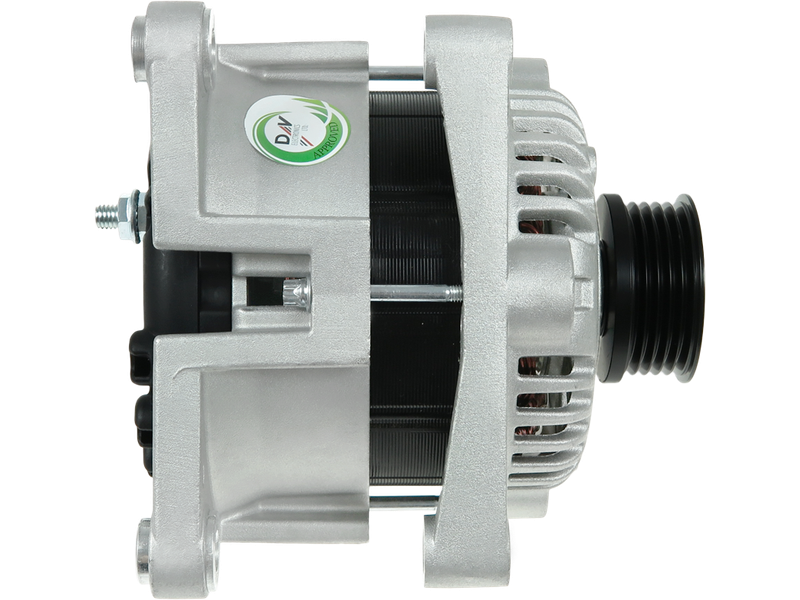

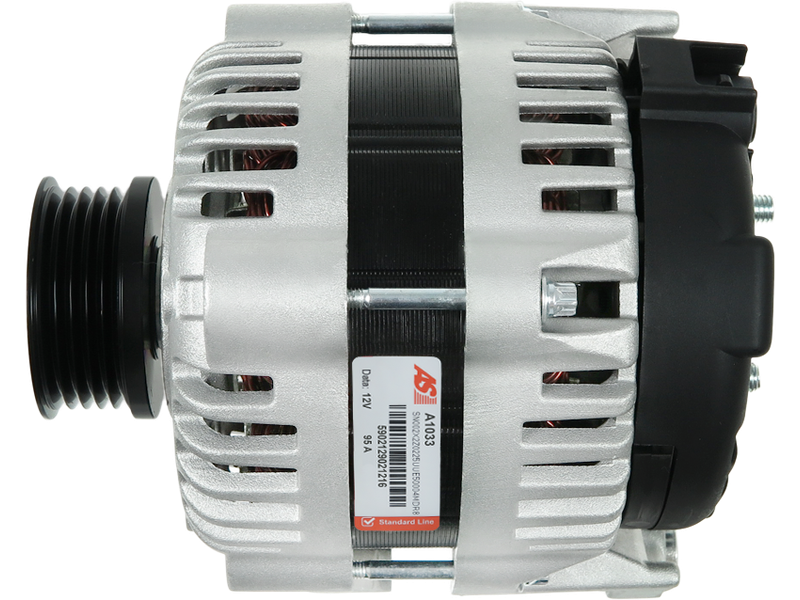

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 491.58 including GST
NZ$ 427.46 excluding GST
or four payments of $122.90
with
Learn More
each
A1033
No stock in NZ currently
No stock in NZ currently
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
19205162 21834 8486N 90-01-4703 96858876 96991181 A-1797 UD12078ASpecifications
| Amp | 95 A |
| Bottom Mounting Foot Width (B) | 22.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 179 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Plug Code | PL_2601 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 64 mm |
| Pulley Type | Solid |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Aveo 1.6 | 01.2009-12.2011 | |
| PONTIAC | G3 1.6 | 01.2009-12.2010 | |
| PONTIAC | Wave 1.6 | 01.2009- |
Reference Information
| 19205162 | OPEL |
| 21834 | DELCO |
| 8486N | WAI / TRANSPO |
| 90-01-4703 | WILSON |
| 96858876 | OPEL |
| 96991181 | OPEL |
| A-1797 | DIXIE |
| UD12078A | AS-PL |
Video/Publications
A1033Related Items
