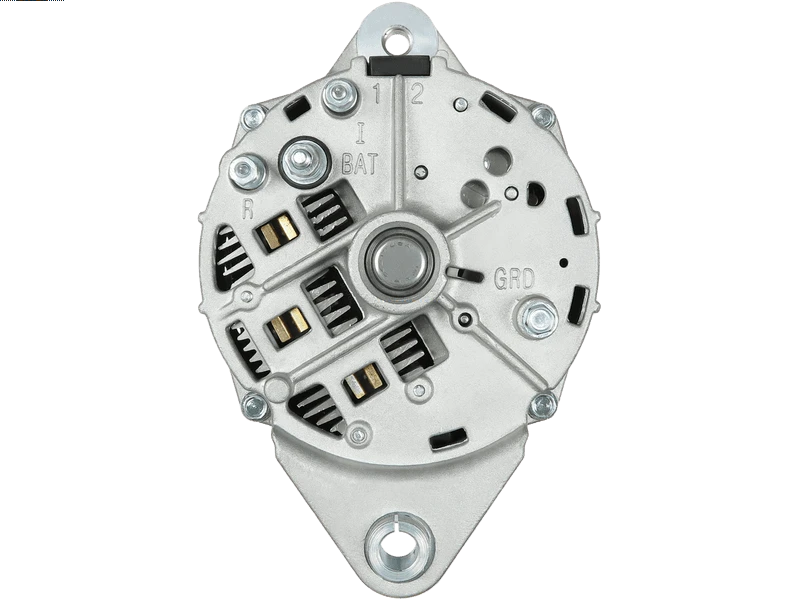

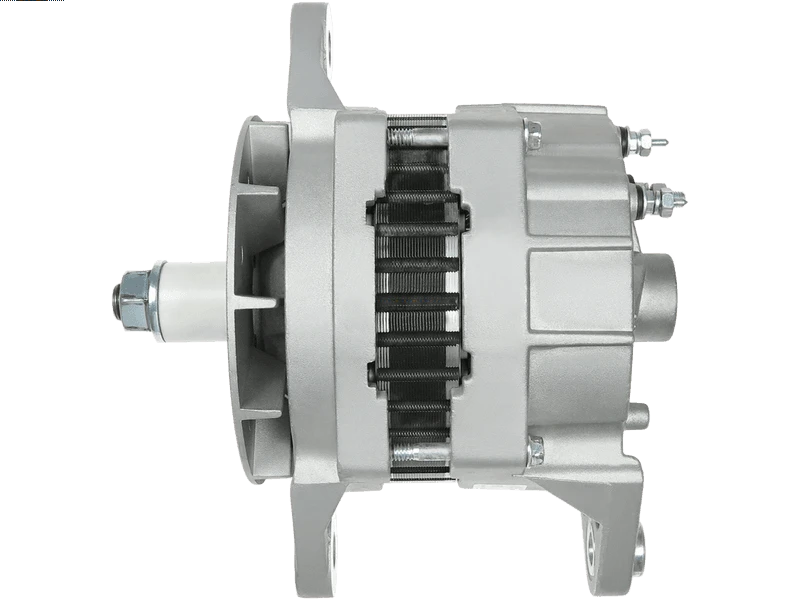

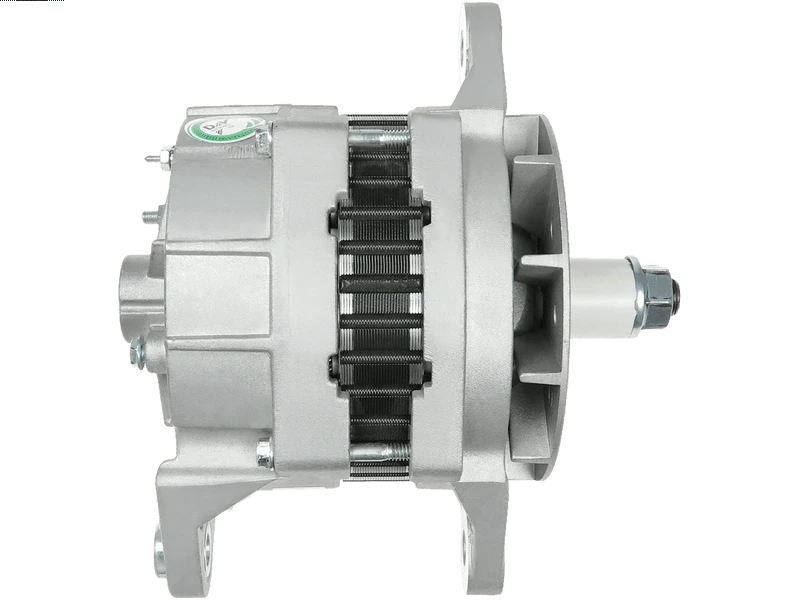

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 454.92 including GST
NZ$ 395.58 excluding GST
or four payments of $113.73
with
Learn More
each
A1036
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
19020306Associated Numbers
101-22106 10459205 10459217 10459254 10459472 112834 19020305 19020306 19020308 19020310 19020312 19020379 3675240RX 553360RI 553360RIP 553805RI 554921RIP 8076N 8076R 835.025.145 8LHA2057VA 8LHA2070VF 8LHA2071VA 90-01-4297 90-01-4297N A-1494 A0012500LC A0012526LC A0012670LC A0012800LC A0012805LC ALT40161 AVI143J2001 AVI143J2002 MDA2932 UD12209ASpecifications
| Amp | 145 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | M12x1.75 mm |
| Diameter (D.2) | 13 mm |
| Diameter (D.3) | 13 mm |
| Length (L.1) | 218 mm |
| Mount Inside Length or Pad Mount C-C (C) | 101 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | No Pulley |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Aerostar 2.3 | 01.1986-01.1987 | |
| FORD | Aerostar 3.0 | 01.1986-01.1991 | |
| FORD | B600 5.9 | [6BT] | 01.1997-12.1999 |
| FORD | B600 8.3 | [FD1460] | 01.1997-12.1999 |
| FORD | B700 5.9 | [6BT] | 01.1997-12.1999 |
| FORD | B700 8.3 | [FD1460] | 01.1997-12.1999 |
| FORD | B800 5.9 | [6BT] | 01.1997-12.1999 |
| FORD | B800 8.3 | [FD1460] | 01.1997-12.1999 |
| FORD | F 600 5.9 | 01.1992- | |
| FORD | F 700 5.9 | 01.1992- | |
| FORD | F 800 5.9 | 01.1992- | |
| FORD | F 900 5.9 | 01.1992- | |
| FORD | L 7000 5.9 | 01.1992- | |
| FORD | L 8000 5.9 | 01.1992- | |
| FORD | L 9000 5.9 | 01.1992- | |
| INTERNATIONAL | Various Models | ||
| WILLMAR | Sprayer 8500 Eagle 8.3 | [QSC] | 01.2000-12.2007 |
| WILLMAR | Sprayer 8600 Eagle 8.3 | [QSC] | 01.2000-12.2003 |
| WILLMAR | Sprayer 8650 Eagle 8.3 | [QSC] | 01.2004-12.2005 |
Reference Information
| 10459205 | DELCO |
| 10459217 | DELCO |
| 10459254 | DELCO |
| 10459472 | DELCO |
| 112834 | CARGO |
| 19020305 | DELCO |
| 19020306 | DELCO |
| 19020308 | DELCO |
| 19020310 | DELCO |
| 19020312 | DELCO |
| 19020379 | DELCO |
| 3675240RX | CUMMINS |
| 448789 | LOGISTIK |
| 553805RI | KUHNER |
| 554921RIP | KUHNER |
| 8076N | WAI / TRANSPO |
| 8076R | WAI / TRANSPO |
| 835.025.145 | PSH |
| 8LHA2057VA | PRESTOLITE |
| 8LHA2070VF | PRESTOLITE |
| 90-01-4297 | WILSON |
| 90-01-4297N | WILSON |
| A0012500LC | PRESTOLITE |
| A0012526LC | PRESTOLITE |
| A0012670LC | PRESTOLITE |
| A0012800LC | PRESTOLITE |
| A0012805LC | PRESTOLITE |
| A1036 | AS-PL |
| ALT2607 | ELECTROLOG |
| ALT40161 | WOODAUTO |
| ALT621020 | SIOM |
| ALT626140 | SIOM |
| ALT626140A | SIOM |
| ALTE253 | 3EFFE |
| ALTJ209 | 3EFFE |
| ALTS442 | 3EFFE |
| ALTS512 | 3EFFE |
| ALTS512D | 3EFFE |
| ALTS512X | 3EFFE |
| AVI143J2001 | PRESTOLITE |
| AVI143J2002 | PRESTOLITE |
| F032112834 | CARGO |
| MDA2932 | PRESTOLITE |
| PRAS442 | 3EFFE |
| PRAS512 | 3EFFE |
| UD12209A | AS-PL |
Video/Publications
