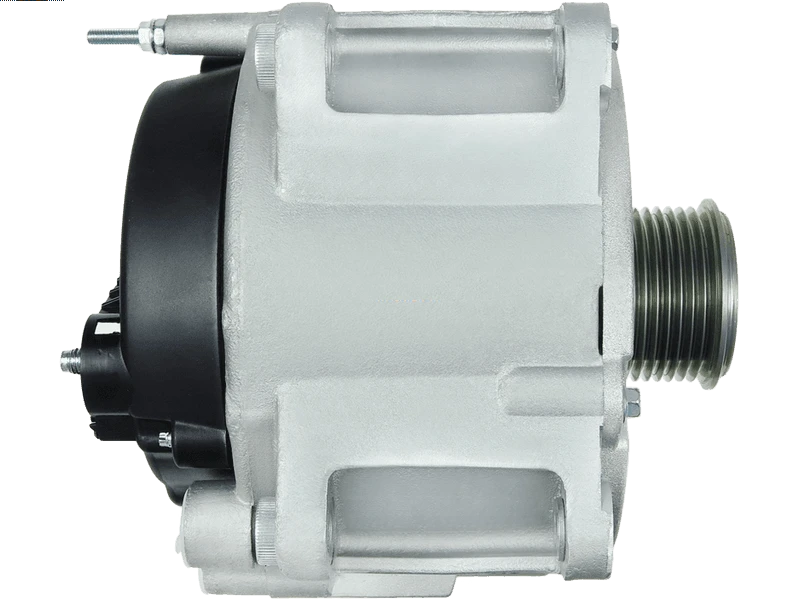

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,289.47 including GST
NZ$ 1,121.28 excluding GST
or four payments of $322.37
with
Learn More
each
A1047S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
10480486Associated Numbers
021903026K 07C903021G 10480486 10480491 11061R 2012117 28-5835 305.402.190 553377RI 90-01-4542 A-1753 AEK3223 ALT40253 CAL12117 CAL12117AS CAL12117ES CAL12117GS CAL12117OS CAL12117RS DRA0715 LRA03223 UD13139A 021903026k VW 07C903018 0986UR0461 Bosch ruil Remy 12090457 EuroTec 2113661902 DRI 22017 285835 Elstock 305402190 PSH 40247 CEVAM 90014542 Wilson 9090545F Friesen 930715 AL9368X (USA) LucasSpecifications
When purchasing this alternator please check or replace the battery. A faulty alternator is mostly caused by a bad battery
| Amp | 190 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 199 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 29 mm |
| Pulley Type | Clutch |
| Unit Type | DELCO |
| Voltage | 12 V |
| Water Cooled | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Phaeton 3.2 V6 | [AYT] | 01.2002-12.2005 |
| VW | Phaeton 3.2 V6 | [BKL] | 01.2002-12.2005 |
| VW | Phaeton 3.2 V6 4-Motion | [BKL] | 01.2004-12.2008 |
| VW | Phaeton 3.2 V6 4-Motion | [BRK] | 01.2004-12.2008 |
| VW | Touareg 3.2 V6 | [AZZ] | 01.2003-12.2004 |
| VW | Touareg 3.2 V6 | [BAA] | 01.2003-12.2004 |
| VW | Touareg 3.2 V6 | [BKJ] | 01.2003-12.2004 |
| VW | Touareg 3.2 V6 | [BMV] | 01.2003-12.2004 |
| VW | Touareg 3.2 V6 | [BMX] | 01.2003-12.2004 |
| VW | Touareg 3.2 V6 | [BRJ] | 01.2003-12.2004 |
Reference Information
| 021903026K | VW |
| 07C903018 | VW |
| 07C903021F | VW |
| 07C903021G | VW |
| 10480486 | DELCO |
| 10480491 | DELCO |
| 11061R | WAI / TRANSPO |
| 2012117 | SANDO |
| 28-5835 | ELSTOCK |
| 305.402.190 | PSH |
| 553377RI | KUHNER |
| 90-01-4542 | WILSON |
| A-1753 | DIXIE |
| AEK3223 | AUTOELECTRO |
| ALT141170 | SIOM |
| ALT2048 | ELECTROLOG |
| ALT222240 | SIOM |
| ALT40253 | WOODAUTO |
| ALTL577 | 3EFFE |
| ALTL577RR | 3EFFE |
| CAL12117 | CASCO |
| CAL12117AS | CASCO |
| CAL12117ES | CASCO |
| CAL12117GS | CASCO |
| CAL12117OS | CASCO |
| CAL12117RS | CASCO |
| CGB-85835 | AINDE |
| DRA0715 | DELCO |
| LRA03223 | LUCAS |
| LRA3223 | LUCAS |
| PRAL577 | 3EFFE |
| UD13139A | AS-PL |
