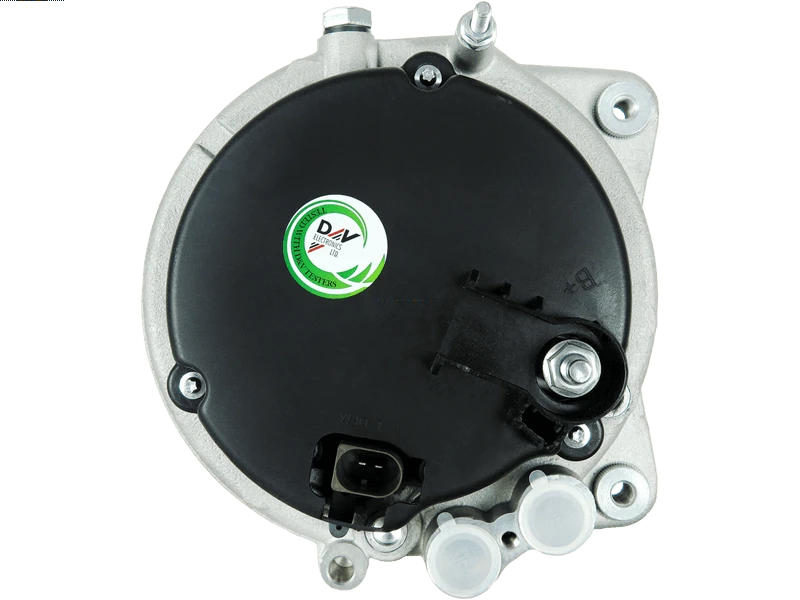

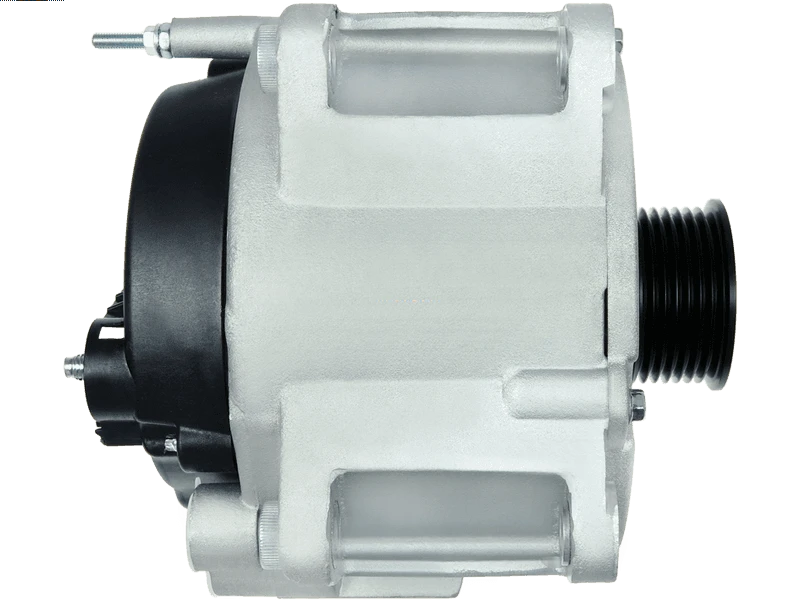

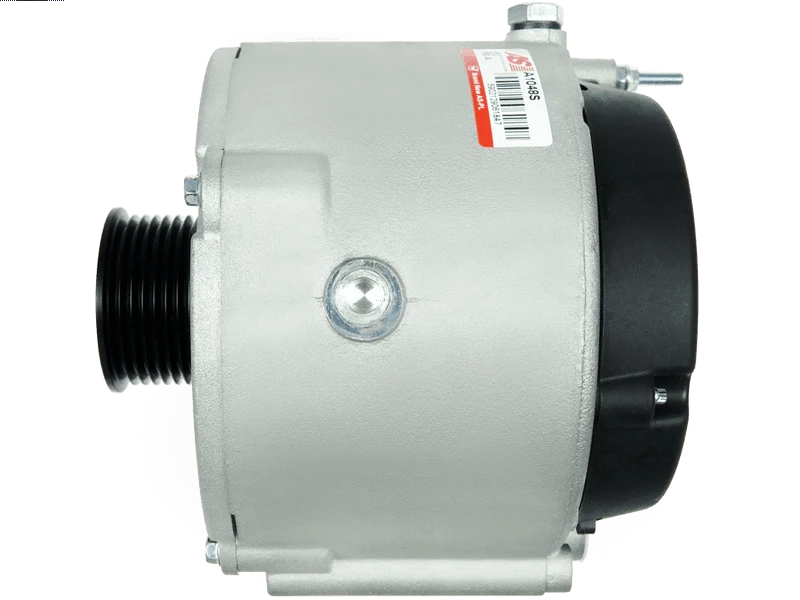

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,311.20 including GST
NZ$ 1,140.17 excluding GST
or four payments of $327.80
with
Learn More
each
A1048S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
10480500Associated Numbers
07C903021K 10480500 2012118 28-7566 305.409.190 553377RI 90-01-4542 A-1749 ALD3921 CAL12118 CAL12118AS CAL12118ES CAL12118GS CAL12118OS CAL12118RS LRA03956 UD13137A UNIT BOM 240-6466Specifications
| Amp | 190 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Phaeton 4.2 V8 | [BGH] | 01.2003- |
| VW | Phaeton 4.2 V8 | [BGJ] | 01.2003- |
| VW | Phaeton 6.0 W12 | [BAN] | 01.2002-12.2005 |
| VW | Touareg 4.2 V8 | [AXQ] | 01.2002- |
| VW | Touareg 6.0 W12 | [BJN] | 01.2004-12.2010 |
| VW | Touareg 6.0 W12 | [CFRA] | 01.2004-12.2010 |
Reference Information
| 07C903021K | VW |
| 10480500 | DELCO |
| 2012118 | SANDO |
| 28-7566 | ELSTOCK |
| 305.409.190 | PSH |
| 553377RI | KUHNER |
| 90-01-4542 | WILSON |
| A-1749 | DIXIE |
| ALD3921 | KRAUF |
| ALT141170A | SIOM |
| ALT141180A | SIOM |
| ALTL577 | 3EFFE |
| ALTL577RR | 3EFFE |
| CAL12118 | CASCO |
| CAL12118AS | CASCO |
| CAL12118ES | CASCO |
| CAL12118GS | CASCO |
| CAL12118OS | CASCO |
| CAL12118RS | CASCO |
| LRA03956 | LUCAS |
| LRA3956 | LUCAS |
| PRAL577 | 3EFFE |
| UD13137A | AS-PL |
| UNIT BOM 240-6466 | WAI / TRANSPO |
Video/Publications
