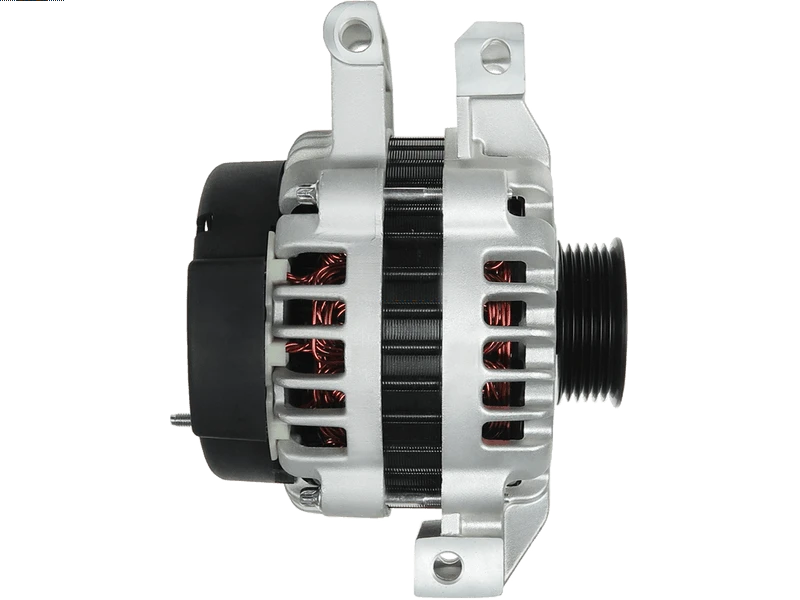

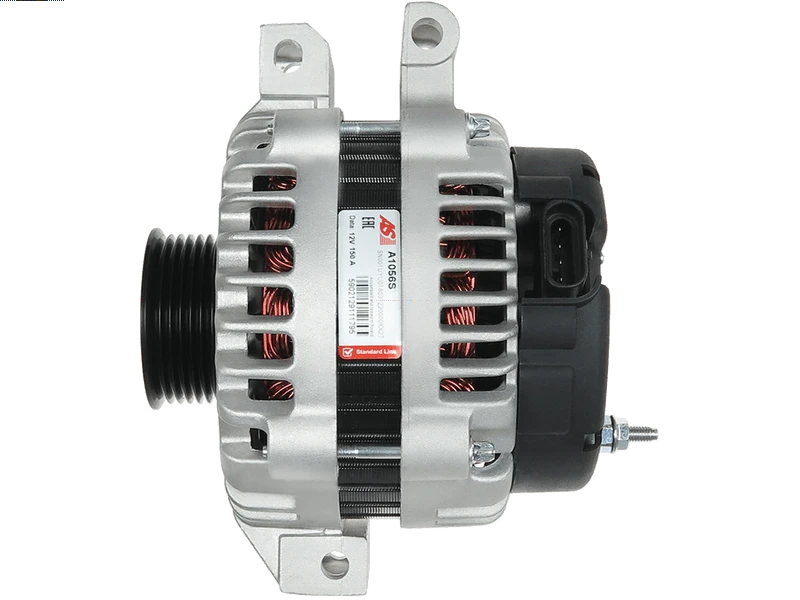

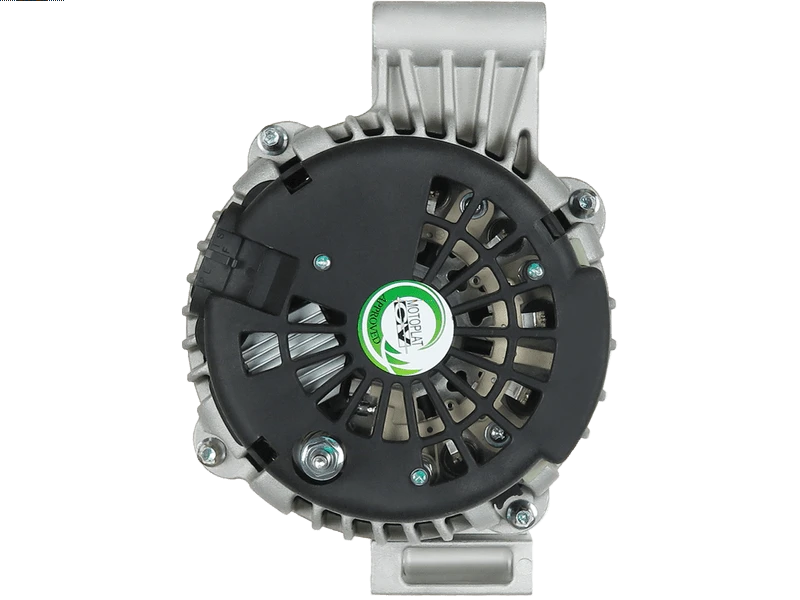

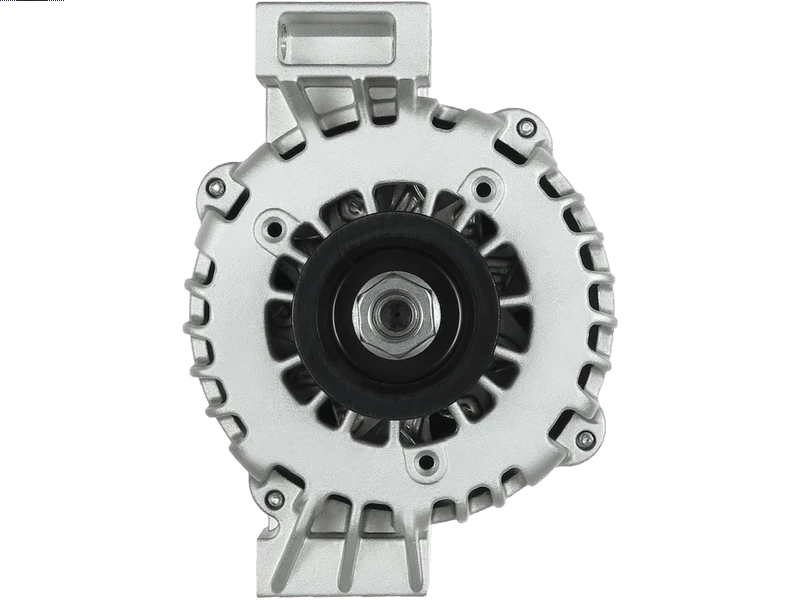

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 590.94 including GST
NZ$ 513.86 excluding GST
or four payments of $147.74
with
Learn More
each
A1056S
No stock in NZ currently
No stock in NZ currently
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
8104644680 8290N ALD4644 UD16884A 10464468 10480285 15062413 15162839 19151920 19244750 A-1636 ALD9644 835.553.150 8290 8290N-HO 8290R 90-01-4427 90-01-4427N ALT40130Specifications
| Amp | 150 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 60 mm |
| Pad mount thickness (E.2) | 60 mm |
| Plug Code | PL_4302 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 26.50 mm |
| Pulley Type | Solid |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BUICK | Rainier 4.2 | 01.2004-12.2006 | |
| CHEVROLET | Trailblazer 4.2 | 01.2002-12.2006 | |
| CHEVROLET | Trailblazer EXT 4.2 | 01.2002-12.2006 | |
| GMC | Envoy 4.2 | 01.2002-12.2006 | |
| GMC | Envoy XL 4.2 | 01.2002-12.2006 | |
| GMC | Envoy XUV 4.2 | 01.2004-12.2005 | |
| ISUZU | Ascender 4.2 | 01.2003-12.2006 | |
| OLDSMOBILE | Bravada 4.2 | 01.2002-12.2004 | |
| SAAB | 9-7X 4.2 | 01.2005-12.2006 |
Reference Information
| 10464468 | DELCO |
| 10480285 | DELCO |
| 15062413 | DELCO |
| 15162839 | DELCO |
| 19151920 | DELCO |
| 19244750 | DELCO |
| 321-1828 | DELCO |
| 334-2527 | DELCO |
| 8104644680 | ISUZU |
| 8290 | ROBERT'S |
| 8290N | WAI / TRANSPO |
| 8290N-HO | WAI / TRANSPO |
| 8290R | WAI / TRANSPO |
| 835.553.150 | PSH |
| 90-01-4427 | WILSON |
| 90-01-4427N | WILSON |
| A1056S | AS-PL |
| A135.664 | PSH |
| A-1636 | DIXIE |
| ALD4644 | KRAUF |
| ALD9644 | KRAUF |
| ALT2033 | ELECTROLOG |
| ALT40130 | WOODAUTO |
| ALTF764 | 3EFFE |
| UD16884A | AS-PL |
Video/Publications
A1056SRelated Items
