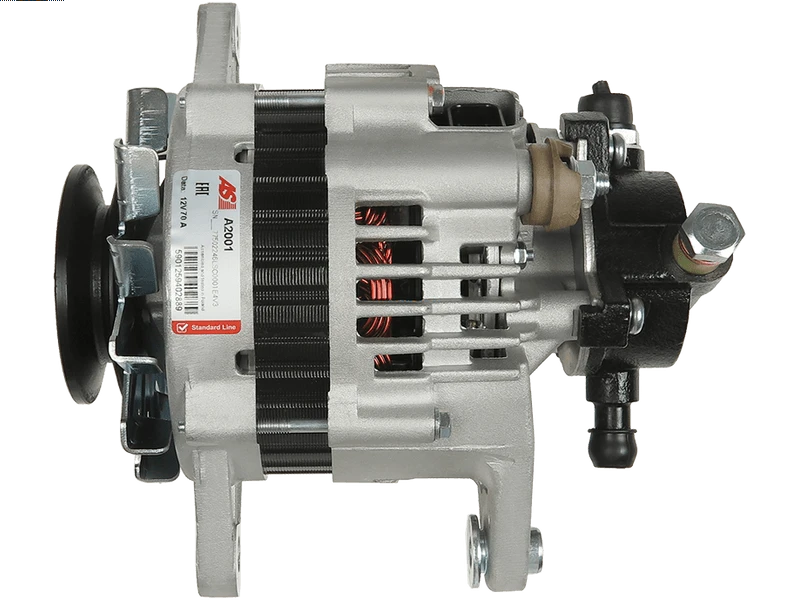

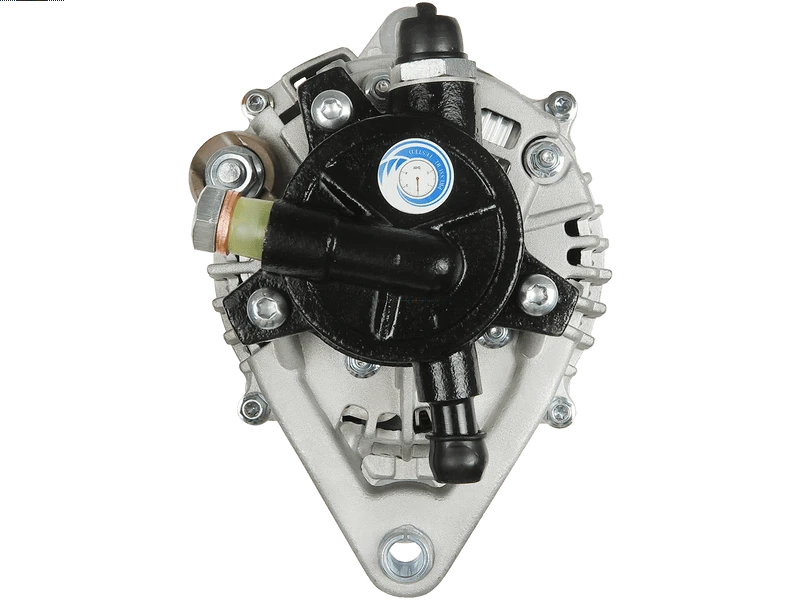

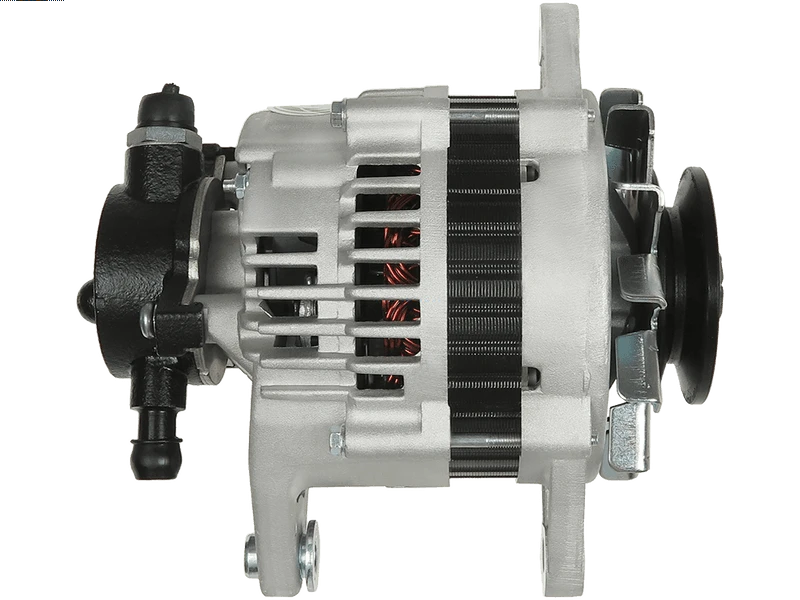

A2001 - Brand new AS-PL Alternator

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Grooves	1 qty
Groove Width (W.1)	12 mm
Length (L.1)	216 mm
Mount Inside Length or Pad Mount C-C (C)	77 mm
OEM Product	No
Outside Diameter (O.D.1)	53 mm
Outside Diameter (O.D.2)	80.5 mm
Plug Code	PL_2000
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	44.5 mm
Pulley Type	SOLID
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Astra F 1.7 TDS	[17DT(TC4EE1)]	03.1992-09.1998
OPEL	Astra F 1.7 TDS	[17DT(TC4EE1)]	12.1991-01.1998
OPEL	Astra F 1.7 TDS	[X17DT(TC4EE1)]	03.1992-09.1998
OPEL	Astra F 1.7 TDS	[X17DT(TC4EE1)]	12.1991-01.1998
OPEL	Combo 1.7 D	[17D(4EE1)]	07.1994-10.2001
OPEL	Combo 1.7 D	[X17D(4EE1)]	07.1994-10.2001
OPEL	Corsa B 1.5 D	[15D(4EC1)]	03.1993-09.2000
OPEL	Corsa B 1.5 TD	[15DT(T4EC1)]	03.1993-09.2000
OPEL	Corsa B 1.5 TD	[X15DT(T4EC1)]	03.1993-09.2000
OPEL	Corsa B 1.7 D	[17D(4EE1)]	02.1996-09.2000
OPEL	Corsa B 1.7 D	[17D(4EE1)]	08.1999-09.2000
OPEL	Corsa B 1.7 D	[X17D(4EE1)]	02.1996-09.2000
OPEL	Corsa B 1.7 D	[X17D(4EE1)]	08.1999-09.2000
OPEL	Vectra B 1.7 TD	[X17DT(TC4EE1)]	10.1995-12.1998
OPEL	Vectra B 1.7 TD	[X17DT(TC4EE1)]	11.1996-12.1997
VAUXHALL	Astra Mk 1.7 TD	[17DT(TC4EE1)]	12.1991-02.1998
VAUXHALL	Combo Mk I 1.7 D	[17D(4EE1)]	07.1994-10.2001
VAUXHALL	Combo Mk I 1.7 D	[X17D(4EE1)]	07.1994-10.2001
VAUXHALL	Corsa Mk I 1.5 D	[15D]	12.1992-12.1996
VAUXHALL	Corsa Mk I 1.5 TD	[15DT(T4EC1)]	03.1993-10.1996
VAUXHALL	Corsa Mk I 1.5 TD	[X15DT(T4EC1)]	03.1993-10.1996
VAUXHALL	Corsa Mk I 1.7 D	[17D(4EE1)]	02.1996-09.2000
VAUXHALL	Corsa Mk I 1.7 D	[X17D(4EE1)]	02.1996-09.2000
VAUXHALL	Corsavan Mk I 1.5 D	[15D]	08.1994-12.1995
VAUXHALL	Corsavan Mk I 1.7 D	[17D(4EE1)]	01.1994-09.2000
VAUXHALL	Corsavan Mk I 1.7 D	[X17D(4EE1)]	01.1994-09.2000
VAUXHALL	Vectra 1.7 TD	[X17DT(TC4EE1)]	10.1995-11.1996
VAUXHALL	Vectra 1.7 TD	[X17DT(TC4EE1)]	11.1996-12.1997

Reference Information

135.810.070.265 PRAL169V 135.810.070.385 STA0075R 746023 72735587 111515 11.209.405 8972410210 ALTL169 135.810.070.415 437134 002-U909 28-2772 ALT3052 21302R 21302N 9358 LR170-505 LRB303 ALT156 ALTL169NE 95521455 A2001 746823 9090016 6.3002.9 135.810.070.088 ANM35765X AG0449 MG588 9512038 11.1172 CGB-82772 135.810.070.080 A12HT0355A2 ALTL169D F002G10951 2U909 LR170-511 AEA3203 210064 0F002G10951 6204046 PRAL169 6204042 ALU909 97150200 TA000A55401 439509 32170505 R1030093 LRB00303 9.44391E+11 20145101BN 986041793 986041791 986041790 AAK3146 DRA3545 EAA-221017 ALT5550 NEA3203 97241021 SA917 CAL20101AS 2049436 ALTL169V 6204106 20110303 JA1172IR LR170-511A 9.43357E+11 LR170-511B MQA1172 MRA90016 5520063 401172RI 2020101 ALT32043 63731172010 401172RIR 446221 ALH1172 56594 ALT79806 5L8TAC 90371767 IA9015 567051 90371769 8971502000 RNLLR170-505 8971502001 DRA3545N 9.43312E+11 89213793 AAK3164 8EL011711-071 CGB-13009 RAA14656 LR170-505E ALTL169HI 8EL737301-001 LR170-505B LR170-505A LR170-505D LR170-505C 0986041790 0986041791 0986041793 Mar-11

Video/Publications

002-U909 063731172010 0986041790 0986041791 0986041793 11.1172 11.209.405 111515 135.810.070 20110303 20145101 20145101BN 2020101 210064 21302N 21302R 28-2772 2U909 32170505 335668 401172RI 437134 439509 56594 567051 6.3002.9 6204042 6204046 6204106 72735587 89213793 8971502000 8971502001 8972410210 8EL011711-071 8EL737301-001 90371767 9090016 9358 943311721010 943356591010 944390900160 A2001 AAK3146 AAK3164 AEA3203 AG0449 ALH1172 ALT156 ALT32043 ALT5430 ALT5550 ALTL169 ALTL169D ALTL169HI ALTL169NE ALTL169V ALU909 CAL20101 CAL20101AS CAL20101ES CAL20101GS CAL20101OS CAL20101RS CGB-13009 DA4655 DA4655N DRA3545 DRA3545N EAA-221017 F002G10951 IA9015 JA1172IR LR170-505 LR170-505B LR170-511 LR170-511B LRB00303 LRB303 MAR7511 MG 588 MG588 MQA1172 MRA90016 NEA3203 PRAL169 PRAL169V R1030093 RAA14656 RNLLR170-505 SA917 TA000A55401
