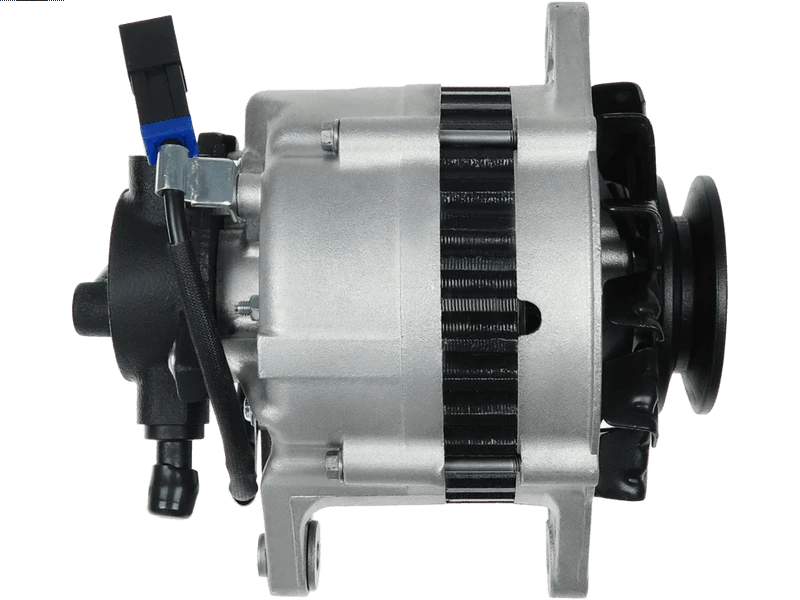

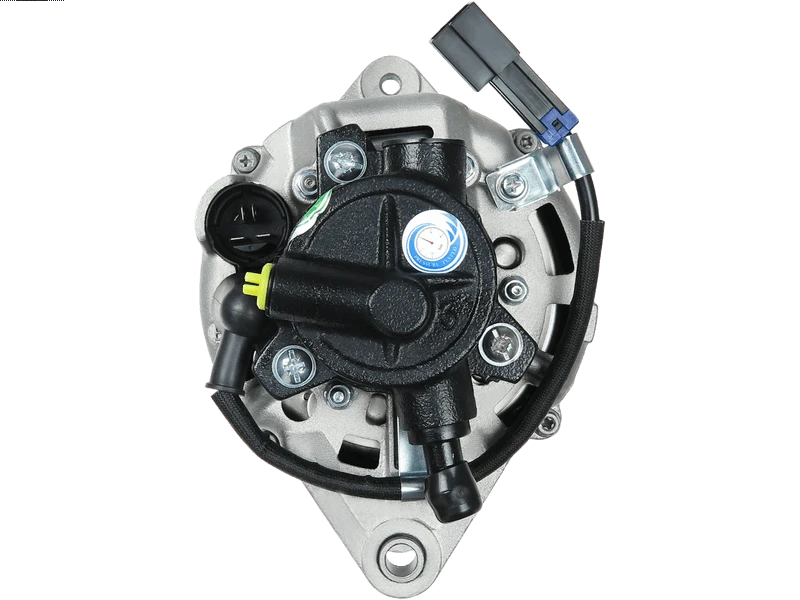

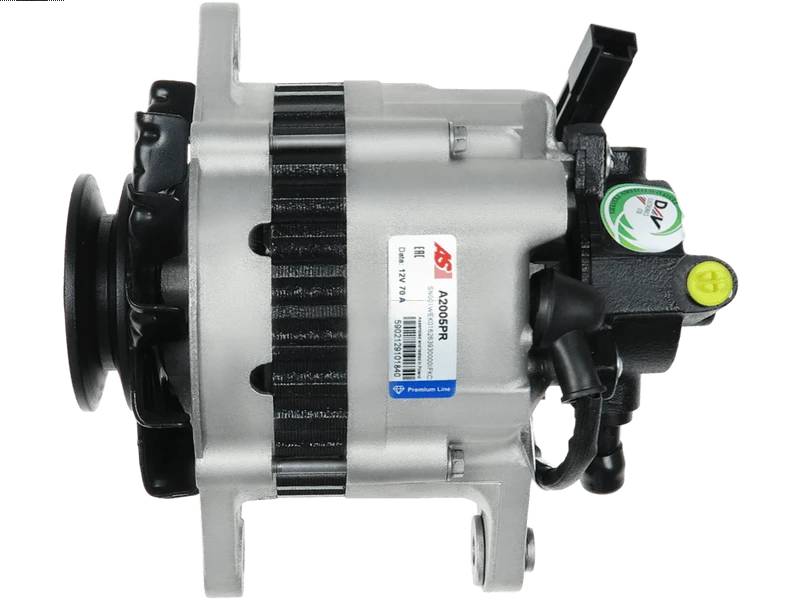

A2005PR - Remanufactured AS-PL Alternator

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Grooves	1 qty
Length (L.1)	218 mm
Mount Inside Length or Pad Mount C-C (C)	78 mm
OEM Product	No
Outside Diameter (O.D.1)	53 mm
Plug Code	PL_4500
Product Line	Premium Line
Product Type	Remanufactured
Pulley to Mount Distance (A)	43 mm
Pulley Type	SOLID
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Astra F 1.7 TD	[X17DTL]	11.1994-09.1998
OPEL	Astra F 1.7 TD	[X17DT(TC4EE1)]	03.1995-02.1998
OPEL	Astra F 1.7 TDS	[17DT(TC4EE1)]	03.1992-09.1998
OPEL	Astra F 1.7 TDS	[17DT(TC4EE1)]	12.1991-01.1998
OPEL	Combo 1.7 D	[17D(4EE1)]	07.1994-10.2001
OPEL	Combo 1.7 D	[X17D(4EE1)]	07.1994-10.2001
OPEL	Corsa B 1.5 D	[15D(4EC1)]	03.1993-09.2000
OPEL	Corsa B 1.5 TD	[15DT(T4EC1)]	03.1993-09.2000
OPEL	Corsa B 1.5 TD	[X15DT(T4EC1)]	03.1993-09.2000
OPEL	Corsa B 1.7 D	[17D(4EE1)]	02.1996-09.2000
OPEL	Vectra A 1.7 TD	[17DT]	03.1990-11.1995
OPEL	Vectra A 1.7 TD	[X17DT]	03.1990-11.1995
VAUXHALL	Astra F 1.7 TD	[17DT(TC4EE1)]	12.1991-02.1998
VAUXHALL	Astra MK III 1.7 TD	[17DT(TC4EE1)]	12.1991-09.1998
VAUXHALL	Cavalier 1.7 TD	[17DT(TC4EE1)]	09.1988-11.1995
VAUXHALL	Combo 1.7 D	[17D(4EE1)]	07.1994-10.2001
VAUXHALL	Combo 1.7 D	[X17D(4EE1)]	07.1994-10.2001
VAUXHALL	Corsa B 1.5 D	[15D]	03.1993-09.2000
VAUXHALL	Corsa B 1.5 TD	[15DT(T4EC1)]	03.1993-10.1996
VAUXHALL	Corsa B 1.5 TD	[X15DT(T4EC1)]	03.1993-10.1996
VAUXHALL	Corsa B 1.7 D	[17D]	02.1996-09.2000
VAUXHALL	Corsa B 1.7 D	[X17D]	02.1996-09.2000
VAUXHALL	Corsavan 1.7 D	[17D(4EE1)]	01.1994-09.2000
VAUXHALL	Corsavan 1.7 D	[X17D(4EE1)]	01.1994-09.2000

Reference Information

ALTL281 11.209.403 11.209.402 72735583 32170420 72735582 90542407 6204013 8EL011711-441 002-U906 CAL20100RS ALTL281LU LR170-427BA 9353 LR170427 97041790 ALT157 40863RI 9.43356E+11 IA9003 437120 8-97113-118-0 8EL731750-001 DA4406 AX 8-97041-790-0 LR170420 AEA1254 MG583 MG584 PRAL281 1204144 9512275 LR170427BA 9.43346E+11 12273N 135.807.070 2U906 LR170-427A 111186 AG0431 PRAL281LU NEA1254 210063 436725 LRB00154 CAL20100ES EAA-221829 DRA3296 9163941 CGB-13296 ALU906 LR170427C LR170427B ALT3045 Mar-52 89212373 LR170-420A 20145001 9.44391E+11 1547229 6204059 LR170420B RAA14307 MG MRA90007 JA863IR Mar-36 EAA-221091 9512124 CAL20100GS 0F042305032 9.43357E+11 20110154 CAL20100OS 28-1896 ALH2863 1148 0986041771 R1030076 2020100 R1030072 97113118 LRB154 ALT32044 1187830 ALT79803 ALTL281NE ALT79804 986041771 8971131181 9119723 311944 IA9019 ALT5410 9119722 AAK3161 AAK3162 F042305032 56363 CAL20100AS CAL20100 ALH0863 583 584

Video/Publications

002-U906 002-U909 0986041771 11.209.402 11.209.403 111186 1204144 12273N 135.807.070 20110154 20145001 2020100 210063 28-1896 2U906 2U909 311944 32170420 40863RI 436725 437120 56363 6204059 72735582 72735583 8-97041-790-0 8-97113-118-0 89212373 8EL011711-441 8EL731750-001 90542407 9163941 9353 943346136010 943356393010 943356590010 944390900070 9512124 97041790 AAK3161 AAK3162 AEA1254 AG0431 ALH0863 ALH2863 ALT157 ALT32044 ALT5410 ALTL281 ALTL281LU ALTL281NE ALU906 ALU909 AX 1148 CAL20100 CAL20100AS CAL20100ES CAL20100GS CAL20100OS CAL20100RS CGB-13296 DA4406 DRA3296 EAA-221091 EAA-221829 F042305032 IA9003 IA9019 JA863IR LR170420 LR170420B LR170427 LR170427B LR170427C LRB00154 LRB154 MAR5152 MAR6136 MG 583 MG 584 MG583 MG584 MRA90007 NEA1254 PRAL281 PRAL281LU R1030072 RAA14307
