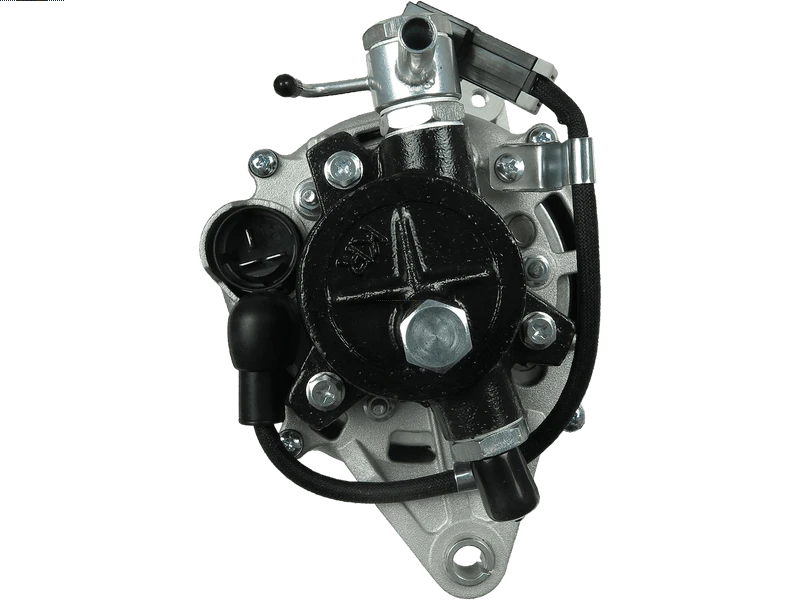

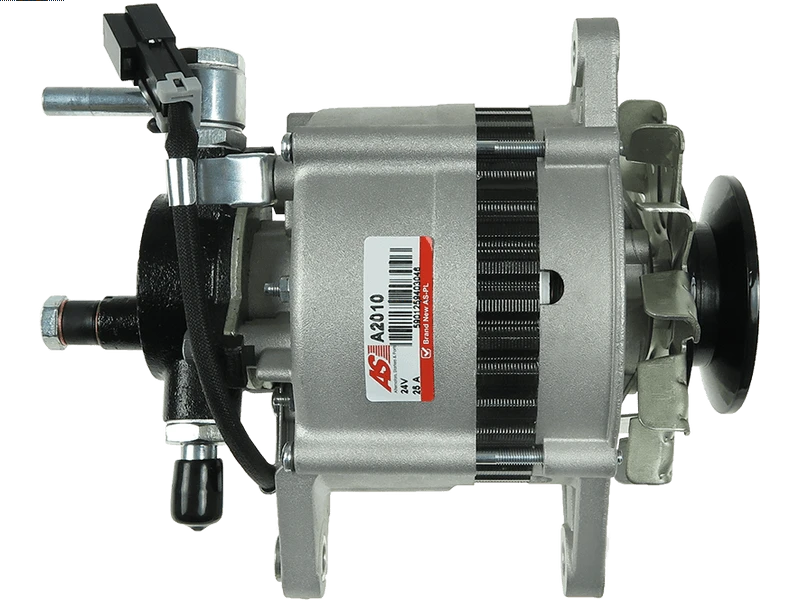

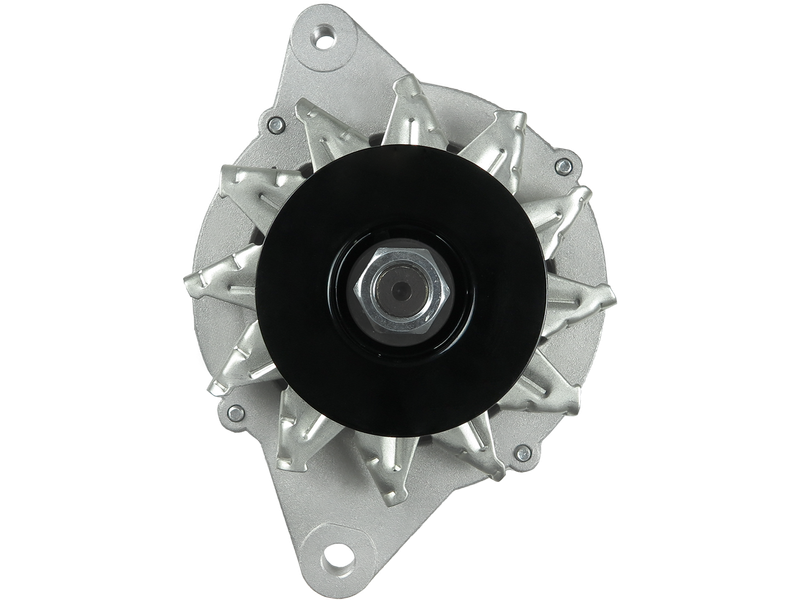

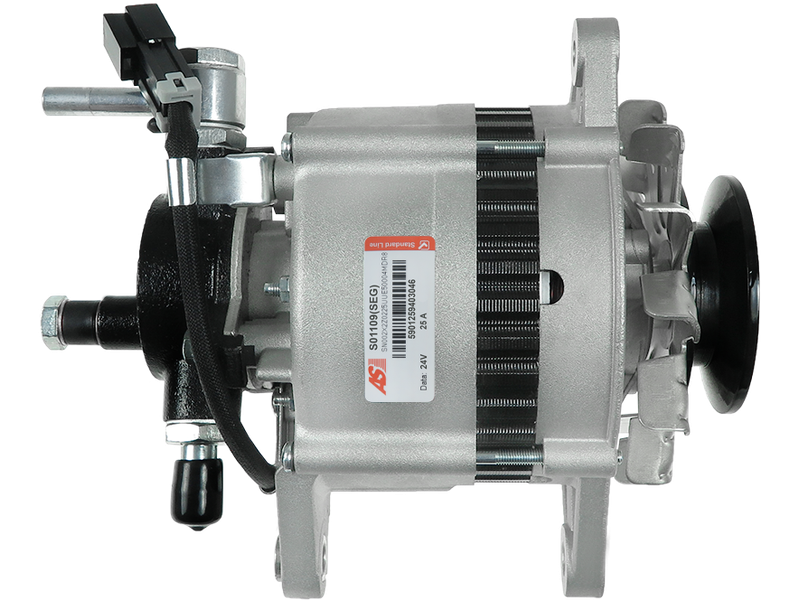

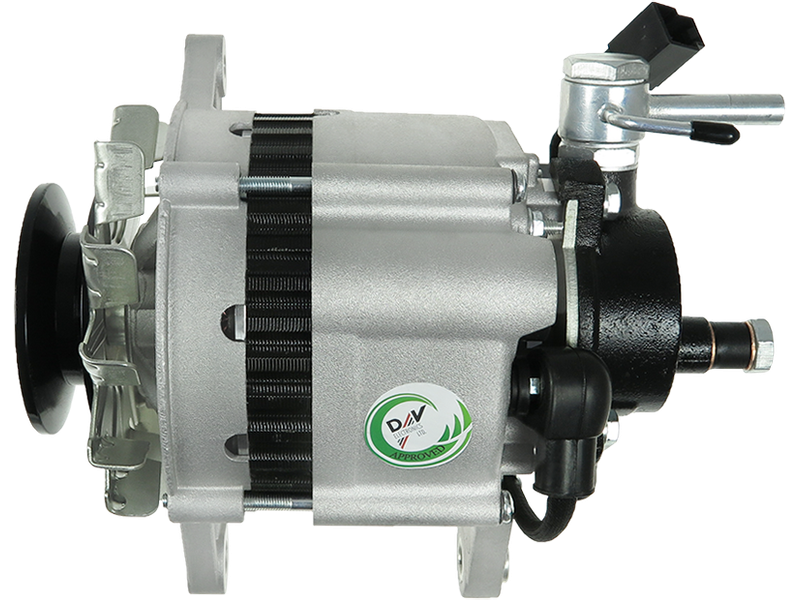

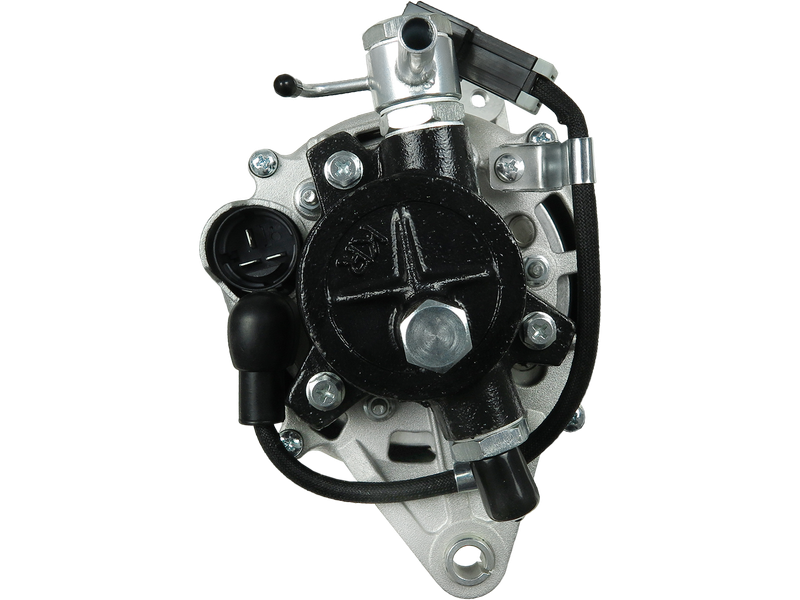

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 424.48 including GST
NZ$ 369.11 excluding GST
or four payments of $106.12
with
Learn More
each
A2010
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LR225408Associated Numbers
11.1171 111493 18.3006 23099-T3402 401171RI 48-1619 89212625 8940723300 8941004502 8944046520 8944559730 8944723300 8944733300 8EL737226-001 9212625 A2010 ALTV038 DRA3849 JA1171IR LR225-408 LR225-408B LR225-408C LR225-408E LR225-409 LR225-409B LR225-409E LRA02445 S2010 14-023 hxa009Specifications
| Amp | 25 A |
| Bottom Mounting Foot Width (B) | 12.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 238 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.50 mm |
| OEM Product | No |
| Plug Code | PL_4500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 16 mm |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley Outside Diameter (O.D.2) | 81.50 mm |
| Pulley to Mount Distance (A) | 45.50 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | NKR 3.6 Diesel | 01.1984-12.1990 |
Reference Information
| 11.1171 | LAUBER |
| 111493 | CARGO |
| 18.3006 | LAUBER |
| 23099-T3402 | NISSAN |
| 401171RI | KUHNER |
| 446220 | LOGISTIK |
| 48-1619 | ELSTOCK |
| 89212625 | POWERMAX |
| 8940723300 | ISUZU |
| 8941004502 | ISUZU |
| 894122-2673 | ISUZU |
| 8943897721 | ISUZU |
| 8944046520 | ISUZU |
| 8944559730 | ISUZU |
| 8944723300 | ISUZU |
| 8944733300 | ISUZU |
| 8EL737226-001 | HELLA |
| 9212625 | POWERMAX |
| A2010 | AS-PL |
| ALT3099 | ELECTROLOG |
| ALT5310 | SIOM |
| ALTF491 | 3EFFE |
| ALTF970 | 3EFFE |
| ALTV038 | WOODAUTO |
| DRA3849 | DELCO |
| F032111493 | CARGO |
| JA1171IR | HC PARTS |
| LR225-408 | HITACHI |
| LR225-408B | HITACHI |
| LR225-408C | HITACHI |
| LR225-408E | HITACHI |
| LR225-409 | HITACHI |
| LR225-409B | HITACHI |
| LR225-409E | HITACHI |
| LR225-415B | HITACHI |
| LRA02445 | LUCAS |
| LRA2445 | LUCAS |
| PRAF491 | 3EFFE |
| PRAF970 | 3EFFE |
Video/Publications
