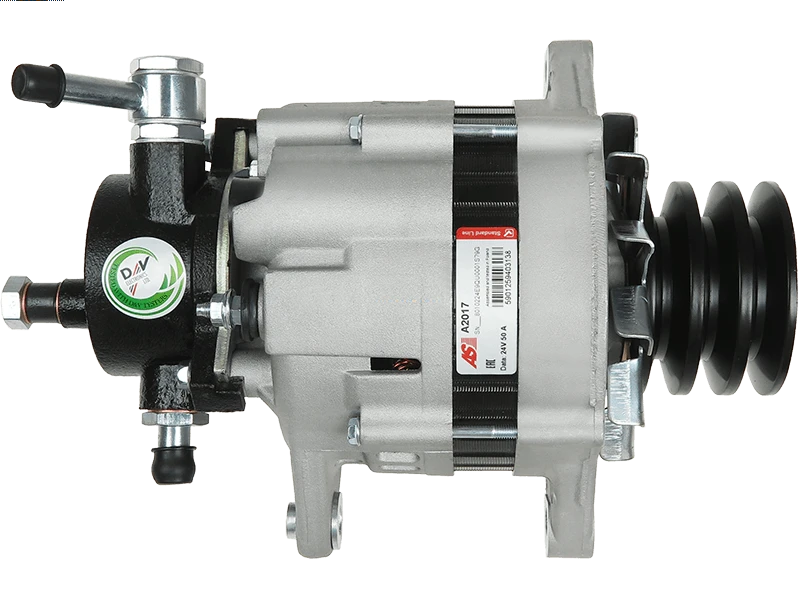

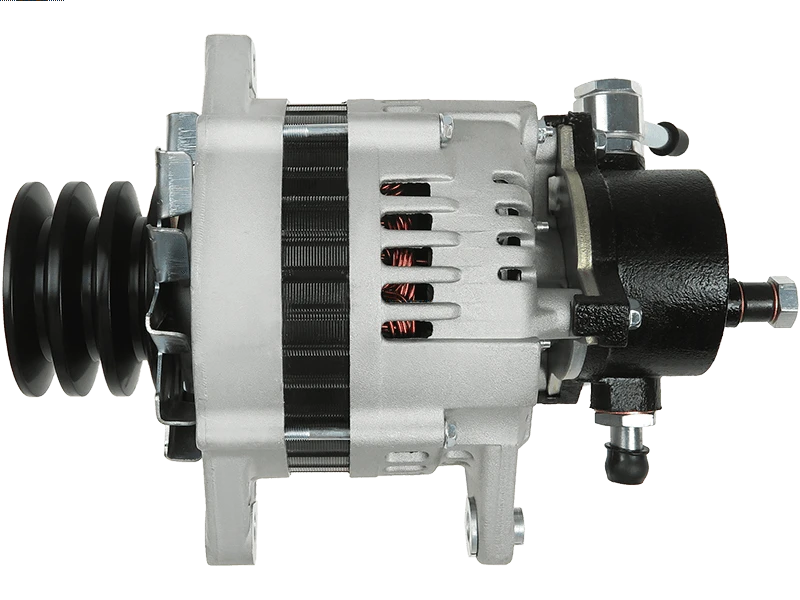

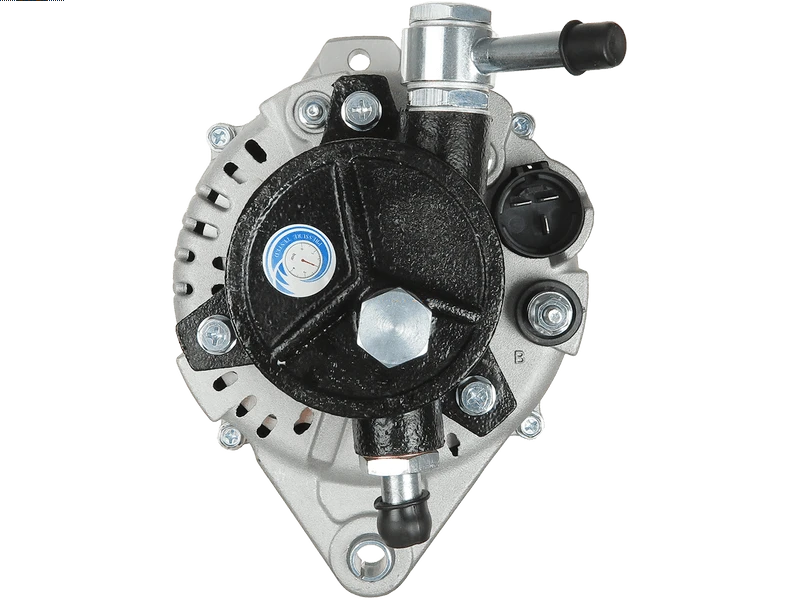

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 500.35 including GST
NZ$ 435.09 excluding GST
or four payments of $125.09
with
Learn More
each
A2017
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LR250503Associated Numbers
20145906BN 2020609 553698RI 8971160880 ALT32182 CAL20609AS LR250-503 HXA041 ANJ084 ANJ084GQ 6530131 65-3013-1 ernator LR225-415B 8-94389-772-1 24v 25amps ALTERNATOR 1 UNIT Hitachi Alternator LR235-503B LR235-503C 8-97075-882-2 35amps LR240-501B 8-97019-233-1 40amps LR240-501C 8-97066-408-0 LR250-502B 8-97075-883-0 50amps LR250-502C 8-97075-883-2 LR250-507 8-97148-496-0 LR250-510B 8-97170-163-1 LR250-511 Isuzu 8-97183-882-0 8-97351-572-0 A3TN6279 8971484960Specifications
| Amp | 50 A |
| Bottom Mounting Foot Width (B) | 17.50 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 290 mm |
| Mount Inside Length or Pad Mount C-C (C) | 79 mm |
| OEM Product | No |
| Plug Code | PL_4500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 3 qty |
| Pulley Groove Width (W.1) | 11.50 mm |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley Outside Diameter (O.D.2) | 82 mm |
| Pulley to Mount Distance (A) | 42.50 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOGDAN | A-091 4.6D | [4HE1, 4HG1] | 01.2000-12.2003 |
| BOGDAN | A-091 4.6D | [4HE1,4HG1] | 01.2000-12.2003 |
Reference Information
| 20145906BN | REAL |
| 2020609 | SANDO |
| 446853 | LOGISTIK |
| 553698RI | KUHNER |
| 8971160880 | ISUZU |
| ALT226090 | SIOM |
| ALT226090A | SIOM |
| ALT32182 | WOODAUTO |
| CAL20609AS | CASCO |
| LR250-503 | HITACHI |
| PRAF959 | 3EFFE |
Video/Publications
