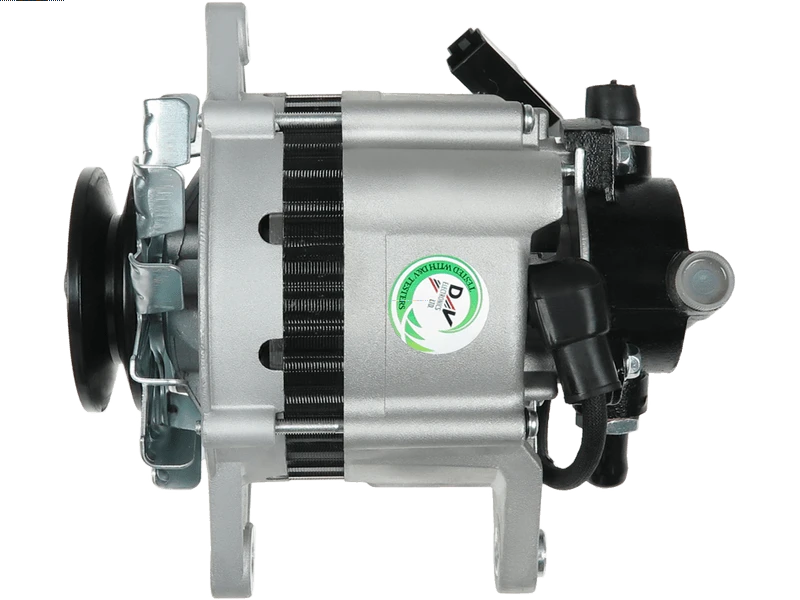

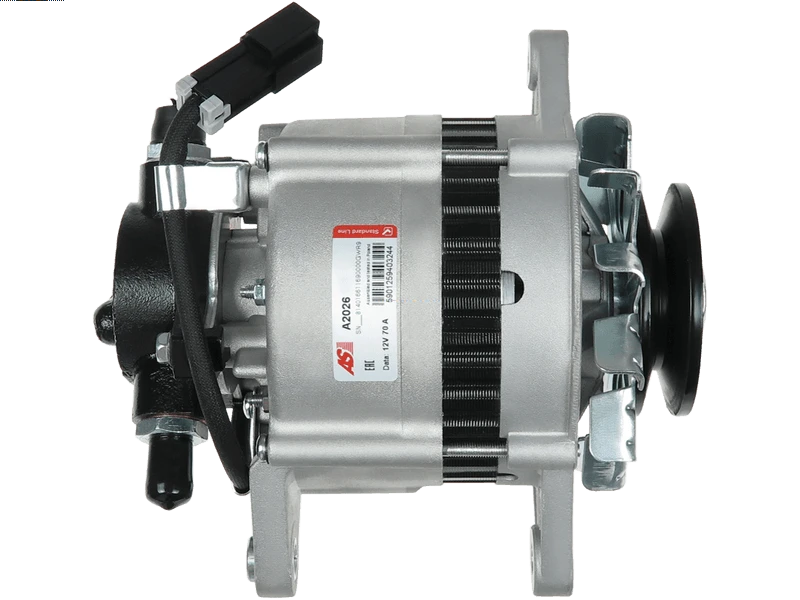

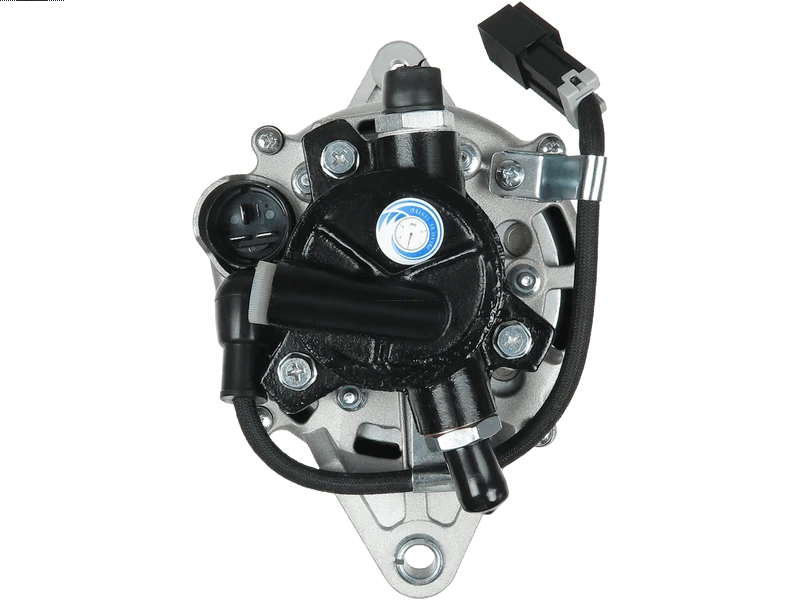

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 381.14 including GST
NZ$ 331.43 excluding GST
or four payments of $95.29
with
Learn More
each
A2026
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986037831 11.0874 111235 1204007 1204008 1204084 1204144 20110154 20145811BN 2020118 22430N 28-1924 40874RI 437179 437881 56373 89213751 8943325811 8943325812 8EL732720-001 9037831 9353 94332581 ALT32176 CAL20118AS DRA3297 EAA-221829 JA874IR LR170-415 LR170-415B LR170-415C LRA01430Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 215 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | No |
| Plug Code | PL_4500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley Outside Diameter (O.D.2) | 82 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Kadett E 1.5 TD | [15DT(T4EC1)] | 09.1988-08.1991 |
Reference Information
| 002-U904 | ASHIKA |
| 0986037831 | BOSCH |
| 11.0874 | LAUBER |
| 111235 | CARGO |
| 1204007 | OPEL |
| 1204008 | OPEL |
| 1204084 | OPEL |
| 1204144 | OPEL |
| 20110154 | PRESTOLITE |
| 20145811BN | REAL |
| 2020118 | SANDO |
| 22430N | WAI / TRANSPO |
| 28-1924 | ELSTOCK |
| 2U904 | JAPKO |
| 40874RI | KUHNER |
| 437179 | VALEO |
| 437881 | VALEO |
| 445923 | LOGISTIK |
| 56373 | EAI |
| 89213751 | POWERMAX |
| 8-94332-581 | ISUZU |
| 8943325811 | ISUZU |
| 8943325812 | ISUZU |
| 8EL732720-001 | HELLA |
| 9037831 | FRIESEN |
| 9353 | CEVAM |
| 94332581 | OPEL |
| A2026 | AS-PL |
| ALT3132 | ELECTROLOG |
| ALT32176 | WOODAUTO |
| ALT5410 | SIOM |
| ALT5520 | SIOM |
| ALTF367 | 3EFFE |
| ALU904 | JAPANPARTS |
| ANM35517X | ANDEL |
| CAL20118AS | CASCO |
| CGB-13296 | AINDE |
| DRA3297 | DELCO |
| F032111235 | CARGO |
| JA874IR | HC PARTS |
| LR170-415 | HITACHI |
| LR170-415B | HITACHI |
| LR170-415C | HITACHI |
| LRA01430 | LUCAS |
| LRA1430 | LUCAS |
| PRAF367 | 3EFFE |
| STX100050 | STARDAX |
| STX100050R | STARDAX |
| STX100927 | STARDAX |
| STX100989 | STARDAX |
| STX101267 | STARDAX |
| STX101808 | STARDAX |
| VP705000 | VICTORY |
| VP705100 | VICTORY |
| VP705C00 | VICTORY |
