A2038 - Brand new AS-PL Alternator

Specifications

Amp	100 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	8 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Grooves	6 qty
Length (L.1)	236 mm
Mount Inside Length or Pad Mount C-C (C)	67 mm
OEM Product	No
Outside Diameter (O.D.1)	60 mm

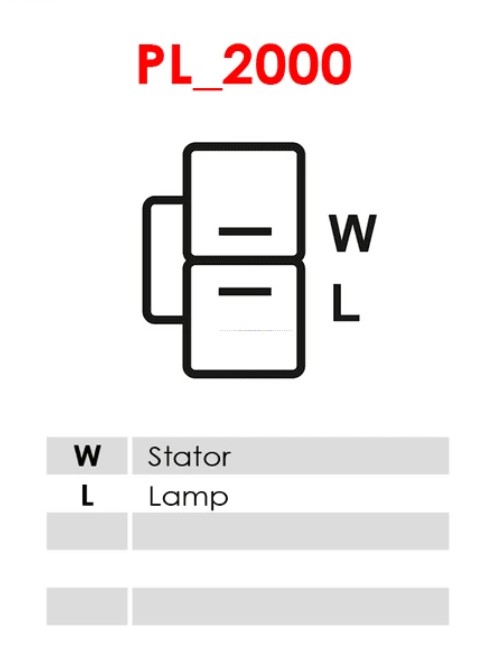

Plug Code	PL_2000
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	36 mm
Pulley Type	CLUTCH
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Astra 1.7 CDTi	[Z17DTL]	04.2003-01.2005
OPEL	Astra 1.7 CDTi	[Z17DTL]	04.2003-05.2004
OPEL	Astra 1.7 CDTi	[Z17DTL]	04.2003-12.2009
OPEL	Astra 1.7 DTi 16V	[Y17DT]	02.2000-01.2005
OPEL	Combo 1.7 CDTi 16V	[Z17DTH]	12.2004-
OPEL	Combo 1.7 CDTi 16V Tour	[Z17DTH]	12.2004-
OPEL	Combo 1.7 Di 16V	[Y17DTL]	10.2001-
OPEL	Combo 1.7 DTi 16V	[Y17DT]	10.2001-
OPEL	Combo Tour 1.7 CDTi 16V	[Z17DTH]	07.2004-12.2011
OPEL	Combo Tour 1.7 Di 16V	[Y17DTL]	10.2001-06.2004
OPEL	Combo Tour 1.7 DTi 16V	[Y17DT]	10.2001-06.2004
OPEL	Corsa 1.7 Di	[Y17DTL]	09.2000-12.2009
OPEL	Corsa 1.7 Di 16V	[Y17DTL]	09.2000-07.2003
OPEL	Corsa 1.7 DTi	[Y17DT]	09.2000-12.2009
OPEL	Corsa 1.7 DTi 16V	[Y17DT]	09.2000-07.2003
OPEL	Corsa C 1.7 CDTi	[Z17DTH]	06.2003-
OPEL	Corsa C 1.7 CDTi SE	[Z17DTH]	08.2003-09.2006
OPEL	Meriva 1.7 CDTi	[Z17DT]	09.2003-05.2010
OPEL	Meriva 1.7 CDTi	[Z17DTH]	09.2003-05.2010
OPEL	Meriva 1.7 DTi	[Y17DT]	09.2003-05.2010
OPEL	Meriva A 1.7 CDTi	[Z17DTH]	09.2003-
VAUXHALL	Combo 1.7 CDTi 16V	[Z17DTH]	12.2004-11.2011
VAUXHALL	Combo Tour Mk II 1.7 CDTi 16V	[Z17DTH]	12.2004-09.2010
VAUXHALL	Corsa MK II 1.7 CDTi 16V	[Z17DTH]	04.2004-
VAUXHALL	Corsa MK III 1.7 CDTi 16V	[Z17DTH]	04.2004-
VAUXHALL	Meriva 1.7 CDTi 16V	[Z17DTH]	04.2004-
VAUXHALL	Meriva A 1.7 CDTi 16V	[Z17DTH]	04.2004-

Reference Information

Mar-01 CGB-10503 9188 LR1100803B 5520116 9.44391E+11 63731901010 LRA3038 93189501 6204251 97359198 DRA0182 8EL012427-511 EAA-221018 ALH1901 HITLR1100-503 PRAL372 CAL20156OS 136102 ANM32402X LR1150-503E 986048340 20145651RE 2020156.4 8-97355-198-0 97355198 135.602.100.080 2020156 401901RI 20145651BN LRA03038 6204183 RAA11293 28-5650 STA0301R 8973554981 DA1292 210890 CAL20156AS 89212779 8-97355-498-1 21832N 8980564430 98056443 A2038 LR1100-503E LR1100-503F PRAL372HI A12HT1185A2 LR1100-503A LR1100-503B LR1100-503C LR1100-503 LR1100-503D GA100503-A 9562188 8973551983 DRA0182X 8973551981 8973551982 AG0478 ALTL372 8973551980 8-98056-443-0 MQA1901 135.602.100.265 ALT32051 32048340 ALT425CP JA1901IR 57056 113941 447148 2506102 0986048340 9.43319E+11 93189495 ALT3126 426 R1530089

Video/Publications

0986048343 11.1901 113941 135.602.100 20110487 20145651BN 20145651RE 20145902OE 20145902RE 2020156 2020209 21832N 28-5650 312224 32048340 335704 401901RI 57056 6204183 6204251 89212779 8973551980 8973551981 8973551982 8973554981 8980564430 8EL012427-511 8EL738211-601 9090415 9188 93189495 A2038 AEK3038 ALT221360 ALT32051 ALTL133 ALTL133LU ALTL133M ALTL133NE ALTL700 CAL20156AS CAL20156OS CAL20209GS CAL20209OS CGB-10750 DRA0182 EAA-221018 JA1901IR LR1100-503 LR1100-503A LR1100-503B LR1100-503C LR1100-503D LR1100-503E LR1100-503F LRA03038 LRA3038 PRAL133 PRAL133LU R1530089 RNLLR1100-503 RNLLR1100503INA SB196 210890
