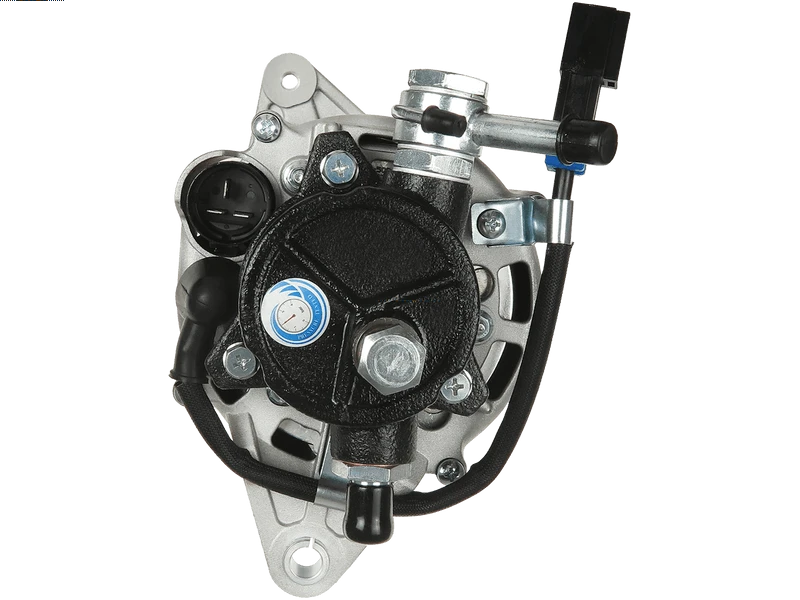

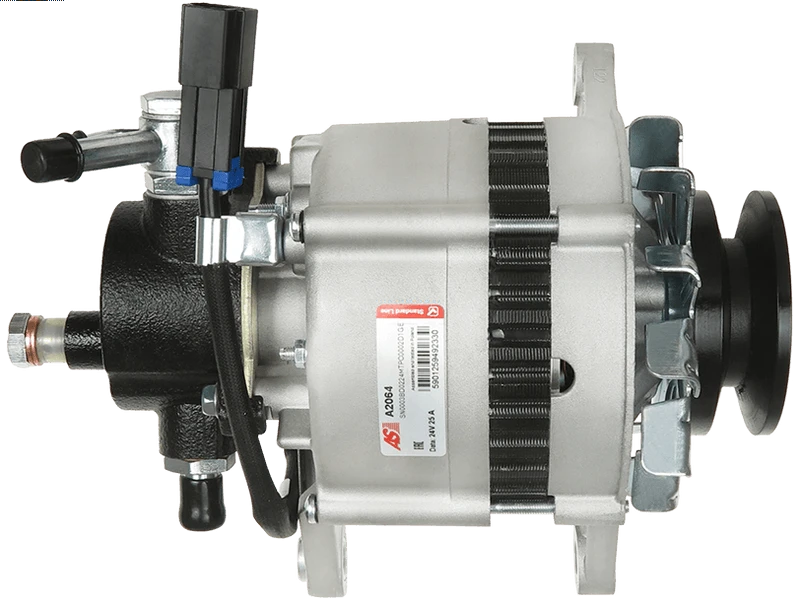

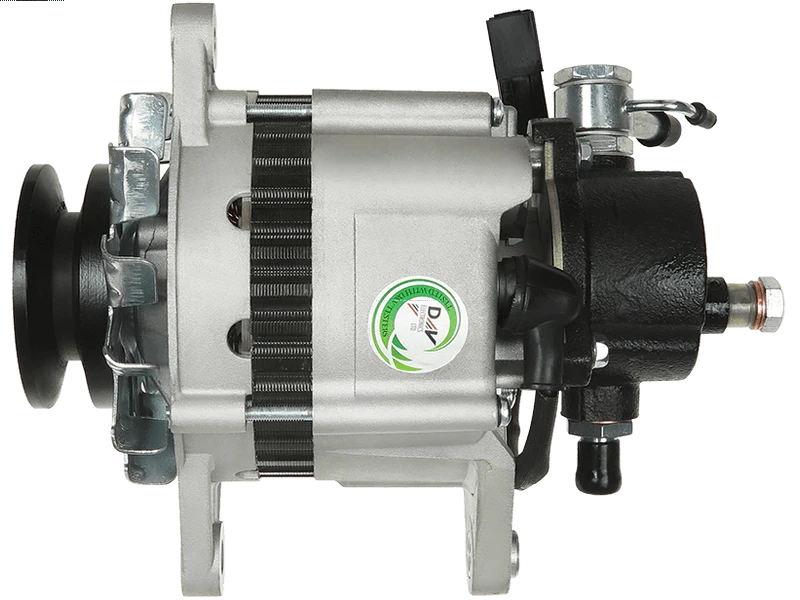

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 382.65 including GST
NZ$ 332.74 excluding GST
or four payments of $95.66
with
Learn More
each
A2064
1
Associated Numbers
JA761-1-24V UD02256ASpecifications
| Amp | 25 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 253 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.50 mm |
| OEM Product | No |
| Plug Code | PL_4500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 15 mm |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley Outside Diameter (O.D.2) | 82 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | T3500 | ||
| MAZDA | Titan |
Reference Information
| A1T71176 | MITSUBISHI |
| ALM7176 | KRAUF |
| JA761-1-24V | HC PARTS |
| SL0118300 | SUZUKI |
| UD02256A | AS-PL |
Video/Publications
