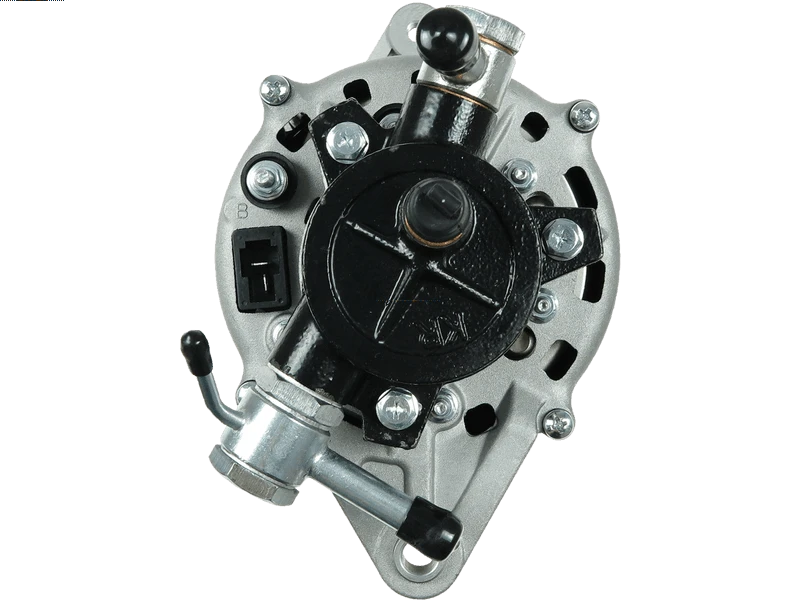

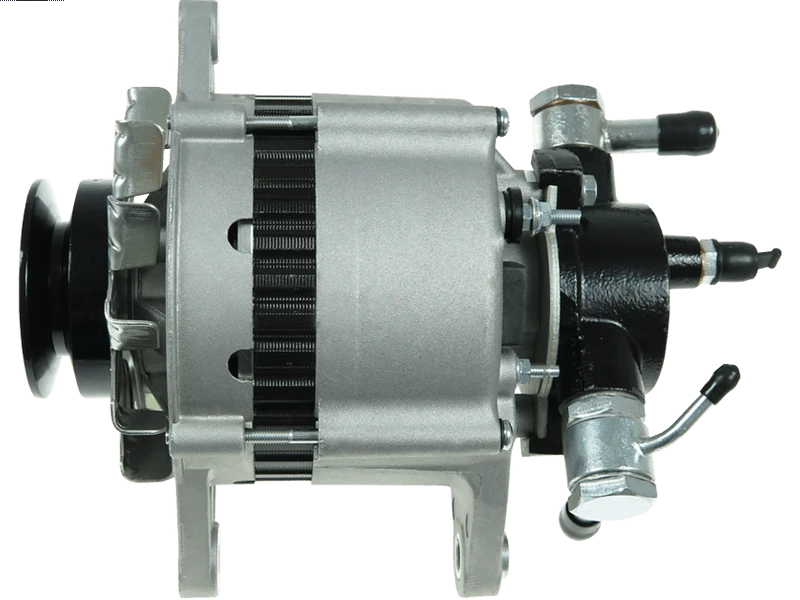

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 390.15 including GST
NZ$ 339.26 excluding GST
or four payments of $97.54
with
Learn More
each
A2068
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
LR160-412Associated Numbers
11.0180 11.5180 110706 145.802.060 20145551BN 2020155 22254N 22254R 28-0830 40180RI 56149 89212999 8EL726325-001 9175 9212999 AEA3213 ALT32045 CAL20155AS DRA3426 JA180IR LR160-412 LR160-412B LR160-412F LR160-440 LR160-440F LR160-441 LR160-441F LR160-449 LR160-450 LRB00313 R213-18-300 R213-18-300B R213-18-300C R282-18-300 R286-18-300 R286-18-300B SA993 UD12313ASpecifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 242 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80.50 mm |
| OEM Product | No |
| Plug Code | PL_2505 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 45 mm |
| Pulley Outside Diameter (O.D.2) | 73 mm |
| Pulley to Mount Distance (A) | 50.50 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Econovan 2.0 D | [RF] | 01.1986-12.1999 |
| MAZDA | E2200 2.2 D | [R207] | 01.1984-12.1988 |
| MAZDA | E2200 2.2 D | [R21N] | 01.1999-12.2004 |
| MAZDA | E2200 2.2 D | [R281] | 01.1988-12.1997 |
| MAZDA | E2200 2.2 D | [R286] | 01.1988-12.1997 |
| MAZDA | E2200 2.2 D | [R294] | 01.1988-12.1997 |
Reference Information
| 002-M924 | ASHIKA |
| 0K740-18300G | HYUNDAI / KIA |
| 11.0180 | LAUBER |
| 110706 | CARGO |
| 11.5180 | LAUBER |
| 145.802.060 | PSH |
| 145.802.060.461 | PSH |
| 20145551BN | REAL |
| 2020155 | SANDO |
| 22254N | WAI / TRANSPO |
| 22254R | WAI / TRANSPO |
| 28-0830 | ELSTOCK |
| 2M924 | JAPKO |
| 40180RI | KUHNER |
| 445229 | LOGISTIK |
| 56149 | EAI |
| 89212999 | POWERMAX |
| 8EL726325-001 | HELLA |
| 9175 | CEVAM |
| 9212999 | POWERMAX |
| A130.225 | PSH |
| A2068 | AS-PL |
| AEA3213 | AUTOELECTRO |
| ALM924 | JAPANPARTS |
| ALT32045 | WOODAUTO |
| ALT5020 | SIOM |
| ALTL397 | 3EFFE |
| ALTL397RR | 3EFFE |
| ALTL397V | 3EFFE |
| ANM35646X | ANDEL |
| CAL20155AS | CASCO |
| CGB-14199 | AINDE |
| DRA3426 | DELCO |
| F032110706 | CARGO |
| JA180IR | HC PARTS |
| LR155407 | HITACHI |
| LR155414 | HITACHI |
| LR160-412 | HITACHI |
| LR160-412B | HITACHI |
| LR160-412F | HITACHI |
| LR160-440 | HITACHI |
| LR160-440F | HITACHI |
| LR160-441 | HITACHI |
| LR160-441F | HITACHI |
| LR160-449 | HITACHI |
| LR160-450 | HITACHI |
| LRB00313 | LUCAS |
| LRB313 | LUCAS |
| PRAL397 | 3EFFE |
| PRAL397V | 3EFFE |
| R213-18-300 | MAZDA |
| R213-18-300B | MAZDA |
| R213-18-300C | MAZDA |
| R282-18-300 | MAZDA |
| R286-18-300 | MAZDA |
| R286-18-300B | MAZDA |
| RFB318300 | MAZDA |
| SA993 | SOVEREIGN |
| STX100946 | STARDAX |
| STX101096 | STARDAX |
| STX102092 | STARDAX |
| UD12313A | AS-PL |
