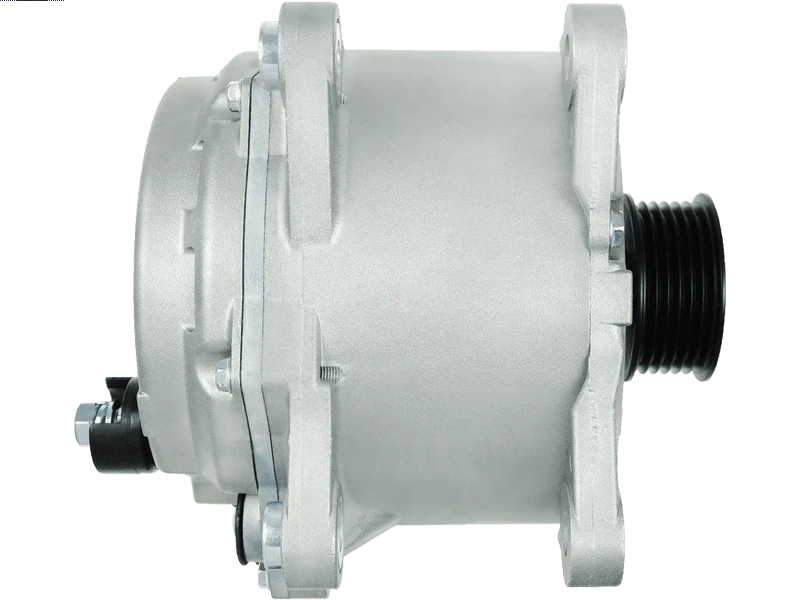

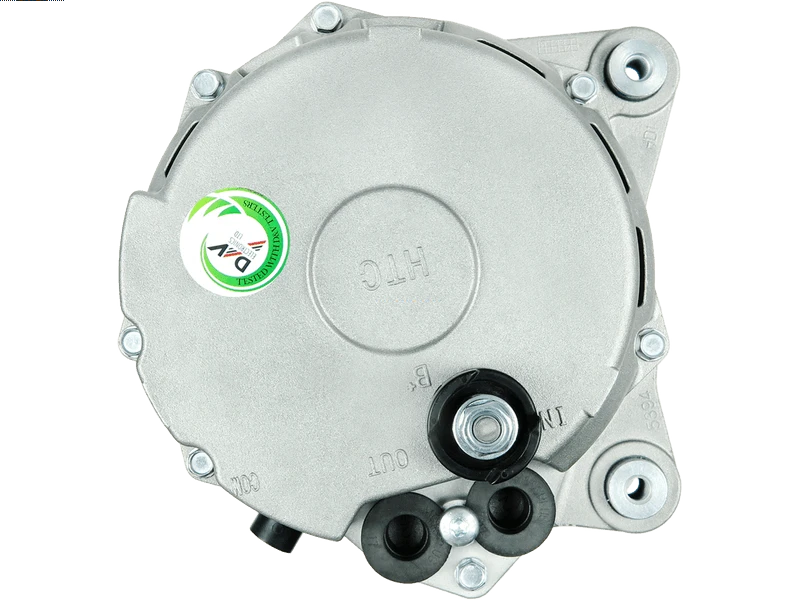

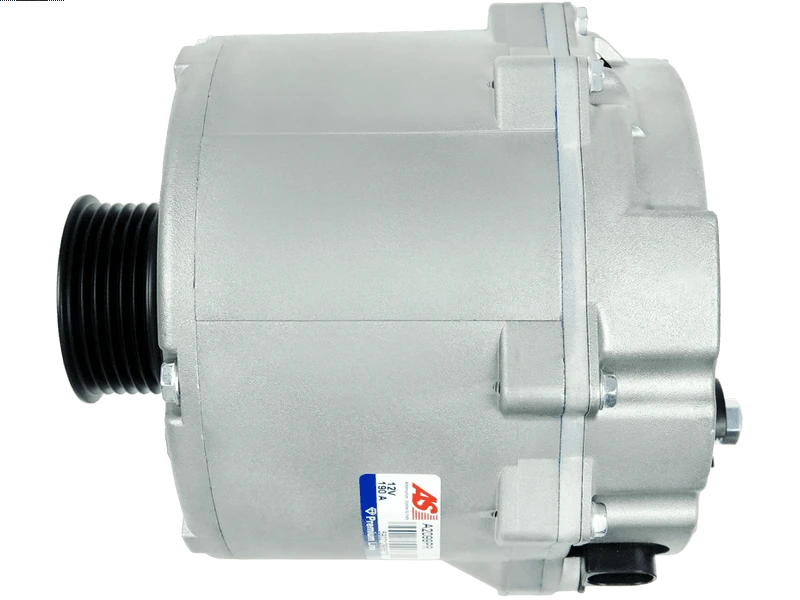

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
HITACHI
Price:
NZ$ 1,056.97 including GST
NZ$ 919.10 excluding GST
or four payments of $264.24
with
Learn More
each
A2099PR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
06E903015 06E903015B 205.415.190 28-7709 555101RIH AEG1453 LR1190-946 LR1190-946B LRA04100Specifications
| Amp | 190 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 196.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Voltage | 12 V |
| Water Cooled | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A8 3.0 TFSi Quattro | [CGWA] | 07.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CGWD] | 11.2011- |
| AUDI | A8 3.0 TFSi Quattro | [CGXC] | 06.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CMDA] | 06.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CREA] | 11.2011- |
| AUDI | A8 3.0 TFSi Quattro | [CREC] | 06.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CREG] | 07.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CTDA] | 06.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CTGXA | 07.2010- |
| AUDI | A8 3.0 TFSi Quattro | [CTUB] | 06.2010- |
| AUDI | Q7 3.0 TFSi Quattro | [CJTB] | 05.2010-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CJTC] | 05.2010-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CJWB] | 05.2010-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CJWC] | 05.2010-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CJWE] | 05.2011-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CNAA] | 05.2010-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CTWA] | 05.2010-08.2015 |
| AUDI | Q7 3.0 TFSi Quattro | [CTWB] | 05.2011-08.2015 |
Reference Information
| 06E903015 | VW |
| 06E903015B | VW |
| 06E903015BX | VW |
| 205.415.190 | PSH |
| 28-7709 | ELSTOCK |
| 555101RIH | KUHNER |
| AEG1453 | AUTOELECTRO |
| ALT222270 | SIOM |
| ALTE344 | 3EFFE |
| LR1190-946 | HITACHI |
| LR1190-946B | HITACHI |
| LRA04100 | LUCAS |
| LRA4100 | LUCAS |
| PRAE344 | 3EFFE |
Video/Publications
