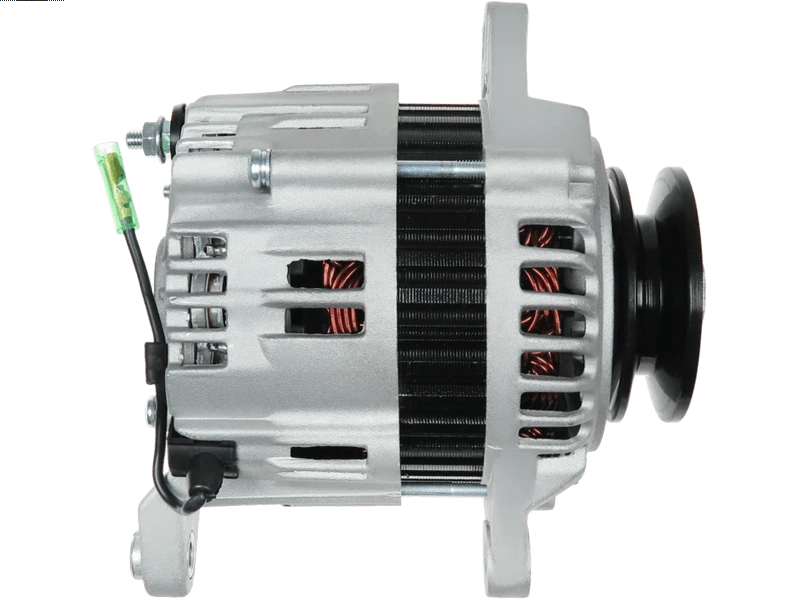

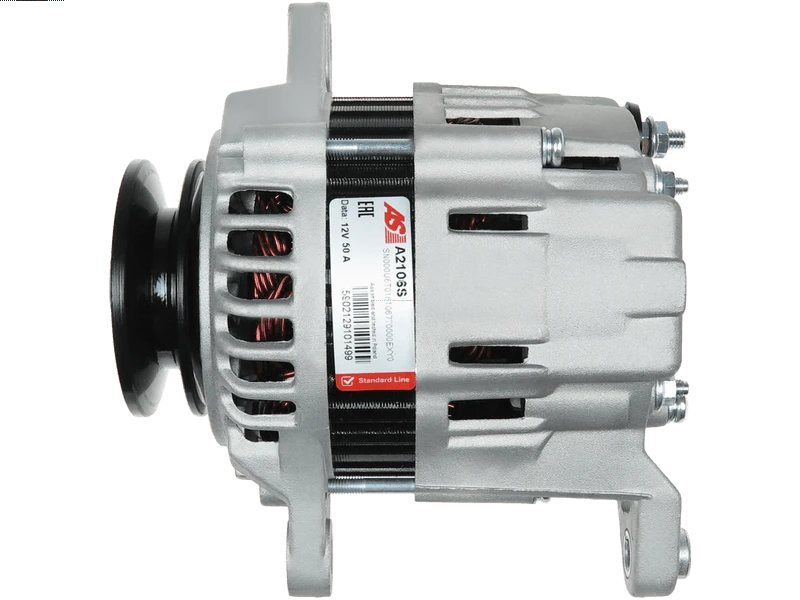

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 334.49 including GST
NZ$ 290.86 excluding GST
or four payments of $83.62
with
Learn More
each
A2106S
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
LR150-715Associated Numbers
115432 135.553.050 140-06101 14863N 20145691 2020196 204-10118 2585 553202RI 897228-3181 8972283180 8972283181 A-80112 ALH0390 CAL20196 CAL20196AS CAL20196ES CAL20196GS CAL20196OS CAL20196RS EAA-224261 LR150-715 LR150-715B UD90383A 023180 Andre Niermann Cargo 12060979 EuroTec 135553050 PSH 204241 PIC CEVAM 8972012810 Isuzu LR150714 Hitachi LR150715 LR150715B LT150715 ARROWHEAD LR150-714 ATLANTIC QUALITY PARTS 7400-0501 CLARK EQUIPMENT 067011910 HITACHI LR150-714N ISUZU 8-97201-281-0 anj137 anj500 65-6013 65-6278-1 UNIT Alternator LR140-723 12v 40amps ALTERNATOR 1 LR140-723B Wilson 90-25-1095 LR140-714 [119836-77200] LR140-714B LR140-719 [129930-77210] LR140-721 [119836-77201] LR140-721B anj401 Repco Auto Parts ALT718 Shine N14255 N14704 WAI 1-1112 90-25-1010 90-27-3176 LR135-61 [23100-B9801] 35amps LR135-61B [23100-B9802] LR138-01 [23100-N9800] LR140-133 [23100-03B05] LR150-31 [23100-P2504] 50amps LR150-31B LR150-50 [23100-U9503] Hyster 3046673 Ingram 843407 843634R Lucas LRA348 Mitsubishi 34468-28100 The option offered is to be compared original confirm suitability. A1T22581 [23100-M0412] A1T22971 [23100-B9810] A1T25077 [34468-28200] A1T25087 [3446-18104] A1T25097 A2T21474 Nissan Datsun 23100-B9805 23100-P2503 Ashdown 903-71561X Bosch JXA1101 Delco 10463709 LR120-15C [121400-77201] 20amps LR125-34 [17105-877200] LR135-07 [23100-01B00] LR135-106 [129785-77200] LR135-107 LR135-108 [23100-03B00] LR135-44 [23100-B9800] LR135-48A LR135-51 119836-77200 129930-77210 119836-77201 23100-B9801 23100-B9802 23100-N9800 23100-03B05 23100-P2504 23100-U9503 23100-M0412 23100-B9810 34468-28200 3446-18104 121400-77201 17105-877200 23100-01B00 129785-77200 23100-03B00 23100-B9800Specifications
| Amp | 50 A |
| Bottom Mounting Foot Width (B) | 12 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 164.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_2500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 46 mm |
| Pulley Outside Diameter (O.D.2) | 74 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DOOSAN | DH55 | ||
| GEHL | CTL70 | ||
| ISUZU | Engine 2.8 | [4JB1] | |
| MUSTANG | MTL20 | ||
| TAKEUCHI | TL140 |
Reference Information
| 115432 | CARGO |
| 135.553.050 | PSH |
| 140-06101 | DIXIE |
| 14863N | WAI / TRANSPO |
| 20145691 | REAL |
| 2020196 | SANDO |
| 204-10118 | ROBERT'S |
| 2585 | CEVAM |
| 447101 | LOGISTIK |
| 553202RI | KUHNER |
| 714-40090 | JCB |
| 8972012810 | ISUZU |
| 8972283180 | ISUZU |
| 8972283181 | ISUZU |
| 897228-3181 | YANMAR |
| A12HT0457A2 | SIDAT |
| A2106S | AS-PL |
| A-80112 | DIXIE |
| ALH0390 | KRAUF |
| ALT221920 | SIOM |
| ALT221920A | SIOM |
| ALT3040 | ELECTROLOG |
| ALTS731 | 3EFFE |
| ALTS731R | 3EFFE |
| CAL20196 | CASCO |
| CAL20196AS | CASCO |
| CAL20196ES | CASCO |
| CAL20196GS | CASCO |
| CAL20196OS | CASCO |
| CAL20196RS | CASCO |
| CGB-10715 | AINDE |
| F032115432 | CARGO |
| LR150-714 | HITACHI |
| LR150-715 | HITACHI |
| LR150-715A | HITACHI |
| LR150-715B | HITACHI |
| PRAS731 | 3EFFE |
| UD90383A | AS-PL |
Video/Publications
A2106SRelated Items
