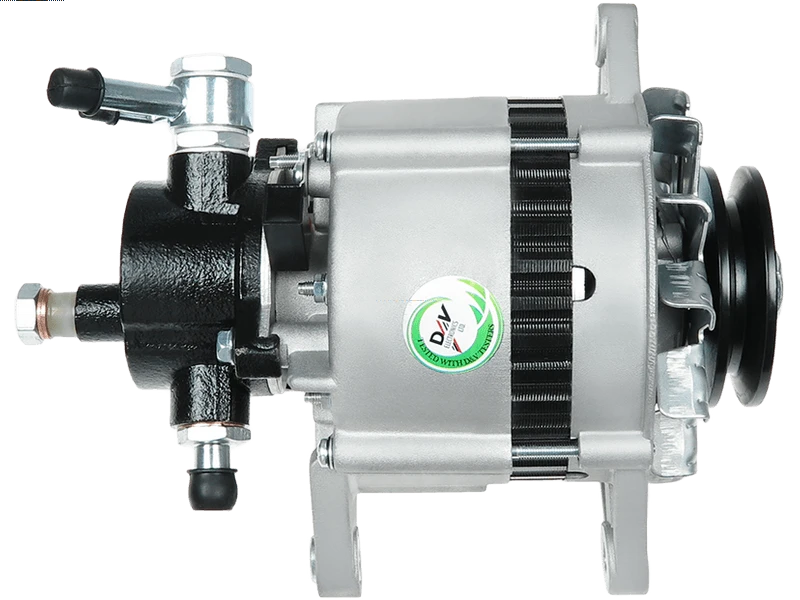

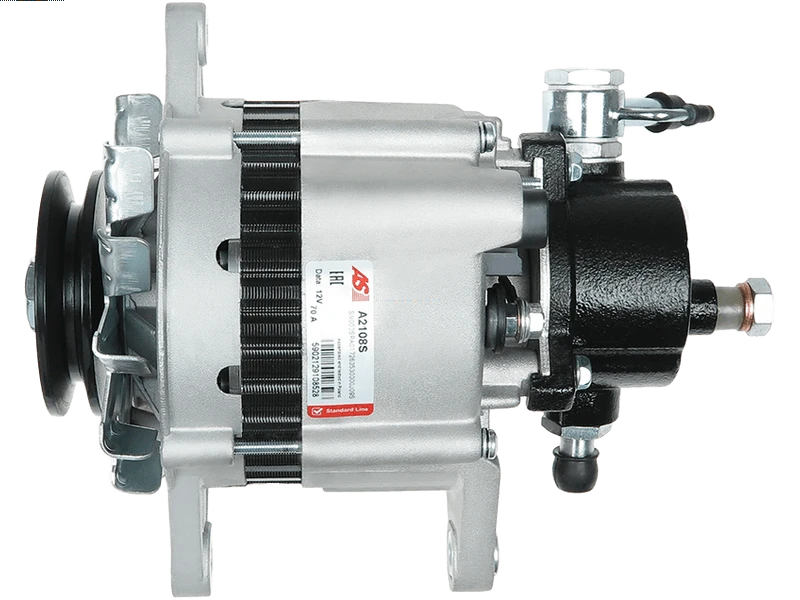

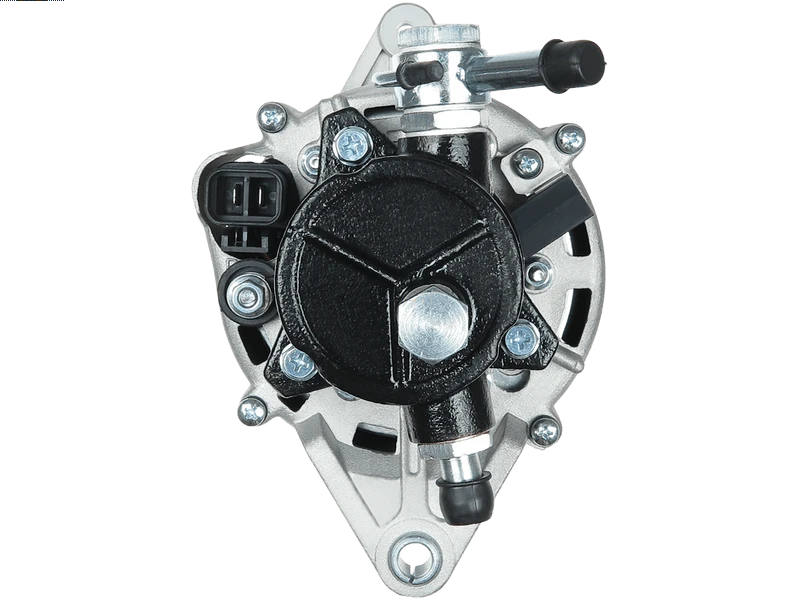

A2108S - Brand new AS-PL Alternator

Associated Numbers

23100-02N12 23100-02N13 23100-02N14 23100-02N15 23100-02N18 23100-06N00 23100-06N01 23100-06N03 23100-0F000 23100-10G03 23100-10G04 23100-11T06 ALH7186 ALT32179 JA186IR LR140419C LR150-425 LR150425B LR150428E LR150430C LR150435C LR160131 LR160421B LR160421C LR160422B LR160426E LR160427C UD13902A

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Length (L.1)	252 mm
Mount Inside Length or Pad Mount C-C (C)	81 mm
OEM Product	No
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	10 mm
Pulley Outside Diameter (O.D.1)	59 mm
Pulley Outside Diameter (O.D.2)	82 mm
Pulley to Mount Distance (A)	42 mm
Pulley Type	Solid
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Maverick 2.7 TD	[100HP]	01.1993-12.1996
FORD	Maverick 2.7 TD	[125HP]	01.1996-12.1998
NISSAN	Cabstar 2.0	[87HP]	01.1986-12.1992
NISSAN	Cabstar 2.0
NISSAN	Cabstar 2.3 D	[69HP]	01.1987-12.1989
NISSAN	Cabstar 2.5 D	[75HP]	01.1989-12.1992
NISSAN	Cabstar 2.5 D	[75HP]	01.1992-12.2000
NISSAN	Pathfinder 2.7 TD 4WD	[131HP]	01.1997-12.2004
NISSAN	Pick Up 2.3 D	[69HP]	01.1983-12.1986
NISSAN	Pick Up 2.3 D	[69HP]	01.1985-12.1988
NISSAN	Pick Up 2.5 D	[131HP]	01.2008-
NISSAN	Pick Up 2.5 D	[72HP]	01.1983-12.1986
NISSAN	Pick Up 2.5 D	[72HP]	01.1985-12.1988
NISSAN	Pick Up 2.5 D	[75HP]	01.1986-12.1991
NISSAN	Pick Up 2.5 D	[75HP]	01.1987-12.1998
NISSAN	Pick Up 2.5 D	[80HP]	01.1987-12.1998
NISSAN	Pick Up 2.5 D	[80HP]	01.1994-12.1996
NISSAN	Pick Up 2.5 D	[83HP]	01.1992-12.1998
NISSAN	Pick Up 2.5 D	[83HP]	01.1996-12.1998
NISSAN	Pick Up 2.5 D	[83HP]	01.1998-
NISSAN	Pick Up 2.7 D	[79HP]	01.1987-12.1991
NISSAN	Pick Up 2.7 D	[99HP]	01.1987-12.1998
NISSAN	Terrano 2.7 TD	[101HP]	01.1993-12.2002
NISSAN	Terrano 2.7 TD	[99HP]	01.1989-12.1996
NISSAN	Urvan 2.3 D	[69HP]	01.1988-12.1997
NISSAN	Urvan 2.5 D	[80HP]	01.1988-12.1997
NISSAN	Urvan 2.5 D	[80HP]	01.1989-12.1996

Reference Information

002-D392	ASHIKA
210104	ERA
210342	ERA
23100-02N12	NISSAN
23100-02N13	NISSAN
23100-02N14	NISSAN
23100-02N15	NISSAN
23100-02N18	NISSAN
23100-06N00	NISSAN
23100-06N01	NISSAN
23100-06N03	NISSAN
23100-0F000	NISSAN
23100-10G03	NISSAN
23100-10G04	NISSAN
23100-11T06	NISSAN
2D392	JAPKO
A12HT1232A2	SIDAT
A2108S	AS-PL
ALD392	JAPANPARTS
ALH7186	KRAUF
ALT221140	SIOM
ALT3020	ELECTROLOG
ALT3161	ELECTROLOG
ALT32179	WOODAUTO
ALT5080	SIOM
ALT5090	SIOM
ALTF663	3EFFE
ALTL728	3EFFE
ALTS189	3EFFE
ALTS189V	3EFFE
CGB-13208	AINDE
CGB-13215	AINDE
CGB-18930	AINDE
JA186IR	HC PARTS
LR140419C	HITACHI
LR150-425	HITACHI
LR150425B	HITACHI
LR150428E	HITACHI
LR150-430	HITACHI
LR150430C	HITACHI
LR150435C	HITACHI
LR160131	HITACHI
LR160421B	HITACHI
LR160421C	HITACHI
LR160422B	HITACHI
LR160426E	HITACHI
LR160427C	HITACHI
PRAS189	3EFFE
PRAS189V	3EFFE
STX100950	STARDAX
STX101144	STARDAX
STX101160	STARDAX
STX101210	STARDAX
STX101218	STARDAX
STX101224	STARDAX
UD13902A	AS-PL
