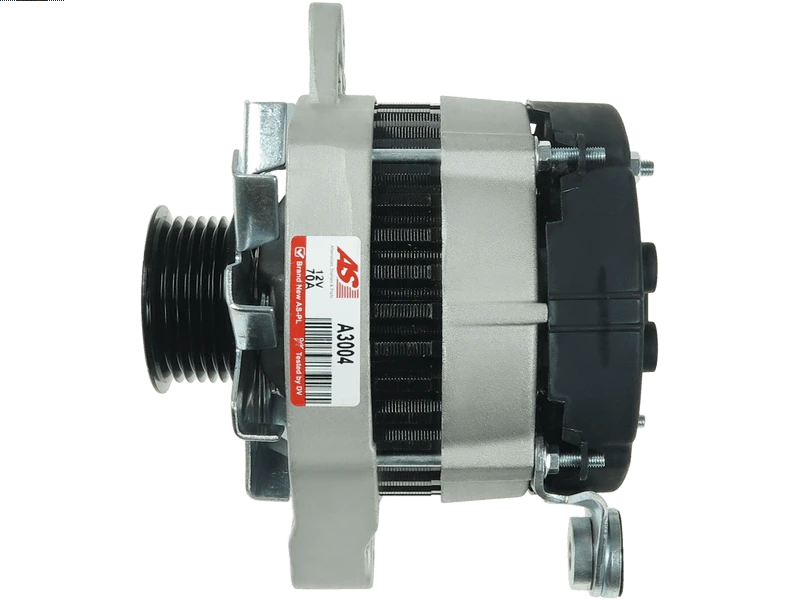

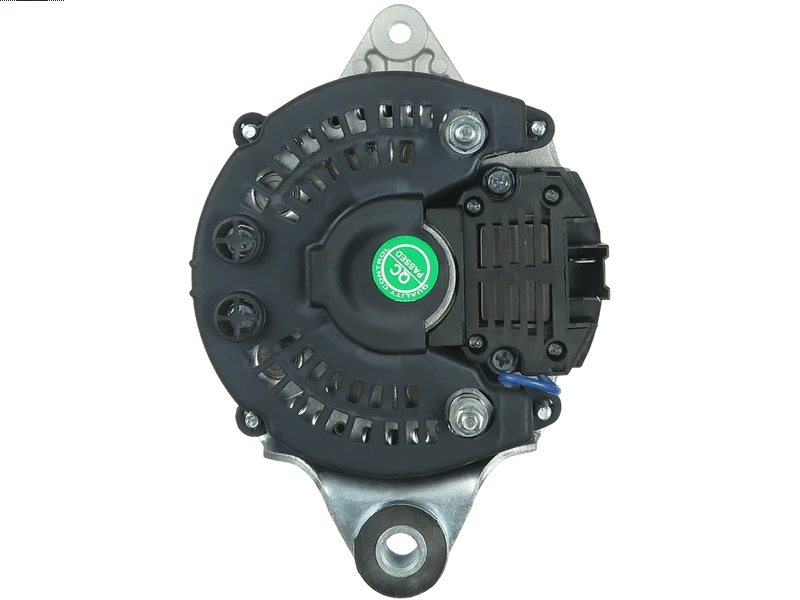

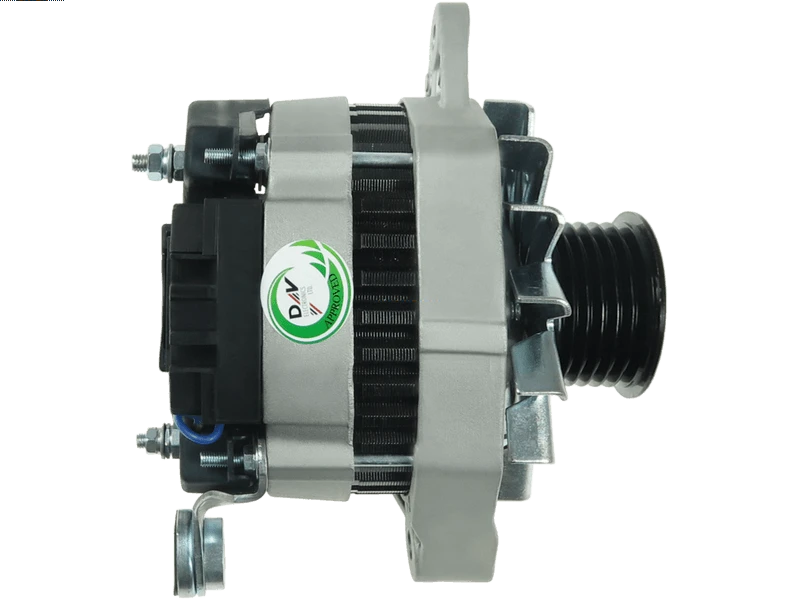

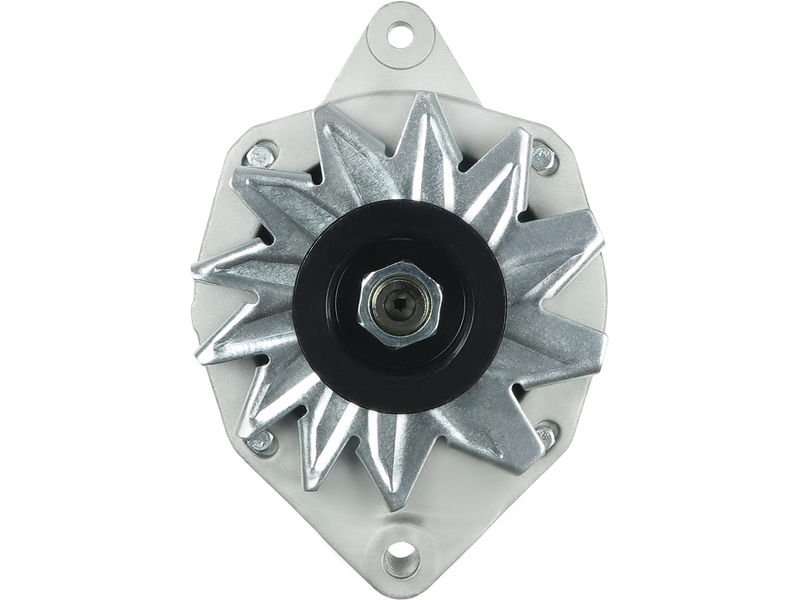

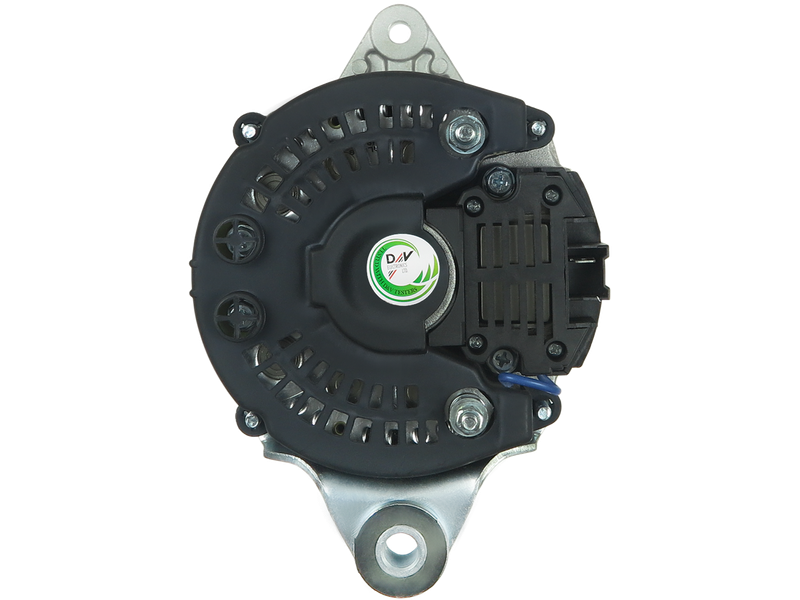

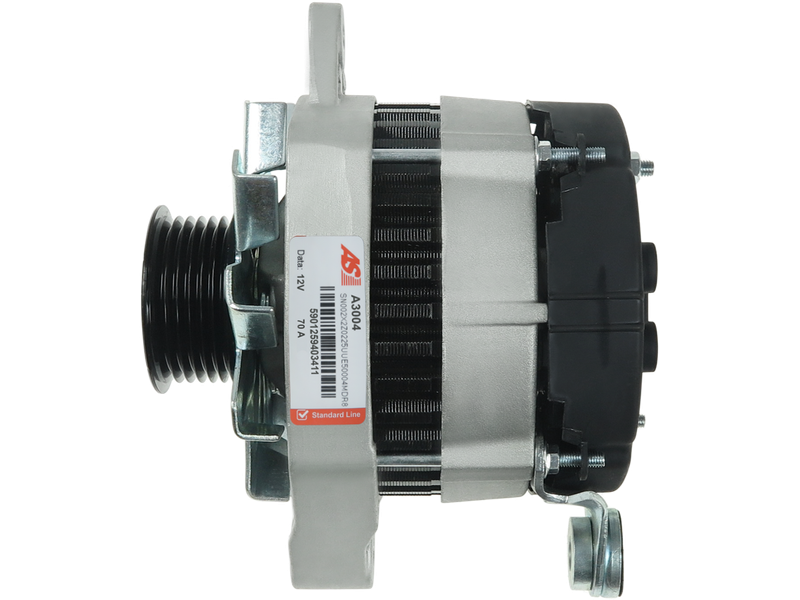

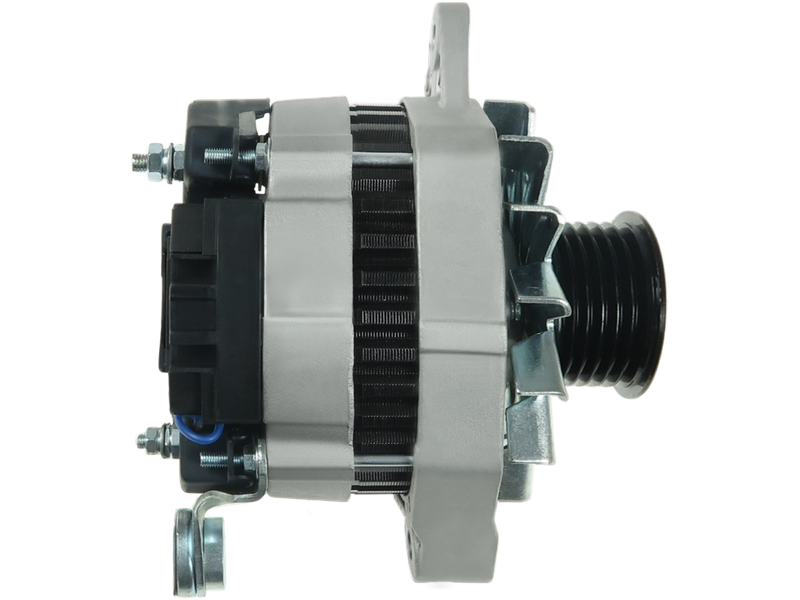

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 342.22 including GST
NZ$ 297.58 excluding GST
or four payments of $85.56
with
Learn More
each
A3004
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120488142 0120489490 0120489491 0986036880 0986036881 11.0574 11.201.523 111321 2015113 20179311BN 20962R 2541173 2541445 2541490 2541491 2541859 28-0892 30574RI 30711RI 32036880 4097 433079 436309 436645 55602 55603 66021575 89213849 8EL725862-001 9031146 9031311 9036880 9213849 A13N133 A13N178 A13N232 A13N241 A13N289 AAK3583 AAK4515 AEA9166 ALT14014 CA574IR CAL15113AS CAL15113RS DRA3083 EAA-221396 LRA00966 NA346 SA700 VA271Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| OEM Product | No |
| Plug Code | PL_2700 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | 440 1.6 | [B16F] | 09.1988-07.1997 |
| VOLVO | 440 1.7 | [B18EP] | 09.1988-08.1994 |
| VOLVO | 440 1.7 | [B18F] | 08.1988-08.1991 |
| VOLVO | 440 1.7 | [B18FP] | 08.1989-07.1992 |
| VOLVO | 440 1.7 | [B18KP] | 09.1988-08.1993 |
| VOLVO | 440 1.7 Turbo | [B18FT] | 08.1988-07.1996 |
| VOLVO | 440 1.8 | [B18U] | 09.1995-07.1997 |
| VOLVO | 440 2.0 | [B20F] | 08.1993-07.1996 |
| VOLVO | 460 1.6 | [B16F] | 07.1992-07.1997 |
| VOLVO | 460 1.7 | [B18EP] | 08.1989-07.1992 |
| VOLVO | 460 1.7 | [B18FP] | 03.1990-07.1993 |
| VOLVO | 460 1.7 Turbo | [B18FT] | 08.1989-07.1996 |
| VOLVO | 460 1.8 | [B18U] | 08.1991-07.1996 |
| VOLVO | 460 1.9 TD | [D19T] | 09.1993-07.1997 |
| VOLVO | 460 2.0 | [B20F] | 08.1993-07.1996 |
| VOLVO | 480 1.7 | [B18E] | 04.1986-07.1989 |
| VOLVO | 480 1.7 | [B18EP] | 08.1989-07.1990 |
| VOLVO | 480 1.7 | [B18F] | 08.1987-07.1989 |
| VOLVO | 480 1.7 Turbo | [B18FT] | 08.1987-07.1996 |
| VOLVO | 480 2.0 | [B20F] | 08.1992-09.1995 |
Reference Information
| 0120488142 | BOSCH |
| 0120489490 | BOSCH |
| 0120489491 | BOSCH |
| 0986036880 | BOSCH |
| 0986036881 | BOSCH |
| 11.0574 | LAUBER |
| 111321 | CARGO |
| 11.201.523 | ISKRA / LETRIKA |
| 2015113 | SANDO |
| 20179311BN | REAL |
| 209154 | ERA |
| 20962N | WAI / TRANSPO |
| 20962R | WAI / TRANSPO |
| 2541173 | VALEO |
| 2541445 | VALEO |
| 2541490 | VALEO |
| 2541491 | VALEO |
| 2541859 | VALEO |
| 28-0892 | ELSTOCK |
| 30574RI | KUHNER |
| 30711RI | KUHNER |
| 311223 | RHIAG |
| 32036880 | HERTH+BUSS |
| 3417313 | VOLVO |
| 3417318 | VOLVO |
| 34606004 | VOLVO |
| 4097 | CEVAM |
| 433079 | VALEO |
| 436309 | VALEO |
| 436645 | VALEO |
| 440721 | LOGISTIK |
| 485084 | VOLVO |
| 55602 | EAI |
| 66021575 | PRESTOLITE |
| 89213849 | POWERMAX |
| 8EL725862-001 | HELLA |
| 9031146 | VOLVO |
| 90311465 | VOLVO |
| 9031311 | VOLVO |
| 90313115 | VOLVO |
| 9036880 | FRIESEN |
| 9213849 | POWERMAX |
| A13N133 | VALEO |
| A13N178 | VALEO |
| A13N232 | VALEO |
| A13N241 | VALEO |
| A13N289 | VALEO |
| A3004 | AS-PL |
| AAK3583 | ISKRA / LETRIKA |
| AEA9166 | AUTOELECTRO |
| ALT0042 | ELECTROLOG |
| ALT14014 | WOODAUTO |
| ALT7810 | SIOM |
| ALT79111 | ELECTROLOG |
| ALTL486 | 3EFFE |
| ANM35303X | ANDEL |
| CA574IR | HC PARTS |
| CAL15113AS | CASCO |
| CAL15113RS | CASCO |
| DRA3083 | DELCO |
| F032111321 | CARGO |
| LRA00966 | LUCAS |
| LRA966 | LUCAS |
| MG 406 | MAHLE |
| MG 529 | MAHLE |
| NA346 | VALEO |
| PRAL486 | 3EFFE |
| SA700 | SOVEREIGN |
| STX100504 | STARDAX |
| STX101542 | STARDAX |
| VA271 | VALEO |
Video/Publications
