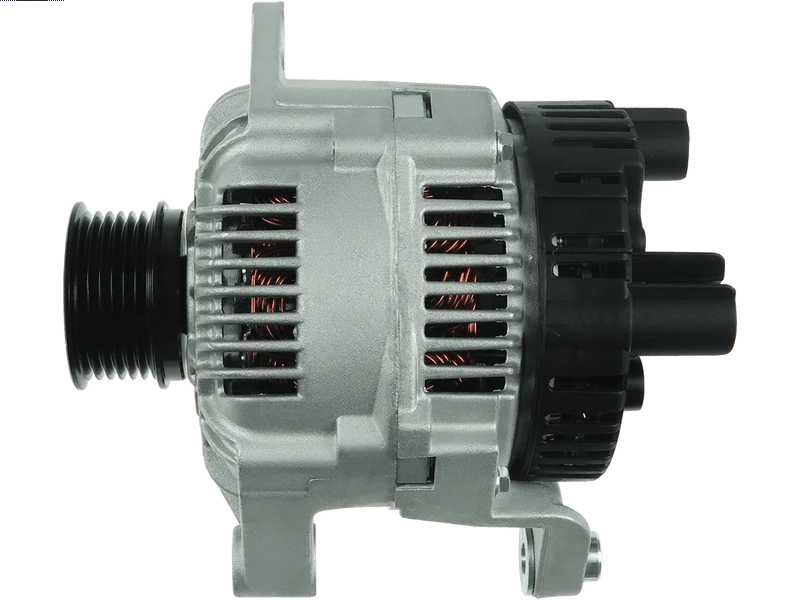

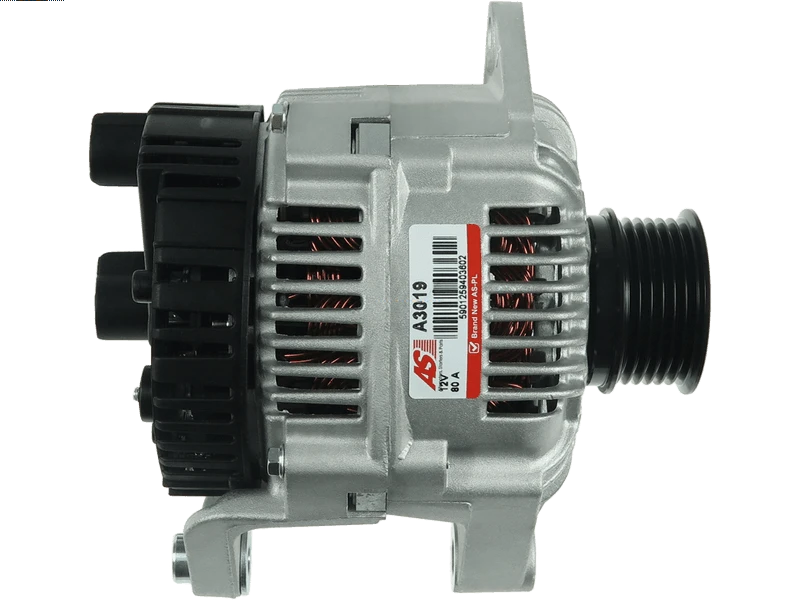

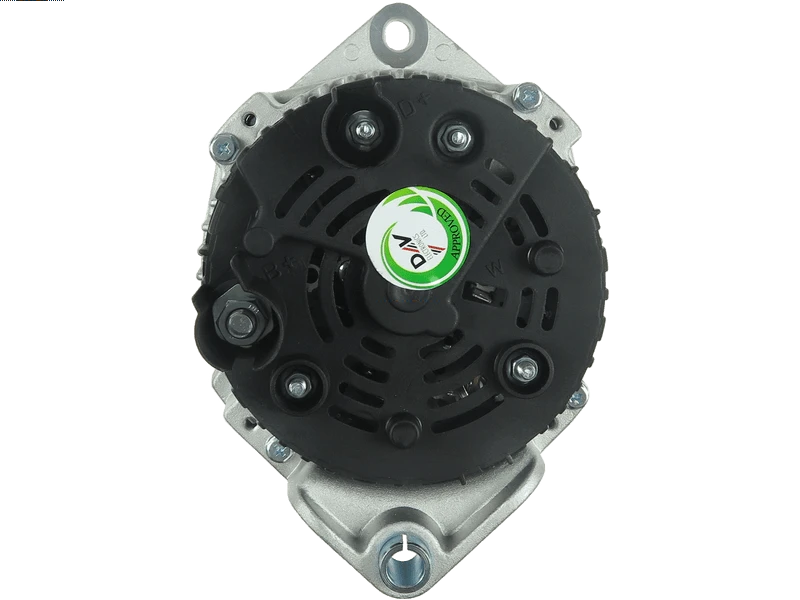

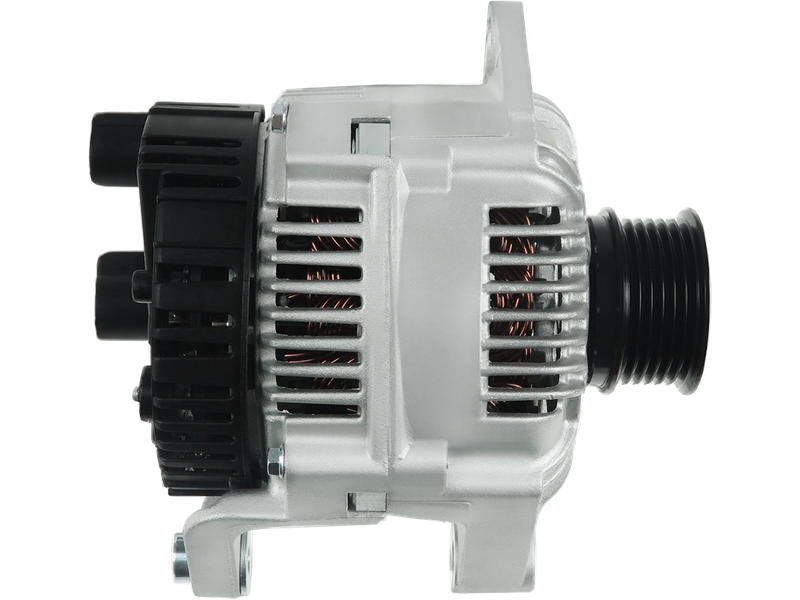

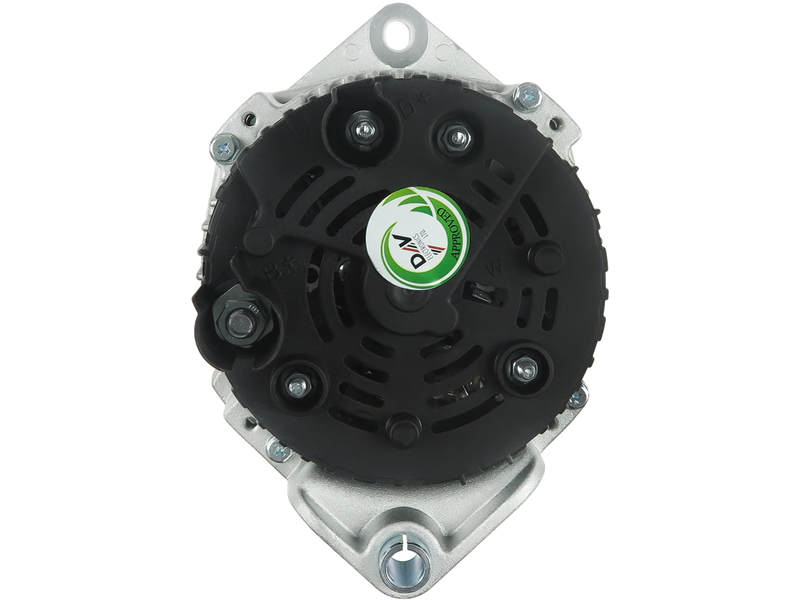

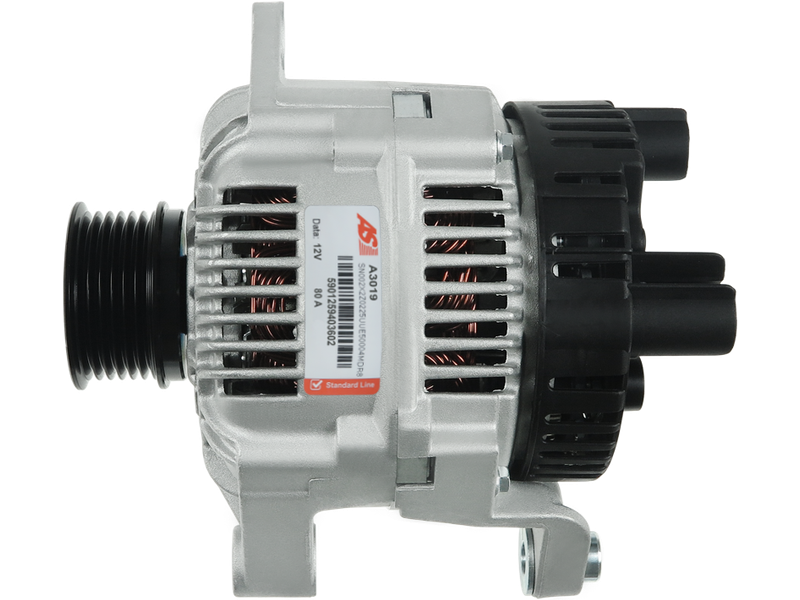

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 389.21 including GST
NZ$ 338.44 excluding GST
or four payments of $97.30
with
Learn More
each
A3019
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A13VI72Associated Numbers
0986041381 11.1039 112681 20110186 2015117 20179711BN 20179711OE 21297N 2541678 2541678B 2541678C 28-2621 301039RI 32041381 35215340 436635 439064 4622 46231787 56409 57054C 89213669 8EL011710-041 8EL732711-001 9041381 9213669 98490185 A13VI72 A3019 AEA2297 ALT14022 CA1039IR CAL15117 CAL15117AS CAL15117ES CAL15117GS CAL15117OS CAL15117RS DRA3423 EAA-221194 LRB00297 NA468 VA307Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 26.50 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 196 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 52.50 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.8 D | [8140.63(F28D)] | 01.1999-02.2002 |
| CITROEN | Jumper 2.8 Diesel | [8140.63] | 01.1999- |
| CITROEN | Jumper 2.8 TD | [8140.43] | 10.1999- |
| FIAT | Croma 2.0 16V | [154E1.000] | 08.1992-12.1996 |
| FIAT | Ducato 2.5 D | [8140.67] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 D | [8140.67] | 08.1994-04.2002 |
| FIAT | Ducato 2.5 D 4x4 | [8140.67] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 Diesel | [8140.67] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 Diesel 4x4 | [8140.67] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 TDi | [8140.47] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 TDi | [8140.47R] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 TDi | [8140.47R] | 07.1994-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 04.1997-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 05.1998-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 06.1998-04.2002 |
| FIAT | Ducato 2.8 D | [8140.63] | 02.1998-04.2002 |
| FIAT | Ducato 2.8 D | [8140.63] | 05.1998-04.2002 |
| FIAT | Ducato 2.8 D 4x4 | [8140.63] | 08.1998-04.2002 |
| FIAT | Ducato 2.8 Diesel | [8140.63] | 02.1998-04.2002 |
| FIAT | Ducato 2.8 Diesel 4x4 | [8140.63] | 08.1998- |
| FIAT | Ducato 2.8 iDTD 4x4 | [8140.43] | 05.1998-09.2001 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 10.1997-04.2002 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 12.1998-04.2002 |
| FIAT | Ducato 2.8 TDi 4x4 | [8140.43] | 06.1999-04.2002 |
| FIAT | Ducato 2.8 TDi 4x4 | [8140.43] | 07.1999-04.2002 |
| PEUGEOT | Boxer 2.5 DT | [8140.67] | 10.1997-11.2001 |
| PEUGEOT | Boxer 2.8 D | [8140.63(F28D)] | 01.1999-02.2002 |
| PEUGEOT | Boxer 2.8 HDi 4x4 | [8140.43S(F28DTCR)] | 10.2000-11.2001 |
Reference Information
| 063388505010 | MAGNETI MARELLI |
| 063731039010 | MAGNETI MARELLI |
| 0986041381 | BOSCH |
| 11.1039 | CQ |
| 11.209.693 | ISKRA / LETRIKA |
| 112681 | CARGO |
| 1516403R | DAF |
| 200136 | VALEO |
| 2015117.0 | SANDO |
| 2015117.1 | SANDO |
| 20179711BN | REAL |
| 20179711OE | REAL |
| 210011 | ERA |
| 210011A | ERA |
| 21297N | WAI / TRANSPO |
| 2541678 | VALEO |
| 2541678B | VALEO |
| 2541678C | VALEO |
| 28-2621 | ELSTOCK |
| 301039RI | KUHNER |
| 310600 | RHIAG |
| 32041381 | HERTH+BUSS |
| 35215340 | PRESTOLITE |
| 436635 | VALEO |
| 439064 | VALEO |
| 441186 | LOGISTIK |
| 4622 | CEVAM |
| 46231787 | FIAT |
| 505.518.080.000 | PSH |
| 505.518.080.008 | PSH |
| 505.518.080.460 | PSH |
| 505.518.080.505 | PSH |
| 5515079 | MEAT & DORIA |
| 56409 | EAI |
| 57054C | PEUGEOT |
| 72535105 | MAHLE |
| 746067 | VALEO |
| 89213669 | POWERMAX |
| 8EL011710-041 | HELLA |
| 8EL732711-001 | HELLA |
| 9041381 | FRIESEN |
| 933423 | DELCO |
| 943356329010 | MAGNETI MARELLI |
| 944390413810 | MAGNETI MARELLI |
| 98490185 | FIAT |
| A12VA0029A2 | SIDAT |
| A13VI72 | VALEO |
| A3019 | AS-PL |
| AAK5950 | MAHLE |
| AEA2297 | AUTOELECTRO |
| ALT00777 | ELECTROLOG |
| ALT14022 | WOODAUTO |
| ALT2049 | 3EFFE |
| ALT4770 | SIOM |
| ALT833 | ROLLCO |
| ALTL199 | 3EFFE |
| ALV1039 | KRAUF |
| ANM35643X | ANDEL |
| CA1039IR | HC PARTS |
| CAL15117AS | CASCO |
| CAL15117GS | CASCO |
| CGB-82621 | AINDE |
| DRA3423 | DELCO |
| F032112681 | CARGO |
| GA439064-A | GPARTS |
| GA439064V-R | GPARTS |
| IA9515 | ISKRA / LETRIKA |
| LRB00297 | LUCAS |
| LRB297 | LUCAS |
| MG1079 | MAHLE |
| NA468 | VALEO |
| PRAL199 | 3EFFE |
| PRE35215340 | WOODAUTO |
| RNL4138 | RNL |
| SA439064-A | GPARTS |
| SA439064V-R | GPARTS |
| STA0182R | BOVEZ |
| STX100115 | STARDAX |
| STX100115R | STARDAX |
| VA307 | VALEO |
| VAL439064 | WOODAUTO |
| VALA13VI72 | WOODAUTO |
Video/Publications
