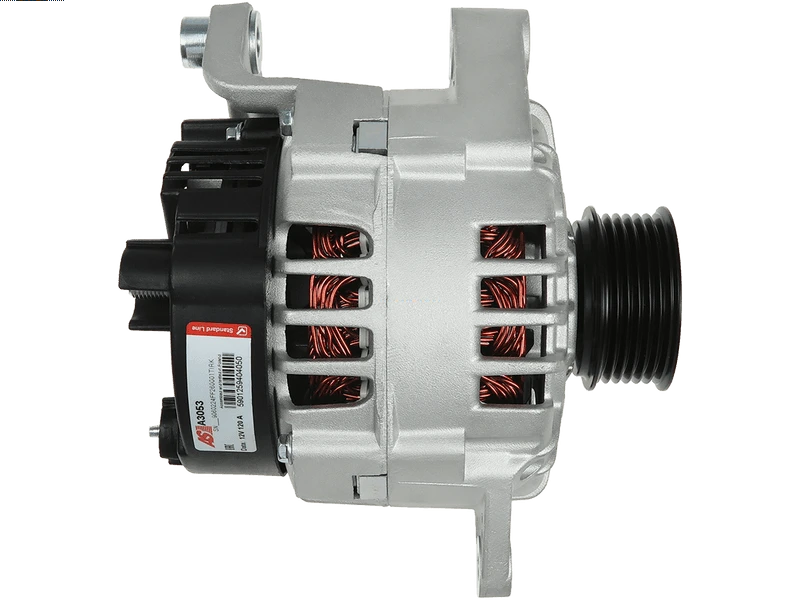

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 393.70 including GST
NZ$ 342.35 excluding GST
or four payments of $98.43
with
Learn More
each
A3053
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SG12B040Associated Numbers
063310508010 063731643010 0986049061 113247 2015249 20179942 210470 225.532.120 23223N 2542441 28-4603 301643RI 301643RIV 32437349 437349 439339 4572 500371244 56923 5702AF 5702C0 5702C1 5705AF 5705C0 5705C1 5705EV 6.3220.9 746090 89213281 8EL011710-601 8EL737935-001 944390901970 A3053 AEC1643 AG0569 ALT14156 ALV1643 CA1643IR CAL15249 CAL15249AS CAL15249ES CAL15249GS CAL15249OS CAL15249RS DA1151 DRA0041 EAA-221030 F042208033 GA439340-A LRA02153 MAN958 MQA1643 MRA90197 RAA11152 SA846 SG12B040 VAL439339Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 52 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.8 HDi | [8140.43N] | 05.2004- |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 04.2002- |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 09.2000- |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 09.2000-04.2002 |
| CITROEN | Jumper 2.8 HDi | [8140.43S] | 10.2000-01.2002 |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 04.2002- |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 09.2000- |
| CITROEN | Jumper 2.8 HDi 4x4 | [8140.43S] | 09.2000-04.2002 |
| CITROEN | Jumper 2.8 HDi 4x4 | [F28TDCR] | 02.2002-06.2006 |
| CITROEN | Relay 2.8 HDi | [8140.43N] | 01.2002-12.2006 |
| CITROEN | Relay 2.8 HDi | [8140.43S] | 01.2000-12.2002 |
| CITROEN | Relay 2.8 HDi | [8140.43S] | 01.2002-12.2006 |
| FIAT | Ducato 2.8 JTD | [8140.43N] | 05.2004- |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 03.2001-11.2001 |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 04.2002- |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 11.2000- |
| FIAT | Ducato 2.8 JTD | [8140.43S] | 11.2000-04.2002 |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 07.2002- |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 10.2001-04.2002 |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 10.2002- |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 11.2000- |
| FIAT | Ducato 2.8 JTD 4x4 | [8140.43S] | 11.2000-04.2002 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43N] | 04.2004- |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S] | 04.2004- |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S] | 11.2000-04.2002 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 04.2002- |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 09.2005-09.2009 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 10.2000-11.2001 |
| PEUGEOT | Boxer 2.8 HDi | [8140.43S(F28DTCR)] | 11.2000-04.2002 |
| PEUGEOT | Boxer 2.8 HDi 4x4 | [8140.43S(F28DTCR)] | 04.2002- |
| PEUGEOT | Boxer 2.8 HDi, 4x4 | [8140.43S] | 11.2000- |
Reference Information
| 063310508010 | MAGNETI MARELLI |
| 063731643010 | MAGNETI MARELLI |
| 0986049061 | BOSCH |
| 113247 | CARGO |
| 2015249 | SANDO |
| 20179942 | REAL |
| 210470 | ERA |
| 225.532.120.000 | PSH |
| 23223N | WAI / TRANSPO |
| 2542441 | VALEO |
| 28-4603 | ELSTOCK |
| 301643RI | KUHNER |
| 301643RIV | KUHNER |
| 32437349 | HERTH+BUSS |
| 335706 | RHIAG |
| 437349 | VALEO |
| 439339 | VALEO |
| 441790 | LOGISTIK |
| 4572 | CEVAM |
| 500371244 | FIAT |
| 5515075 | MEAT & DORIA |
| 56923 | EAI |
| 5702AF | PEUGEOT |
| 5702C0 | PEUGEOT |
| 5702C1 | PEUGEOT |
| 5705AF | PEUGEOT |
| 5705C0 | PEUGEOT |
| 5705C1 | PEUGEOT |
| 5705EV | PEUGEOT |
| 6.3220.9 | IKA |
| 71723395 | FIAT |
| 746090 | VALEO |
| 89213281 | POWERMAX |
| 8EL011710-601 | HELLA |
| 8EL737935-001 | HELLA |
| 944390901970 | MAGNETI MARELLI |
| A12VA0017 | SIDAT |
| A12VA0017A2 | SIDAT |
| A3053 | AS-PL |
| AAL1830 | APEC |
| AEC1643 | AUTOELECTRO |
| AG0569 | GHIBAUDI |
| ALT00737 | ELECTROLOG |
| ALT14156 | WOODAUTO |
| ALT7630 | SIOM |
| ALTL131 | 3EFFE |
| ALTL131M | 3EFFE |
| ALTL131V | 3EFFE |
| ALV1643 | KRAUF |
| ANM32261X | ANDEL |
| AX 1155 | STARLINE |
| CA1643IR | HC PARTS |
| CAL15249 | CASCO |
| CAL15249AS | CASCO |
| CAL15249ES | CASCO |
| CAL15249GS | CASCO |
| CAL15249OS | CASCO |
| CAL15249RS | CASCO |
| CGB-13090 | AINDE |
| CGB-84603 | AINDE |
| DA1151 | DELCO |
| DRA0041 | DELCO |
| F032113247 | CARGO |
| F042208033 | BOSCH |
| GA439340-A | GPARTS |
| LRA02153 | LUCAS |
| LRA2153 | LUCAS |
| MAN958 | MAGNETI MARELLI |
| MQA1643 | MAGNETI MARELLI |
| MRA90197 | MAGNETI MARELLI |
| NPANAL1830 | NAPA |
| PRAL131 | 3EFFE |
| PRAL131M | 3EFFE |
| PRAL131V | 3EFFE |
| RAA11152 | DELCO |
| RNL2542441 | RNL |
| SA846 | SOVEREIGN |
| SG12B013 | VALEO |
| SG12B040 | VALEO |
| STA0141R | BOVEZ |
| STX100009 | STARDAX |
| STX100009R | STARDAX |
| VAL439339 | WOODAUTO |
Video/Publications
