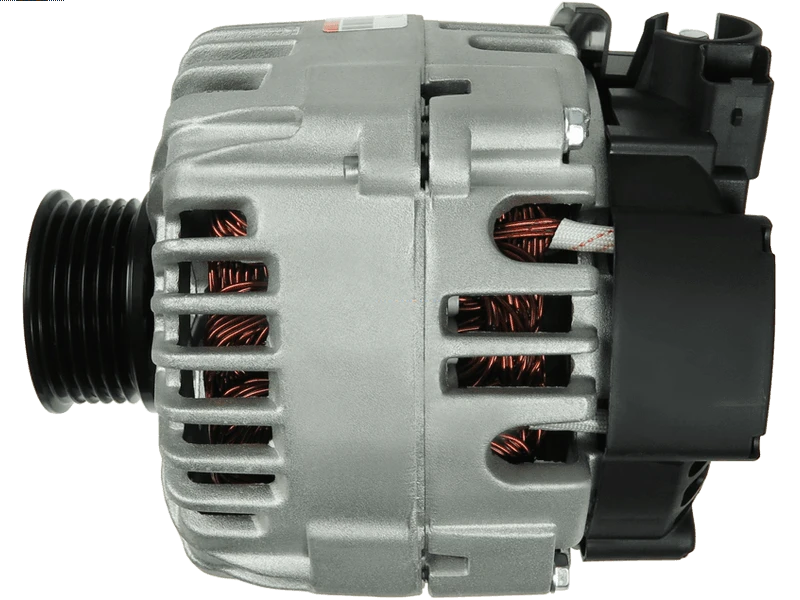

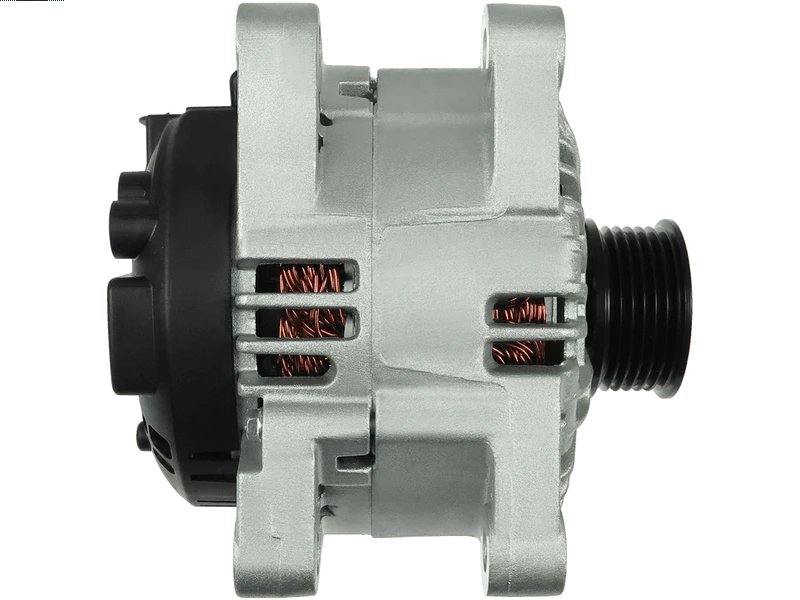

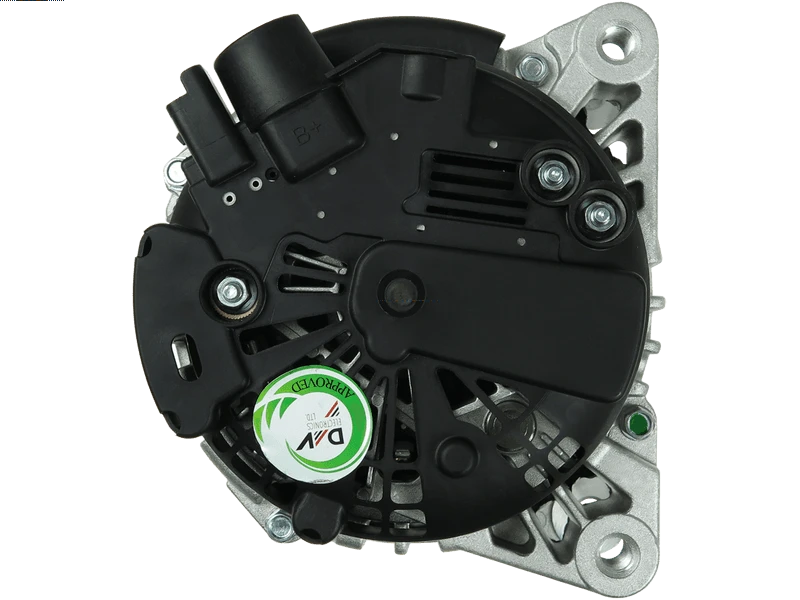

A3074 - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A3074
Price: 542.79 NZD
Availability: BackOrder

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 542.79 including GST

NZ$ 471.99 excluding GST

or four payments of $135.70 with
Learn More

UOM:

each

Product Code:

A3074

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Related Items

TG15C022

0124525034 063731674010 0986047360 113755 2015290 210538 225.520.150 23227N 23227R 27060-YV020 28-4702 301674RI 301674RIV 301850RI 301850RIV 32047360 437472 439503 4702 56824 57058G 5705EW 5705HC 89213167 8EL011710-661 943390902430 944390902430 9640088280 9646049980 96460668 9646476280 9646477580 9648477580 A14VI40 A3074 AEC1674 AG0560 ALB1674 ALN1674 ALQ1674 ALT14136 ALV1674 CA1674IR CAL15290 CAL15290AS CAL15290ES CAL15290GS CAL15290OS CAL15290RS DA5324 DRA4214 EAA-221596 FG15C156 GA439503-A LRA02228 LRA2228 MAR90243 MQA1674 MRA90243 RAA15325 SG15C031 SG15S017 TG15C022 TG15C054 TG15C119 TG15C156 UD01436A VAL439696

Amp	150 A
Bottom Mounting Foot Width (B)	21 mm
Diameter (D.1)	10.50 mm
Diameter (D.2)	10.50 mm
Diameter (D.3)	M10x1.5 mm
Diameter (D.4)	M10x1.5 mm
Length (L.1)	176 mm
Mount Inside Length or Pad Mount C-C (C)	45.50 mm
OEM Product	No
Plug Code	PL_2401
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	54 mm
Pulley to Mount Distance (A)	41.50 mm
Pulley Type	Solid
Unit Type	VALEO
Voltage	12 V

Make	Model	Type	Year
CITROEN	Berlingo 1.6 HDi 75	[9HW(DV6BTED4)]	07.2005-12.2011
CITROEN	Berlingo 1.6 HDi 75	[DV6B]	07.2005-12.2011
CITROEN	Berlingo 1.6 HDi 90	[9HX(DV6ATED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi 90	[9HX(DV6ATED4)]	07.2005-05.2008
CITROEN	Berlingo 1.6 HDi 90	[9HX(DV6ATED4)]	07.2005-12.2011
CITROEN	Berlingo 2.0 HDi		11.2002-10.2005
CITROEN	Berlingo 2.0 HDi 4x4	[RHY(DW10TD)]	11.2002-10.2005
CITROEN	Berlingo 2.0 HDi 90	[RHY(DW10TD)]	12.1999-10.2005
CITROEN	Berlingo 2.0 HDi 90	[RHY(DW10TD)]	12.1999-12.2011
CITROEN	Berlingo 2.0 HDi 90 4WD	[RHY(DW10TD)]	11.2000-10.2005
CITROEN	C1 1.4 HDi	[8HT(DV4TD)]	06.2005-09.2014
CITROEN	C2 1.4 HDi	[8HX(DV4TD)]	09.2003-
CITROEN	C2 1.4 HDi	[8HZ(DV4TD)]	09.2003-
CITROEN	C2 Enterprise 1.4 HDi	[8HX(DV4TD)]	04.2009-
CITROEN	C3 1.4 16V HDi	[8HY(DV4TED4)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	04.2004-
CITROEN	C3 1.4 HDi	[8HZ(DV4TD)]	02.2002-
CITROEN	C3 1.6 16V HDi	[9HX(DV6ATED4)]	10.2005-
CITROEN	C4 2.0 16V	[RFK(EW10J4S)]	11.2004-07.2008
CITROEN	C4 2.0 16V	[RFK(EW10J4S)]	11.2004-12.2010
CITROEN	C5 1.8 16V	[6FZ(EW7J4)]	03.2001-08.2004
CITROEN	C5 1.8 16V	[6FZ(EW7J4)]	06.2001-08.2004
CITROEN	C5 1.8 16V	[6FZ(EW7J4)]	09.2004-
CITROEN	C5 2.0 16V	[RFN(EW10J4)]	03.2001-08.2004
CITROEN	C5 2.0 16V	[RFN(EW10J4)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHR(DW10BTED4)]	09.2004-
CITROEN	C5 2.0 HDi	[RHS(DW10ATED)]	03.2001-08.2004
CITROEN	C5 2.0 HDi	[RHS(DW10ATED)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHY(DW10TD)]	03.2001-08.2004
CITROEN	C5 2.0 HDi	[RHY(DW10TD)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHZ(DW10ATED)]	03.2001-08.2004
CITROEN	C5 2.0 HDi	[RHZ(DW10ATED)]	06.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	03.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	06.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	09.2004-
CITROEN	C8 2.0	[RFN(EW10J4)]	07.2002-
CITROEN	C8 2.0 HDi	[RHM(DW10ATED4)]	07.2002-
CITROEN	C8 2.0 HDi	[RHT(DW10ATED4)]	07.2002-
CITROEN	C82.0 HDi	[RHK(DW10UTED4)]	07.2006-
CITROEN	C8 2.0 HDi 135	[RHD(DW10CB)]	03.2006-
CITROEN	C8 2.0 HDi 135	[RHD(DW10CTED4)]	03.2006-
CITROEN	C8 2.0 HDi 135	[RHR(DW10BTED4)]	03.2006-
CITROEN	C8 2.2	[3FZ(EW12J4)]	07.2002-
CITROEN	Jumper 2.8 D	[8140.63(F28D)]	01.1999-02.2002
CITROEN	Xsara 1.4 HDi	[8HX(DV4TD)]	01.2003-03.2005
CITROEN	Xsara 1.4 HDi	[8HX(DV4TD)]	01.2003-08.2005
CITROEN	Xsara 2.0 16V	[RFN(EW10J4)]	09.2000-03.2005
CITROEN	Xsara 2.0 16V	[RFN(EW10J4)]	09.2000-08.2005
CITROEN	Xsara 2.0 HDi	[RHY(DW10TD)]	09.2000-03.2005
CITROEN	Xsara 2.0 HDi 109	[RHZ(DW10ATED)]	05.2001-03.2005
CITROEN	Xsara 2.0 HDi 109	[RHZ(DW10ATED)]	05.2001-08.2005
CITROEN	Xsara 2.0 HDi 90	[RHY(DW10TD)]	02.1999-03.2005
CITROEN	Xsara 2.0 HDi 90	[RHY(DW10TD)]	02.1999-08.2005
CITROEN	Xsara Picasso 1.6 HDi	[9HX(DV6ATED4)]	09.2005-
CITROEN	Xsara Picasso 1.8 16V	[6FZ(EW7J4)]	02.2000-
CITROEN	Xsara Picasso 2.0 16V	[RFN(EW10J4)]	01.2003-
CITROEN	Xsara Picasso 2.0 HDi	[RHY(DW10TD)]	12.1999-
FIAT	Ulysse 2.0	[RFN(EW10J4)]	08.2002-06.2011
LANCIA	Phedra 2.0	[RFN(EW10J4)]	09.2002-11.2010
PEUGEOT	1007 1.4 HDi	[8HX(DV4TD)]	04.2005-
PEUGEOT	1007 1.4 HDi	[8HZ(DV4TD)]	04.2005-
PEUGEOT	107 1.4 HDi	[8HT(DV4TD)]	06.2005-05.2014
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	09.2002-02.2007
PEUGEOT	206 1.4 HDi	[8HZ(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi eco 70	[8HX(DV4TD)]	09.2001-
PEUGEOT	206 1.4 HDi eco 70	[8HZ(DV4TD)]	09.2001-
PEUGEOT	206 1.4 HDi eco 70	[8HZ(DV4TD)]	09.2008-
PEUGEOT	206 2.0 HDi 90	[RHY(DW10TD)]	12.1999-
PEUGEOT	206 2.0 RC	[RFK(EW10J4S)]	07.2003-
PEUGEOT	206 2.0 S16	[RFN(EW10J4)]	06.1999-
PEUGEOT	206 CC 2.0 S16	[RFN(EW10J4)]	09.2000-
PEUGEOT	206 SW 1.4 16V	[KFU(ET3J4)]	10.2003-
PEUGEOT	206 SW 1.4 HDi	[8HX(DV4TD)]	07.2002-
PEUGEOT	206 SW 2.0 HDi	[RHY(DW10TD)]	07.2002-
PEUGEOT	307 1.4 HDi	[8HX(DV4TD)]	10.2001-
PEUGEOT	307 1.4 HDi	[8HZ(DV4TD)]	03.2002-06.2005
PEUGEOT	307 1.4 HDi	[8HZ(DV4TD)]	10.2001-
PEUGEOT	307 2.0 16V	[RFK(EW10J4S)]	06.2005-
PEUGEOT	307 2.0 16V	[RFK(EW10J4S)]	06.2005-04.2008
PEUGEOT	307 CC 2.0 16V	[RFK(EW10J4S)]	10.2003-
PEUGEOT	307 CC 2.0 16V	[RFN(EW10J4)]	10.2003-
PEUGEOT	307 SW 2.0 16V	[RFN(EW10J4)]	03.2002-
PEUGEOT	407 2.0	[RFN(EW10J4)]	05.2004-
PEUGEOT	407 2.2	[3FZ(EW12J4)]	05.2004-
PEUGEOT	407 2.2 16V	[3FY(EW12J4)]	09.2005-
PEUGEOT	407 2.2 16V	[3FY(EW12J4)]	10.2005-
PEUGEOT	407 SW 2.0	[RFN(EW10J4)]	05.2004-
PEUGEOT	407 SW 2.2	[3FZ(EW12J4)]	05.2004-
PEUGEOT	407 SW 2.2 16V	[3FY(EW12J4)]	09.2005-
PEUGEOT	607 2.0	[RFN(EW10J4)]	02.2000-08.2005
PEUGEOT	607 2.0 HDi	[RHZ(DW10ATED)]	05.2000-09.2005
PEUGEOT	607 2.2 16V	[3FY(EW12J4)]	09.2005-06.2010
PEUGEOT	607 2.2 16V	[3FZ(EW12J4)]	02.2000-08.2005
PEUGEOT	607 2.2 HDi	[4HT(DW12BTED4)]	05.2006-06.2010
PEUGEOT	607 2.2 HDi	[4HX(DW12TED4/FAP)]	02.2000-02.2006
PEUGEOT	807 2.0	[RFN(EW10J4)]	06.2002-
PEUGEOT	807 2.2	[3FZ(EW12J4)]	06.2002-
PEUGEOT	807 2.2 HDi	[4HT(DW12BTED4)]	06.2002-
PEUGEOT	J5 1.9 D	[D9B(XUD9A)]	10.1990-02.1994
PEUGEOT	J5 1.9 D	[D9B(XUD9A)]	10.1990-03.1994
PEUGEOT	J5 2.5 D	[CRD93(U25/661)]	09.1981-09.1990
PEUGEOT	J5 2.5 D	[CRD93(U25/661)]	10.1990-02.1994
PEUGEOT	J5 2.5 D 4x4	[CRD93]	09.1981-08.1990
PEUGEOT	J5 2.5 D 4x4	[CRD93(U25/661)]	10.1990-02.1994
PEUGEOT	J5 2.5 D 4x4	[CRD93(U25/661)]	10.1990-03.1994
PEUGEOT	J5 2.5 TD	[CRD93LS(U25/673)]	10.1990-02.1994
PEUGEOT	J5 2.5 TD 4x4	[CRD93LS(U25/673)]	10.1990-02.1994
PEUGEOT	J5 2.5 TD 4x4	[CRD93LS(U25/673)]	10.1990-03.1994
PEUGEOT	Partner 1.6 HDi 16V	[9HV(DV6TED4)	04.2008-
PEUGEOT	Partner 1.6 HDi 16V	[9HV(DV6TED4B)]	04.2008-
PEUGEOT	Partner 1.6 HDi 16V	[9HV(DV6TED4BU)]	04.2008-
PEUGEOT	Partner 1.6 HDi 16V	[9HX(DV6ATED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi 90	[9HX(DV6ATED4)]	02.2006-12.2015
PEUGEOT	Partner 1.6 HDi 90	[9HX(DV6ATED4)]	10.2005-12.2015
PEUGEOT	Partner 2.0 HDi	[RHY(DW10TD)]	02.2000-07.2008
PEUGEOT	Partner 2.0 HDi	[RHY(DW10TD)]	04.2000-07.2008
PEUGEOT	Partner 2.0 HDi 4x4	[RHY(DW10TD)]	04.2004-08.2005
RENAULT	Clio 1.4 16V	[K4J780]	06.2005-
RENAULT	Clio 1.6 16V	[K4M800]	06.2005-
RENAULT	Clio 1.6 16V	[K4M801]	06.2005-
RENAULT	Clio 1.6 16V	[K4M804]	06.2005-
RENAULT	Grand Modus 1.4	[K4J770]	12.2004-
RENAULT	Grand Modus 1.4	[K4J780]	12.2004-
RENAULT	Grand Modus 1.6	[K4M790]	12.2004-
RENAULT	Grand Modus 1.6	[K4M791]	12.2004-
RENAULT	Grand Modus 1.6	[K4M794]	12.2004-
RENAULT	Grand Modus 1.6	[K4M800]	12.2004-
RENAULT	Grand Modus 1.6	[K4M801]	12.2004-
RENAULT	Megane 1.6 16V	[K4M760]	01.2006-
RENAULT	Megane 1.6 16V	[K4M760]	01.2006-08.2009
RENAULT	Megane 1.6 16V	[K4M761]	01.2006-
RENAULT	Megane 1.6 16V	[K4M761]	01.2006-08.2009
RENAULT	Megane 1.6 16V	[K4M812]	01.2006-
RENAULT	Megane 1.6 16V	[K4M812]	01.2006-08.2009
RENAULT	Megane 1.6 16V	[K4M813]	01.2006-
RENAULT	Megane 1.6 16V	[K4M813]	01.2006-08.2009
RENAULT	Modus 1.4	[K4J770]	12.2004-
RENAULT	Modus 1.4	[K4J780]	12.2004-
RENAULT	Modus 1.6	[K4M790]	12.2004-
RENAULT	Modus 1.6	[K4M791]	12.2004-
RENAULT	Modus 1.6	[K4M794]	12.2004-
RENAULT	Modus 1.6	[K4M800]	12.2004-
RENAULT	Modus 1.6	[K4M801]	12.2004-
SUZUKI	Liana 1.4 DDiS	[8HY]	04.2004-
SUZUKI	Liana 1.4 DDiS	[8HY]	04.2004-12.2007
TOYOTA	Aygo 1.4 HDi	[2WZ-TV]	07.2005-08.2010

0124525034	BOSCH
063731674010	MAGNETI MARELLI
0986047360	BOSCH
113755	CARGO
2015290	SANDO
210538	ERA
225.520.150	PSH
23227N	WAI / TRANSPO
23227R	WAI / TRANSPO
27060-YU020	TOYOTA
27060-YV020	TOYOTA
28-4702	ELSTOCK
301674RI	KUHNER
301674RIV	KUHNER
301850RI	KUHNER
301850RIV	KUHNER
310976	RHIAG
3140073J00	SUZUKI
31400-73J00	SUZUKI
3140073J00000	SUZUKI
31400-73J00-000	SUZUKI
32047360	HERTH+BUSS
437472	VALEO
439503	VALEO
4702	CEVAM
5515065	MEAT & DORIA
56824	EAI
5702A6	PEUGEOT
5702A7	PEUGEOT
5702C5	PEUGEOT
5702C6	PEUGEOT
5702ES	PEUGEOT
5702F3	PEUGEOT
5702H4	PEUGEOT
5702K6	PEUGEOT
5702-K6	PEUGEOT
57056P	PEUGEOT
57058G	PEUGEOT
5705AC	PEUGEOT
5705AL	PEUGEOT
5705-AL	PEUGEOT
5705ES	PEUGEOT
5705EW	PEUGEOT
5705HC	PEUGEOT
5705NE	PEUGEOT
5705-NE	PEUGEOT
89213167	POWERMAX
8EL011710-661	HELLA
943390902430	MAGNETI MARELLI
944390902430	MAGNETI MARELLI
9639396480	FIAT
9640088280	PEUGEOT
9640623580	PEUGEOT
9640628880	PEUGEOT
9644529680	PEUGEOT
9646049980	PEUGEOT
96460654	PEUGEOT
96460668	PEUGEOT
9646066880	PEUGEOT
9646066880	FIAT
9646068880	FIAT
9646068880	PEUGEOT
9646476280	PEUGEOT
9646477580	PEUGEOT
9648477580	PEUGEOT
9650582080	PEUGEOT
A14VI40	VALEO
A3074	AS-PL
AEC1674	AUTOELECTRO
AG0560	GHIBAUDI
ALB1674	KRAUF
ALN1674	KRAUF
ALQ1674	KRAUF
ALT00286	ELECTROLOG
ALT119	ROLLCO
ALT14136	WOODAUTO
ALT153	ROLLCO
ALT172900	SIOM
ALTF040	3EFFE
ALTL189	3EFFE
ALTL189B	3EFFE
ALTL189NE	3EFFE
ALTL189V	3EFFE
ALV1674	KRAUF
CA1674IR	HC PARTS
CAL15290	CASCO
CAL15290AS	CASCO
CAL15290ES	CASCO
CAL15290GS	CASCO
CAL15290OS	CASCO
CAL15290RS	CASCO
CGB-14197	AINDE
DA5324	DELCO
DRA4214	DELCO
F032113755	CARGO
FG15C156	VALEO
GA439503-A	GPARTS
K9639396480	FIAT
K9646066880	FIAT
LRA02228	LUCAS
LRA2228	LUCAS
MAR90243	MAGNETI MARELLI
MQA1674	MAGNETI MARELLI
MRA90243	MAGNETI MARELLI
PRAF040	3EFFE
PRAL189	3EFFE
PRAL189B	3EFFE
PRAL189V	3EFFE
RAA15325	DELCO
RNLTG15C022	RNL
SG15C031	VALEO
SG15S017	VALEO
STA0315R	BOVEZ
STX100016	STARDAX
STX100016/PRZET	STARDAX
STX100016R	STARDAX
STX100082	STARDAX
STX100082R	STARDAX
STX100330	STARDAX
STX100330R	STARDAX
STX101327	STARDAX
STX101327R	STARDAX
TG15C022	VALEO
TG15C054	VALEO
TG15C119	VALEO
TG15C156	VALEO
UD01436A	AS-PL
VAL439696	WOODAUTO

A3074

ALT Plug Kit

NZ$ 6.90 each
NZ$ 6.00 excl GST

View your shopping basket or Browse other items in Alternators.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Form accompanying the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty procedure]

Warranty Form Parts Return Form

[Privacy Policy] [Disclaimer]
