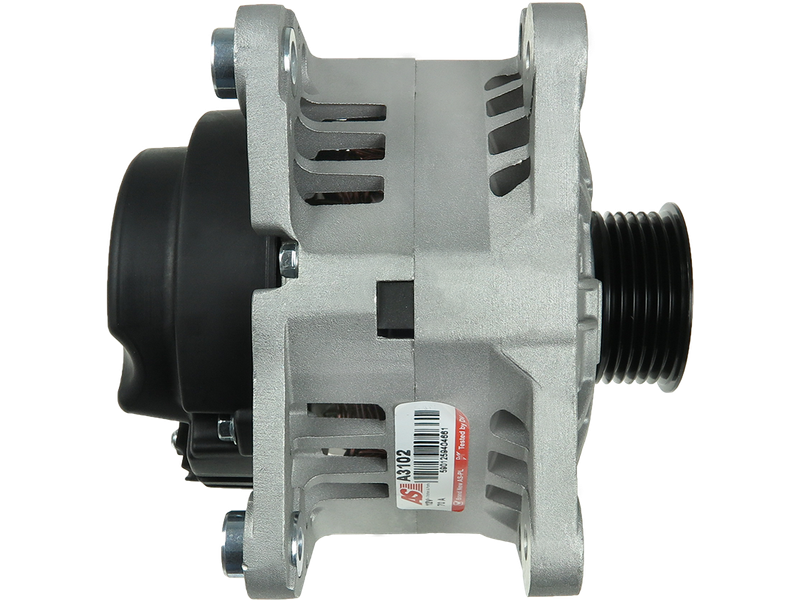

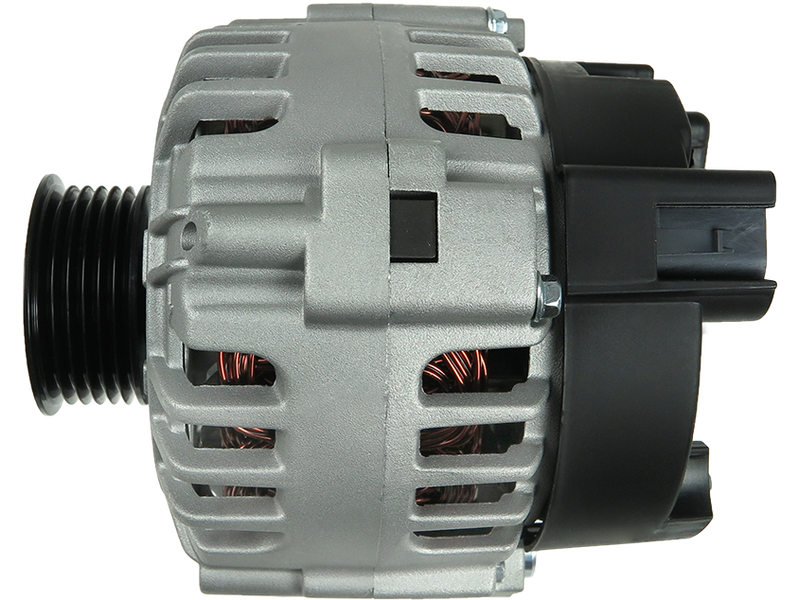

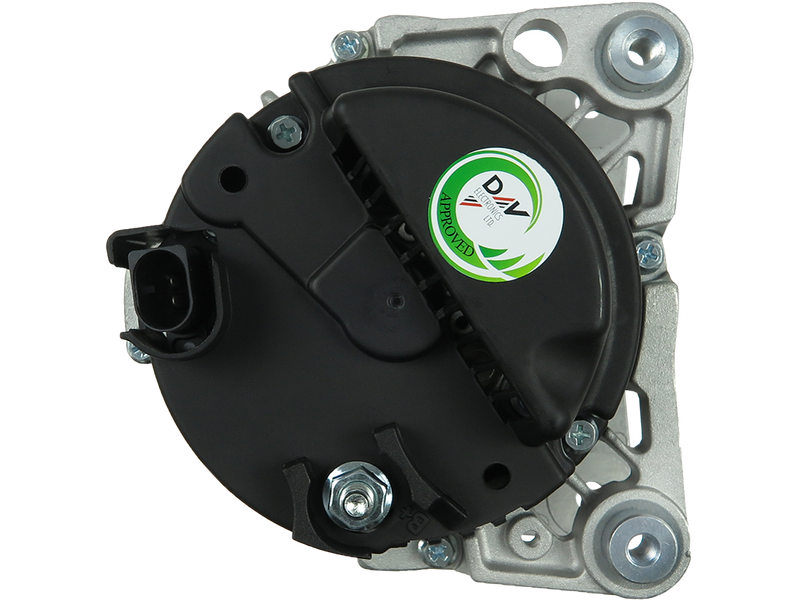

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 460.81 including GST
NZ$ 400.70 excluding GST
or four payments of $115.20
with
Learn More
each
A3102
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SG8B023Associated Numbers
03D903025D 03D903025H 03D903025HX 0986048891 113880 2015371 20179173OE 21486R 2542577 2542747 2542747A 28-4732 28-4911 301755RI 301755RIV 32439481 437445 439482 8EL012426-471 8EL738129-001 9090404 A3102 AEC1675 ALT14193 CA1755IR CAL15371GS DRA0021 EAA-221467 LRA02254 LRA02794 SA972 SB065 SG8B023 SG8B026 UD12895ASpecifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 169 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.50 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Cordoba 1.2 | [AZQ] | 10.2002- |
| SEAT | Cordoba 1.2 | [BME] | 10.2002- |
| SEAT | Cordoba 1.2 12V | [BXV] | 05.2006- |
| SEAT | Ibiza 1.2 | [AZQ] | 11.2001-04.2004 |
| SEAT | Ibiza 1.2 | [BBM] | 06.2007-05.2008 |
| SEAT | Ibiza 1.2 | [BZG] | 03.2008- |
| SEAT | Ibiza 1.2 12V | [BXV] | 05.2006- |
| SKODA | Fabia 1.2 | [AWY] | 07.2001-05.2004 |
| SKODA | Fabia 1.2 | [AZQ] | 01.2003-11.2004 |
| SKODA | Fabia 1.2 | [BBM] | 03.2007- |
| SKODA | Fabia 1.2 | [BMD] | 08.2002-04.2007 |
| SKODA | Fabia 1.2 | [BME] | 03.2003- |
| SKODA | Fabia 1.2 | [BZG] | 03.2007- |
| SKODA | Fabia 1.2 | [CEVA] | 03.2007- |
| SKODA | Fabia 1.2 Praktik | [AWY] | 08.2002-05.2004 |
| SKODA | Fabia 1.2 Praktik | [BMD] | 05.2004- |
| SKODA | Roomster 1.2 | [BZG] | 01.2007- |
| VW | Fox 1.2 | [BMD] | 04.2005- |
| VW | Polo 1.2 | [AWY] | 01.2002-05.2004 |
| VW | Polo 1.2 | [AZQ] | 10.2001-05.2004 |
| VW | Polo 1.2 | [BBM] | 05.2007- |
| VW | Polo 1.2 | [BMD] | 05.2004-05.2007 |
| VW | Polo 1.2 | [BME] | 08.2002- |
| VW | Polo 1.2 | [BZG] | 05.2007- |
Reference Information
| 063731675010 | MAGNETI MARELLI |
| 2015371.1 | SANDO |
| 20179443BN | REAL |
| 210568 | ERA |
| 2542577 | VALEO |
| 2542577C | VALEO |
| 28-4732 | ELSTOCK |
| 437412 | VALEO |
| 441902 | LOGISTIK |
| 56984 | EAI |
| A3102 | AS-PL |
| ALB1755 | KRAUF |
| ALT00472 | ELECTROLOG |
| ALT172790 | SIOM |
| ALT2143 | ROLLCO |
| ALTS908 | 3EFFE |
| ALV9755 | KRAUF |
| ANM32241X | ANDEL |
| CA1755IR | HC PARTS |
| CAL15279GS | CASCO |
| CGB-84732 | AINDE |
| DA5298 | DELCO |
| DRA4188 | DELCO |
| LRA02254 | LUCAS |
| LRA02794 | LUCAS |
| LRA2254 | LUCAS |
| LRA2794 | LUCAS |
| MQA1675 | MAGNETI MARELLI |
| SG8B023 | VALEO |
| STA0489R | BOVEZ |
| STX100307 | STARDAX |
| STX100307R | STARDAX |
| UD12895A | AS-PL |
| VAL439451 | WOODAUTO |
Video/Publications
