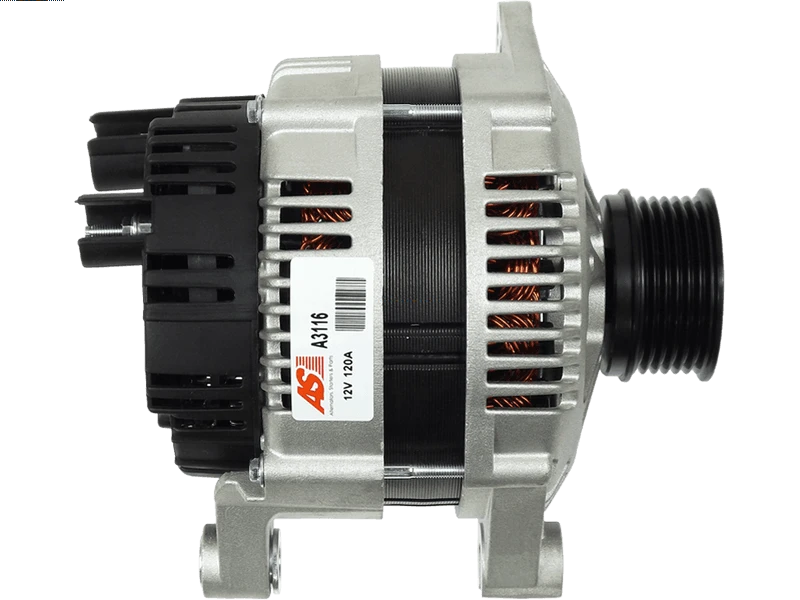

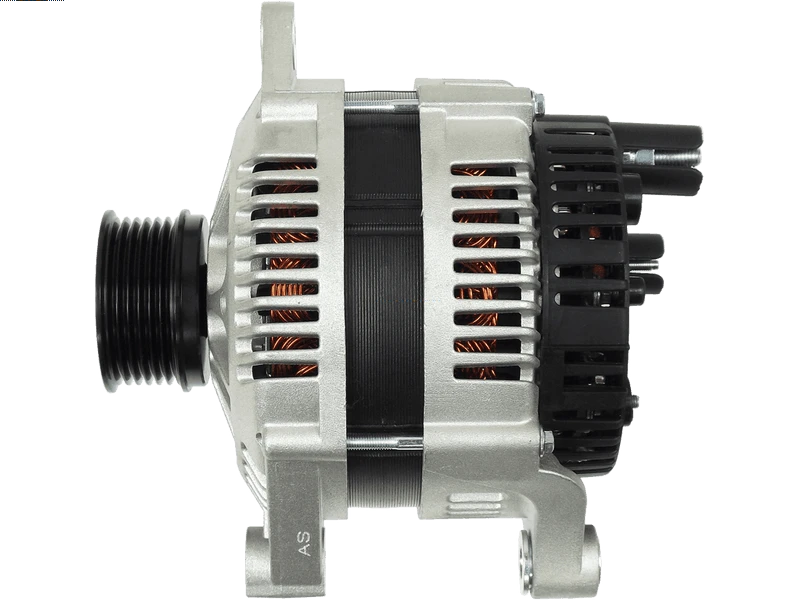

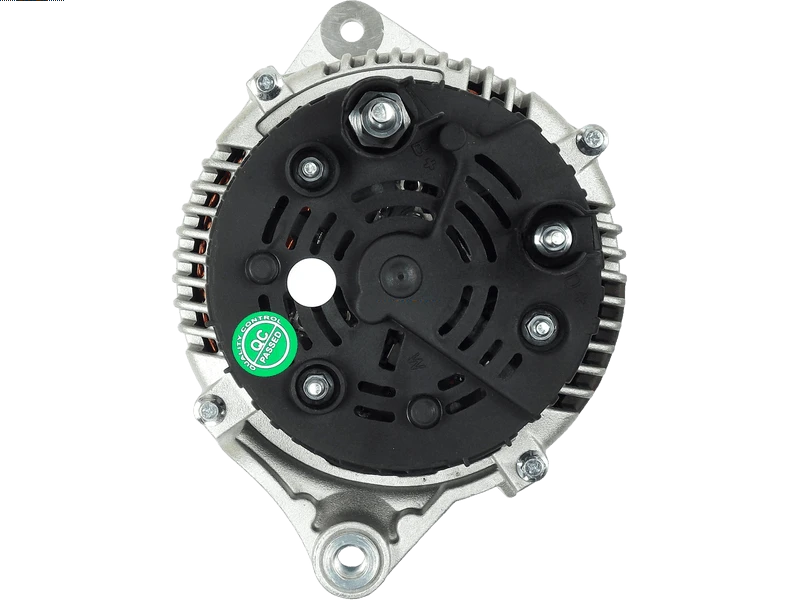

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 573.11 including GST
NZ$ 498.36 excluding GST
or four payments of $143.28
with
Learn More
each
A3116
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A14VI37Associated Numbers
11.1835 11.1835M 2015292 20179292OE 2542388 28-4681 301099RI 301835RI 4027 437307 439303 500362607 57056Q 57057U 57057V 5705EQ 57080 8EL738253-001 9090329 A14VI37 A3116 AEC1643 CA1835IR CAL15292GS DRA3954 LRA02212 UD02324ASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 26.50 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 203 mm |
| Mount Inside Length or Pad Mount C-C (C) | 67 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 51.50 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.8 Diesel | [8140.63] | 01.1999- |
| CITROEN | Jumper 2.8 Diesel | [8140.63] | 12.1999- |
| CITROEN | Jumper 2.8 TD | [8140.43] | 10.1999- |
| CITROEN | Jumper 2.8 TD | [8140.43] | 12.1999- |
| FIAT | Ducato 2.5 Diesel | [8140.67] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 Diesel | [8140.67] | 08.1994-04.2002 |
| FIAT | Ducato 2.5 Diesel | [8140.67] | 12.1999-04.2002 |
| FIAT | Ducato 2.5 Diesel 4x4 | [8140.67] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 Diesel 4x4 | [8140.67] | 12.1999-04.2002 |
| FIAT | Ducato 2.5 TDi | [8140.47] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 TDi | [8140.47] | 07.1994-04.2002 |
| FIAT | Ducato 2.5 TDi | [8140.47] | 12.1999-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 04.1997-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 05.1998-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 06.1998-04.2002 |
| FIAT | Ducato 2.5 TDi 4x4 | [8140.47] | 12.1999-04.2002 |
| FIAT | Ducato 2.5 TDi Maxi | [8140.47] | 03.1994-04.2002 |
| FIAT | Ducato 2.5 TDi Maxi | [8140.47] | 12.1999-04.2002 |
| FIAT | Ducato 2.8 Diesel | [8140.43] | 11.2003-07.2006 |
| FIAT | Ducato 2.8 Diesel | [8140.63] | 02.1998-04.2002 |
| FIAT | Ducato 2.8 Diesel | [8140.63] | 05.1998-04.2002 |
| FIAT | Ducato 2.8 Diesel | [8140.63] | 12.1999-04.2002 |
| FIAT | Ducato 2.8 Diesel 4x4 | [8140.43] | 11.2003-07.2006 |
| FIAT | Ducato 2.8 TD 4x4 | [8140.63] | 05.1998-11.2001 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 10.1997-04.2002 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 12.1998-04.2002 |
| FIAT | Ducato 2.8 TDi | [8140.43] | 12.1999-04.2002 |
| FIAT | Ducato 2.8 TDi 4x4 | [8140.43] | 06.1999-04.2002 |
| PEUGEOT | Boxer 2.8 TD | [8140.43] | 12.2001-03.2005 |
Reference Information
| 11.1835 | LAUBER |
| 11.1835M | LAUBER |
| 2015292.1 | SANDO |
| 20179292OE | REAL |
| 210849 | ERA |
| 2542388 | VALEO |
| 28-4681 | ELSTOCK |
| 301099RI | KUHNER |
| 301835RI | KUHNER |
| 4027 | CEVAM |
| 437307 | VALEO |
| 439303 | VALEO |
| 500362607 | IVECO |
| 57056Q | PEUGEOT |
| 57057U | PEUGEOT |
| 57057V | CITROEN |
| 5705EQ | PEUGEOT |
| 57080 | EAI |
| 71724286 | FIAT |
| 8EL738253-001 | HELLA |
| 9090329 | FRIESEN |
| A12VA1179A2 | SIDAT |
| A14VI37 | VALEO |
| A3116 | AS-PL |
| AEC1643 | AUTOELECTRO |
| ALT00383 | ELECTROLOG |
| ALT172920 | SIOM |
| ALTS653 | 3EFFE |
| ANM36174X | ANDEL |
| CA1835IR | HC PARTS |
| CAL15292GS | CASCO |
| DRA3954 | DELCO |
| LRA02212 | LUCAS |
| LRA2212 | LUCAS |
| PRAS653 | 3EFFE |
| RNLA14VI37 | RNL |
| STX100812 | STARDAX |
| STX100812R | STARDAX |
| UD02324A | AS-PL |
