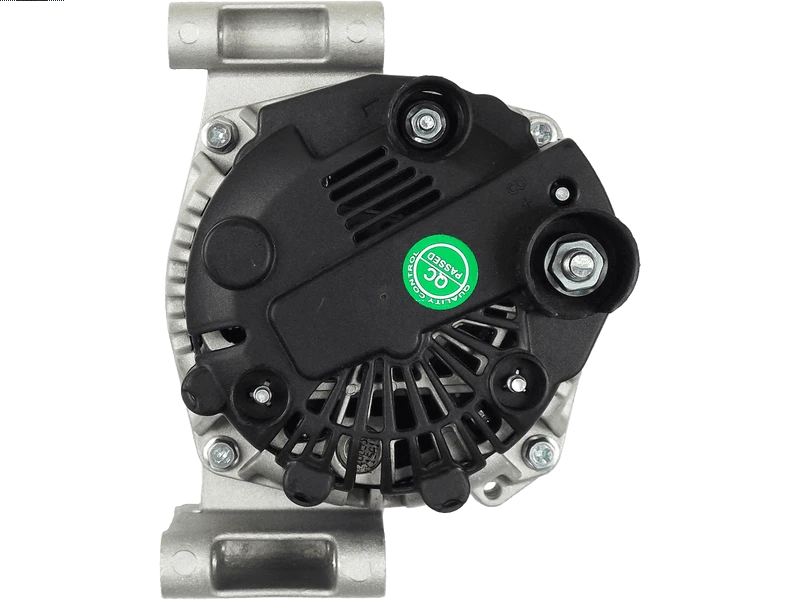

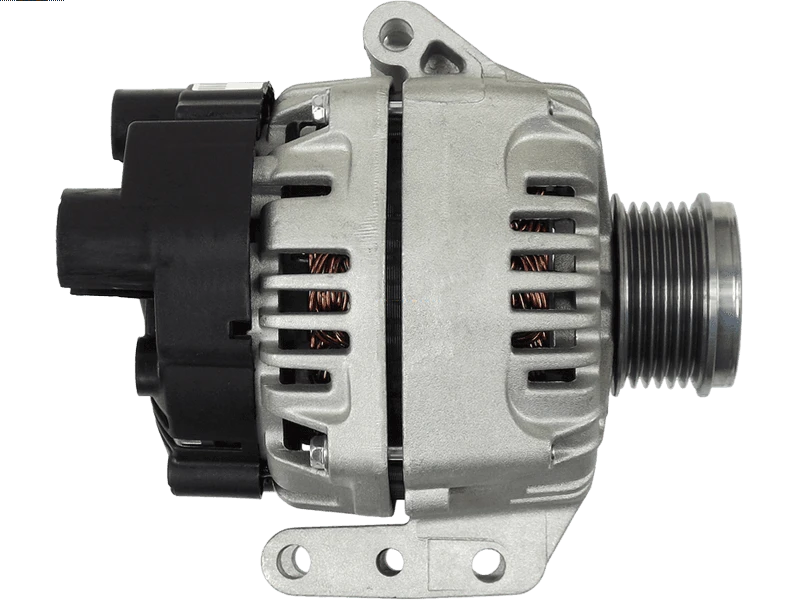

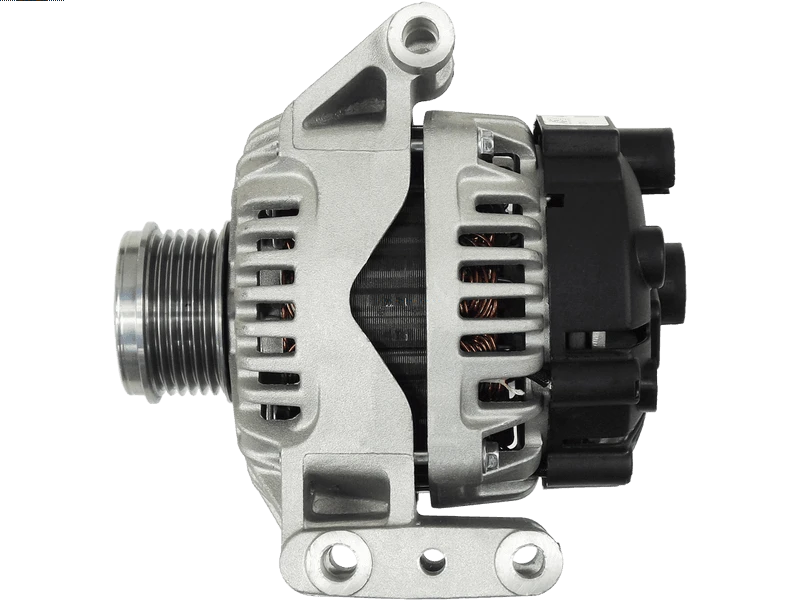

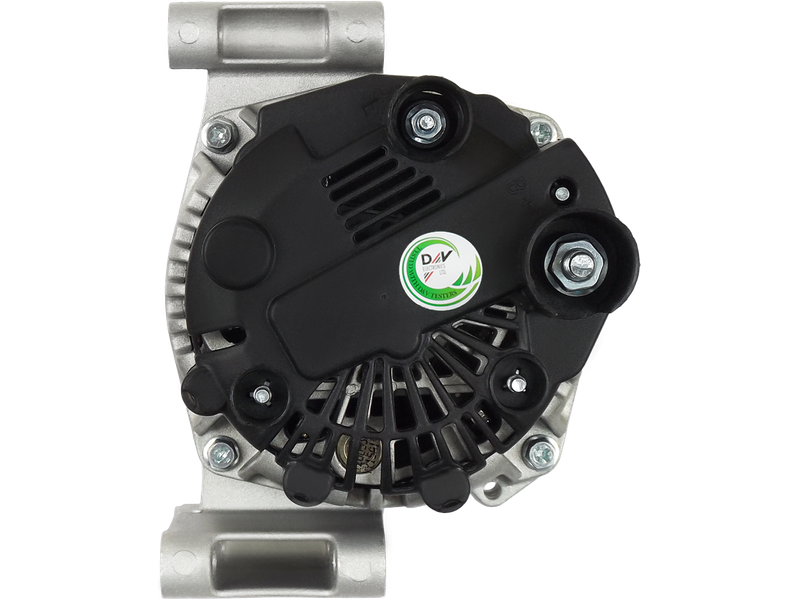

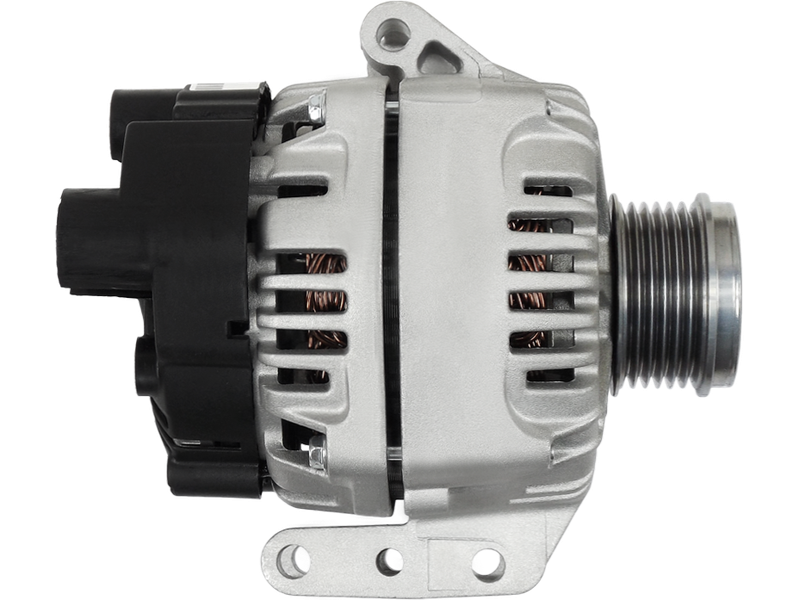

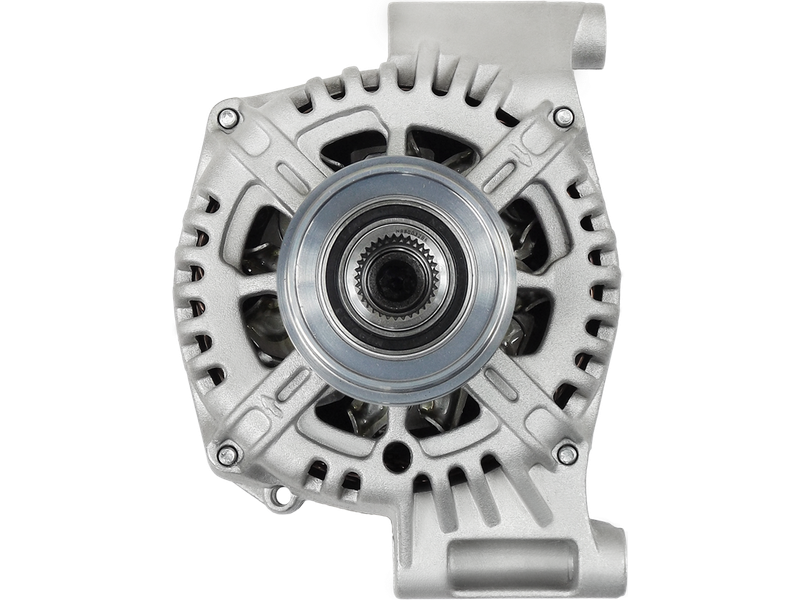

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 468.58 including GST
NZ$ 407.46 excluding GST
or four payments of $117.15
with
Learn More
each
A3219
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986083250 1606439580 2015489 20179984OE 28-5913 440298 51854103 553434RI 553434RID 9214360 AEK3301 CA2132IR CAL15489GS DRA0796 LRA03301 TG12S101 UD02269A 22796NSpecifications
| Amp | 120 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Nemo 1.3 HDi | [FHZ(F13DTE5)] | 01.2010- |
| FIAT | Grande Punto 1.3 JTD Multijet | [199A2.000] | 01.2005- |
| FIAT | Grande Punto 1.3 JTD Multijet | [199A3.000] | 01.2005- |
| FIAT | Grande Punto 1.3 JTD Multijet | [199B4.000] | 01.2010- |
| PEUGEOT | Bipper 1.3 HDi | [F13DTE5(199A9.000)] | 01.2010- |
Reference Information
| 063377028010 | MAGNETI MARELLI |
| 063732132010 | MAGNETI MARELLI |
| 0986083250 | BOSCH |
| 115384 | CARGO |
| 1606439580 | PEUGEOT |
| 1608858080 | PEUGEOT |
| 1617116680 | PEUGEOT |
| 1638013480 | PEUGEOT |
| 200225 | VALEO |
| 2015489.0 | SANDO |
| 2015489.1 | SANDO |
| 20179984BN | REAL |
| 20179984OE | REAL |
| 209225 | ERA |
| 22796N | WAI / TRANSPO |
| 28-5913 | ELSTOCK |
| 32633770 | HERTH+BUSS |
| 439707 | VALEO |
| 440298 | VALEO |
| 442602 | LOGISTIK |
| 4769 | CEVAM |
| 505.564.120.000 | PSH |
| 505.564.120.008 | PSH |
| 505.564.120.058 | PSH |
| 505.564.120.500 | PSH |
| 51829383 | FIAT |
| 51854103 | FIAT |
| 51854912 | FIAT |
| 51944878 | FIAT |
| 52003620 | FIAT |
| 52092132 | FIAT |
| 52092134 | FIAT |
| 608893 | VALEO |
| 63377028 | MAGNETI MARELLI |
| 89214360 | POWERMAX |
| 8EL015630-111 | HELLA |
| 943321321010 | MAGNETI MARELLI |
| A12VA0139A2 | SIDAT |
| A133.489 | PSH |
| A146.192 | PSH |
| A3219 | AS-PL |
| AEK3301 | AUTOELECTRO |
| AG1705 | GHIBAUDI |
| ALT00800 | ELECTROLOG |
| ALT14432 | WOODAUTO |
| ALT2207CP | ROLLCO |
| ALV1201 | KRAUF |
| CA2132IR | HC PARTS |
| CAL15489AS | CASCO |
| CAL15489GS | CASCO |
| CGB82-0819 | AINDE |
| DAN997 | DENSO |
| F032115384 | CARGO |
| LRA03301 | LUCAS |
| LRA3301 | LUCAS |
| MAN7028 | MAGNETI MARELLI |
| MARC2132 | MAGNETI MARELLI |
| MQA2132 | MAGNETI MARELLI |
| STX101705 | STARDAX |
| STX102123 | STARDAX |
| TG12S101 | VALEO |
| TG12S220 | VALEO |
| UD02269A | AS-PL |
