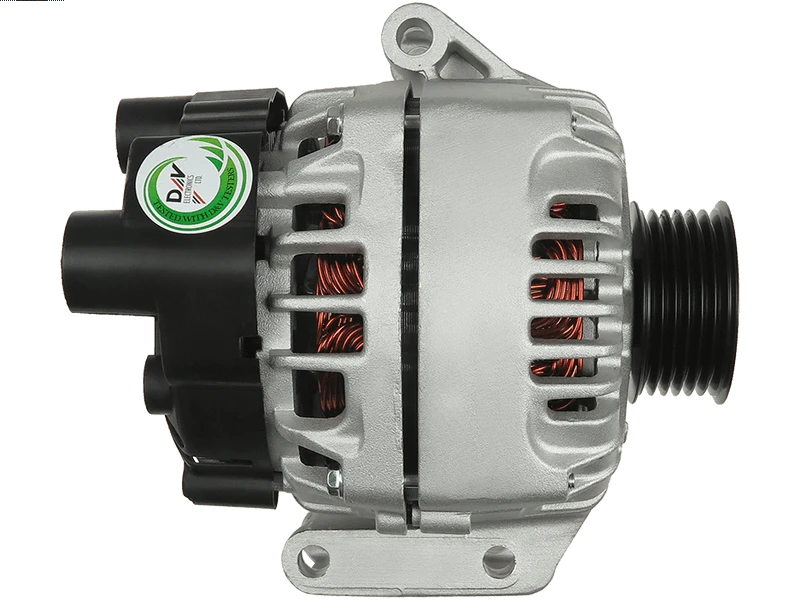

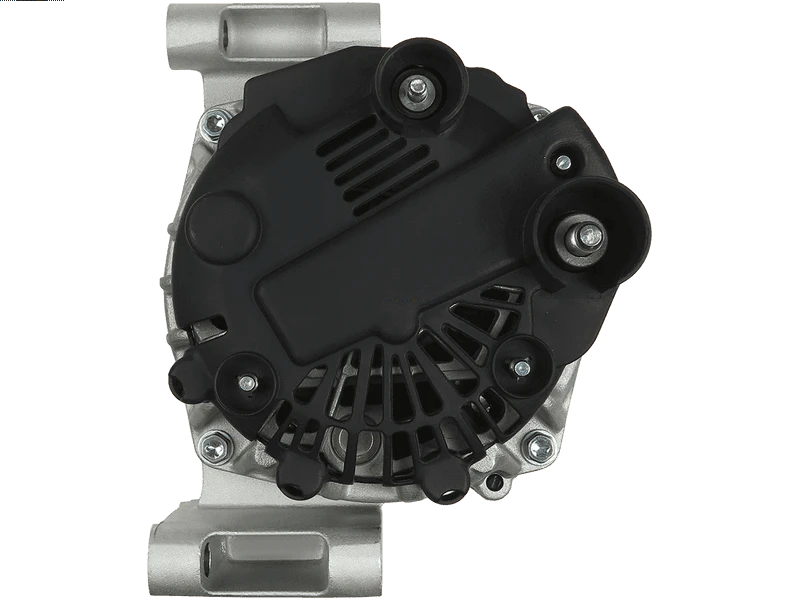

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 467.25 including GST
NZ$ 406.30 excluding GST
or four payments of $116.81
with
Learn More
each
A3247
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TG9S037Associated Numbers
2015356 20179653OE 2543483 2543483C 28-5841 301862RIV 301934RI 301934RID 301934RIV 439654 440239 505.572.090 51718494 51784848 553638RIV 555179RIV 9090611 9215294 AEK2804 ALT14384 CAL15356 CAL15356AS CAL15356ES CAL15356GS CAL15356OS CAL15356RS DAN1001 DRA0377 LRA03229 TG9S014 TG9S037Specifications
| Amp | 90 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Length (L.1) | 175 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.3 D Multijet | [169A1.000] | 01.2007- |
| FIAT | Doblo 1.3 JTD | [188A9.000] | 01.2004-12.2005 |
| FIAT | Fiorino 1.3 D Multijet | [199A2.000] | 01.2008- |
| FIAT | Idea 1.3 JTD Multijet | [188A9.000] | 01.2004- |
| FIAT | Linea 1.3 JTD Mulitjet | [199A3.000] | 01.2007- |
| FIAT | Panda 1.3 JTD Multijet | [169A1.000] | 01.2006- |
| FIAT | Panda 1.3 JTD Multijet | [188A9.000] | 01.2003- |
| FIAT | Punto 1.3 JTD Multijet 16V | [188A9.000] | 01.2003-12.2005 |
| LANCIA | Musa 1.3 D Mulitjet | [188A9.000] | 01.2004- |
| LANCIA | Musa 1.3 D Mulitjet | [199A3.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 D Multijet | [192A3.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 D Multijet | [199A2.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 JTD | [188A9.000] | 01.2003- |
Reference Information
| 115622 | CARGO |
| 2015356 | SANDO |
| 20179653OE | REAL |
| 209240 | ERA |
| 210521 | ERA |
| 210839 | ERA |
| 2543483 | VALEO |
| 2543483C | VALEO |
| 28-5841 | ELSTOCK |
| 301862RIV | KUHNER |
| 301934RI | KUHNER |
| 301934RID | KUHNER |
| 301934RIV | KUHNER |
| 439654 | VALEO |
| 440239 | VALEO |
| 442428 | LOGISTIK |
| 505.572.090 | PSH |
| 505.572.090.460 | PSH |
| 505.572.090.461 | PSH |
| 51718494 | FIAT |
| 51784848 | FIAT |
| 51805804 | FIAT |
| 51854906 | FIAT |
| 51984051 | FIAT |
| 52092134 | FIAT |
| 553638RIV | KUHNER |
| 555179RIV | KUHNER |
| 9090611 | FRIESEN |
| 9215294 | POWERMAX |
| A3247 | AS-PL |
| AEK2804 | AUTOELECTRO |
| ALT00602 | ELECTROLOG |
| ALT00906 | ELECTROLOG |
| ALT14384 | WOODAUTO |
| ALTS730 | 3EFFE |
| ANM32597X | ANDEL |
| CAL15356 | CASCO |
| CAL15356AS | CASCO |
| CAL15356ES | CASCO |
| CAL15356GS | CASCO |
| CAL15356OS | CASCO |
| CAL15356RS | CASCO |
| DAN1001 | DENSO |
| DRA0377 | DELCO |
| F032115622 | CARGO |
| LRA03229 | LUCAS |
| LRA3229 | LUCAS |
| RNLTG9S037 | RNL |
| STX102163 | STARDAX |
| TG9S014 | VALEO |
| TG9S037 | VALEO |
