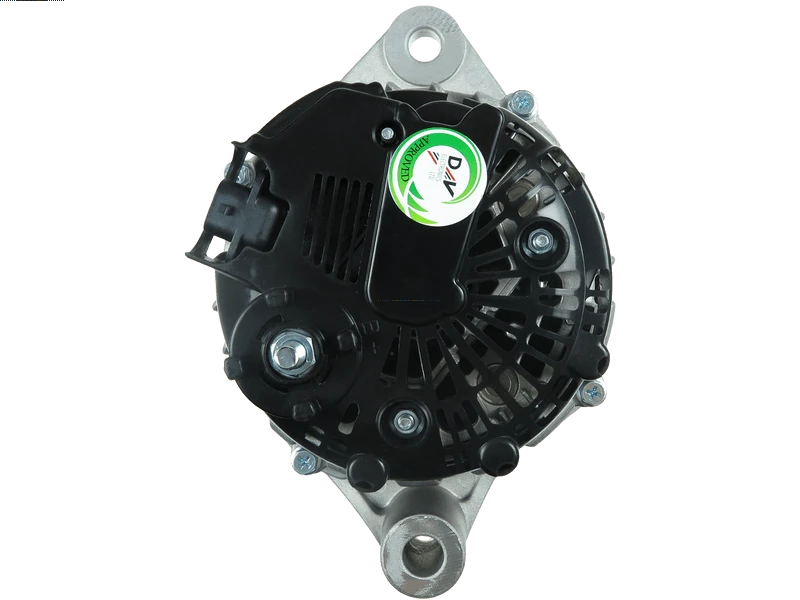

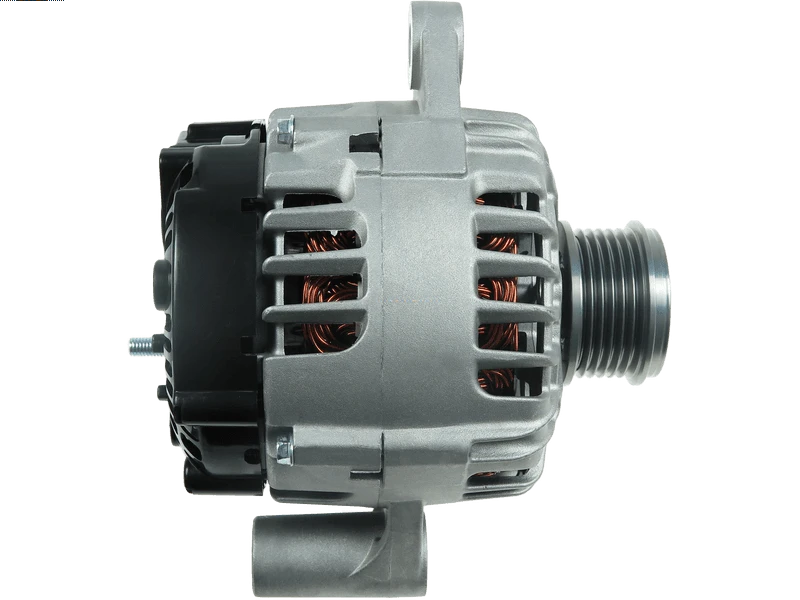

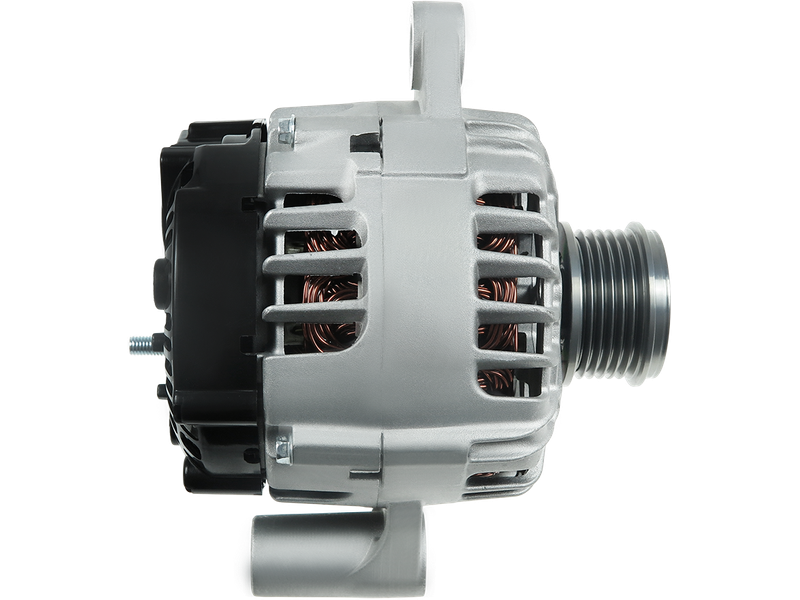

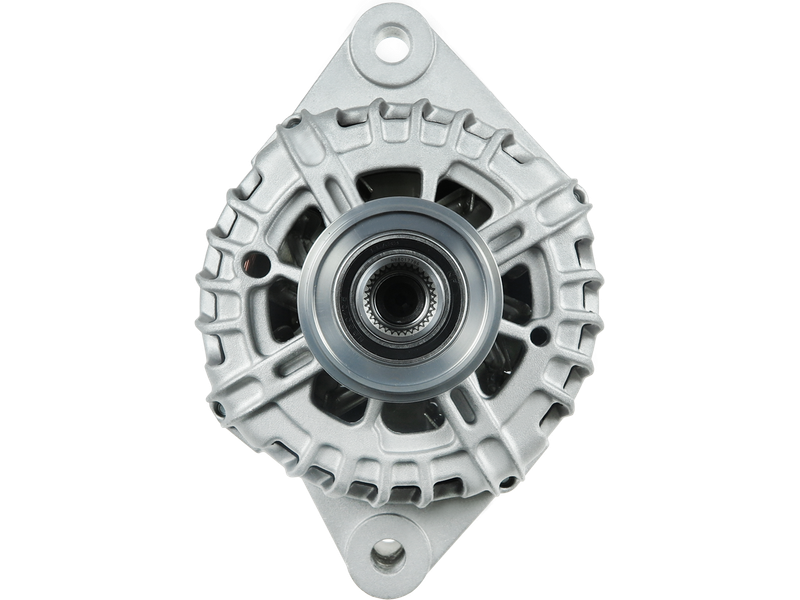

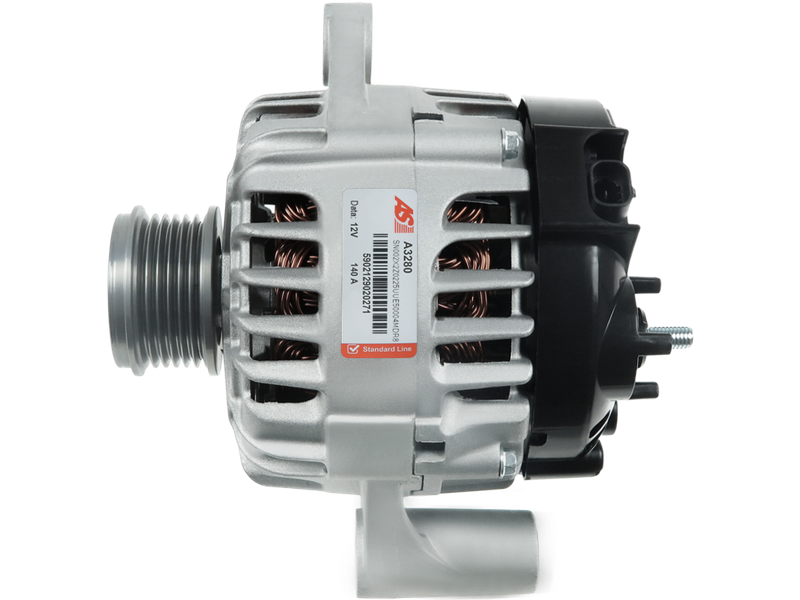

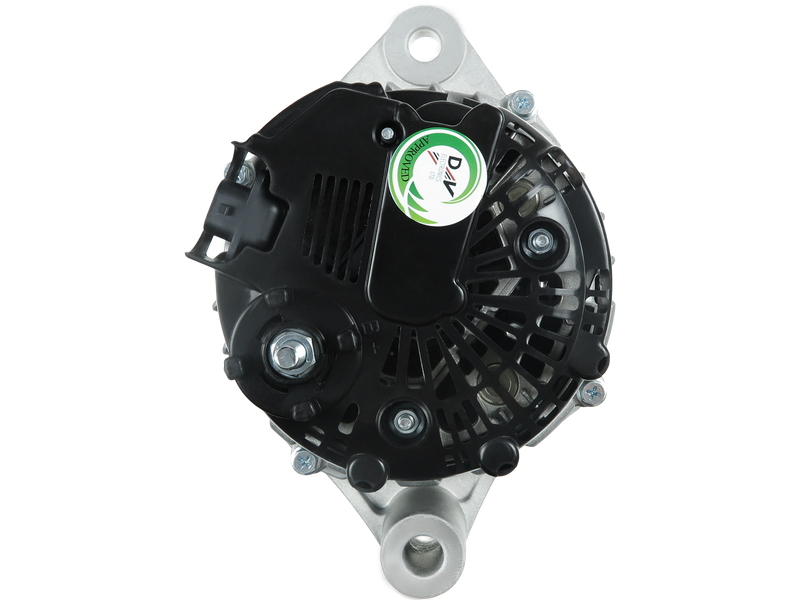

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 585.89 including GST
NZ$ 509.47 excluding GST
or four payments of $146.47
with
Learn More
each
A3280
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
TG12C173Associated Numbers
0986UR6310 2015500 20179005OE 28-6693 554214RI 554214RIV AEK3583 CAL15500GS DRA1048 LRA03583 TG12C173 UD12142ASpecifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 61 mm |
| Diameter (D.1) | 12.50 mm |
| Diameter (D.2) | 12.50 mm |
| Length (L.1) | 190 mm |
| OEM Product | No |
| Plug Code | PL_2201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 113 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra J 2.0 CDTi | [A20DTH] | 01.2009- |
| OPEL | Astra J 2.0 CDTi Biturbo | [A20DTR] | 01.2012- |
| OPEL | Insignia 2.0 CDTi | [A20DTC] | 01.2008- |
| OPEL | Insignia 2.0 CDTi | [A20DTH] | 01.2008- |
| OPEL | Insignia 2.0 CDTi | [A20DTJ] | 01.2008- |
| OPEL | Insignia 2.0 CDTi 4X4 | [A20DTH] | 01.2010- |
| OPEL | Insignia 2.0 CDTi Biturbo | [A20DTR] | 01.2009- |
| OPEL | Insignia 2.0 CDTi Biturbo 4x4 | [A20DTR] | 01.2009- |
| OPEL | Zafira C 2.0 CDTi | [A20DTC] | 01.2011- |
| OPEL | Zafira C 2.0 CDTi | [A20DTH] | 01.2011- |
| OPEL | Zafira C 2.0 CDTi | [A20DTJ] | 01.2011- |
| OPEL | Zafira C 2.0 CDTi Biturbo | [A20DTR] | 01.2013- |
| VAUXHALL | Astra J 2.0 CDTi | [A20DTH] | 01.2009- |
| VAUXHALL | Astra J 2.0 CDTi Biturbo | [A20DTR] | 01.2011- |
| VAUXHALL | Insignia 2.0 CDTi | [A20DTC] | 01.2008- |
| VAUXHALL | Insignia 2.0 CDTi | [A20DTH] | 01.2008- |
| VAUXHALL | Insignia 2.0 CDTi | [A20DTJ] | 01.2008- |
| VAUXHALL | Insignia 2.0 CDTi | [A20DTR] | 01.2008- |
| VAUXHALL | Insignia 2.0 CDTi 4x4 | [A20DTH] | 01.2008- |
| VAUXHALL | Insignia 2.0 CDTi 4x4 | [A20DTR] | 01.2008- |
| VAUXHALL | Insignia 2.0 CDTi Biturbo | [A20DTR] | 01.2012- |
| VAUXHALL | Insignia 2.0 CDTi Biturbo 4x4 | [A20DTR] | 01.2012- |
| VAUXHALL | Zafira C 2.0 CDTi | [A20DTH] | 01.2011- |
| VAUXHALL | Zafira C 2.0 CDTi | [A20DTJ] | 01.2011- |
| VAUXHALL | Zafira C 2.0 CDTi | [A20DTL] | 01.2011- |
| VAUXHALL | Zafira C 2.0 CDTi Biturbo | [A20DTR] | 01.2013- |
Reference Information
| 063732181010 | MAGNETI MARELLI |
| 0986083820 | BOSCH |
| 0986CR6310 | BOSCH |
| 0986UR6310 | BOSCH |
| 113391 | FARCOM |
| 114847 | CARGO |
| 11832N | WAI / TRANSPO |
| 1202317 | PEUGEOT |
| 1202318 | PEUGEOT |
| 1202333 | PEUGEOT |
| 1204623 | PEUGEOT |
| 1204642 | PEUGEOT |
| 12588305 | PEUGEOT |
| 13502581 | GM |
| 135.585.140.000 | PSH |
| 135.585.140.004 | PSH |
| 135.585.140.280 | PSH |
| 135.585.140.340 | PSH |
| 135.585.140.440 | PSH |
| 135.585.140.460 | PSH |
| 135.585.140.461 | PSH |
| 135.585.140.500 | PSH |
| 135.585.140.505 | PSH |
| 135.585.140.508 | PSH |
| 135.585.140.555 | PSH |
| 13588306 | PEUGEOT |
| 13802581 | GM |
| 1684909080 | PEUGEOT |
| 192983 | FEBI BILSTEIN |
| 2015500.0 | SANDO |
| 2015500.1 | SANDO |
| 20179005BN | REAL |
| 20179005OE | REAL |
| 209123 | ERA |
| 2620359 | VALEO |
| 2620359A | VALEO |
| 2650799 | VALEO |
| 2650799A | VALEO |
| 2650800A | VALEO |
| 28-6693 | ELSTOCK |
| 439961 | VALEO |
| 440620 | VALEO |
| 440621 | VALEO |
| 442531 | LOGISTIK |
| 4857 | CEVAM |
| 554214RI | KUHNER |
| 554214RIV | KUHNER |
| 57547 | EAI |
| 650799 | VALEO |
| 849115 | VALEO |
| 89215794 | POWERMAX |
| 8EL012240-581 | HELLA |
| 90-22-5714 | WILSON |
| 95515963 | PEUGEOT |
| A12VA0216 | SIDAT |
| A12VA0216A2 | SIDAT |
| A130.388 | PSH |
| A147.372 | PSH |
| A2096V | PRESTOLITE |
| A3280 | AS-PL |
| AAL1201 | APEC |
| AEK3583 | AUTOELECTRO |
| AL8864X | BOSCH |
| ALT0115 | ELECTROLOG |
| ALT14467 | WOODAUTO |
| ALT2158CP | ROLLCO |
| ALTL396 | 3EFFE |
| ALV5212 | KRAUF |
| ANM33268X | ANDEL |
| AZMT-49-035-2566 | A.Z. MEISTERTEILE |
| CA2181IR | HC PARTS |
| CAL15500AS | CASCO |
| CAL15500GS | CASCO |
| DRA1048 | DELCO |
| F000BL07FU | BOSCH |
| F032114847 | CARGO |
| G107619 | BTS TURBO |
| G107620 | BTS TURBO |
| MQA2181 | MAGNETI MARELLI |
| NPANAL1201 | NAPA |
| PRAL396 | 3EFFE |
| RNLTG12C052 | RNL |
| STX101701 | STARDAX |
| STX102253 | STARDAX |
| TG12C052 | VALEO |
| TG12C173 | VALEO |
| TG12C227 | VALEO |
| TG12C292 | VALEO |
| UD12142A | AS-PL |
| VAL439961 | WOODAUTO |
| VALTG12C052 | WOODAUTO |
| WOOALT14467 | WOODAUTO |
Video/Publications
A3280Related Items
