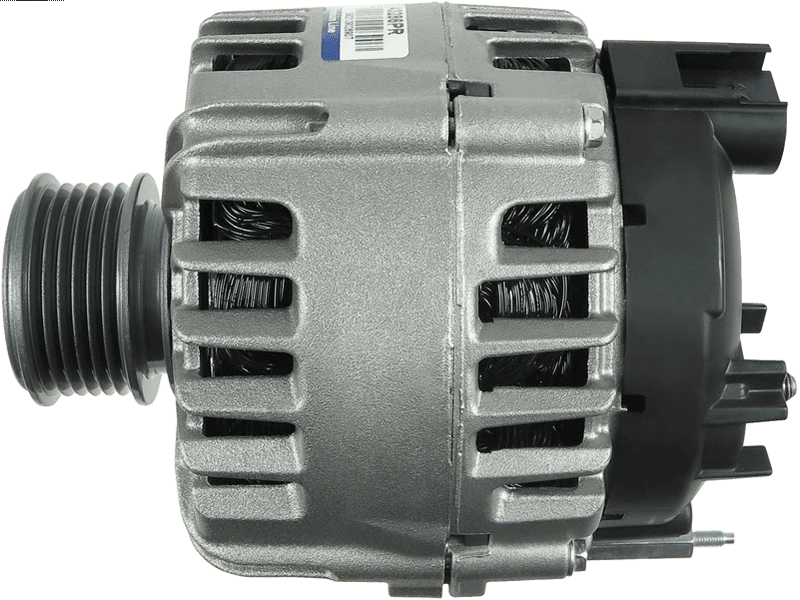

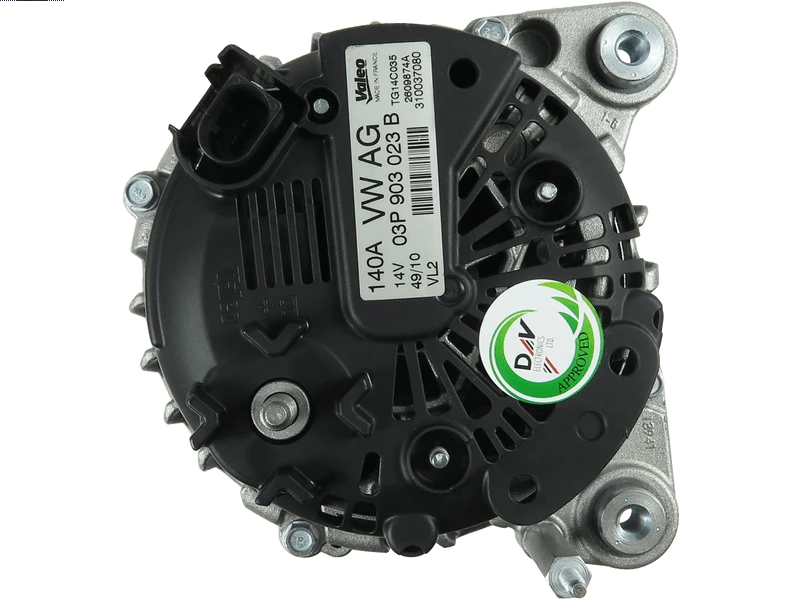

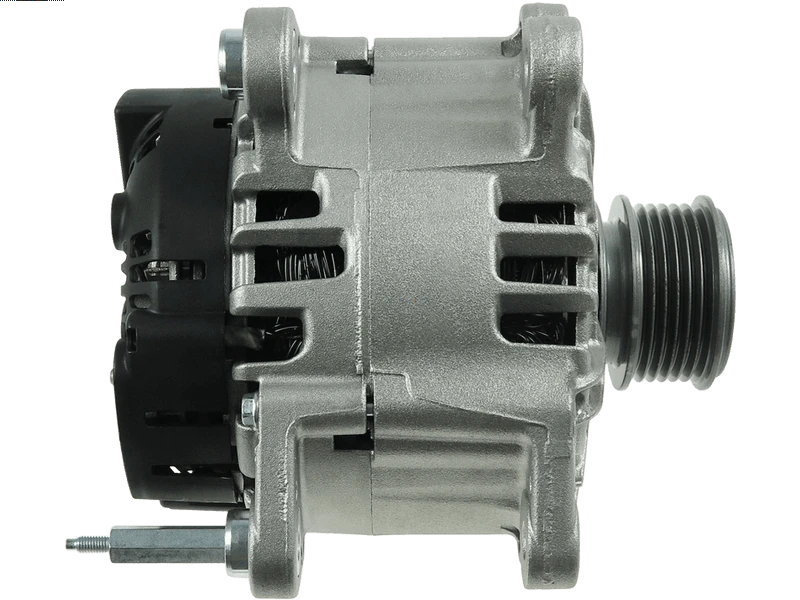

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 587.17 including GST
NZ$ 510.58 excluding GST
or four payments of $146.79
with
Learn More
each
A3286PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
03P903023A 03P903023B 0986082840 2015459 210732 28-5931 305.590.140 32082840 4164 439721 440311 553484RIV 89214393 AEK3319 CAL15459 CAL15459AS CAL15459ES CAL15459GS CAL15459OS CAL15459RS DRA0809 EAA-254748 LRA03319 TG14C035 VALTG14C035Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Ibiza 1.2 TDi | [CFWA] | 01.2010- |
| SKODA | Fabia 1.2 TDi | [CFWA] | 01.2010- |
| SKODA | Roomster 1.2 TDi | [CFWA] | 01.2010- |
| VW | Polo 1.2 TDi | [CFWA] | 01.2010- |
| VW | Polo 1.2 TDi Blue Motion | [CFWA] | 01.2010- |
Reference Information
| 03P903023A | VW |
| 03P903023AX | VW |
| 03P903023B | VW |
| 03P903023BX | VW |
| 03P903023H | VW |
| 03P903023HX | VW |
| 0986082840 | BOSCH |
| 2015459 | SANDO |
| 20350N | WAI / TRANSPO |
| 210732 | ERA |
| 28-5931 | ELSTOCK |
| 305.590.140 | PSH |
| 305.590.140.004 | PSH |
| 32082840 | HERTH+BUSS |
| 3P903023A | VW |
| 3P903023AX | VW |
| 3P903023B | VW |
| 3P903023BX | VW |
| 3P903023H | VW |
| 3P903023HX | VW |
| 4164 | CEVAM |
| 439721 | VALEO |
| 440311 | VALEO |
| 5515516 | MEAT & DORIA |
| 553484RIV | KUHNER |
| 89214393 | POWERMAX |
| A12VA0254A2 | SIDAT |
| A12VA0254AS | SIDAT |
| AEK3319 | AUTOELECTRO |
| ALT00525 | ELECTROLOG |
| ALTS494 | 3EFFE |
| CAL15459 | CASCO |
| CAL15459AS | CASCO |
| CAL15459ES | CASCO |
| CAL15459GS | CASCO |
| CAL15459OS | CASCO |
| CAL15459RS | CASCO |
| DRA0809 | DELCO |
| LRA03319 | LUCAS |
| LRA3319 | LUCAS |
| STX102028 | STARDAX |
| STX102230 | STARDAX |
| TG14C035 | VALEO |
| VALTG14C035 | WOODAUTO |
