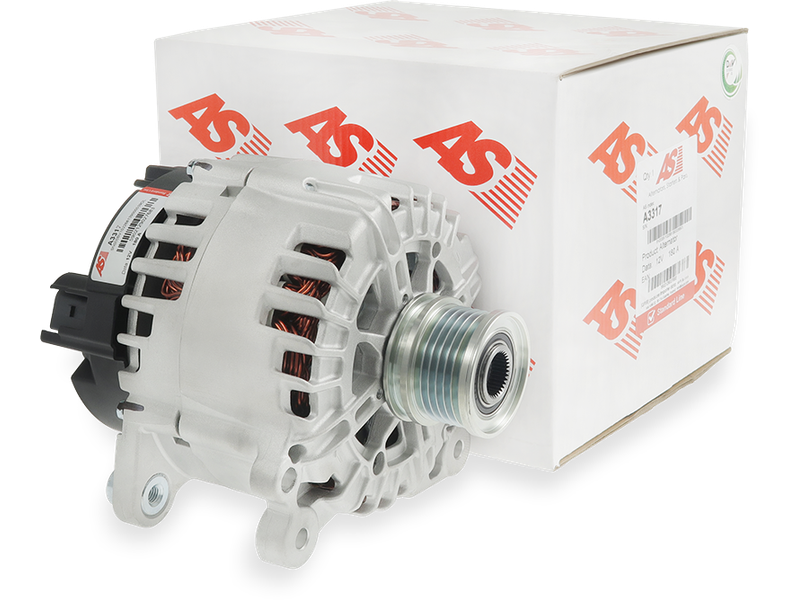

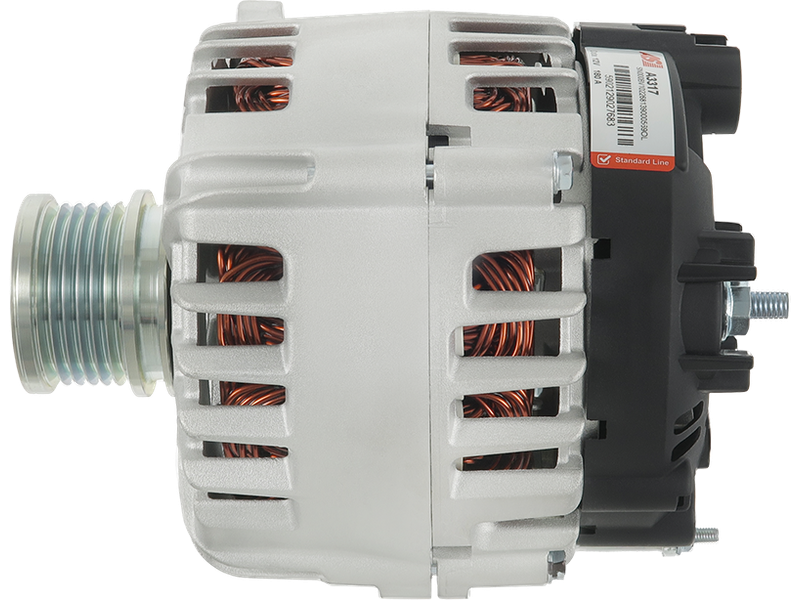

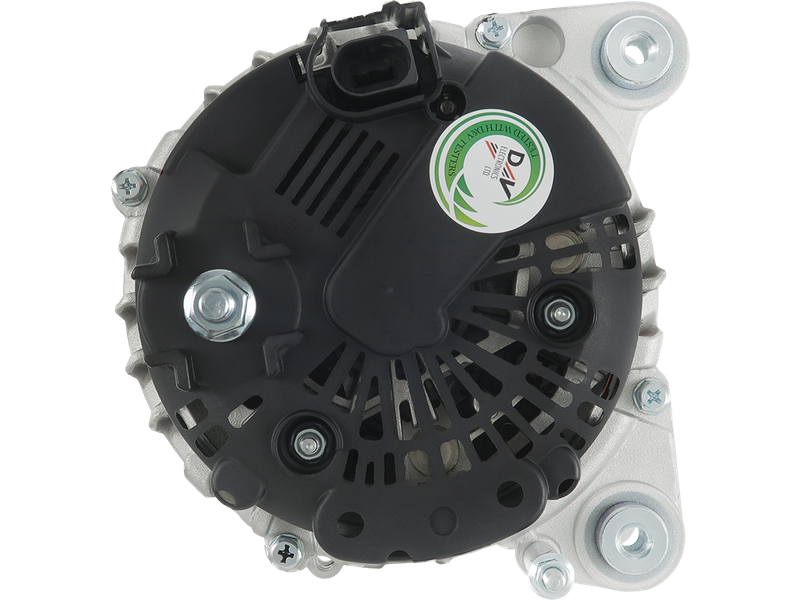

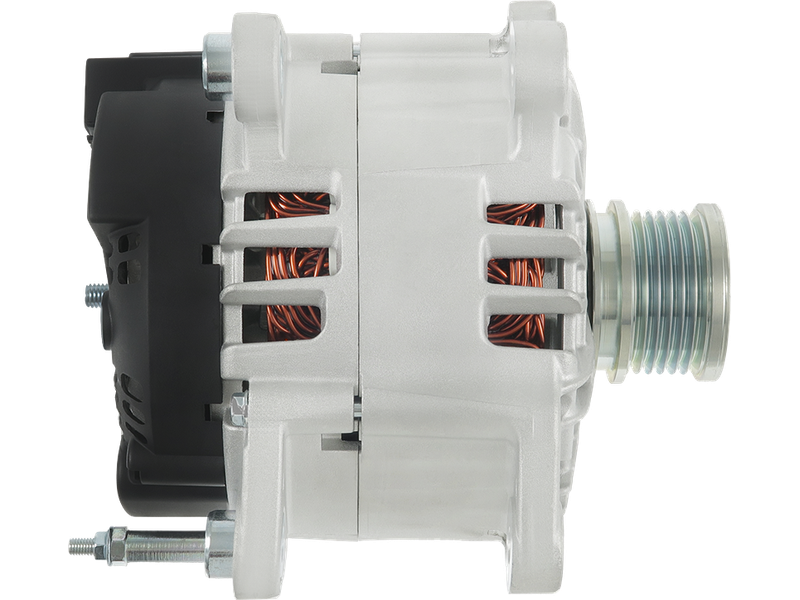

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 608.44 including GST
NZ$ 529.08 excluding GST
or four payments of $152.11
with
Learn More
each
A0471
A3317
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
FG18T062Associated Numbers
0121715042 0121715142 03G903023F 03G903023FX 03G903023Q 03L903023QX 03L903024C 03L903024G 03L903024H 03L903024HX 114697 11714N 2015476 209200 28-5869 305.597.180 439751 440341 553563RIV 57307 8EL738213-401 90-22-5691 9215402 9429 A-6577 A3317 AEK3257 CAL15476 CAL15476AS CAL15476ES CAL15476GS CAL15476OS CAL15476RS DA1467 DRA0357 EAA-224159 FG18T062 FG18T102 FG18T115 FG18T116 LRA03257 LRA3257 UD12308A VAL439751 VALFG18T115Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 39.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SKODA | Superb 3.6 FSi 4x4 | [CDVA] | 11.2008-05.2015 |
| SKODA | Superb 3.6 V6 4x4 | [CDVA] | 10.2009-05.2015 |
| VW | California 2.0 TDi | [CAAA] | 01.2009- |
| VW | California 2.0 TDi | [CAAB] | 01.2009- |
| VW | California 2.0 TDi | [CAAC] | 01.2009- |
| VW | California 2.0 TDi | [CAAE] | 01.2009- |
| VW | California 2.0 TDi | [CCHA] | 01.2009- |
| VW | California 2.0 TDi | [CCHB] | 01.2009- |
| VW | California 2.0 TDi | [CFCA] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CAAA] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CAAB] | 01.2015- |
| VW | Caravelle 2.0 TDi | [CAAC] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CAAC] | 01.2015- |
| VW | Caravelle 2.0 TDi | [CAAE] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CCHA] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CCHB] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CFCA] | 01.2009- |
| VW | Caravelle 2.0 TDi | [CHCB] | 01.2009- |
| VW | Caravelle 2.0 TDi 4-Motion | [CAAC] | 01.2015- |
| VW | Crafter 2.0 TDi | [CKTB] | 01.2011- |
| VW | Crafter 2.0 TDi | [CKTC] | 01.2011- |
| VW | Crafter 2.0 TDi | [CKUB] | 01.2011- |
| VW | Crafter 2.0 TDi | [CKUC] | 01.2011- |
| VW | Crafter 2.0 TDi | [CS..] | 01.2011- |
| VW | Crafter 2.0 TDi 4-Motion | [CKUB] | 01.2011- |
| VW | Crafter 2.0 TDi 4-Motion | [CSNA] | 01.2011- |
| VW | Multivan 2.0 TDi | [CAA.] | 01.2009- |
| VW | Multivan 2.0 TDi | [CAAB] | 01.2015- |
| VW | Multivan 2.0 TDi | [CAAC] | 01.2015- |
| VW | Multivan 2.0 TDi | [CCH.] | 01.2009- |
| VW | Multivan 2.0 TDi | [CFCA] | 01.2009- |
| VW | Multivan 2.0 TDi 4-Motion | [CAA.] | 01.2009- |
| VW | Multivan 2.0 TDi 4-Motion | [CAAC] | 01.2015- |
| VW | Multivan 2.0 TDi 4-Motion | [CCH.] | 01.2009- |
| VW | Multivan 2.0 TDi 4-Motion | [CFCA] | 01.2009- |
| VW | Passat 3.2 FSi | [AXZ] | 01.2007- |
| VW | Passat 3.6 FSi | [BLV] | 01.2005- |
| VW | Passat 3.6 FSi | [BWS] | 01.2007- |
| VW | Passat CC 3.6 FSi 4-Motion | [BLV] | 01.2008-12.2012 |
| VW | Passat CC 3.6 FSi 4-Motion | [CNNA] | 01.2008-12.2012 |
| VW | Transporter 2.0 TDi | [CAA.] | 01.2009- |
| VW | Transporter 2.0 TDi | [CAAA] | 01.2015- |
| VW | Transporter 2.0 TDi | [CAAB] | 01.2015- |
| VW | Transporter 2.0 TDi | [CAAC] | 01.2015- |
| VW | Transporter 2.0 TDi | [CCH.] | 01.2009- |
| VW | Transporter 2.0 TDi | [CFCA] | 01.2009- |
| VW | Transporter 2.0 TDi 4-Motion | [CAA.] | 01.2009- |
| VW | Transporter 2.0 TDi 4-Motion | [CAAC] | 01.2015- |
| VW | Transporter 2.0 TDi 4-Motion | [CCH.] | 01.2009- |
| VW | Transporter 2.0 TDi 4-Motion | [CFCA] | 01.2009- |
Reference Information
| 0121715042 | BOSCH |
| 0121715142 | BOSCH |
| 03G903023F | VW |
| 03G903023FX | VW |
| 03G903023Q | VW |
| 03L903023Q | VW |
| 03L903023QX | VW |
| 03L903024C | VW |
| 03L903024G | VW |
| 03L903024GX | VW |
| 03L903024H | VW |
| 03L903024HX | VW |
| 04L903023A | VW |
| 114697 | CARGO |
| 11714N | WAI / TRANSPO |
| 2015476 | SANDO |
| 209200 | ERA |
| 28-5869 | ELSTOCK |
| 305.597.180 | PSH |
| 305.597.180.018 | PSH |
| 305.597.180.346 | PSH |
| 3G903023F | VW |
| 3G903023FX | VW |
| 3L903023Q | VW |
| 3L903024C | VW |
| 3L903024G | VW |
| 3L903024H | VW |
| 3L903024HX | VW |
| 439751 | VALEO |
| 440341 | VALEO |
| 442326 | LOGISTIK |
| 442467 | LOGISTIK |
| 553563RIV | KUHNER |
| 57307 | EAI |
| 8EL738213-401 | HELLA |
| 90-22-5691 | WILSON |
| 9215402 | POWERMAX |
| 9429 | CEVAM |
| A12BH0098A2 | SIDAT |
| A12VA0098A2 | SIDAT |
| A132.288 | PSH |
| A148.086 | PSH |
| A3317 | AS-PL |
| A-6577 | DIXIE |
| AAL1175 | APEC |
| AEK3257 | AUTOELECTRO |
| ALT00418 | ELECTROLOG |
| ALTL331 | 3EFFE |
| CAL15476 | CASCO |
| CAL15476AS | CASCO |
| CAL15476ES | CASCO |
| CAL15476GS | CASCO |
| CAL15476OS | CASCO |
| CAL15476RS | CASCO |
| DA1467 | DELCO |
| DRA0357 | DELCO |
| F032114697 | CARGO |
| FG18T062 | VALEO |
| FG18T102 | VALEO |
| FG18T115 | VALEO |
| FG18T116 | VALEO |
| HVW0009060800 | MERCEDES |
| LRA03257 | LUCAS |
| LRA3257 | LUCAS |
| NPANAL1175 | NAPA |
| RNLFG18T062 | RNL |
| STX100205 | STARDAX |
| STX100205R | STARDAX |
| STX102017 | STARDAX |
| STX102017R | STARDAX |
| UD12308A | AS-PL |
| VAL439751 | WOODAUTO |
| VALFG18T115 | WOODAUTO |
Video/Publications
A3317View your shopping basket or Browse other items in Alternators.
