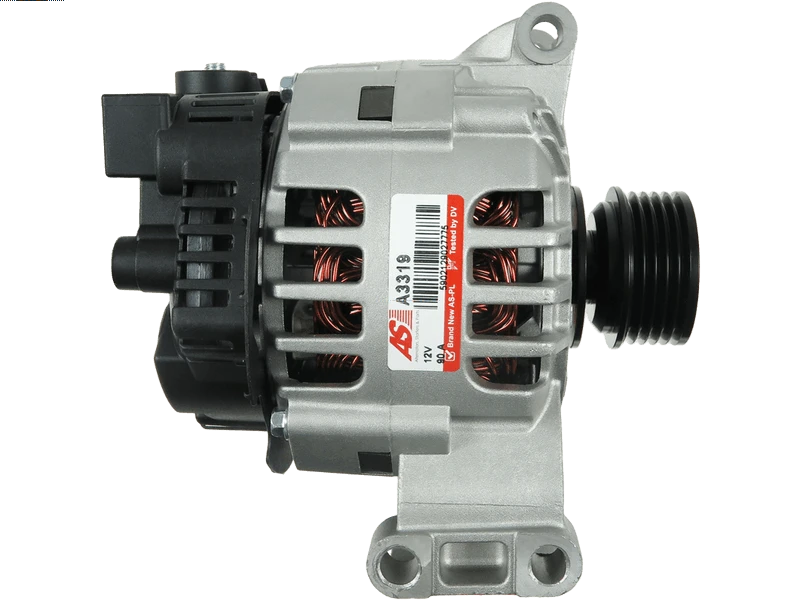

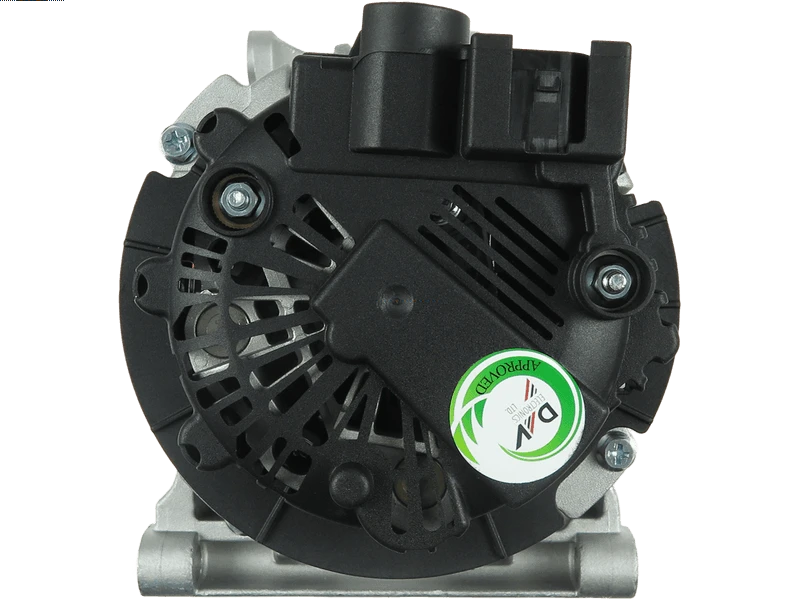

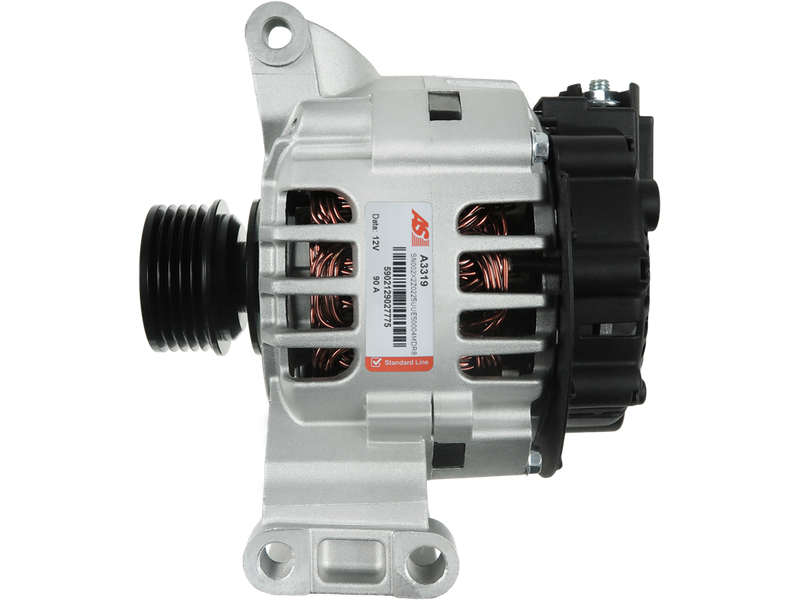

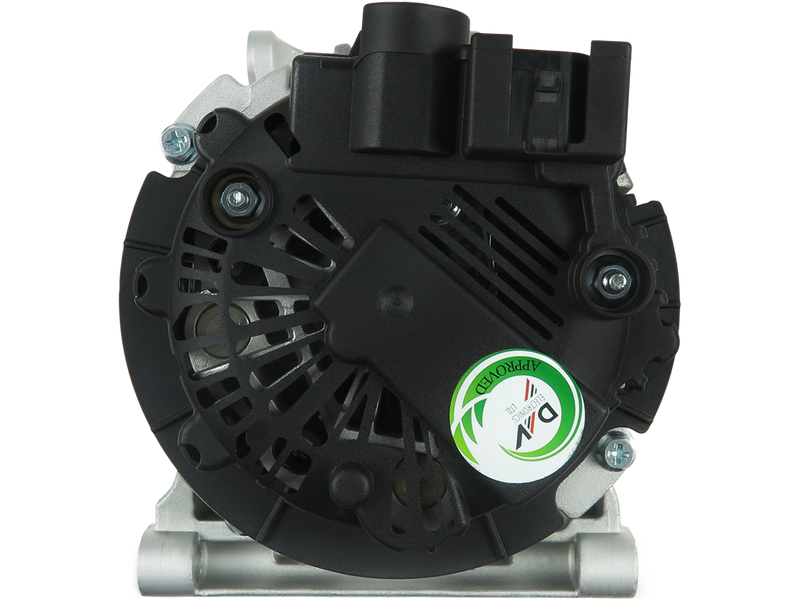

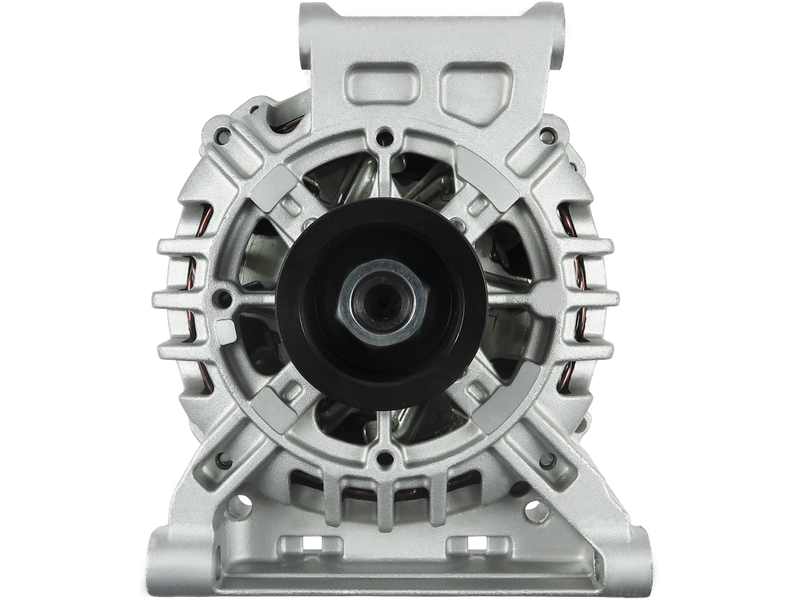

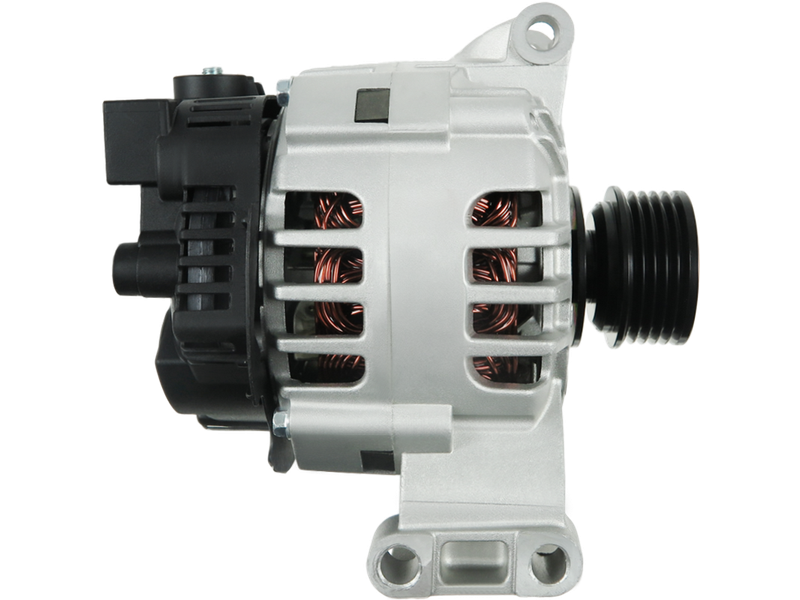

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 521.57 including GST
NZ$ 453.54 excluding GST
or four payments of $130.39
with
Learn More
each
A3319
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SG9B121Associated Numbers
2015297 20179792OE 23892N 2542955 2542955A 2542955B 2542955E 2606293A 2661540802 28-5509 301875RIR 301875RIV 555.560.090.004 89213722 9090538 9213722 A2661540802 A2661541002 A2661541202 AEC1875 CA1875IR CAL15297GS DRA0102 LRA02892 SB235 SG9B068 SG9B079 SG9B121 UD11341A VALSG9B121Specifications
| Amp | 90 A |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 42 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 74 mm |
| Pad mount thickness (E.2) | 142 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | A 150 1.5 | (169)[M266.920] | 01.2004-12.2009 |
| MERCEDES BENZ | A 160 1.5 | (169)[M266.920] | 01.2009- |
| MERCEDES BENZ | A 170 1.7 | (169)[M266.940] | 01.2004- |
| MERCEDES BENZ | A 180 1.7 | (169)[M266.940] | 01.2009-12.2012 |
| MERCEDES BENZ | A 200 2.0 | (169)[M266.960] | 01.2004- |
| MERCEDES BENZ | A 200 2.0 Turbo | (169)[M266.980] | 01.2005- |
| MERCEDES BENZ | B 150 1.5 | (245)[M266.920] | 01.2005-12.2009 |
| MERCEDES BENZ | B 170 1.7 | (245)[M266.940] | 01.2005- |
| MERCEDES BENZ | B 170 1.7 NGT | (245)[M266.960] | 01.2008-12.2011 |
| MERCEDES BENZ | B 180 1.7 | (245)[M266.940] | 01.2009-12.2011 |
| MERCEDES BENZ | B 200 2.0 | (245)[M266.960] | 01.2005- |
Reference Information
| 115418 | CARGO |
| 2015297.1 | SANDO |
| 20179792OE | REAL |
| 210552 | ERA |
| 2261541202 | MERCEDES |
| 23892N | WAI / TRANSPO |
| 23892N-OE | WAI / TRANSPO |
| 2542955 | VALEO |
| 2542955A | VALEO |
| 2542955B | VALEO |
| 2542955E | VALEO |
| 2606293A | VALEO |
| 2661540802 | MERCEDES |
| 2661541002 | MERCEDES |
| 2661541202 | MERCEDES |
| 266154120280 | MERCEDES |
| 28-5509 | ELSTOCK |
| 301875RIR | KUHNER |
| 301875RIV | KUHNER |
| 437537 | VALEO |
| 439544 | VALEO |
| 442591 | LOGISTIK |
| 555.560.090.000 | PSH |
| 555.560.090.004 | PSH |
| 555.560.090.461 | PSH |
| 555.560.090.500 | PSH |
| 747076 | VALEO |
| 89213722 | POWERMAX |
| 9090538 | FRIESEN |
| 9213722 | POWERMAX |
| A12VA0278A2 | SIDAT |
| A12VA0278AS | SIDAT |
| A2261541202 | MERCEDES |
| A2661540802 | MERCEDES |
| A2661541002 | MERCEDES |
| A2661541202 | MERCEDES |
| A266154120280 | MERCEDES |
| A3319 | AS-PL |
| AEC1875 | AUTOELECTRO |
| ALT00260 | ELECTROLOG |
| ALT172970 | SIOM |
| ALTL795 | 3EFFE |
| ANM32322X | ANDEL |
| AX 1405 | STARLINE |
| CA1875IR | HC PARTS |
| CAL15297GS | CASCO |
| DRA0102 | DELCO |
| F032115418 | CARGO |
| LRA02892 | LUCAS |
| LRA2892 | LUCAS |
| PRAL795 | 3EFFE |
| SB235 | SOVEREIGN |
| SG9B068 | VALEO |
| SG9B079 | VALEO |
| SG9B121 | VALEO |
| STX100612 | STARDAX |
| UD11341A | AS-PL |
| VALSG9B121 | WOODAUTO |
Video/Publications
