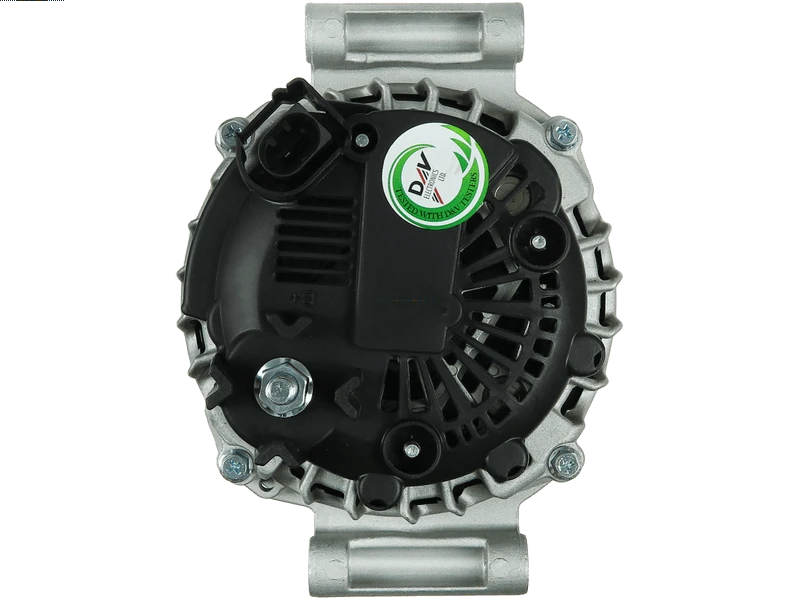

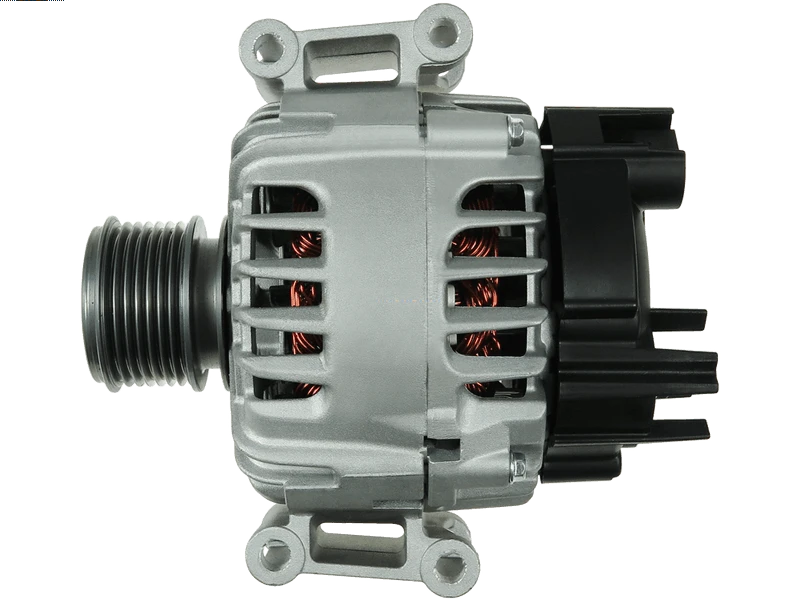

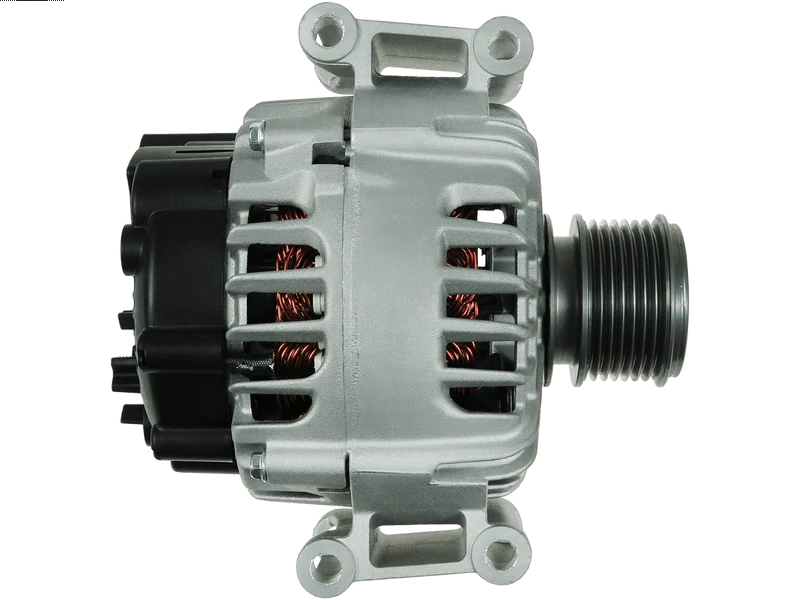

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 572.39 including GST
NZ$ 497.73 excluding GST
or four payments of $143.10
with
Learn More
each
A3352S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TG12C026Associated Numbers
116099 2015453 209220 24101N 2711541402 28-6561 439611 440128 4825 554006RIV 555.581.120 8EL012240-131 9215303 A2711541402 ALV3428 CAL15453 CAL15453AS CAL15453ES CAL15453GS CAL15453OS CAL15453RS DA1892 DRA0782 EAA-224414 LRA03453 LRA3453 TG12C026 UD13572A VAL439611Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 205 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 31.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 180 1.6 Kompressor | (S204)[M271.910] | 01.2008-08.2014 |
| MERCEDES BENZ | C 180 1.6 Kompressor | (W204)[M271.910] | 01.2008-01.2014 |
| MERCEDES BENZ | C 180 1.8 CGi | (W204)[M271.820] | 01.2007-01.2014 |
| MERCEDES BENZ | C 180 1.8 Kompressor | (S204)[M271.952] | 08.2007-08.2014 |
| MERCEDES BENZ | C 180 1.8 Kompressor | (W204)[M271.952] | 01.2007-01.2014 |
| MERCEDES BENZ | C 200 1.8 CGi | (W204)[M271.820] | 01.2007-01.2014 |
| MERCEDES BENZ | C 200 1.8 CGi | (W204)[M271.860] | 01.2007-01.2014 |
| MERCEDES BENZ | C 200 1.8 Kompressor | (S204)[M271.950] | 08.2007-08.2014 |
| MERCEDES BENZ | C 200 1.8 Kompressor | (W204)[M271.950] | 01.2007-01.2014 |
| MERCEDES BENZ | C 250 1.8 CGi | (S204)[M271.860] | 07.2009-08.2014 |
| MERCEDES BENZ | C 250 1.8 CGi | (W204)[M271.860] | 07.2009-01.2014 |
Reference Information
| 116099 | CARGO |
| 2015453 | SANDO |
| 209220 | ERA |
| 24101N | WAI / TRANSPO |
| 2711541402 | MERCEDES |
| 28-6561 | ELSTOCK |
| 439611 | VALEO |
| 440128 | VALEO |
| 442583 | LOGISTIK |
| 4825 | CEVAM |
| 554006RIV | KUHNER |
| 555.581.120 | PSH |
| 555.581.120.004 | PSH |
| 8EL012240-131 | HELLA |
| 9215303 | POWERMAX |
| A12VA0417A2 | SIDAT |
| A12VA0417AS | SIDAT |
| A2711541402 | MERCEDES |
| ALT00138 | ELECTROLOG |
| ALTF333 | 3EFFE |
| ALV3428 | KRAUF |
| ANM33002X | ANDEL |
| CAL15453 | CASCO |
| CAL15453AS | CASCO |
| CAL15453ES | CASCO |
| CAL15453GS | CASCO |
| CAL15453OS | CASCO |
| CAL15453RS | CASCO |
| DA1892 | DELCO |
| DRA0782 | DELCO |
| F032116099 | CARGO |
| LRA03453 | LUCAS |
| LRA3453 | LUCAS |
| TG12C026 | VALEO |
| UD13572A | AS-PL |
| VAL439611 | WOODAUTO |
