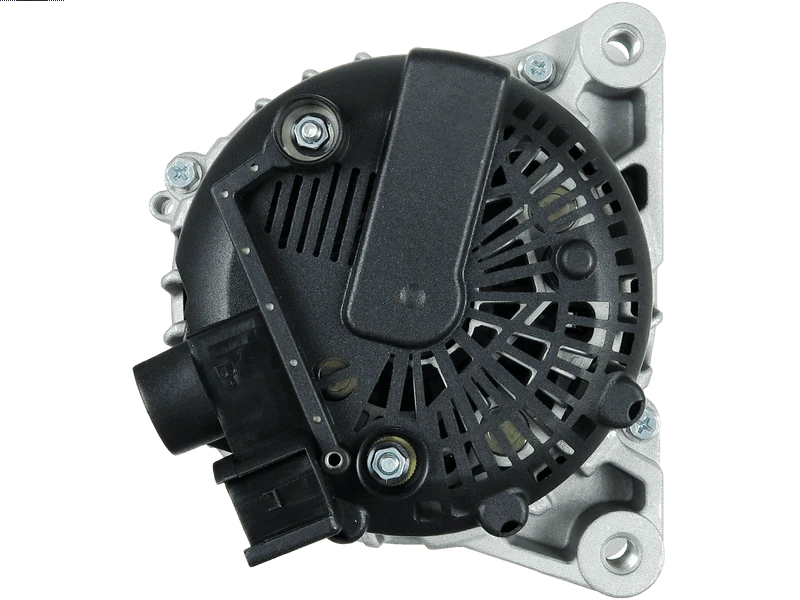

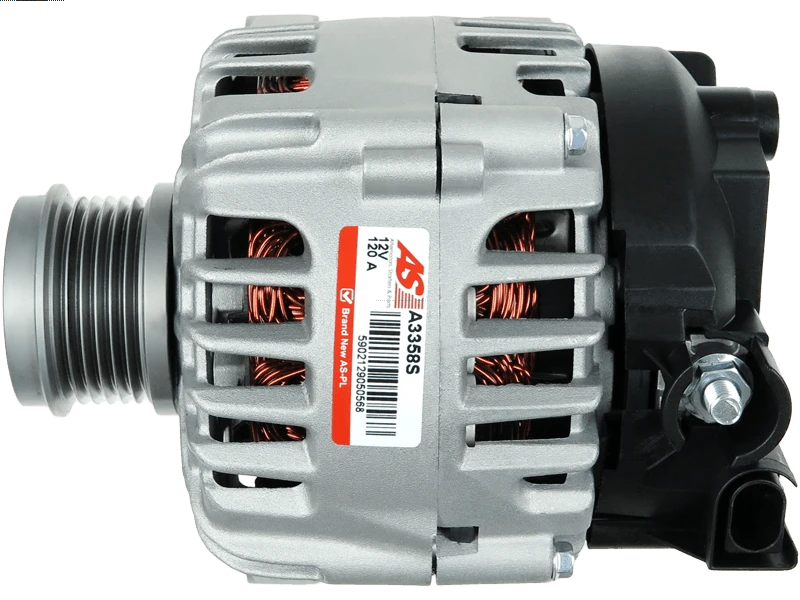

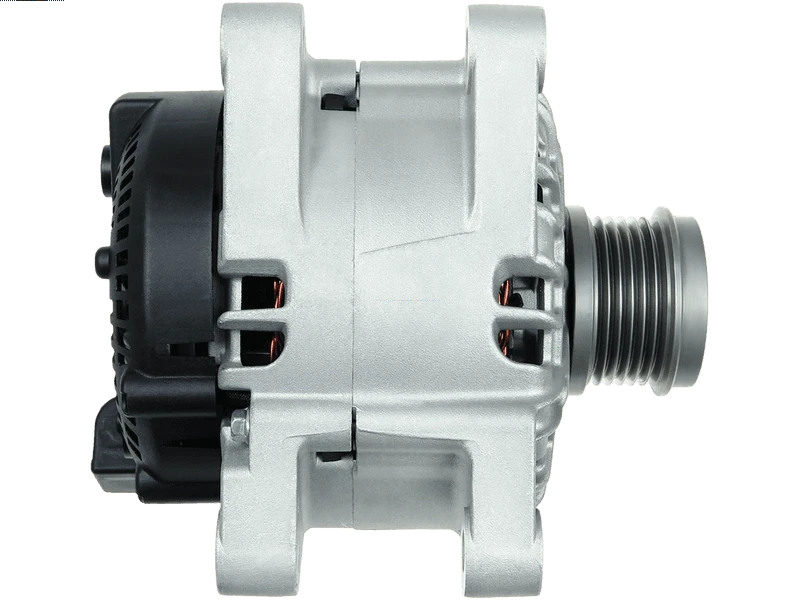

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 583.34 including GST
NZ$ 507.25 excluding GST
or four payments of $145.84
with
Learn More
each
A3267(VALEO)
A3358S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TG12C079Associated Numbers
1704768 2015482 20213N 210876 28-6543 30659389 31285658 36001502 36001971 4862 553558RIV 57326 595.584.120 9215449 AEK3431 ALT14453 ALV7912 AV6N-10300-DA AV6N-10300-DB AV6N-10300-DC CAL15482 CAL15482AS CAL15482ES CAL15482GS CAL15482OS CAL15482RS DRA0986 EAA-254728 LRA03431 TG12C079 TG12C122 TG12C127 UD13564ASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 42.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | B-Max 1.5 TDCi | [UGJC] | 01.2012- |
| FORD | B-Max 1.5 TDCi | [XVJA] | 01.2012- |
| FORD | B-Max 1.5 TDCi | [XVJC] | 01.2012- |
| FORD | B-Max 1.6 TDCi | [T3JB] | 01.2012- |
| FORD | C-Max 1.5 TDCi | [AEDA] | 01.2015- |
| FORD | C-Max 1.5 TDCi | [XWDA] | 01.2015- |
| FORD | C-Max 1.5 TDCi | [XWDB] | 01.2015- |
| FORD | C-Max 1.5 TDCi | [XXDA] | 01.2015- |
| FORD | C-Max 1.5 TDCi | [XXDC] | 01.2015- |
| FORD | C-Max 1.6 TDCi | [T3DA] | 01.2010- |
| FORD | C-Max 1.6 TDCi | [T3DB] | 01.2010- |
| FORD | C-Max 2.0 TDCi | [TXDB] | 01.2010- |
| FORD | C-Max 2.0 TDCi | [TYDA] | 01.2010- |
| FORD | C-Max 2.0 TDCi | [UFDB] | 01.2010- |
| FORD | C-Max 2.0 TDCi | [UKDB] | 01.2010- |
| FORD | EcoSport 1.5 TDCi | [UGJE] | 01.2013- |
| FORD | EcoSport 1.5 TDCi | [XVJD] | 01.2013- |
| FORD | Fiesta 1.5 TDCi | [UGJC] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [HHJC] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [HHJD] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [HHJE] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [HHJF] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [T3JA] | 01.2010- |
| FORD | Fiesta 1.6 TDCi | [T3JA] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [TZJA] | 01.2010- |
| FORD | Fiesta 1.6 TDCi | [TZJA] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [TZJB] | 01.2010- |
| FORD | Fiesta 1.6 TDCi | [TZJB] | 01.2012- |
| FORD | Fiesta 1.6 TDCi | [UBJA] | 01.2012- |
| FORD | Focus 1.5 TDCi | [XWD.] | 01.2014- |
| FORD | Focus 1.5 TDCi | [XXD.] | 01.2014- |
| FORD | Focus 1.6 TDCi | [NGDA] | 01.2011- |
| FORD | Focus 1.6 TDCi | [T.DA] | 01.2011- |
| FORD | Focus 1.6 TDCi | [T.DB] | 01.2011- |
| FORD | Focus 2.0 TDCi | [TXDB] | 01.2011- |
| FORD | Focus 2.0 TDCi | [TYDA] | 01.2011- |
| FORD | Focus 2.0 TDCi | [UFDB] | 01.2011- |
| FORD | Focus 2.0 TDCi | [UKDB] | 01.2011- |
| FORD | Grand C-Max 1.5 TDCi | [XWDA] | 01.2015- |
| FORD | Grand C-Max 1.5 TDCi | [XWDB] | 01.2015- |
| FORD | Grand C-Max 1.5 TDCi | [XXDA] | 01.2015- |
| FORD | Grand C-Max 1.5 TDCi | [XXDC] | 01.2015- |
| FORD | Grand C-Max 1.6 TDCi | [T1DA] | 01.2010- |
| FORD | Grand C-Max 1.6 TDCi | [T1DB] | 01.2010- |
| FORD | Grand C-Max 2.0 TDCi | [TXDB] | 01.2011- |
| FORD | Grand C-Max 2.0 TDCi | [TYDA] | 01.2011- |
| FORD | Grand C-Max 2.0 TDCi | [UFDB] | 01.2011- |
| FORD | Grand C-Max 2.0 TDCi | [UKDB] | 01.2011- |
| FORD | Tourneo Connect 1.6 TDCi | [T1GA] | 01.2013- |
| FORD | Tourneo Connect 1.6 TDCi | [TZG.] | 01.2013- |
| FORD | Tourneo Connect 1.6 TDCi | [UBGA | 01.2013- |
| FORD | Tourneo Courier 1.6 TDCi | [T3CA] | 01.2014- |
| FORD | Tourneo Courier 1.6 TDCi | [T3CB] | 01.2014- |
| FORD | Transit Connect 1.6 TDCi | [T1GA] | 01.2013- |
| FORD | Transit Connect 1.6 TDCi | [TZG.] | 01.2013- |
| FORD | Transit Connect 1.6 TDCi | [UBGA] | 01.2013- |
| FORD | Transit Courier 1.5 TDCi | 01.2014- | |
| FORD | Transit Courier 1.6 TDCi | [TZGA] | 01.2014- |
| FORD | Transit Courier 1.6 TDCi | [TZGB] | 01.2014- |
| VOLVO | C30 1.6 D2 | [D4162T] | 01.2011-12.2013 |
| VOLVO | S40 1.6 D2 | [D4162T] | 01.2011-12.2012 |
| VOLVO | V50 1.6 D2 | [D4162T] | 01.2011-12.2012 |
Reference Information
| 115459 | CARGO |
| 1685791 | FORD |
| 1704768 | FORD |
| 1757296 | FORD |
| 1889286 | FORD |
| 1889305 | FORD |
| 1904972 | OPEL |
| 2015482 | SANDO |
| 20213N | WAI / TRANSPO |
| 2051880 | FORD |
| 210876 | ERA |
| 2251619 | VALEO |
| 28-6543 | ELSTOCK |
| 30659389 | VOLVO |
| 30659701 | VOLVO |
| 31285658 | VOLVO |
| 36001502 | VOLVO |
| 36001971 | VOLVO |
| 442276 | LOGISTIK |
| 4862 | CEVAM |
| 553558RIV | KUHNER |
| 57326 | EAI |
| 595.584.120 | PSH |
| 595.584.120.004 | PSH |
| 9215449 | POWERMAX |
| A12VA0105 | SIDAT |
| A12VA0105A2 | SIDAT |
| A12VA0105AS | SIDAT |
| A3358S | AS-PL |
| AAL1861 | APEC |
| AEK3431 | AUTOELECTRO |
| ALT00613 | ELECTROLOG |
| ALT14453 | WOODAUTO |
| ALTF016 | 3EFFE |
| ALV7912 | KRAUF |
| AV6N-10300-DA | FORD |
| AV6N-10300-DB | FORD |
| AV6N-10300-DC | FORD |
| AV6N10300DD | FORD |
| AV6N-10300-DD | FORD |
| CAL15482 | CASCO |
| CAL15482AS | CASCO |
| CAL15482ES | CASCO |
| CAL15482GS | CASCO |
| CAL15482OS | CASCO |
| CAL15482RS | CASCO |
| DRA0986 | DELCO |
| ET76-10300-AA | FORD |
| EZ4399 | ELTA AUTOMOTIVE |
| F032115459 | CARGO |
| LRA03431 | LUCAS |
| LRA3431 | LUCAS |
| NPANAL1861 | NAPA |
| REAV6N-10300-DC | FORD |
| STX110332 | STARDAX |
| STX110332R | STARDAX |
| TG12C079 | VALEO |
| TG12C122 | VALEO |
| TG12C127 | VALEO |
| TG12C145 | VALEO |
| UD13564A | AS-PL |
