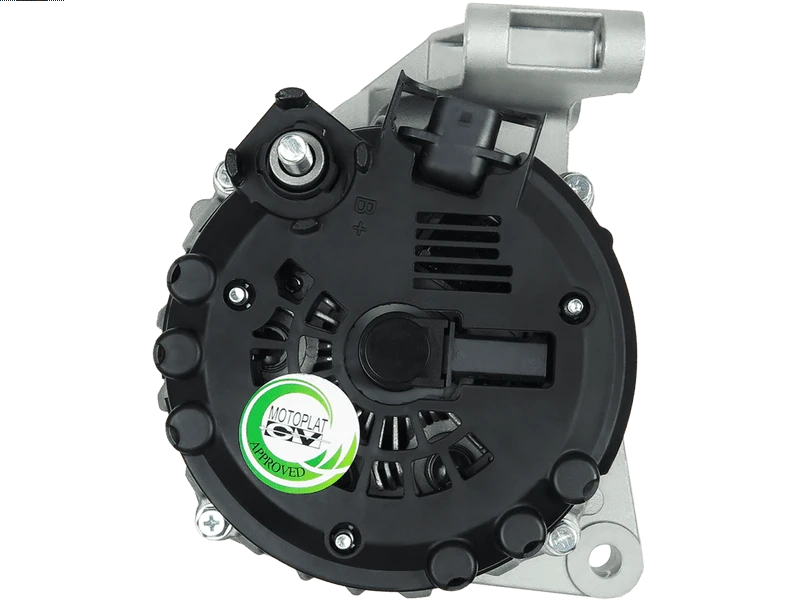

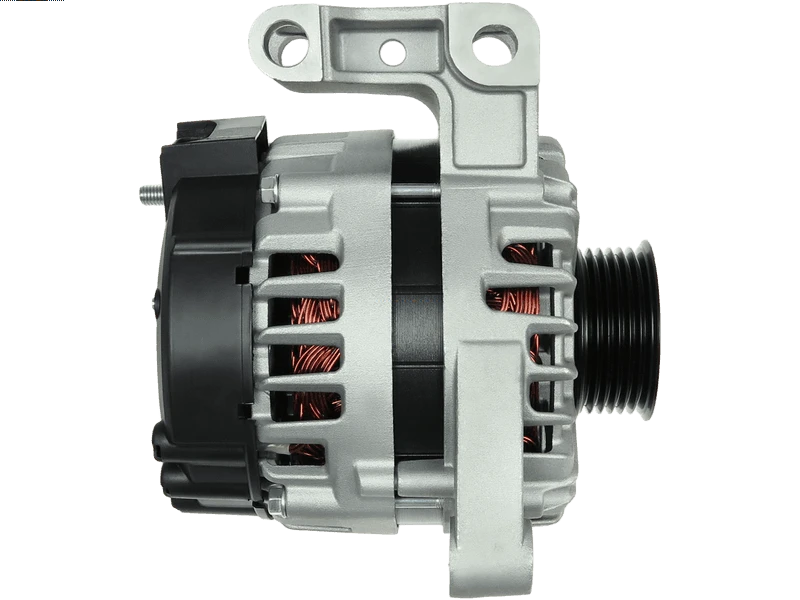

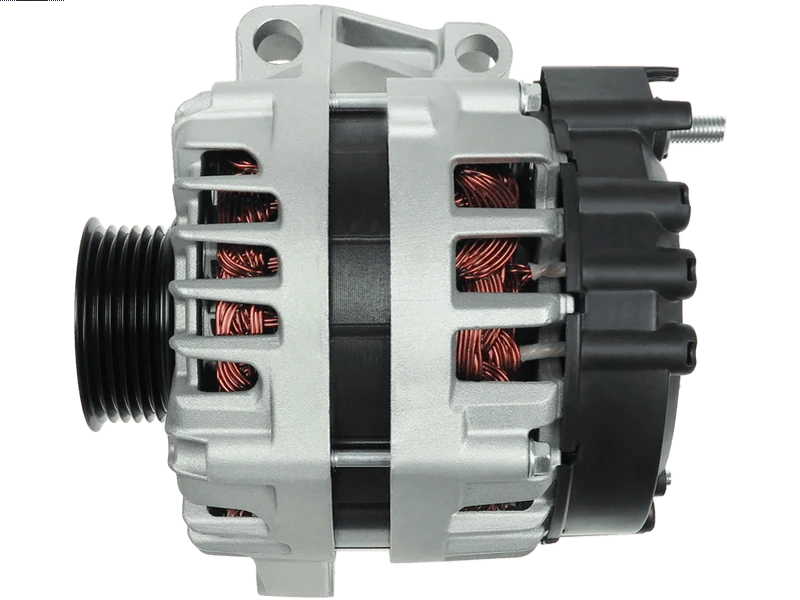

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 612.95 including GST
NZ$ 533.00 excluding GST
or four payments of $153.24
with
Learn More
each
A3386S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
FG15S019Associated Numbers
11453N 2015039 554859RI 835.048.150 A-9551 A3386S ALV9097 CAL15039 CAL15039AS CAL15039ES CAL15039GS CAL15039OS CAL15039RS DA2458 DRA1348 FG15S019 UD14854A dxa600 65-2504g anv047 anv047gq 0986CR6067 Bosch ruil 11453 Lester 13502585 GM 13586975 208242 PIC 835048150 PSH 849106 Valeo 931348 EDR AL8845X (USA) Remy show FG15S019SEL +line FG15S084 13588312 Picture ID 208-242 208-242B Light Duty 22037 2619571A 2650743A FG15S097 400-40127 Wilson 90-22-5635 References: J N General Motors 22962097 208-242A 22029 2617718 2619571 2650743 Youtech/PartRef 323285 13597235 A0002617718 Mercedes-Benz ALT14664 Wood Auto FG15S100 RNLFG15S019 RNL WOOALT14664Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 24.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 14.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 178 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 50 mm |
| Pad mount thickness (E.2) | 50 mm |
| Plug Code | PL_2201 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 33.50 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Captiva 3.0 4WD | [A30XH] | 01.2010- |
| CHEVROLET | Captiva 3.0 4WD | [LF1] | 01.2010- |
Reference Information
| 0002617718 | MERCEDES |
| 10444853 | ALANKO |
| 11453N | WAI / TRANSPO |
| 114627 | FARCOM |
| 13502585 | GM |
| 13586975 | GM |
| 13588312 | GM |
| 13597235 | GM |
| 22962097 | GM |
| 2619571A | VALEO |
| 2650743A | VALEO |
| 554859RI | KUHNER |
| 835.048.150.000 | PSH |
| 849106 | VALEO |
| 8EL015637-331 | HELLA |
| 90-22-5635 | WILSON |
| A0002617718 | MERCEDES |
| A1079V | PRESTOLITE |
| A3386S | AS-PL |
| A-9551 | DIXIE |
| AL8845X | BOSCH |
| ALT14664 | WOODAUTO |
| ALTE822 | 3EFFE |
| ALV9097 | KRAUF |
| AVA039A | AUTOTEAM |
| DA2458 | DELCO |
| DRA1348 | DELCO |
| FG15S019 | VALEO |
| FG15S097 | VALEO |
| PRAE822 | 3EFFE |
| UD14854A | AS-PL |
| WOOALT14664 | WOODAUTO |
Video/Publications
A3386SRelated Items
