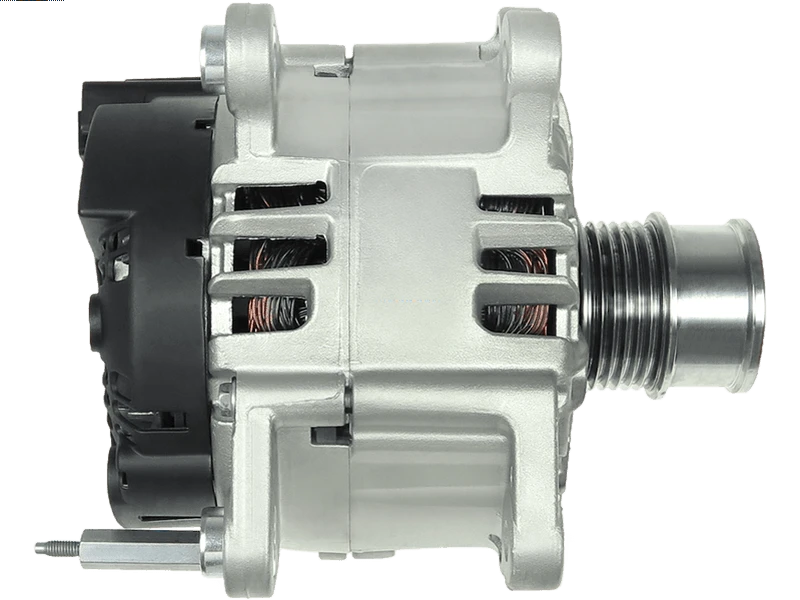

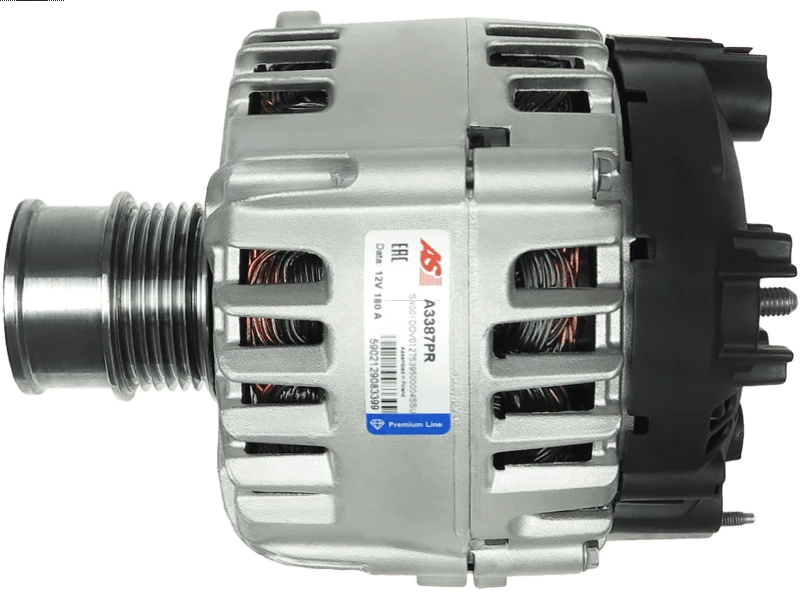

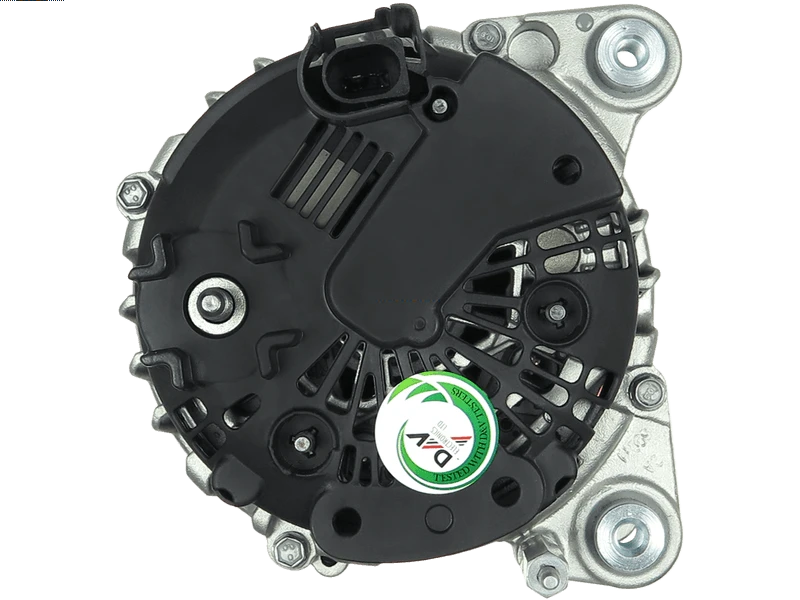

A3387PR - Remanufactured AS-PL Alternator

Specifications

Amp	180 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	6 qty
Length (L.1)	209 mm
Mount Inside Length or Pad Mount C-C (C)	61 mm
OEM Product	No
Outside Diameter (O.D.1)	52 mm
Plug Code	PL_2306
Product Line	Premium Line
Product Type	Remanufactured
Pulley to Mount Distance (A)	30.5 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A1 1.4 TFSi	[CZCA]	11.2014-10.2018
AUDI	A1 1.4 TFSi	[CZDD]	11.2014-10.2018
AUDI	A1 1.4 TFSi Sportback	[CZCA]	11.2014-10.2018
AUDI	A1 1.4 TFSi Sportback	[CZDD]	11.2014-10.2018
AUDI	A1 1.4 TSi	[CZEA]	11.2014-10.2018
AUDI	A1 1.4 TSi Sportback	[CZEA]	11.2014-10.2018
SEAT	Alhambra 1.4 TSi	[CZDA]	05.2015-
SEAT	Alhambra 1.4 TSi	[DJKA]	05.2015-
SEAT	Ateca 1.0 TSi	[CHZJ]	05.2016-
SEAT	Ateca 1.0 TSi	[DKRF]	05.2016-
SEAT	Ateca 1.4 TSi	[CZEA]	06.2016-
SEAT	Ateca 1.4 TSi 4Drive	[CZEA]	06.2016-
SKODA	Superb 1.4 TSi	[CZCA]	03.2015-
SKODA	Superb 1.4 TSi	[CZDA]	03.2015-
SKODA	Superb 1.4 TSi	[CZEA]	03.2015-
SKODA	Superb 1.4 TSi 4x4	[CZEA]	03.2015-
VW	Caddy 1.4 TGI CNG	[CPWA]	06.2015-
VW	Golf Sportsvan 1.0 TSi	[CHZD]	05.2015-
VW	Golf Sportsvan 1.0 TSi	[DKRF]	05.2015-
VW	Golf Sportsvan 1.2 TSi	[CYVA]	05.2014-
VW	Golf Sportsvan 1.2 TSi	[CYVB]	04.2014-
VW	Golf Sportsvan 1.4 TSi	[CZCA]	04.2014-
VW	Golf Sportsvan 1.4 TSi	[CZDA]	02.2014-
VW	Golf Sportsvan 1.4 TSi MultiFuel	[CPVB]	04.2014-
VW	Golf VII 1.0 TSi	[CHZD]	05.2014-
VW	Golf VII 1.0 TSi	[DKRF]	05.2014-
VW	Golf VII 1.2 TSi	[CJZA]	05.2013-
VW	Golf VII 1.2 TSi	[CJZA]	11.2012-
VW	Golf VII 1.2 TSi	[CJZB]	05.2013-
VW	Golf VII 1.2 TSi	[CJZB]	08.2012-
VW	Golf VII 1.2 TSi	[CYVA]	05.2013-
VW	Golf VII 1.2 TSi	[CYVA]	08.2012-
VW	Golf VII 1.2 TSi	[CYVB]	04.2014-
VW	Golf VII 1.4 TGI CNG	[CPWA]	06.2013-
VW	Golf VII 1.4 TGI CNG	[CPWA]	09.2013-
VW	Golf VII 1.4 TGI CNG	[CZBA]	06.2013-
VW	Golf VII 1.4 TSi	[CHPA]	05.2013-
VW	Golf VII 1.4 TSi	[CHPA]	08.2012-
VW	Golf VII 1.4 TSi	[CHPB]	05.2014-
VW	Golf VII 1.4 TSi	[CMBA]	11.2012-
VW	Golf VII 1.4 TSi	[CPTA]	08.2012-
VW	Golf VII 1.4 TSi	[CXSA]	05.2013-
VW	Golf VII 1.4 TSi	[CXSA]	11.2012-
VW	Golf VII 1.4 TSi	[CZCA]	05.2014-
VW	Golf VII 1.4 TSi	[CZDA]	05.2014-
VW	Golf VII 1.4 TSi	[CZDD]	05.2014-
VW	Golf VII 1.4 TSi	[CZEA]	05.2014-
VW	Golf VII 1.4 TSi	[DGXA]	05.2014-
VW	Golf VII 1.4 TSi MultiFuel	[CPVA]	04.2013-
VW	Golf VII 1.4 TSi MultiFuel	[CPVB]	05.2014-
VW	Golf VII 1.4 TSi MultiFuel	[CPVB]	12.2013-
VW	Passat 1.4 TSi	[CZCA]	11.2014-
VW	Passat 1.4 TSi	[CZDA]	11.2014-
VW	Passat 1.4 TSi	[CZEA]	11.2014-
VW	Passat 1.4 TSi 4-Motion	[CZEA]	02.2015-

Reference Information

2015025.1 04E903015EX 305.980.180.501 305.980.180.502 FG18T142 4E903021QX 305.980.180.500 AEK3891 ALT170250 04E903015RX 4E903015DX 4E903015D 4E903015E VAL439930 4E903023D 20179520OE 28-7501 4E903023MX 0125811132 4E903021PX 4E903021P 4E903021Q 0125811131 209614 04E903021Q 04E903021P 04E903021PX ALV3930 A12BH0881AS 4535 125811132 125811131 4E903023LX CAL15025GS FG18T166 2622500A 305.980.180.004 LRA3891 04E903023LX 89215809 04E903021QX 439930 2715547A 04E903015E 04E903015DX 4E903015S 04E903023D 0125811074 04E903015D LRA03891 04E903023MX 4E903023L ALT00650 4E903015EX ALTJ111 04E903015S 305.980.180.505 305.980.180.506 04E903023J 04E903015P 04E903023L 125811074

Video/Publications

ALTJ111 AEK3891 0125811074 0125811131 0125811132 CAL15025GS 4535 28-7501 209614 ALV3930 LRA03891 LRA3891 89215809 305.980.180.004 305.980.180.500 305.980.180.501 305.980.180.502 305.980.180.505 305.980.180.506 20179520OE 2015025.1 ALT170250 2622500A 2715547A 439930 FG18T142 FG18T166 04E903015D 04E903015DX 04E903015E 04E903015EX 04E903021P 04E903021PX 04E903021Q 04E903021QX VAL439930
