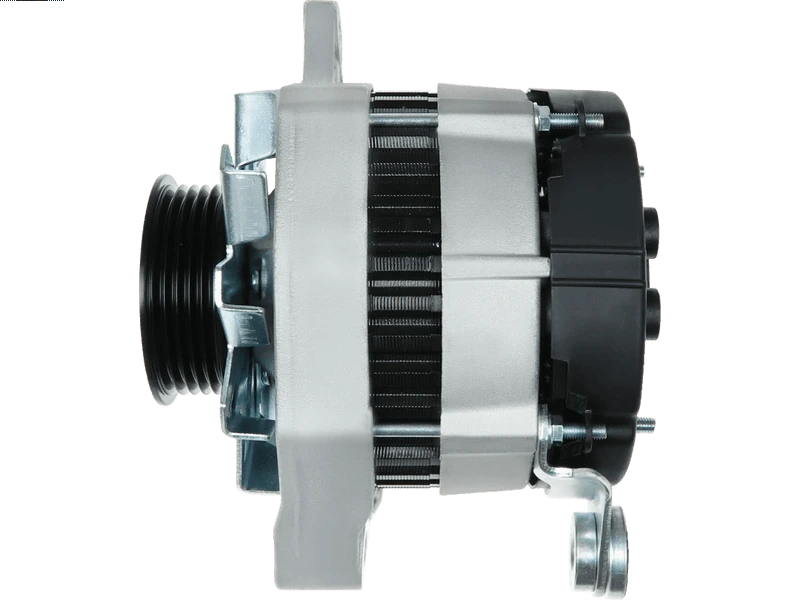

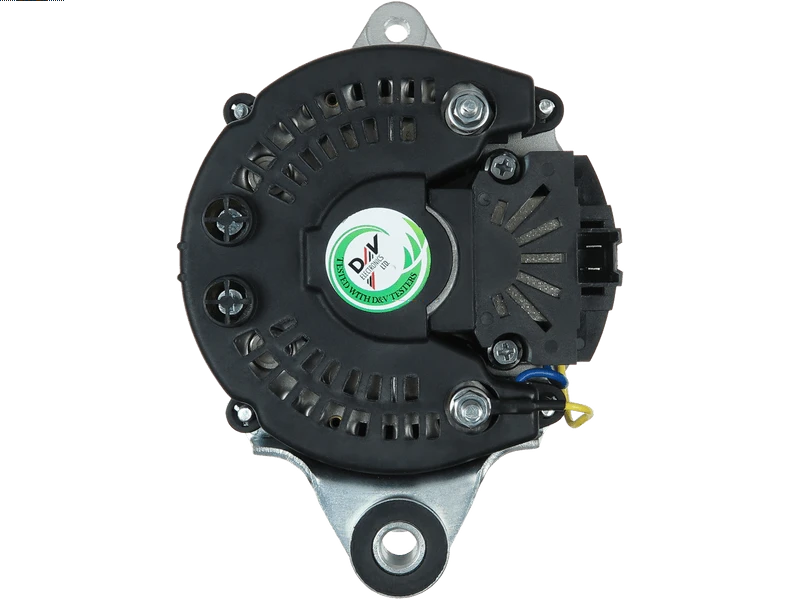

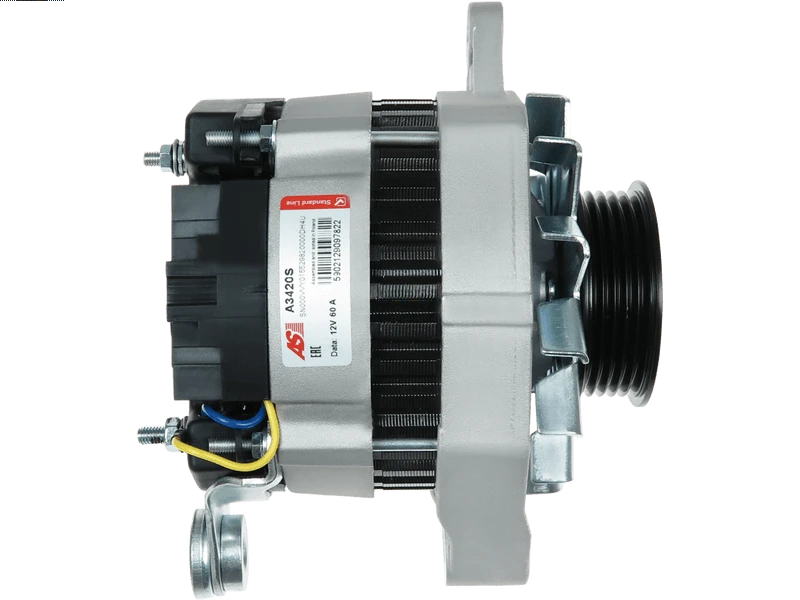

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 306.33 including GST
NZ$ 266.37 excluding GST
or four payments of $76.58
with
Learn More
each
A3420S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986034000 0986034001 0986034008 11.201.535 28-1932 30360RI 30373RI 30529RI 32034000 4207 432763 433086 433420 433445 433465 516044A 516044BC 55892 575.023.065 66021576 7700499228 7700751336 7700753082 7700754012 7701351763 7701489237 7701489288 9120334311 943356279010 A13N86 AAK3594 ALT14118 ALV0373 CA373IR DA5110 DRA4000 IA0535 LRA00473 MAR462 MG538 UD14314A UNITBOM282-372 VAL432763Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 160 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65 mm |
| OEM Product | No |
| Plug Code | PL_2703 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 68 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | 9 1.6 D | [F8M700] | 10.1982-12.1988 |
| RENAULT | 9 1.6 D | [F8M720] | 10.1982-12.1988 |
| RENAULT | 9 1.6 D | [F8M730] | 10.1982-12.1988 |
| RENAULT | Espace 2.0 | [J6R234] | 07.1984-12.1990 |
| RENAULT | Espace 2.0 | [J6R236] | 07.1984-12.1990 |
| RENAULT | Fuego 1.6 | [A2M723 | 04.1983-10.1985 |
| RENAULT | Fuego 1.6 GTS | [843723] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 GTS | [843724] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 GTS | [A6M725] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 GTS | [A6M726] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 TS | [843723] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 TS | [843724] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 TS | [A6M725] | 10.1980-10.1985 |
| RENAULT | Fuego 1.6 TS | [A6M726] | 10.1980-10.1985 |
Reference Information
| 0986034000 | BOSCH |
| 0986034001 | BOSCH |
| 0986034008 | BOSCH |
| 11.201.535 | ISKRA / LETRIKA |
| 28-0925 | ELSTOCK |
| 30360RI | KUHNER |
| 30373RI | KUHNER |
| 30529RI | KUHNER |
| 32034000 | HERTH+BUSS |
| 4207 | CEVAM |
| 432763 | VALEO |
| 433086 | VALEO |
| 433420 | VALEO |
| 433445 | VALEO |
| 433465 | VALEO |
| 440676 | LOGISTIK |
| 516044A | VALEO |
| 516044BC | VALEO |
| 55892 | EAI |
| 575.023.065 | PSH |
| 575.023.065.225 | PSH |
| 66021576 | PRESTOLITE |
| 7700499228 | RENAULT |
| 7700733790 | RENAULT |
| 7700751336 | RENAULT |
| 7700753082 | RENAULT |
| 7700754012 | RENAULT |
| 7701351763 | RENAULT |
| 7701489237 | RENAULT |
| 7701489288 | RENAULT |
| 7701499227 | RENAULT |
| 7701499228 | RENAULT |
| 7701499453 | RENAULT |
| 7701499454 | RENAULT |
| 7701499490 | RENAULT |
| 9120334311 | BOSCH |
| 943356279010 | MAGNETI MARELLI |
| A13N86 | VALEO |
| AAK3594 | ISKRA / LETRIKA |
| ALT00866 | ELECTROLOG |
| ALT01065 | ELECTROLOG |
| ALT14118 | WOODAUTO |
| ALT79116 | ELECTROLOG |
| ALTF080 | 3EFFE |
| ALTF583 | 3EFFE |
| ALV0373 | KRAUF |
| ANM36220X | ANDEL |
| CA373IR | HC PARTS |
| CA529IR | HC PARTS |
| DA5110 | DELCO |
| DRA4000 | DELCO |
| IA0535 | ISKRA / LETRIKA |
| LRA00473 | LUCAS |
| LRA473 | LUCAS |
| MAR462 | MAGNETI MARELLI |
| MG538 | MAHLE |
| MG 538 | MAHLE |
| PRAF080 | 3EFFE |
| PRAF583 | 3EFFE |
| STX100527 | STARDAX |
| STX100527R | STARDAX |
| STX100705 | STARDAX |
| STX100941 | STARDAX |
| STX100970 | STARDAX |
| STX101003 | STARDAX |
| STX101032 | STARDAX |
| STX101040 | STARDAX |
| STX101041 | STARDAX |
| STX101044 | STARDAX |
| STX101045 | STARDAX |
| STX101066 | STARDAX |
| UD14314A | AS-PL |
| UNITBOM282-372 | WAI / TRANSPO |
| VAL432763 | WOODAUTO |
Video/Publications
