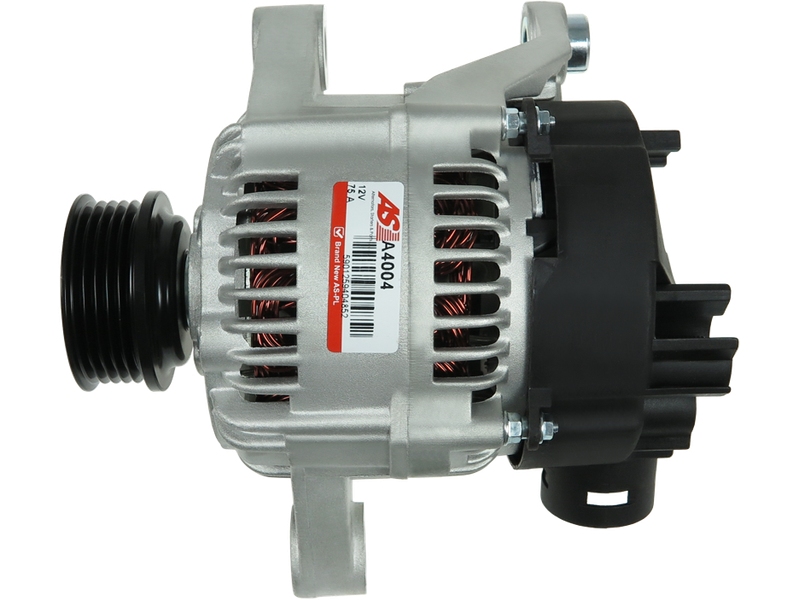

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 319.94 including GST
NZ$ 278.21 excluding GST
or four payments of $79.99
with
Learn More
each
A4004
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321295Associated Numbers
0986040651 11.1220 111689 20104421BN 20104421OE 20104521BN 20104521OE 20110327 2030124 2030125 21328N 28-2630 301196RI 301196RIM 301220RI 32321295 437669 4500 46208441 46231705 46420962 46428733 56653 63321295 63321606 63321607 63321608 89212666 8EL737295-001 9212666 AEA3229 ALT12082 CA1220IR CAL30124AS CAL30124GS CAL30125AS CAL30125GS DAN525 DRA3397 LRB00329 SA077 SA779Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 12.50 mm |
| Diameter (D.2) | 16.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 70.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 59 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.6 16V EL | [182A6.000] | 10.1995-10.2001 |
| FIAT | Brava 1.6 16V SX | [182A4.000] | 02.1996-10.1998 |
| FIAT | Bravo 1.6 | [182A6.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.6 SX | [182A4.000] | 03.1996-10.1998 |
| FIAT | Marea 1.6 i 16V | [182A4.000] | 09.1996-02.1999 |
| FIAT | Palio 1.4 | [178B2.000] | 04.1996- |
| FIAT | Palio 1.4 | [178B2.016] | 04.1996- |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-10.1999 |
| FIAT | Siena 1.2 | [178B5.000] | 09.1998- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998- |
| LANCIA | Dedra 1.6 16V | [182A4.000] | 04.1998-10.1999 |
| LANCIA | Delta 1.6 i.e. LE | [182A4.000] | 01.1996-08.1999 |
| LANCIA | Delta 1.6 i.e. LE | [182A6.000] | 03.1996-08.1999 |
Reference Information
| 0986040651 | BOSCH |
| 11.1220 | LAUBER |
| 111689 | CARGO |
| 20104421BN | REAL |
| 20104421OE | REAL |
| 20104521BN | REAL |
| 20104521OE | REAL |
| 20110327 | PRESTOLITE |
| 2030124 | SANDO |
| 2030125 | SANDO |
| 210177 | ERA |
| 210741 | ERA |
| 21328N | WAI / TRANSPO |
| 28-2630 | ELSTOCK |
| 301196RI | KUHNER |
| 301196RIM | KUHNER |
| 301220RI | KUHNER |
| 32321295 | HERTH+BUSS |
| 437669 | VALEO |
| 4500 | CEVAM |
| 46208441 | FIAT |
| 46231698 | FIAT |
| 46231705 | FIAT |
| 46407648 | FIAT |
| 46420962 | FIAT |
| 46428733 | FIAT |
| 46432411 | FIAT |
| 46432732 | FIAT |
| 56653 | EAI |
| 5895036 | FIAT |
| 63321295 | MAGNETI MARELLI |
| 63321606 | MAGNETI MARELLI |
| 63321607 | MAGNETI MARELLI |
| 63321608 | MAGNETI MARELLI |
| 7788683 | FIAT |
| 89212666 | POWERMAX |
| 8EL737295-001 | HELLA |
| 9212666 | POWERMAX |
| AEA3229 | AUTOELECTRO |
| ALT12082 | WOODAUTO |
| ALT2390 | SIOM |
| ALT90004 | ELECTROLOG |
| ALTS111 | 3EFFE |
| ANM35617X | ANDEL |
| CA1220IR | HC PARTS |
| CAL30124AS | CASCO |
| CAL30124GS | CASCO |
| CAL30125AS | CASCO |
| CAL30125GS | CASCO |
| CQ1140003 | LAUBER |
| DAN525 | DENSO |
| DRA3397 | DELCO |
| F032111689 | CARGO |
| LRB00329 | LUCAS |
| LRB329 | LUCAS |
| SA077 | SOVEREIGN |
| SA779 | SOVEREIGN |
| STA0095R | BOVEZ |
| STX100213 | STARDAX |
| STX100213R | STARDAX |
| STX100276 | STARDAX |
| STX100276R | STARDAX |
| STX100382 | STARDAX |
| STX100382R | STARDAX |
Video/Publications
