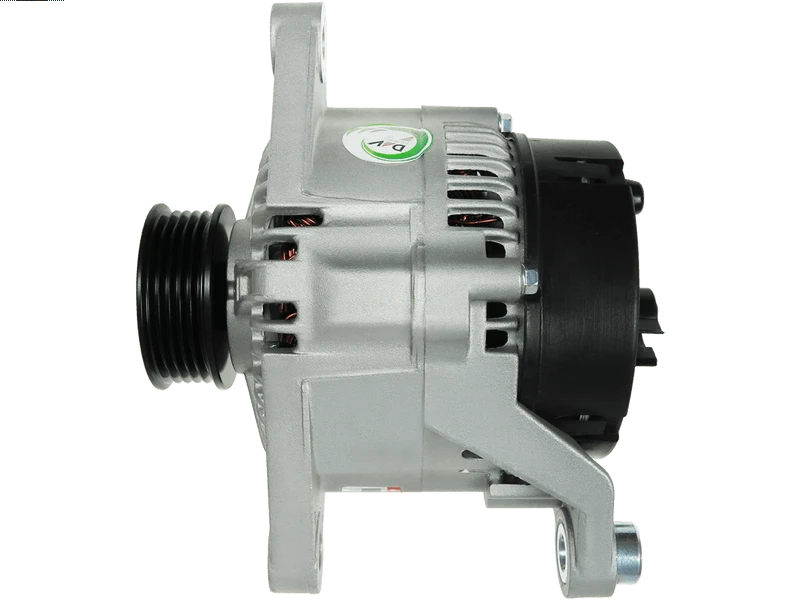

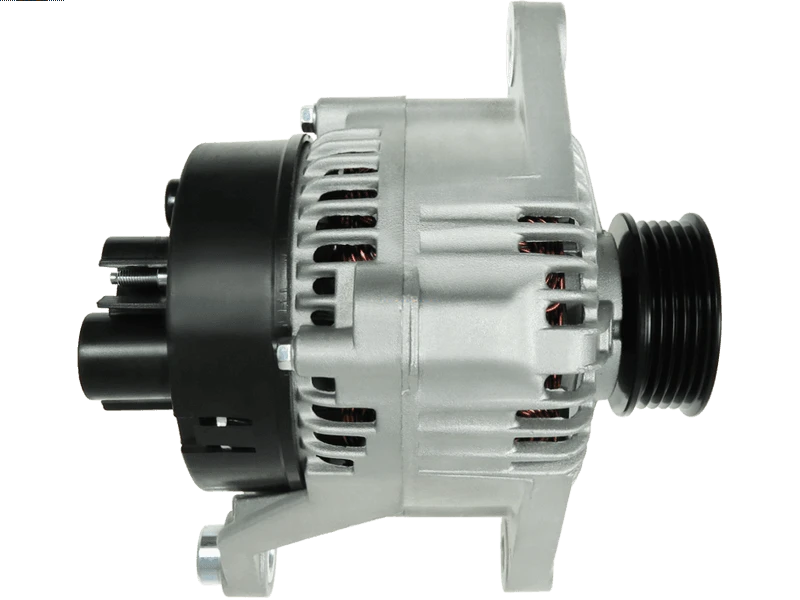

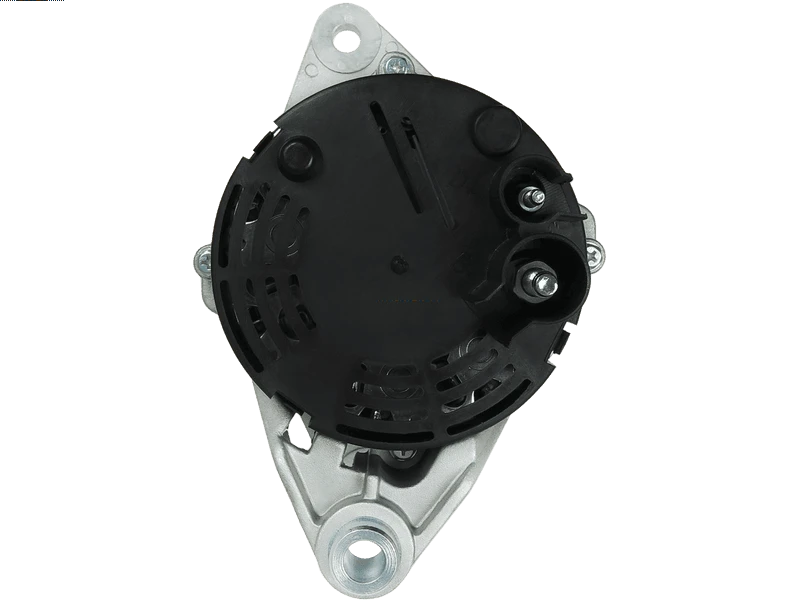

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 307.38 including GST
NZ$ 267.29 excluding GST
or four payments of $76.85
with
Learn More
each
A4006
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321617Associated Numbers
11.1258 11.1258M 111802 1305709080 1315060080 20104621BN 20110292 2030126 21292N 28-2845 301258RI 32321620 437851 4510 46430110 46434930 56564 63321205 63321276 63321361 63321617 89213842 8EL737405-001 9090031 9213842 AEA2292 CA1258IR CAL30126AS DRA3646 LRB00292 SA050 SB067Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 16.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 62.50 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Ducato 1.9 Diesel | [230A2.000] | 03.1994-04.2002 |
| FIAT | Ducato 1.9 Diesel Combinato | [230A2.000] | 06.1995-10.2001 |
| FIAT | Ducato 1.9 TD | [230A3.000] | 03.1994-04.2002 |
| FIAT | Ducato 1.9 TD | [230A4.000] | 08.1994-04.2002 |
Reference Information
| 063321617010 | MAGNETI MARELLI |
| 11.1258 | LAUBER |
| 11.1258M | LAUBER |
| 111802 | CARGO |
| 1305709080 | IVECO |
| 1315060080 | IVECO |
| 20104621BN | REAL |
| 20104621OE | REAL |
| 20110292 | PRESTOLITE |
| 2030126.0 | SANDO |
| 2030126.1 | SANDO |
| 210079 | ERA |
| 21292N | WAI / TRANSPO |
| 28-2845 | ELSTOCK |
| 301258RI | KUHNER |
| 32321620 | HERTH+BUSS |
| 437851 | VALEO |
| 4510 | CEVAM |
| 46231763 | FIAT |
| 46430110 | FIAT |
| 46434930 | FIAT |
| 56564 | EAI |
| 5895030 | FIAT |
| 63321205 | MAGNETI MARELLI |
| 63321276 | MAGNETI MARELLI |
| 63321361 | MAGNETI MARELLI |
| 63321617 | MAGNETI MARELLI |
| 89213842 | POWERMAX |
| 8EL737405-001 | HELLA |
| 9090031 | FRIESEN |
| 9213842 | POWERMAX |
| A4006 | AS-PL |
| AEA2292 | AUTOELECTRO |
| ALT2400 | SIOM |
| ALTS114 | 3EFFE |
| ANM35866X | ANDEL |
| CA1258IR | HC PARTS |
| CAL30126AS | CASCO |
| CAL30126GS | CASCO |
| DAN627 | DENSO |
| DRA3646 | DELCO |
| F032111802 | CARGO |
| LRB00292 | LUCAS |
| LRB292 | LUCAS |
| PRAS114 | 3EFFE |
| RNL63341617 | RNL |
| SA050 | SOVEREIGN |
| SB067 | SOVEREIGN |
| STA0183R | BOVEZ |
| STX100214 | STARDAX |
| STX100214R | STARDAX |
Video/Publications
