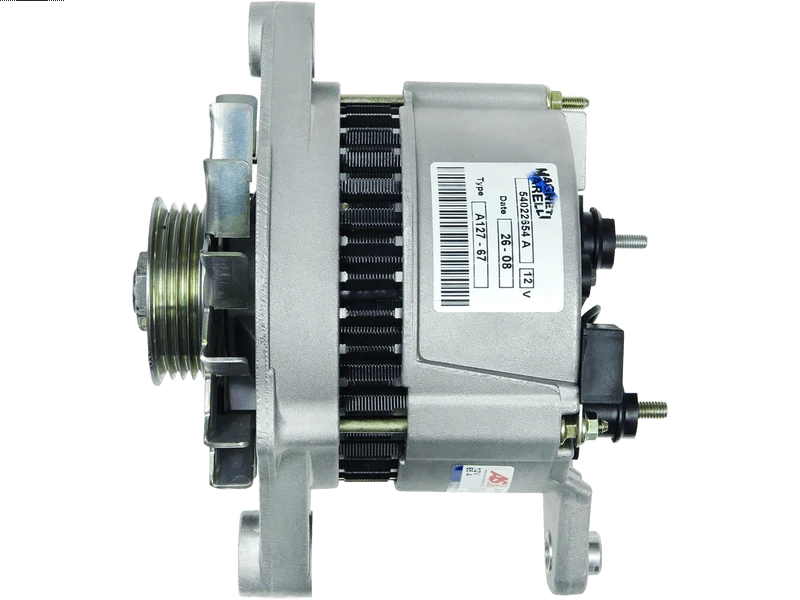

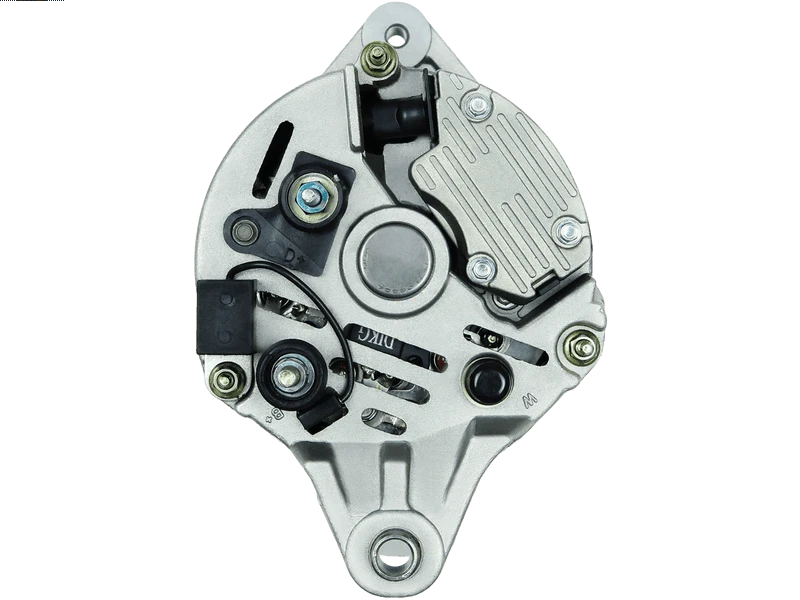

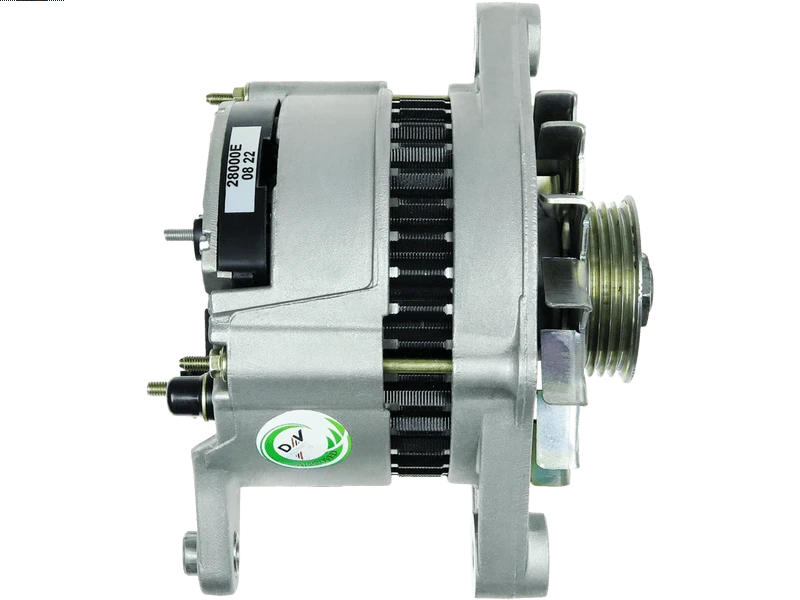

Brand new OEM MAGNETI MARELLI Alternator
PREMIUM LINE
Magneti Marelli
MAGNETI MARELLI
Price:
NZ$ 320.03 including GST
NZ$ 278.29 excluding GST
or four payments of $80.01
with
Learn More
each
A4015(MM)
No stock in NZ currently
No stock in NZ currently
Associated Numbers
054022654010 0986038401 11.0756 11.0756M 111361 12291N 12291R 20100527 2025114 210182 23100-71J00 23100-71J00EP 23100-71J06 23100-71J10 2344 24286 24286F 28-1731 2871A166 401175RI 401175RIM 40756RI 436547 54022375 54022375010 54022375B 54022375E 54022375F 54022608 54022608010 54022608A 54022653 54022653010 54022654 54022654010 54022654A 54022662 54022664 54024279010 56470 63324286010 63324411010 89212186 8EL730089-001 90-17-8076 9051151 9087 9212186 943356280010 AEA5127 ALL0756 ALT16017 B310M-71J00EX CAL25114 CAL25114AS CAL25114ES CAL25114GS CAL25114OS CAL25114RS DRA3199 EAA-221106 GA022654-A JA756IR LRA00527 MAN765 RAA14200 SA762 UD14304A VA235Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 174 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80.50 mm |
| OEM Product | Yes |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 38.50 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Primera 1.6 | [GA16DE] | 06.1993-01.1996 |
| NISSAN | Primera 1.6 | [GA16DS] | 06.1990-06.1993 |
| NISSAN | Primera 1.6 | [GA16DS] | 06.1990-06.1996 |
Reference Information
| 002-201004 | ASHIKA |
| 054022654010 | MAGNETI MARELLI |
| 0986038401 | BOSCH |
| 11.0756 | LAUBER |
| 11.0756M | LAUBER |
| 111361 | CARGO |
| 12291N | WAI / TRANSPO |
| 12291R | WAI / TRANSPO |
| 20100527 | PRESTOLITE |
| 2025114 | SANDO |
| 210182 | ERA |
| 2201004 | JAPKO |
| 23100-71J00 | NISSAN |
| 23100-71J00EP | NISSAN |
| 23100-71J06 | NISSAN |
| 23100-71J10 | NISSAN |
| 2344 | CEVAM |
| 24286 | LUCAS |
| 24286F | LUCAS |
| 28-1731 | ELSTOCK |
| 2871A166 | PERKINS |
| 401175RI | KUHNER |
| 401175RIM | KUHNER |
| 40756RI | KUHNER |
| 436547 | VALEO |
| 442419 | LOGISTIK |
| 54022375 | LUCAS |
| 54022375010 | MAGNETI MARELLI |
| 54022375B | LUCAS |
| 54022375E | LUCAS |
| 54022375F | LUCAS |
| 54022608 | LUCAS |
| 54022608010 | MAGNETI MARELLI |
| 54022608A | LUCAS |
| 54022653 | LUCAS |
| 54022653010 | MAGNETI MARELLI |
| 54022654 | LUCAS |
| 54022654010 | MAGNETI MARELLI |
| 54022654A | LUCAS |
| 54022662 | LUCAS |
| 54022664 | LUCAS |
| 54024279010 | MAGNETI MARELLI |
| 56470 | EAI |
| 63324286010 | MAGNETI MARELLI |
| 63324411010 | MAGNETI MARELLI |
| 89212186 | POWERMAX |
| 8EL730089-001 | HELLA |
| 90-17-8076 | WILSON |
| 9051151 | FRIESEN |
| 9087 | CEVAM |
| 9212186 | POWERMAX |
| 943356280010 | MAGNETI MARELLI |
| AEA5127 | AUTOELECTRO |
| AL201004 | JAPANPARTS |
| ALL0756 | KRAUF |
| ALT16017 | WOODAUTO |
| ALT271140 | SIOM |
| ALT3670 | SIOM |
| ALT4035 | ELECTROLOG |
| ALTL134 | 3EFFE |
| B310M-71J00EX | NISSAN |
| CAL25114 | CASCO |
| CAL25114AS | CASCO |
| CAL25114ES | CASCO |
| CAL25114GS | CASCO |
| CAL25114OS | CASCO |
| CAL25114RS | CASCO |
| DRA3199 | DELCO |
| GA022654-A | GPARTS |
| JA756IR | HC PARTS |
| LRA00527 | LUCAS |
| LRA527 | LUCAS |
| MAN765 | MAGNETI MARELLI |
| RAA14200 | DELCO |
| SA762 | SOVEREIGN |
| STX100270 | STARDAX |
| UD14304A | AS-PL |
| VA235 | VALEO |
