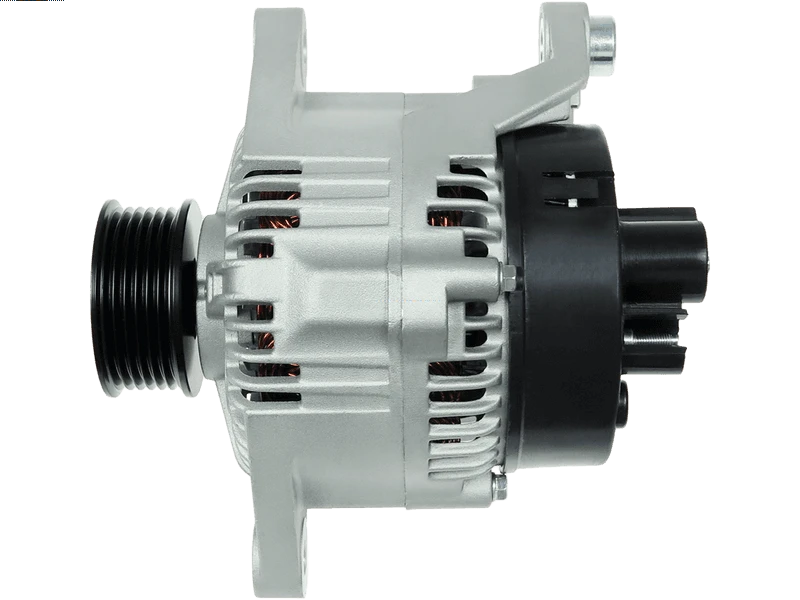

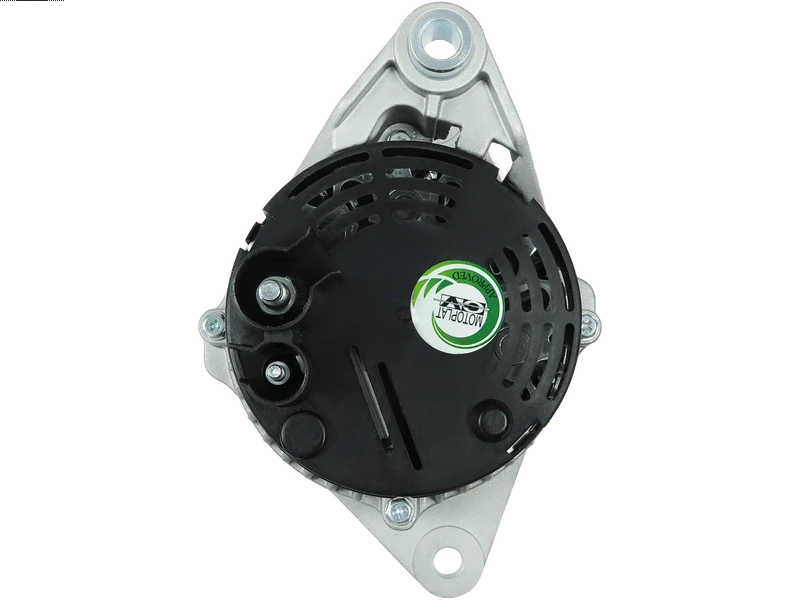

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 317.72 including GST
NZ$ 276.28 excluding GST
or four payments of $79.43
with
Learn More
each
A4016
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321302Associated Numbers
0124225016 11.1161 111417 20104721BN 20104721OE 2030127 28-2719 301161RI 301161RID 4503 46540294 56576 63321302 63321618 89212105 8EL737208-001 9090133 9212105 A4016 AEA2216 ALT12041 CA1161IR CAL30127AS CAL30127GS DAN628 DRA3407 EAA-221289 LRA01581Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 12.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41.50 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.9 Diesel | [160A7.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.9 Diesel | [160A7.000] | 10.1995-10.2001 |
| FIAT | Palio 1.7 TD | [176A3.000] | 04.1996-03.2001 |
| FIAT | Strada 1.7 TD | [176A3.000] | 06.1999- |
Reference Information
| 0124225016 | BOSCH |
| 11.1161 | LAUBER |
| 111417 | CARGO |
| 20104721BN | REAL |
| 20104721OE | REAL |
| 2030127 | SANDO |
| 210355 | ERA |
| 28-2719 | ELSTOCK |
| 301161RI | KUHNER |
| 301161RID | KUHNER |
| 4503 | CEVAM |
| 46425517 | FIAT |
| 46540294 | FIAT |
| 56576 | EAI |
| 63321302 | MAGNETI MARELLI |
| 63321618 | MAGNETI MARELLI |
| 7798011 | FIAT |
| 89212105 | POWERMAX |
| 8EL737208-001 | HELLA |
| 9090133 | FRIESEN |
| 9212105 | POWERMAX |
| A12MA1249A2 | SIDAT |
| A4016 | AS-PL |
| ALT0712 | 3EFFE |
| ALT12041 | WOODAUTO |
| ALT2260 | SIOM |
| ALT90078 | ELECTROLOG |
| ANM35627X | ANDEL |
| CA1161IR | HC PARTS |
| CAL30127AS | CASCO |
| CAL30127GS | CASCO |
| DAN628 | DENSO |
| DRA3407 | DELCO |
| F032111417 | CARGO |
| LRA01581 | LUCAS |
| LRA1581 | LUCAS |
| STX100320 | STARDAX |
| STX100654 | STARDAX |
Video/Publications
