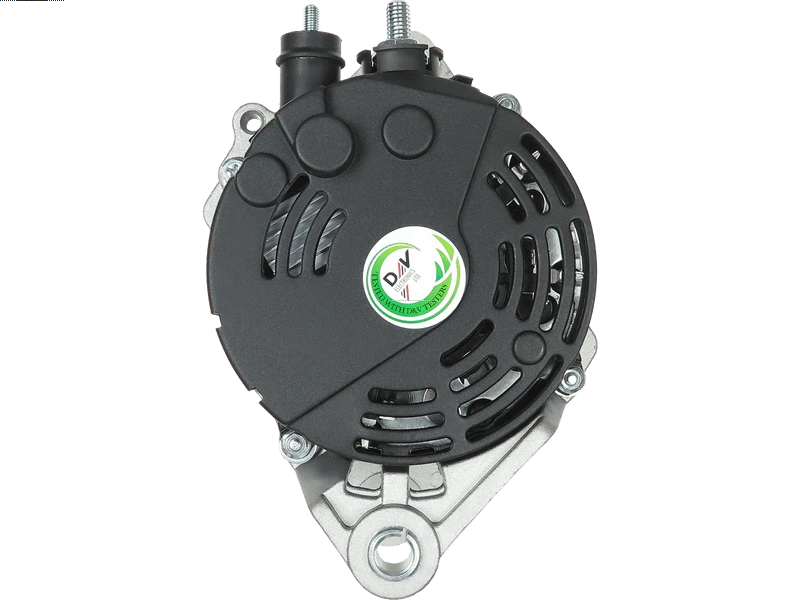

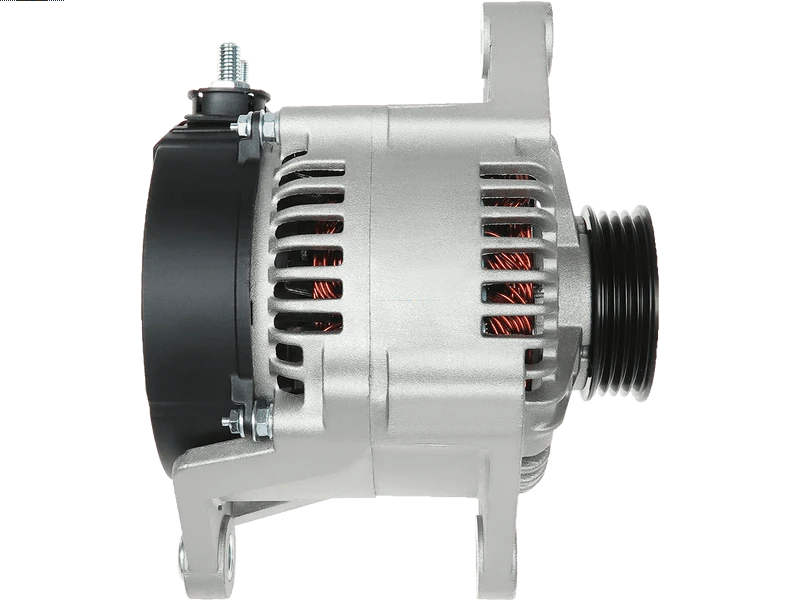

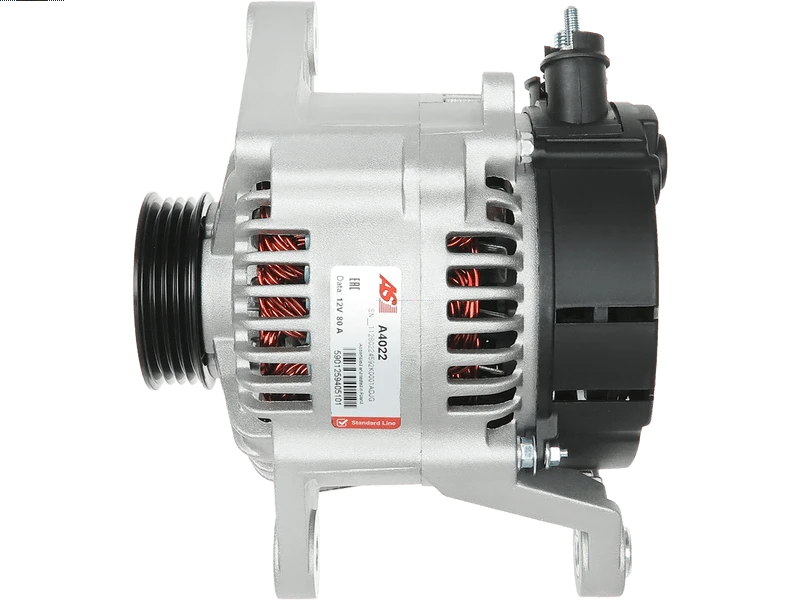

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 315.45 including GST
NZ$ 274.30 excluding GST
or four payments of $78.86
with
Learn More
each
A4022
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986044801 11.1174 11.1174M 111632 20110226 20117201BN 2045102 21225N 23100-2F000 23100-2F001 23100-2F010 28-2896 401174RI 401174RIM 437480 56582 63321356 63321692 63321692A 63321704 63341356 63341704 89213278 8EL737308-001 9074 9213278 AEA2226 ALT12010 CAL45102AS DRA3584 EAA-221234 JA1174IR LRB00226 SA882Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Primera 1.6 16V | (P11)[GA16DE] | 06.1996-12.2001 |
Reference Information
| 002-201009 | ASHIKA |
| 0986044801 | BOSCH |
| 11.1174 | LAUBER |
| 11.1174M | LAUBER |
| 111632 | CARGO |
| 20110226 | PRESTOLITE |
| 20117201BN | REAL |
| 2045102 | SANDO |
| 210151 | ERA |
| 21225N | WAI / TRANSPO |
| 2201009 | JAPKO |
| 231002F00 | NISSAN |
| 23100-2F000 | NISSAN |
| 23100-2F001 | NISSAN |
| 23100-2F010 | NISSAN |
| 28-2896 | ELSTOCK |
| 401174RI | KUHNER |
| 401174RIM | KUHNER |
| 437480 | VALEO |
| 56582 | EAI |
| 63321356 | MAGNETI MARELLI |
| 63321692 | MAGNETI MARELLI |
| 63321692A | MAGNETI MARELLI |
| 63321704 | MAGNETI MARELLI |
| 63341356 | MAGNETI MARELLI |
| 63341704 | MAGNETI MARELLI |
| 89213278 | POWERMAX |
| 8EL737308-001 | HELLA |
| 9074 | CEVAM |
| 9213278 | POWERMAX |
| A4022 | AS-PL |
| AEA2226 | AUTOELECTRO |
| AL201009 | JAPANPARTS |
| ALT12010 | WOODAUTO |
| ALT124 | ROLLCO |
| ALT2210 | SIOM |
| ALT90079 | ELECTROLOG |
| ALTW064 | 3EFFE |
| ANM35804X | ANDEL |
| CAL45102AS | CASCO |
| DRA3584 | DELCO |
| F032111632 | CARGO |
| JA1174IR | HC PARTS |
| LRB00226 | LUCAS |
| LRB226 | LUCAS |
| SA882 | SOVEREIGN |
| STA0244R | BOVEZ |
| STX100381 | STARDAX |
