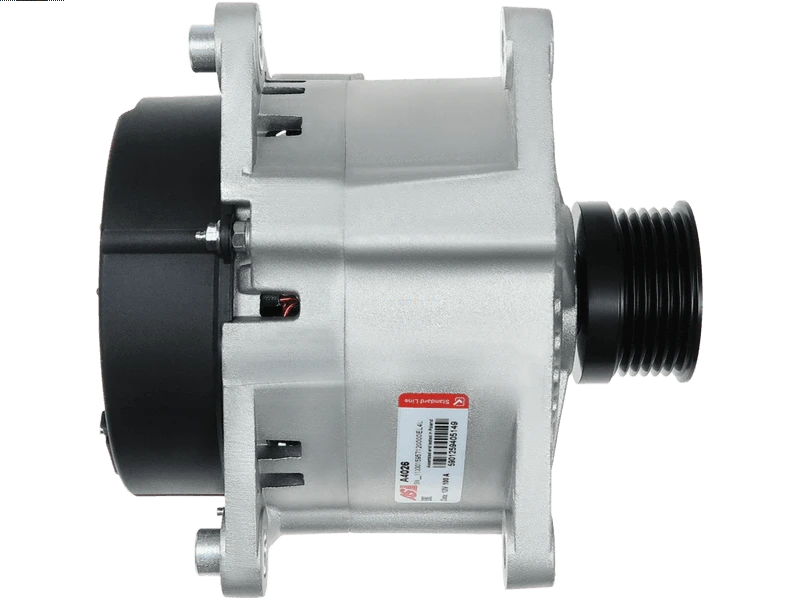

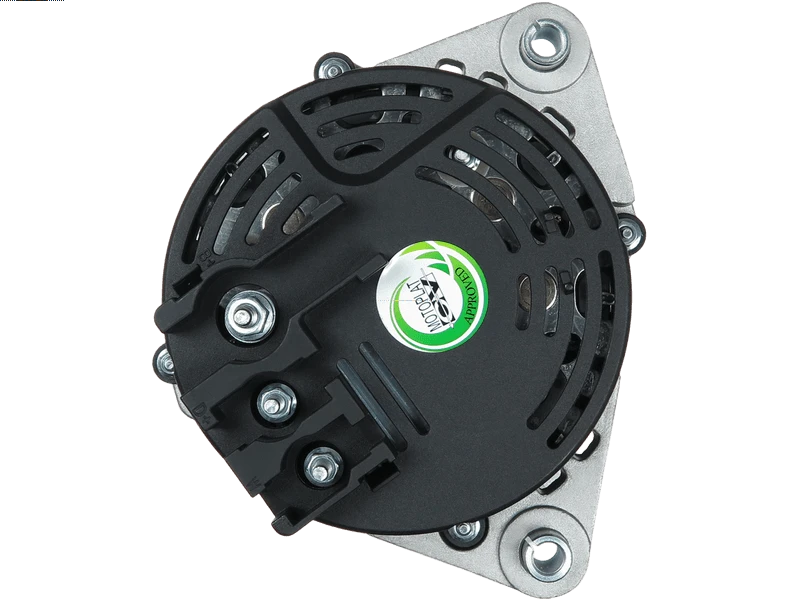

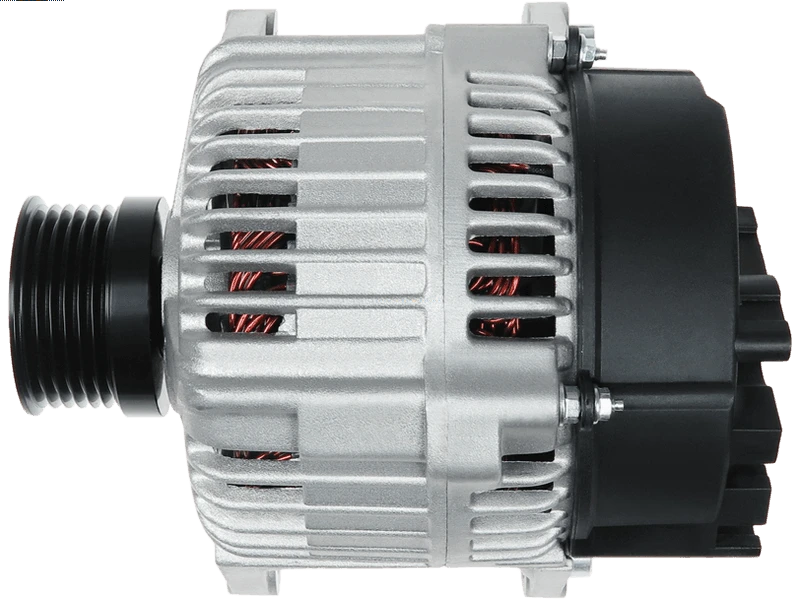

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 383.04 including GST
NZ$ 333.08 excluding GST
or four payments of $95.76
with
Learn More
each
A4026
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321333Associated Numbers
0986044771 11.1252 20104121BN 20130205 2030121 21285N 24330 28-3640 301252RI 301252RIM 437852 4614 54022454 54022454B 56529 63320310 63321333 63321352 63341333 89212335 8EL737398-001 AEA2285 ALT12028 CA1252IR CAL30121AS CAL30121GS DRA3758 EAA-221571 LRB00285 SA048 YLE10130 YLE101850 YLE101880Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 39.50 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ROVER | 820 2.0 i | [20HD] | 10.1988-12.1991 |
| ROVER | 820 2.0 i | [20T4H] | 01.1992-01.1996 |
| ROVER | 820 2.0 i | [20T4H] | 01.1993-01.1996 |
| ROVER | 820 2.0 Si | [20HDM16] | 01.1991-12.1991 |
| ROVER | 820 2.0 Si | [20HDM16] | 10.1988-12.1991 |
| ROVER | 820 2.0 Turbo 16V | [T16] | 01.1992-02.1999 |
Reference Information
| 0986044771 | BOSCH |
| 11.1252 | LAUBER |
| 20104121BN | REAL |
| 20130205 | PRESTOLITE |
| 2030121 | SANDO |
| 209390 | ERA |
| 21285N | WAI / TRANSPO |
| 24330 | LUCAS |
| 28-3640 | ELSTOCK |
| 301252RI | KUHNER |
| 301252RIM | KUHNER |
| 437852 | VALEO |
| 4614 | CEVAM |
| 54022454 | LUCAS |
| 54022454B | LUCAS |
| 56529 | EAI |
| 63320310 | MAGNETI MARELLI |
| 63321333 | MAGNETI MARELLI |
| 63321352 | MAGNETI MARELLI |
| 63341333 | MAGNETI MARELLI |
| 89212335 | POWERMAX |
| 8EL737398-001 | HELLA |
| AEA2285 | AUTOELECTRO |
| ALT12028 | WOODAUTO |
| ALT2610 | SIOM |
| ALT9019 | ELECTROLOG |
| ALTL711 | 3EFFE |
| AMR3107 | ROVER |
| CA1252IR | HC PARTS |
| CAL30121AS | CASCO |
| CAL30121GS | CASCO |
| DRA3758 | DELCO |
| LRB00285 | LUCAS |
| LRB285 | LUCAS |
| SA048 | SOVEREIGN |
| STX100597 | STARDAX |
| YLE10124 | ROVER |
| YLE10124E | ROVER |
| YLE10130 | ROVER |
| YLE101850 | ROVER |
| YLE101880 | ROVER |
Video/Publications
