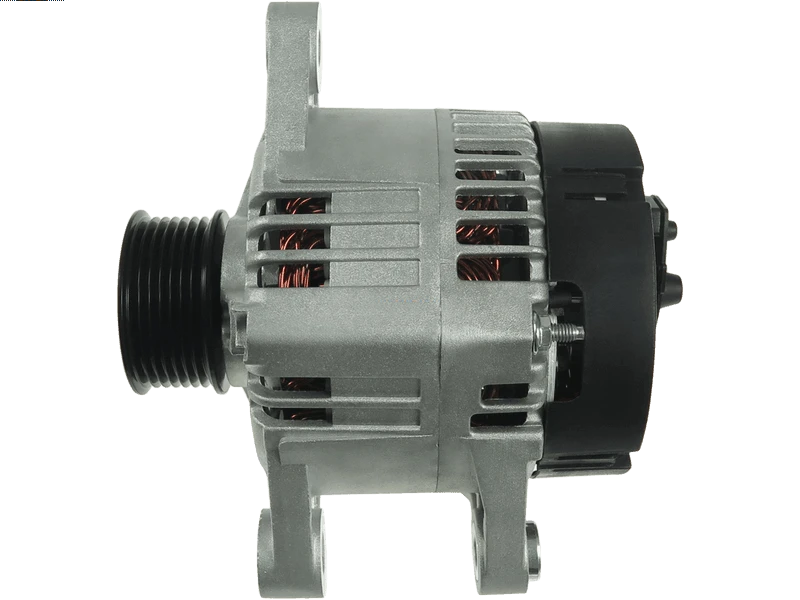

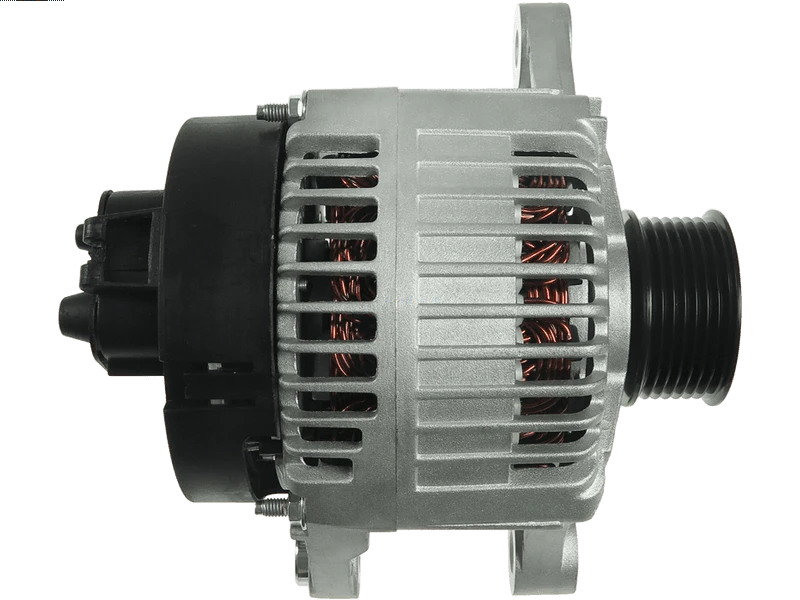

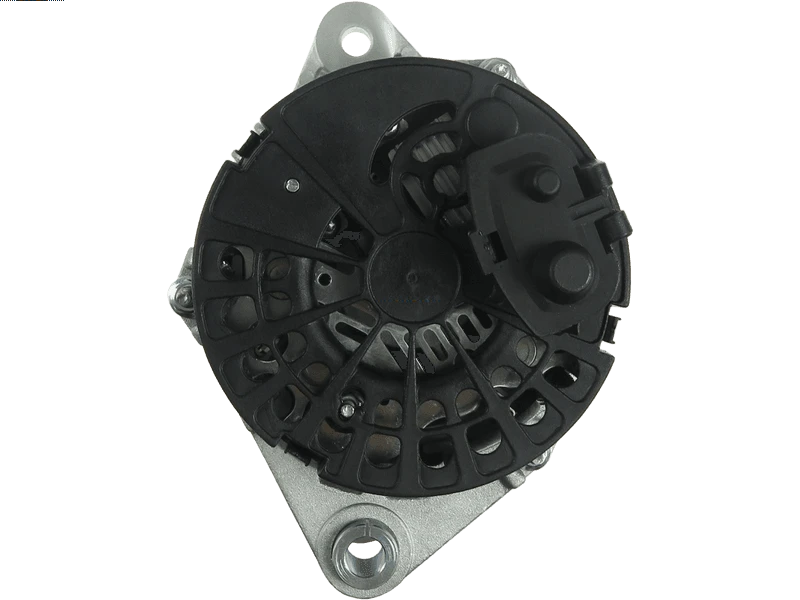

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 395.53 including GST
NZ$ 343.94 excluding GST
or four payments of $98.88
with
Learn More
each
A4027
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63321241Associated Numbers
11.1208 111409 20104541BN 20104541OE 20110423 2030145 28-2721 301208RI 301216RI 301216RID 437635 4573 46765835 56619 60812583 63321241 63321246 63321349 63321800 7781075 89212525 8EL737282-001 9090201 9212525 AEA4223 ALT12030 CA1208IR CAL30145AS CAL30145GS DAN632 DRA4037 EAA-221357 LRB00423 SA135Specifications
| Amp | 95 A |
| Bottom Mounting Foot Width (B) | 22 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 207 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 145 1.6 i.e. | [AR33201] | 10.1994-12.1996 |
| ALFA ROMEO | 145 2.0 Twin Spark i.e. 16V | [AR67204] | 10.1994-10.2001 |
| ALFA ROMEO | 155 1.6 Twin Spark | [AR67601] | 05.1996-10.1997 |
| ALFA ROMEO | 155 2.0 Twin Spark 16V | [AR67204] | 12.1995-12.1997 |
| ALFA ROMEO | Alfa 145 2.0 Twin Spark i.e. 16V | [AR67204] | 10.1994-10.2001 |
| ALFA ROMEO | Alfa 146 1.6 i.e. | [AR33201] | 05.1995-11.1996 |
| ALFA ROMEO | Alfa 146 2.0 Twin Spark 16V | [AR67204] | 10.1994-10.2001 |
| ALFA ROMEO | GTV 2.0 16V | [AR32301] | 05.1998-08.2000 |
| ALFA ROMEO | GTV 2.0 Twin Spark 16V | [AR16201] | 06.1995- |
| ALFA ROMEO | GTV 2.0 Twin Spark 16V | [AR32310] | 12.1995- |
| ALFA ROMEO | Spider 2.0 Twin Spark 16V | [AR16201] | 12.1995-04.2005 |
| ALFA ROMEO | Spider 2.0 Twin Spark 16V | [AR32310] | 06.1995-10.1999 |
Reference Information
| 0046430531 | FIAT |
| 11.1208 | LAUBER |
| 111409 | CARGO |
| 20104541BN | REAL |
| 20104541OE | REAL |
| 20110423 | PRESTOLITE |
| 2030145 | SANDO |
| 210249 | ERA |
| 210631 | ERA |
| 28-2721 | ELSTOCK |
| 301208RI | KUHNER |
| 301216RI | KUHNER |
| 301216RID | KUHNER |
| 437635 | VALEO |
| 4573 | CEVAM |
| 46412681 | FIAT |
| 46430530 | FIAT |
| 46430531 | FIAT |
| 46430533 | FIAT |
| 46447117 | FIAT |
| 46448434 | FIAT |
| 46709068 | FIAT |
| 46748343 | FIAT |
| 46763532 | FIAT |
| 46765835 | FIAT |
| 56619 | EAI |
| 60812583 | ALFA ROMEO |
| 60812713 | FIAT |
| 60812814 | FIAT |
| 60816047 | FIAT |
| 63321241 | MAGNETI MARELLI |
| 63321246 | MAGNETI MARELLI |
| 63321349 | MAGNETI MARELLI |
| 63321800 | MAGNETI MARELLI |
| 71721172 | FIAT |
| 71773260 | FIAT |
| 7781075 | FIAT |
| 89212525 | POWERMAX |
| 8EL737282-001 | HELLA |
| 9090201 | FRIESEN |
| 9212525 | POWERMAX |
| AEA4223 | AUTOELECTRO |
| ALT12030 | WOODAUTO |
| ALT122620 | SIOM |
| ALT2190 | SIOM |
| ALT2430 | SIOM |
| ALT321450 | SIOM |
| ALT90044 | ELECTROLOG |
| ALTL036 | 3EFFE |
| ANM36257X | ANDEL |
| CA1208IR | HC PARTS |
| CAL30145AS | CASCO |
| CAL30145GS | CASCO |
| DAN632 | DENSO |
| DRA4037 | DELCO |
| F032111409 | CARGO |
| LRB00423 | LUCAS |
| LRB423 | LUCAS |
| SA135 | SOVEREIGN |
| STA0031R | BOVEZ |
| STX100245 | STARDAX |
| STX100245R | STARDAX |
| STX100287 | STARDAX |
| STX100540 | STARDAX |
| STX101441 | STARDAX |
Video/Publications
