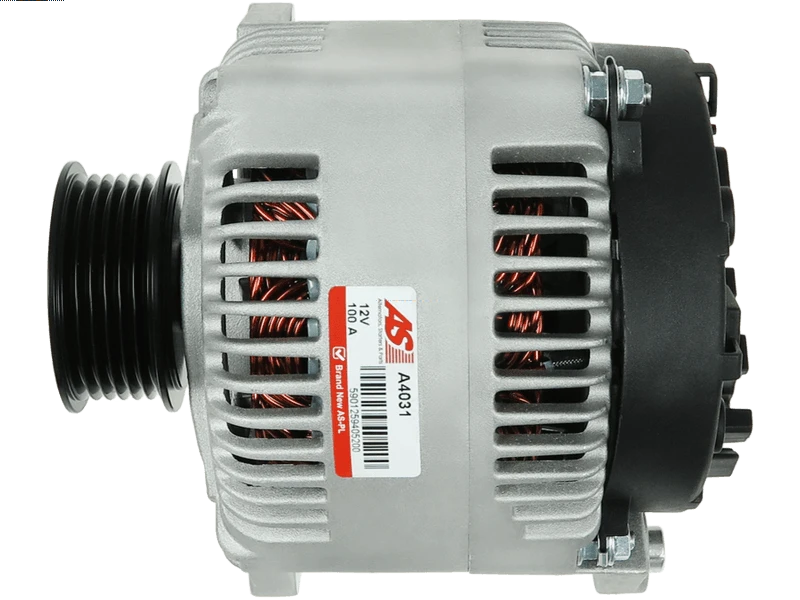

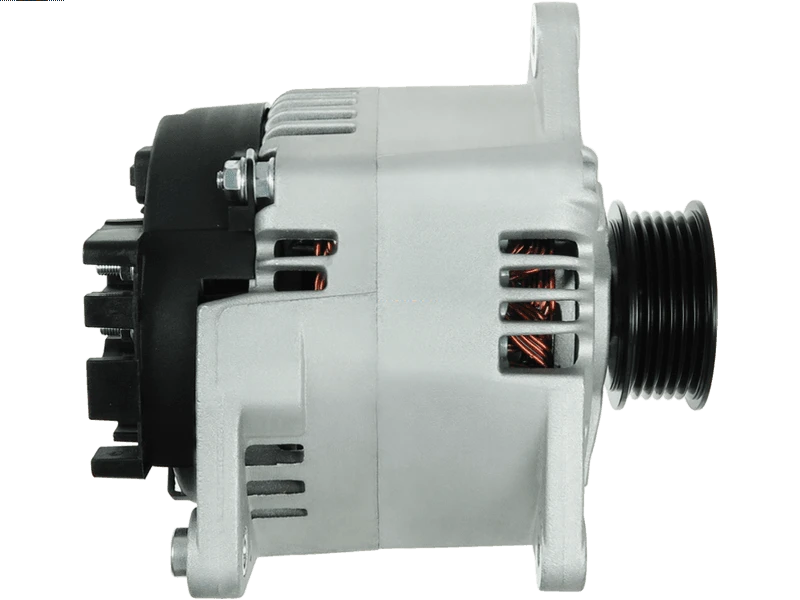

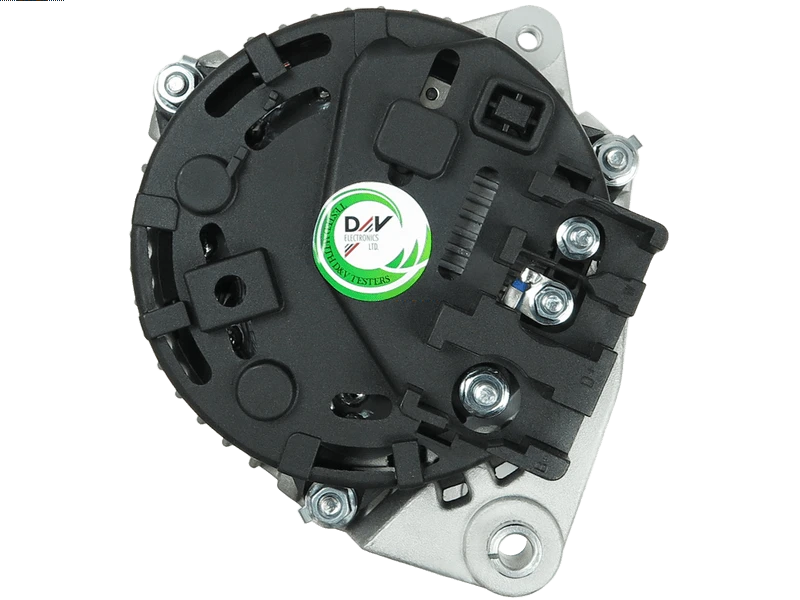

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 421.08 including GST
NZ$ 366.16 excluding GST
or four payments of $105.27
with
Learn More
each
A4031
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
63221344Associated Numbers
0986039891 1058821 1073049 11.1085 112698 20110287 21288N 2320 28-2637 28-2798 2871A167 301085RIM 35000195 437774 440024 4523 5030343 54022549 56568 56767 63221344 63321324 63321343 63321344 63321422 63321465 63321473 63341343 63341344 714-32300 7312901 89213180 8EL737034-001 9039891 943341343 95GB10300LA 95GB10300LB 95GB10300MA 95GB10300MB AEA2287 ALT12022 CA1085IR DRA9891 EAA-221537 LRB00287 LRB00288 R95GB10300MA R95GB10300MB SA078Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83.50 mm |
| OEM Product | No |
| Plug Code | PL_9109 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 59.50 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Solid |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Scorpio 2.9 i | [BRG] | 02.1995-12.1998 |
| FORD | Scorpio 2.9 i 24V | [BOB] | 10.1994-12.1998 |
Reference Information
| 0986039891 | BOSCH |
| 1058821 | FORD |
| 1073049 | FORD |
| 11.1085 | LAUBER |
| 112698 | CARGO |
| 20110287 | PRESTOLITE |
| 21288N | WAI / TRANSPO |
| 28-2637 | ELSTOCK |
| 28-2798 | ELSTOCK |
| 2871A167 | PERKINS |
| 301085RIM | KUHNER |
| 35000195 | HERTH+BUSS |
| 437774 | VALEO |
| 440024 | VALEO |
| 4523 | CEVAM |
| 5030343 | FORD |
| 54022549 | LUCAS |
| 56568 | EAI |
| 56767 | EAI |
| 63221344 | MAGNETI MARELLI |
| 63321324 | MAGNETI MARELLI |
| 63321343 | MAGNETI MARELLI |
| 63321344 | MAGNETI MARELLI |
| 63321422 | MAGNETI MARELLI |
| 63321465 | MAGNETI MARELLI |
| 63321473 | MAGNETI MARELLI |
| 63341343 | MAGNETI MARELLI |
| 63341344 | MAGNETI MARELLI |
| 714-32200 | JCB |
| 714-32300 | JCB |
| 714-40153 | JCB |
| 714-40154 | JCB |
| 714-40155 | JCB |
| 7312901 | FORD |
| 89213180 | POWERMAX |
| 8EL737034-001 | HELLA |
| 9039891 | FRIESEN |
| 943341343 | MAGNETI MARELLI |
| 95GB10300LA | FORD |
| 95GB10300LB | FORD |
| 95GB10300MA | FORD |
| 95GB10300MB | FORD |
| AEA2287 | AUTOELECTRO |
| ALT12022 | WOODAUTO |
| ALTS993 | 3EFFE |
| ANM32111X | ANDEL |
| CA1085IR | HC PARTS |
| DRA9891 | DELCO |
| F032112698 | CARGO |
| LRB00287 | LUCAS |
| LRB00288 | LUCAS |
| LRB287 | LUCAS |
| LRB288 | LUCAS |
| R95GB10300MA | FORD |
| R95GB10300MB | FORD |
| SA078 | SOVEREIGN |
| STA0245R | BOVEZ |
| STX101350 | STARDAX |
Video/Publications
